INSTALLATION

Reverse the preceding operation.

REAR WINDOW GLASS

REMOVAL (FIG. 29)

The rear window moulding often cannot be sal-

vaged after removal operation is completed. Verify
moulding availability from the parts supplier before
removing moulding.

(1) Remove rear deck filler panel.
(2) Pull rear window moulding from between glass

and roof panel.

(3) Remove interior trim as necessary to gain ac-

cess to rear window defogger wire connector and
ground screw, if equipped.

(4) Remove vinyl roof bonnet, if equipped.

WARNING: WEAR EYE AND HAND PROTECTION
WHEN HANDLING SAFETY GLASS. PERSONAL IN-
JURY CAN RESULT.

CAUTION: Do not damage body or trim finish when
cutting out glass or applying fence primer.

(5) Cut the urethane around the perimeter of the

back window glass. Refer to Windshield section of
this group for proper procedures.

(6) Separate the rear window from the vehicle.

INSTALLATION

(1) Prepare the work area, window fence, and glass

the same way as described in the Windshield section
of this group.

(2) Place fence spacers at the locations shown (Fig.

29).

(3) Apply a 10 mm (0.4 in.) bead of urethane

around the perimeter of the glass.

(4) Install the glass in the same manner described

in the Windshield section of this group.

(5) Install the rear window moulding in the gap

between the glass and the roof panel.

(6) Secure moulding and glass in position with

suitable tape. Remove tape after urethane has cured.

(7) Connect rear window defogger wiring. Install

interior trim and rear deck filler panel.

(8) After urethane has cured, water test rear win-

dow to verify repair. Verify rear window defogger op-
eration, see Group 8N, Rear Window Defogger.

TRUNK LID

REMOVAL (FIG. 30)

(1) Raise trunk lid to full up position.
(2) Disconnect the trunk lamp wire connector.
(3) Mark all bolt and hinge attachment locations

with a grease pencil or other suitable device to pro-
vide reference marks for installation. When install-
ing trunk lid, align all marks and secure bolts. The
trunk lid should be aligned to 4 mm (0.160 in.) gap
to the quarter panels and flush across the top sur-
faces along quarter panels.

(4) Remove the top trunk lid to hinge attaching

bolts and loosen the bottom bolts until they can be
removed by hand.

(5) With assistance of a helper at the opposite side

of the vehicle to support the trunk lid, remove the
bottom trunk lid to hinge attaching bolts. Separate
the trunk lid from the vehicle.

INSTALLATION

Reverse the preceding operation.

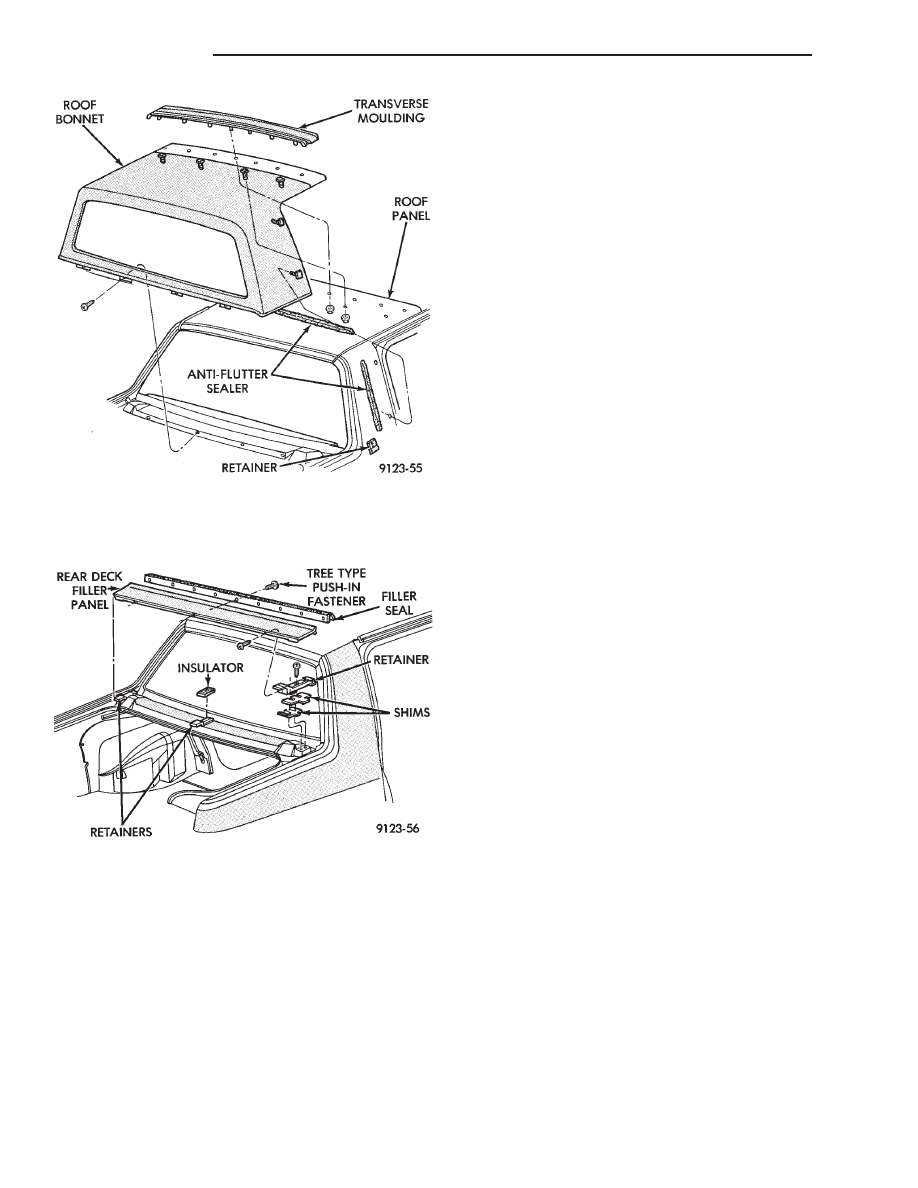

Fig. 27 Vinyl Roof Bonnet—Typical

Fig. 28 Rear Deck Filler Panel—Typical

23 - 50

AC-BODY

Ä

TRUNK LID HINGE

REMOVAL

(1) Remove rear deck filler panel.
(2) Disconnect trunk lid lift torsion bars from

hinges.

(3) Mark all attaching bolt, nut, and component lo-

cations with a suitable marking device. Use marks
as a reference when installing hinge.

(4) Remove bolts holding trunk lid to hinge.
(5) Remove nuts and bolts holding hinge to closure

panel below rear window glass.

(6) Separate hinge from vehicle.

INSTALLATION

Reverse the preceding operation.

TRUNK LID TORSION BAR

REMOVAL

(1) Raise and support trunk lid in the full up posi-

tion.

(2) Remove trunk lining as necessary to gain ac-

cess to torsion bars.

(3) Disengage adjusting end torsion bar from the

slot in the tension adjustment bracket.

(4) Pivot torsion bar out of lift arm swivel.
(5) Disconnect torsion bar from hinge.

INSTALLATION

Reverse the preceding operation.

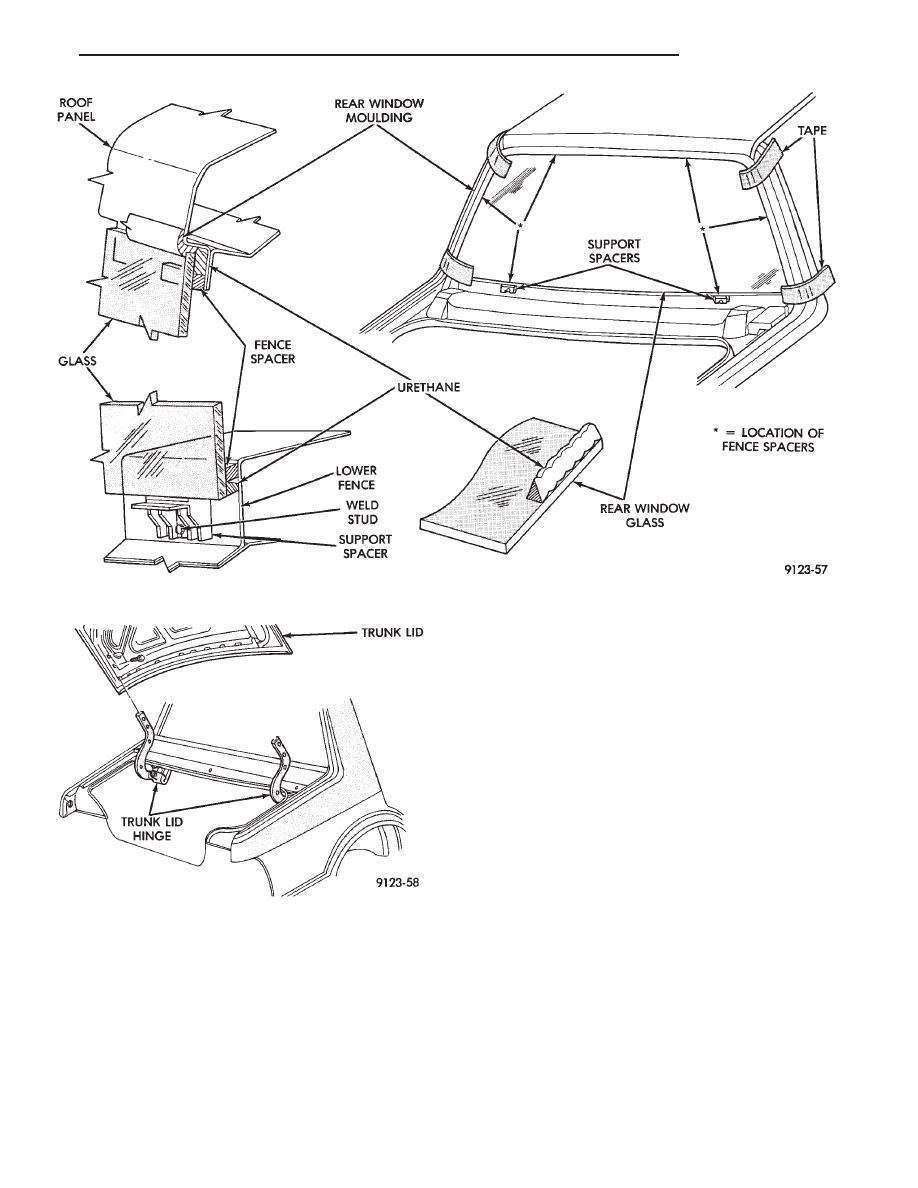

Fig. 29 Rear Window Glass—Typical

Fig. 30 Trunk Lid

Ä

AC-BODY

23 - 51

AG-VEHICLE BODY COMPONENT SERVICE

INDEX

page

page

A-Pillar and Roof Rail Mouldings

. . . . . . . . . . . . . 61

Body Side Applique

. . . . . . . . . . . . . . . . . . . . . . . 60

Body Side Mouldings

. . . . . . . . . . . . . . . . . . . . . . 60

Closure Panel Sight Shield

. . . . . . . . . . . . . . . . . 52

Cowl Cover

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Door Glass

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Door Glass Opening Moulding

. . . . . . . . . . . . . . . 59

Door Latch

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Door Opening Scuff Plates

. . . . . . . . . . . . . . . . . 61

Door Opening Weatherstrips

. . . . . . . . . . . . . . . . 60

Door Trim Panel

. . . . . . . . . . . . . . . . . . . . . . . . . 56

Floor Carpet

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Front Center Console

. . . . . . . . . . . . . . . . . . . . . 64

Front Door and Hinge

. . . . . . . . . . . . . . . . . . . . . 56

Front Door Silencer and Water Shield

. . . . . . . . . 56

Front End Splash Shields

. . . . . . . . . . . . . . . . . . 54

Front Fender

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Front Seat Belts

. . . . . . . . . . . . . . . . . . . . . . . . . 61

Front Seats

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Fuel Fill Door

. . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Glass Run Weatherstrip

. . . . . . . . . . . . . . . . . . . 58

Head Lining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Hood and Hinges

. . . . . . . . . . . . . . . . . . . . . . . . 52

Hood Applique

. . . . . . . . . . . . . . . . . . . . . . . . . . 54

Hood Latch and Release Cable

. . . . . . . . . . . . . . 53

Hood Latch Safety Catch

. . . . . . . . . . . . . . . . . . 54

Inside Latch Release Handle

. . . . . . . . . . . . . . . . 59

Lift Gate

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Lift Gate and Fuel Fill Door Release Cables

. . . . 69

Lift Gate Latch and Striker

. . . . . . . . . . . . . . . . . 68

Lift Gate Lock Cylinder

. . . . . . . . . . . . . . . . . . . . 68

Lift Gate Prop Cylinder

. . . . . . . . . . . . . . . . . . . . 67

Lift Gate Spoiler

. . . . . . . . . . . . . . . . . . . . . . . . . 67

Lift Gate Trim

. . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Lower Quarter Trim Panel

. . . . . . . . . . . . . . . . . . 61

Lower Tail Panel Trim Cover

. . . . . . . . . . . . . . . . 61

Manual Window Lift Plate and Guide

. . . . . . . . . . 58

Manual Window Regulator

. . . . . . . . . . . . . . . . . . 57

Manual Window Regulator

. . . . . . . . . . . . . . . . . . 58

Outside Door Latch Release Handle

. . . . . . . . . . 58

Overhead Console

. . . . . . . . . . . . . . . . . . . . . . . . 65

Power Door Lock Actuator

. . . . . . . . . . . . . . . . . . 59

Power Window Regulator

. . . . . . . . . . . . . . . . . . 57

Quarter Glass Module

. . . . . . . . . . . . . . . . . . . . . 66

Quarter Panel Spoiler

. . . . . . . . . . . . . . . . . . . . . 67

Rear Seat Belts

. . . . . . . . . . . . . . . . . . . . . . . . . . 62

Rear Seats

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Rear Window Glass

. . . . . . . . . . . . . . . . . . . . . . 65

Roof Seam Molding

. . . . . . . . . . . . . . . . . . . . . . . 66

Side View Mirror

. . . . . . . . . . . . . . . . . . . . . . . . . 59

Sunroof Lift Control

. . . . . . . . . . . . . . . . . . . . . . . 65

Tail Lamp Closure Panel

. . . . . . . . . . . . . . . . . . . 69

Upper Quarter Trim Panel

. . . . . . . . . . . . . . . . . . 61

CLOSURE PANEL SIGHT SHIELD

REMOVAL (FIG. 1)

(1) Raise hood to open position.
(2) Loosen twist fasteners holding headlamp covers

to fascia.

(3) Disengage hook and loop fasteners holding

sight shield to radiator closure panel.

(4) Remove push-in fasteners holding sight shield

to bumper fascia.

(5) Separate sight shield from vehicle.

INSTALLATION

Reverse the preceding operation.

HOOD AND HINGES

HOOD REMOVAL (FIG. 2)

(1) Raise hood to full up position.
(2) Lift front edge of cowl cover on the right side of

the windshield washer bottle and disconnect the un-
der hood lamp wire connector.

(3) Mark all bolt and hinge attachment locations

with a grease pencil or other suitable device to pro-
vide reference marks for installation. When install-
ing hood, align all marks and secure bolts. The hood

should be aligned to 4 mm (0.160 in.) gap to the front
fenders and flush across the top surfaces along fend-
ers.

(4) Remove the top hood to hinge attaching bolts

and loosen the bottom bolts until they can be re-
moved by hand.

(5) With assistance of a helper at the opposite side

of the vehicle to support the hood, remove the bottom
hood to hinge attaching bolts. Separate the hood
from the vehicle.

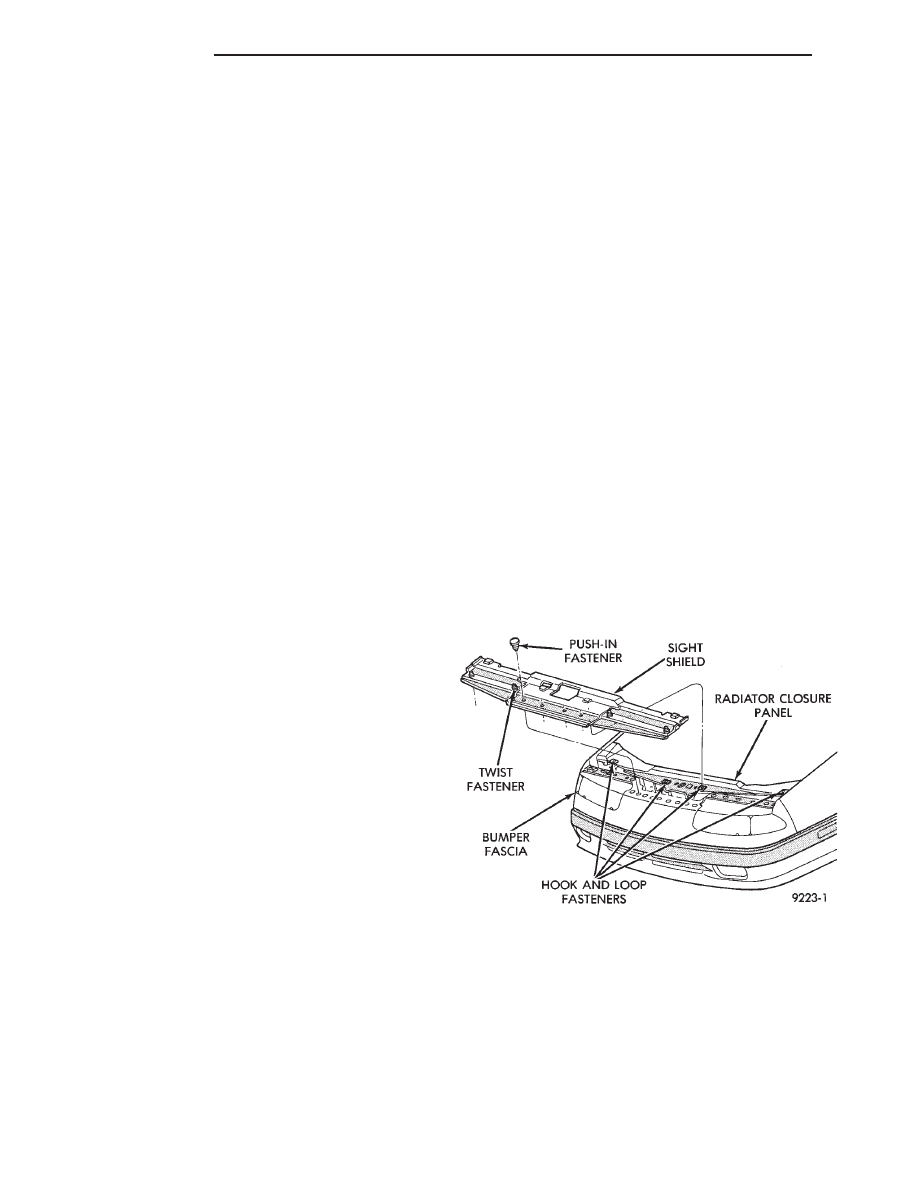

Fig. 1 Closure Panel Sight Shield

23 - 52

AG-BODY

Ä

HOOD INSTALLATION

Reverse the preceding operation.

HOOD HINGE REMOVAL (FIG. 3)

(1) Support hood on the side that requires hinge

replacement.

(2) Mark all bolt and hinge attachment locations

with a grease pencil or other suitable device to pro-
vide reference marks for installation. When install-
ing hood hinge, align all marks and secure bolts. The
hood should be aligned to 4 mm (0.160 in.) gap to the
front fenders and flush across the top surfaces along
fenders. Shims can be added or removed under hood
hinge to achieve proper hood height.

(3) Remove hood to hinge attaching bolts.
(4) Remove hood hinge to front fender attaching

bolts and separate hinge from vehicle.

HOOD HINGE INSTALLATION

Reverse the preceding operation. If necessary, paint

new hinge before installation.

HOOD LATCH AND RELEASE CABLE

HOOD LATCH REMOVAL (FIG. 4)

(1) Raise hood to the full up position.
(2) Remove radiator closure panel sight shield.
(3) Remove hood latch attaching bolts holding

latch to radiator closure panel and separate from ve-
hicle.

(4) Pry release cable casing attachment from slot

receiver on latch, disengage cable end from latch arm
hook.

HOOD LATCH INSTALLATION

Reverse the preceding operation.

HOOD LATCH RELEASE CABLE REMOVAL
(FIG. 5)

(1) Raise hood to the full up position.
(2) Remove push-in fasteners holding sight shield

to radiator closure panel and separate cover from ve-
hicle.

(3) Disconnect hood release cable casing and cable

end from hood latch assembly. Refer to Hood Latch
Removal procedure in this section.

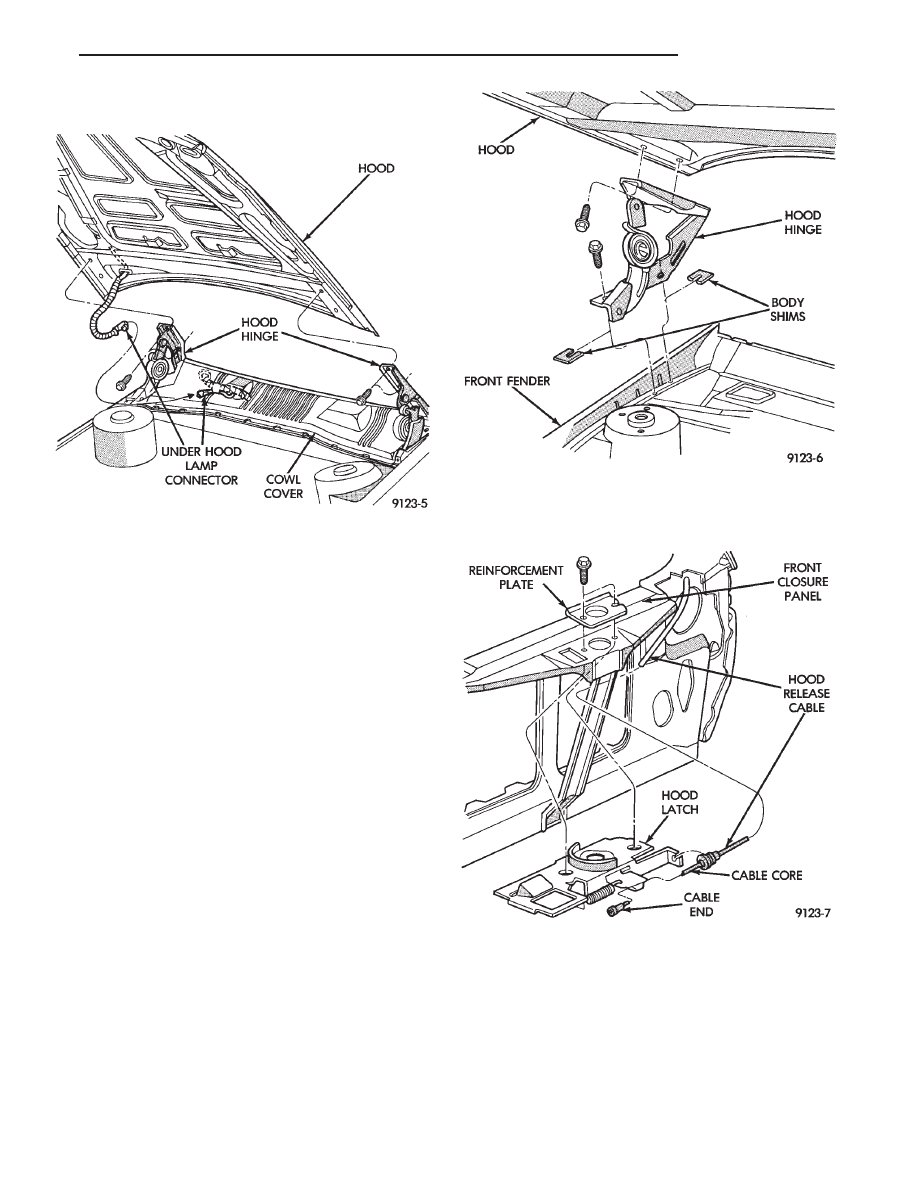

Fig. 2 Hood Assembly Remove or Install—Typical

Fig. 3 Hood Hinge Assembly—Typical

Fig. 4 Hood Latch Assembly—Typical

Ä

AG-BODY

23 - 53
