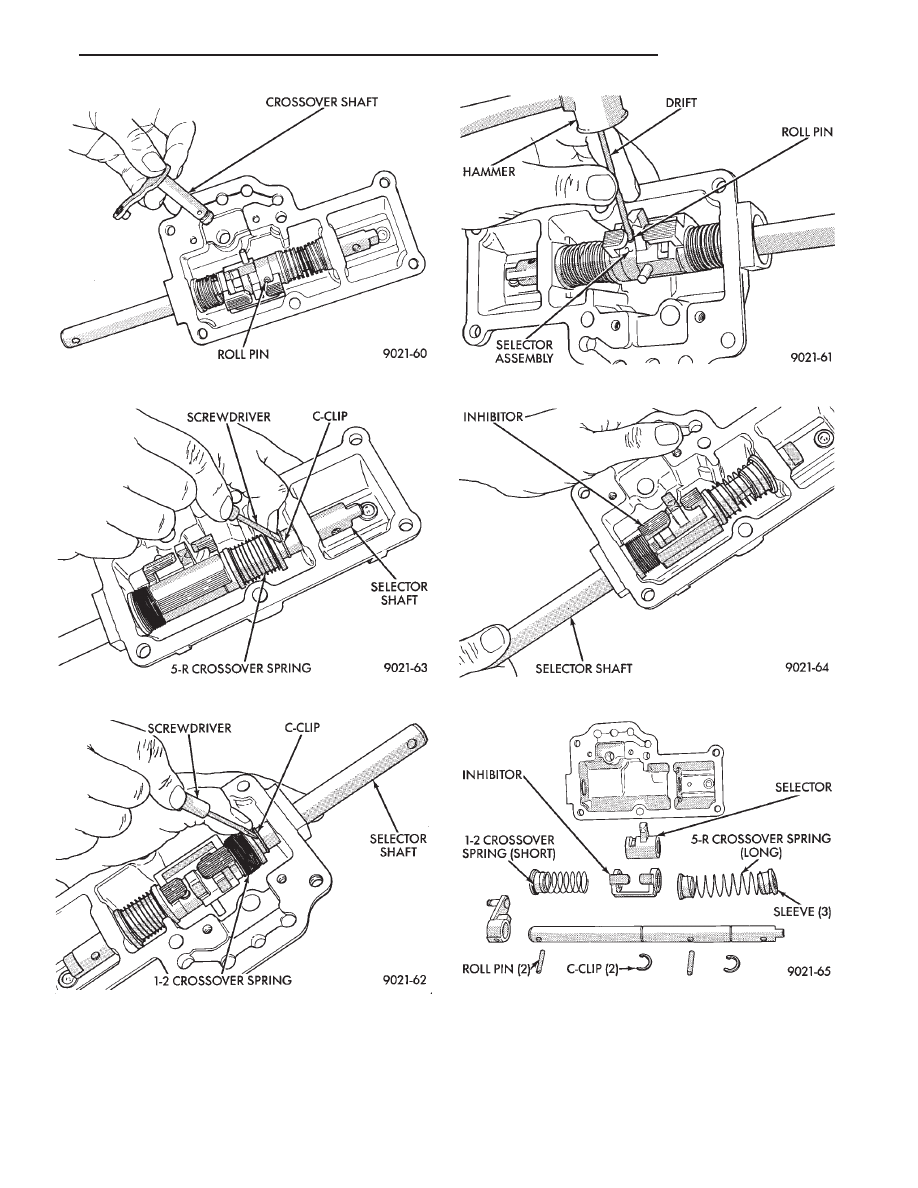

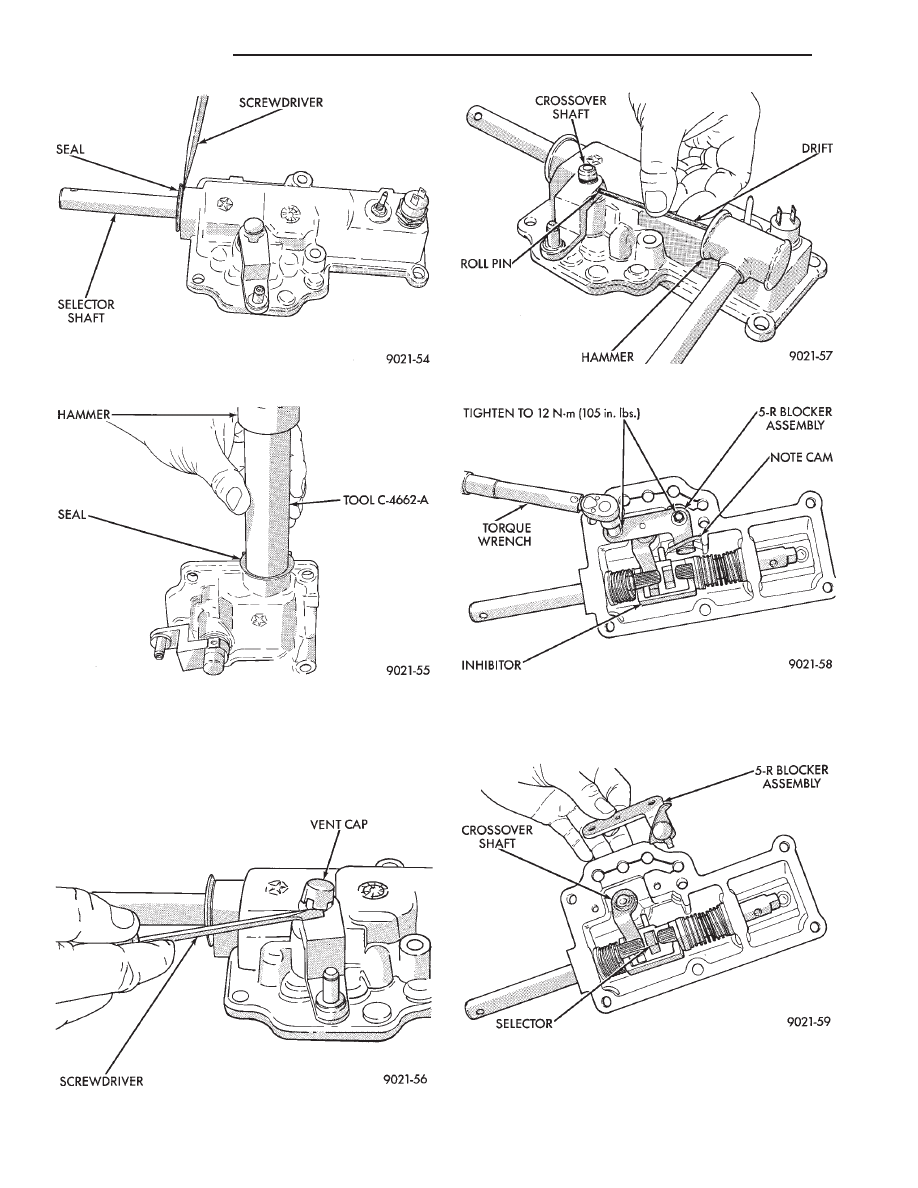

The C-Clip groves in the selector shaft will damage the oil seal. Install oil seal after selector Proper torque to the 5-R blocker attaching bolts is very important (Fig. 8). Fig. 4 Remove Oil Seal Fig. 5 Install Oil Seal Fig. 6 Remove Vent Cap Fig. 7 Crossover Shaft Roll Pin Fig. 8 5-R Blocker Attaching Bolts Fig. 9 5-R Blocker Assembly 21 - 22 TRANSAXLE Ä |
