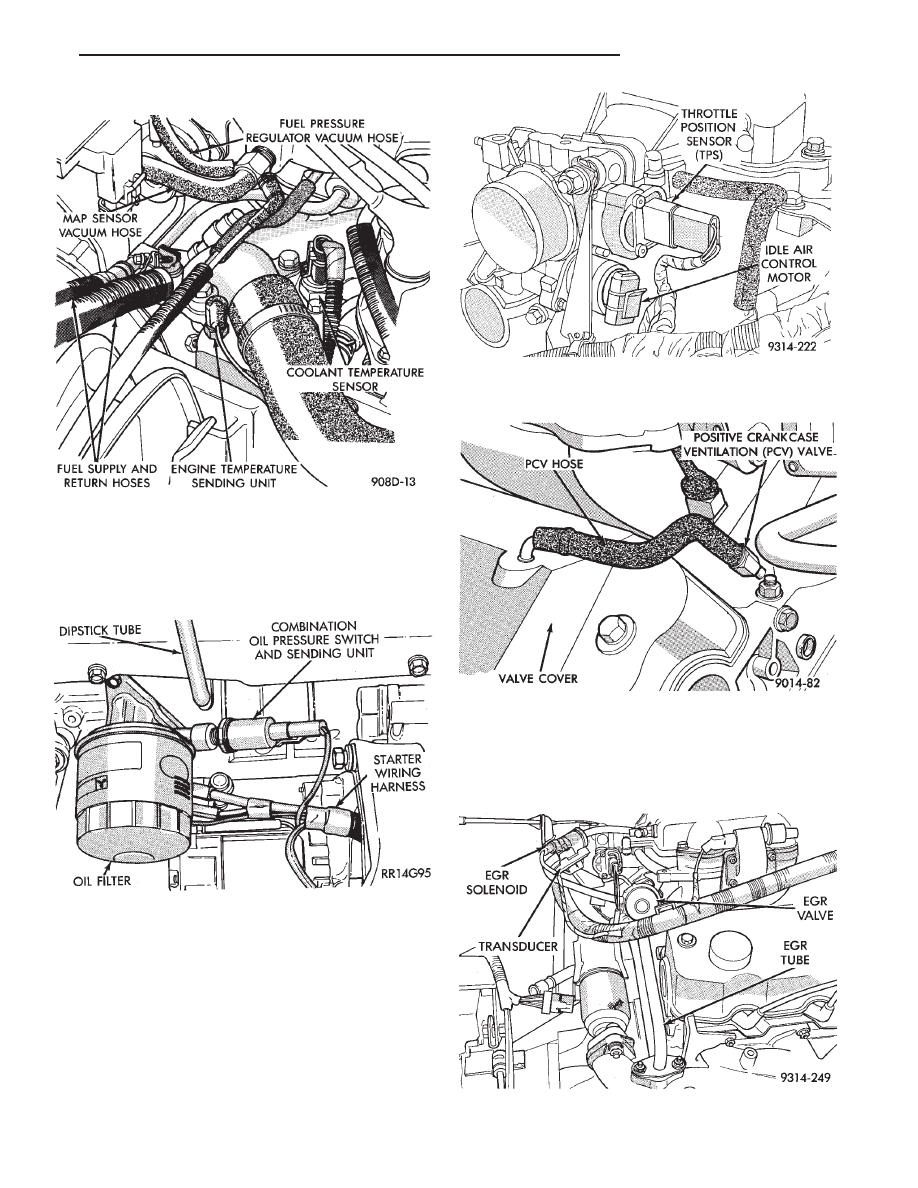

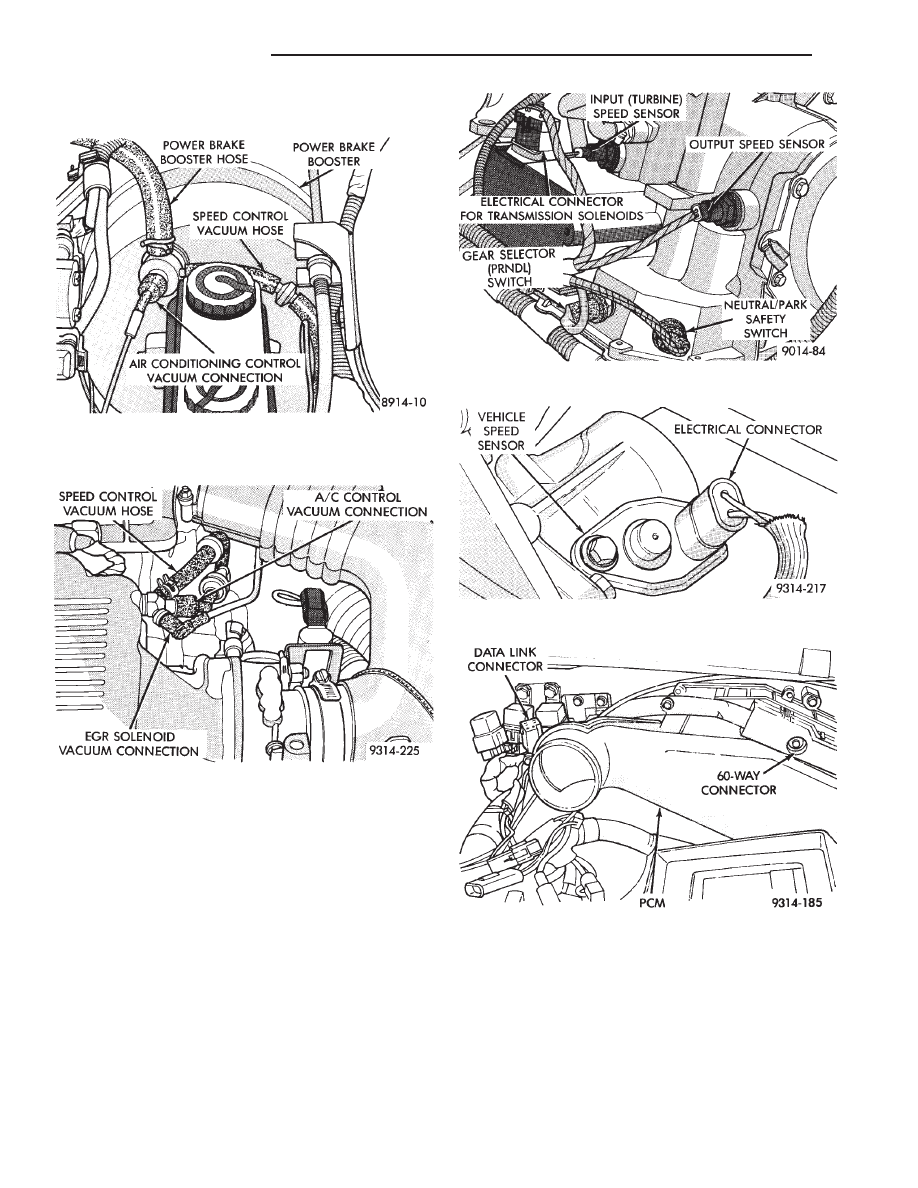

(4) Verify vacuum connection at Purge Solenoid is secure and not leaking (Fig. 3). (5) Verify the electrical connector is attached to the MAP sensor (Fig. 4). (6) Check MAP sensor hose at MAP Sensor Assem- bly (Fig. 4), and at Vacuum Connection at Intake (7) Check generator wiring connections. Ensure the accessory drive belt has proper tension. (8) Verify hoses are securely attached to the vapor canister (Fig. 5). (9) Verify the engine ground strap is attached at the engine and dash panel (Fig. 6). (10) Ensure the heated oxygen sensor connector is connected to the harness connector (Fig. 6). (11) Verify the distributor connector is connected to the harness connector (Fig. 7). (12) Verify the coolant temperature sensor connec- tor is connected to the harness connector (Fig. 8). (13) Check vacuum hose connection at fuel pres- sure regulator and intake plenum connector (Fig. 8). Fig. 3 Duty Cycle EVAP Canister Purge Solenoid Fig. 4 Map Sensor Electrical and Vacuum Connections Fig. 5 Vapor Canister Fig. 6 Oxygen Sensor Connector Fig. 7 Distributor Connector 14 - 126 FUEL SYSTEMS Ä |
