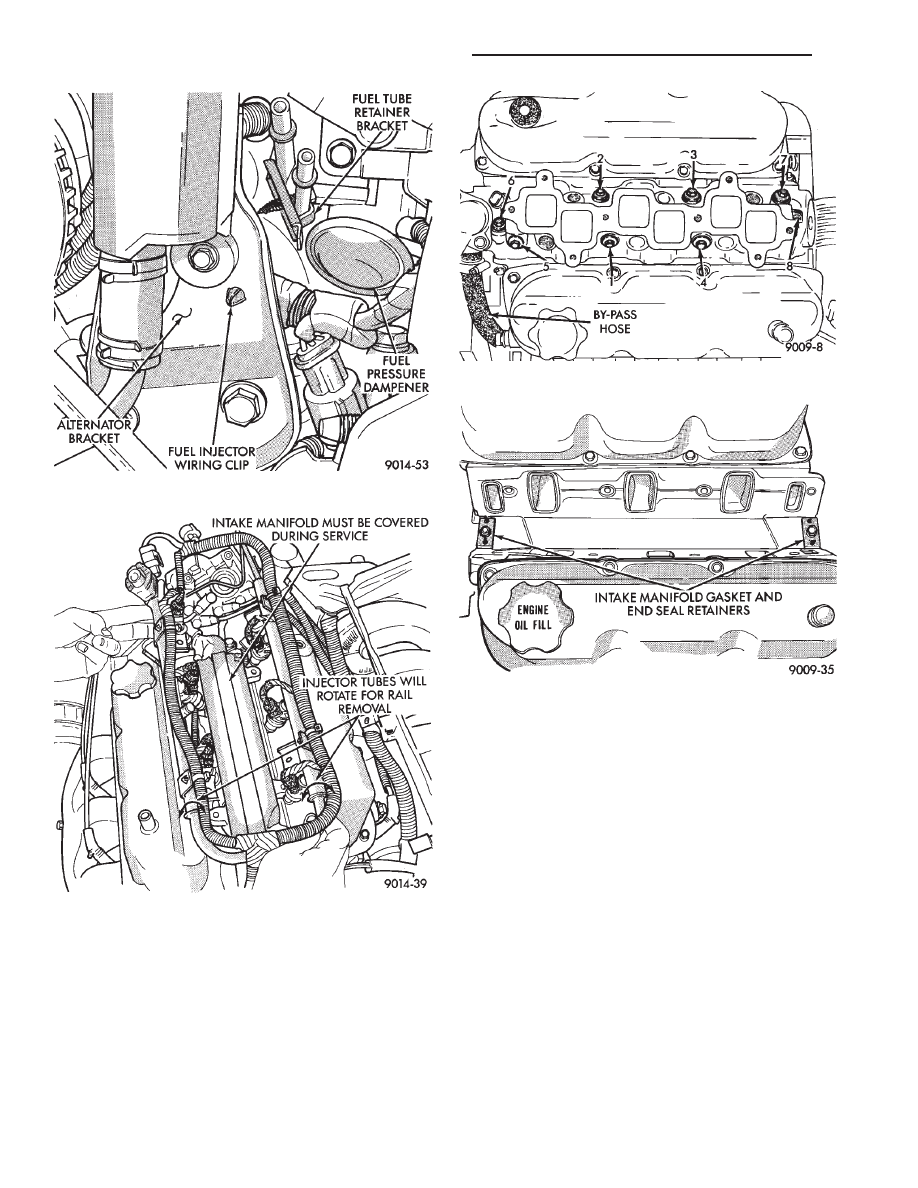

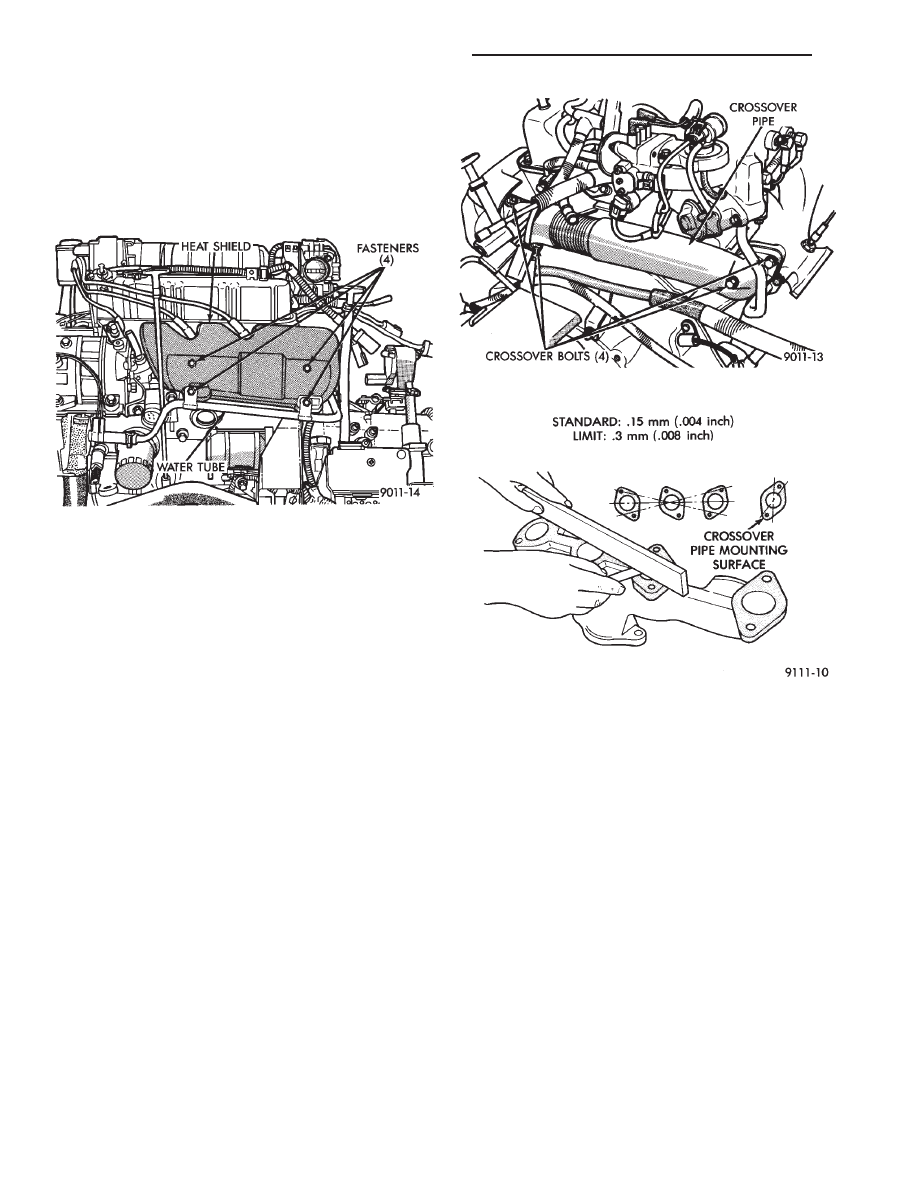

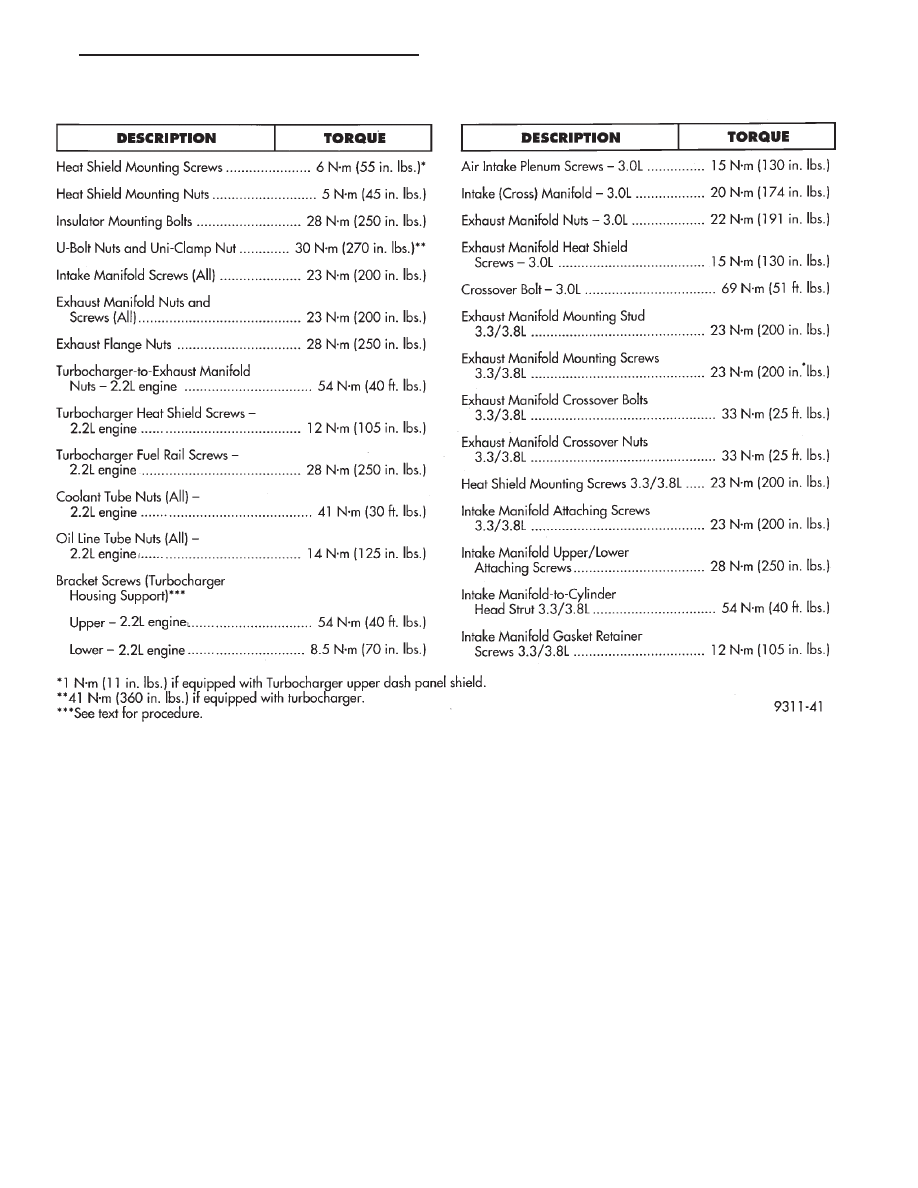

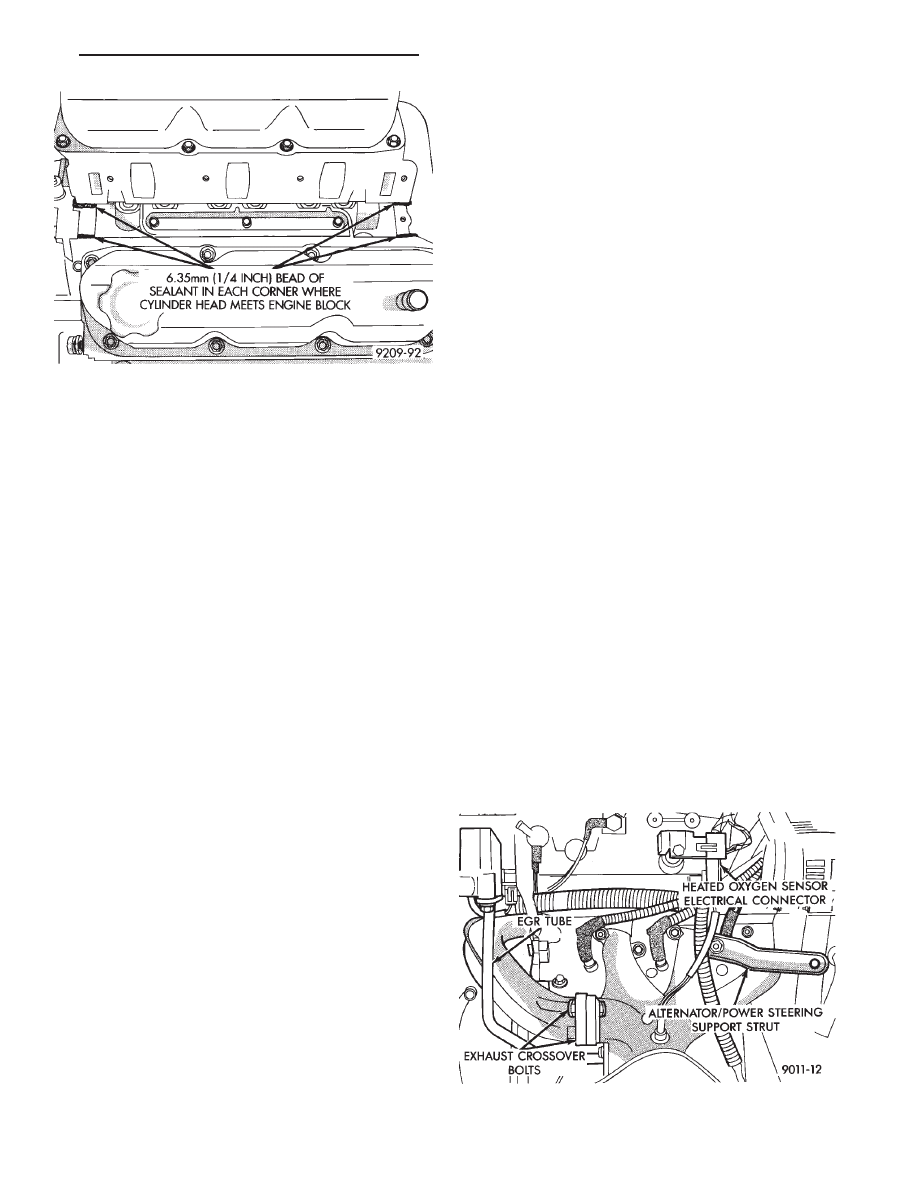

• Clogged water passages in end cross overs and INTAKE MANIFOLD INSTALLATION (1) Clean all surfaces of cylinder block and cylin- der heads. (2) Place a drop (about 1/4 in. diameter) of Mopar Silicone Rubber Adhesive Sealant or equivalent, onto WARNING: INTAKE MANIFOLD GASKET IS MADE (3) Carefully install the intake manifold gasket (Fig. 14). Tighten end seal retainer screws to 12 N Im (105 in. lbs.) torque. (4) Install intake manifold and (8) bolts and tighten to 1 N Im (10 in. lbs.) torque. Then retighten bolts to 22 N Im (200 in. lbs.) torque in sequence shown in (Fig. 13). Then retighten again to 22 N Im (200 in. lbs.)torque. After intake manifold is in place, (5) Make sure the injector holes are clean and all plugs have been removed. (6) Lube injector O-ring with a drop of clean en- gine oil to ease installation. Fig. 11 Fuel Injector Wiring Clip Fig. 12 Fuel Rail Removal Fig. 13 Intake Manifold Removal and Installation Fig. 14 Intake Manifold Gasket 11 - 22 EXHAUST SYSTEM AND INTAKE MANIFOLD Ä |
