DAF CF65, CF75, CF85 Series . Manual - part 193

©

 200351

2-3

General

CE ENGINE

ΧΦ65/75/85 series

2

2

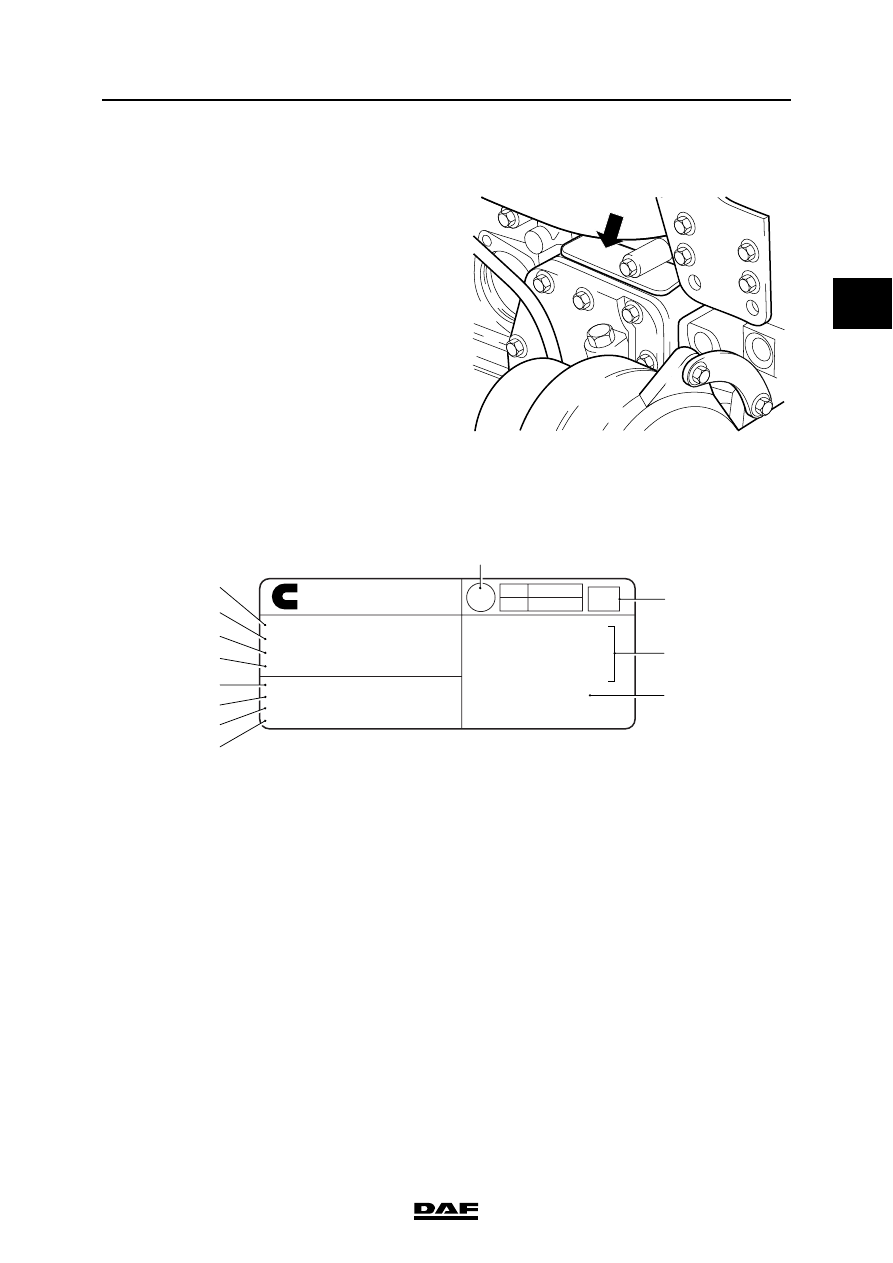

2.2 IDENTIFICATION

Engine number
The engine number is stamped front right in the
cylinder block, at the top of the lubricating oil
cooler housing.

Engine identification plate
The engine identification plate is located at the
top of the flywheel housing or on the valve cover,
depending on the production date.

1.

Cubic capacity

2.

Engine output

3.

Valve clearance

4.

Idle engine speed

5.

Engine number

6.

Production date

7.

Client specification

8.

DAF type designation

9.

Indication of country of origin

10. K-factor
11. Type approval numbers
12. Cummins type designation

XXXXXXX

M2 01 138

MADE IN GREAT BRITAIN BY
CUMMINS ENGINE CO LTD
www.cummins.com

Displacement........................................ 5.9 Litres

Gross Power.........................136kW @ 2500 rpm

Valve lash - (cold)

Int .254 mm, Exh .508 mm

Low idle speed.............................. 600 - 800 rpm

Engine Serial No ................................. 21410538
Date of mfg ........................................... 26/06/00
Customer Spec ......................................1396009
DAF ID ...................................................CE136C

E.C. Type Approal Numbers

e11*72/245*95/54*1413*00(ESA)

e11*88/77*1999/96A*1705*00

Model: - ISBe185 30

3286647

M201135

0.94

E11

24

031410

Cummins

¤

9

10

11

12

5

4

3

2

1

6

7

8

CE ENGINE

2-4

©

 200351

General

2

ΧΦ65/75/85 series

2

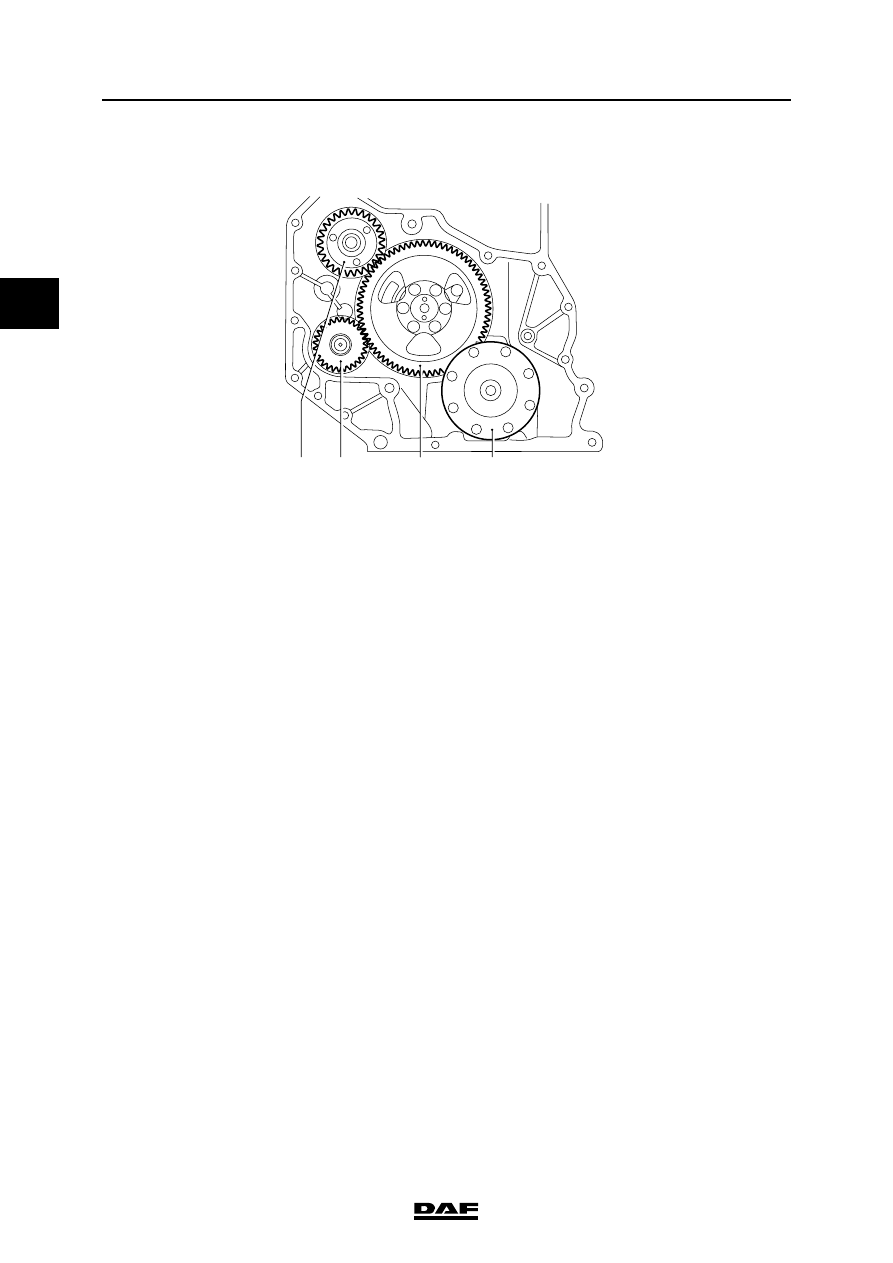

2.3 OVERVIEW DRAWING, TIMING GEAR

1.

Crankshaft

2.

Camshaft

3.

High-pressure pump

4.

Compressor

M201125

1

3

4

2

©

 200351

3-1

Inspection and adjustment

CE ENGINE

ΧΦ65/75/85 series

2

2

3. INSPECTION AND ADJUSTMENT

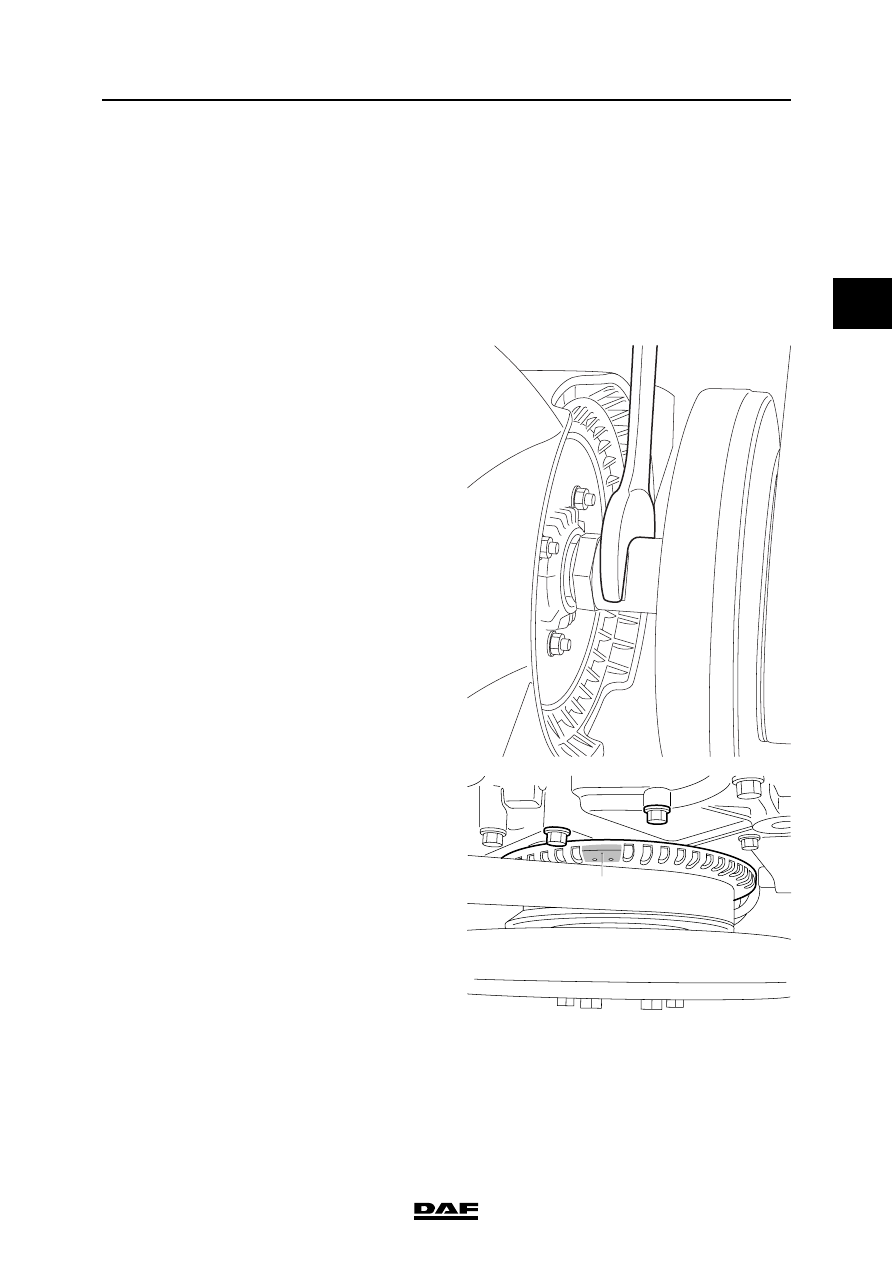

3.1 CHECKING AND ADJUSTING THE CE ENGINE VALVE CLEARANCE

Note:
Inspection and adjustment of valve clearance
must only be carried out when the engine is cold.

1.

Remove the valve cover: see chapter
"Removal and installation".

2.

Use an open-end spanner on the fan shaft to
turn the crankshaft clockwise, as seen from
the vibration damper end (this is the engine's
normal direction of rotation), until the mark
(A) is between the bolts (B) and the valves of
cylinder 1 are in overlap position.

Note:
"Overlap" is the moment at which the inlet
valves start opening and the exhaust valves
stop closing.
The inlet valves are operated by the short
rockers and the exhaust valves by the long
rockers.

M201318

M201065

A

B

B

CE ENGINE

3-2

©

 200351

Inspection and adjustment

2

ΧΦ65/75/85 series

2

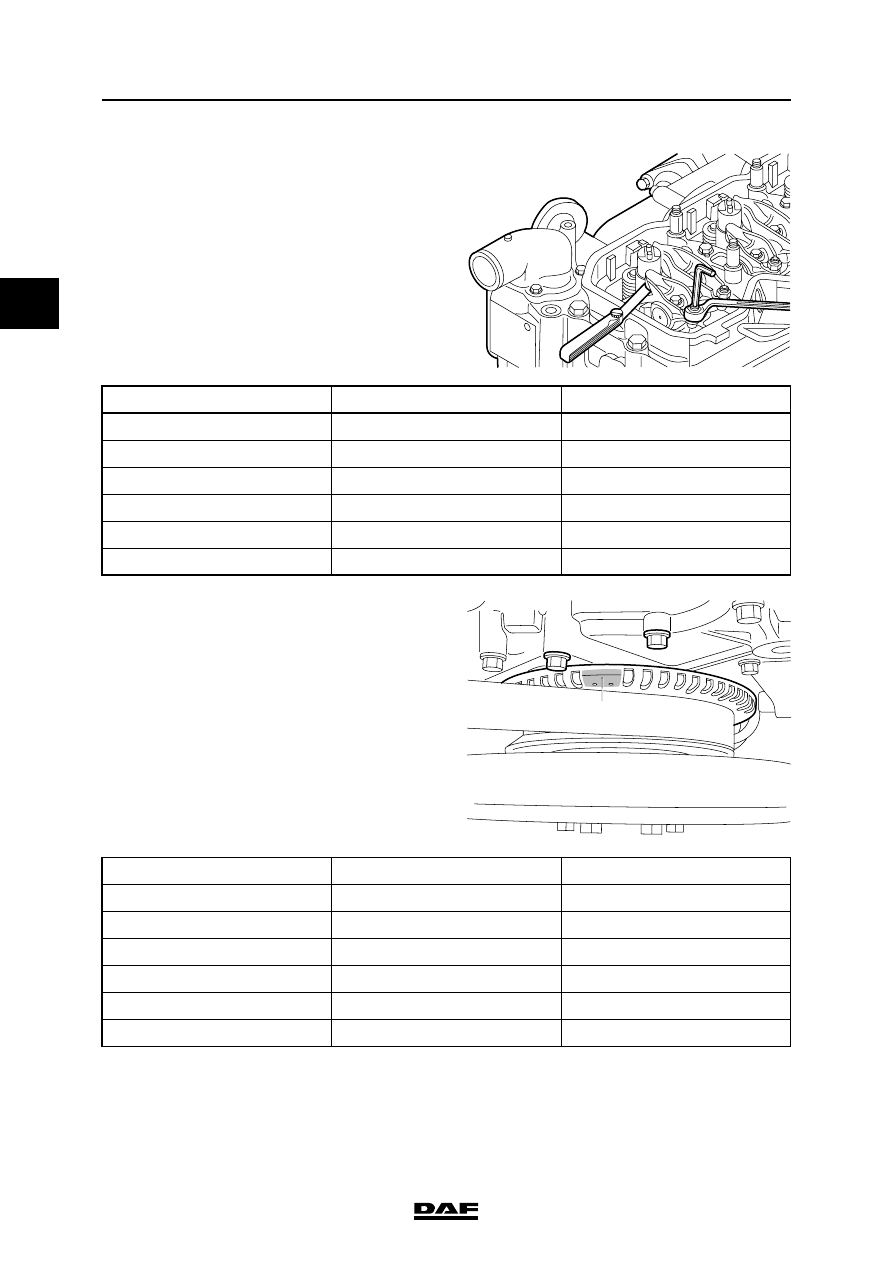

3.

Check/correct the valve clearance of the
specified inlet and exhaust valves. Set the
correct valve clearance by loosening the
locknut and rotating the adjusting screw in
the correct direction; see "Technical data" for
the correct valve clearance.

4.

Using an open-end spanner on the fan shaft,
turn the crankshaft one rotation further so
that the mark (A) is once again between the
bolts (B) and the valves of cylinder 6 overlap.

5.

Check/correct the valve clearance of the
specified inlet and exhaust valves. Set the
correct valve clearance by loosening the
locknut and rotating the adjusting screw in
the correct direction; see "Technical data" for
the correct valve clearance.

6.

Fit the valve cover. See "Removal and
installation".

M201064

Cylinder

Inlet valve

Exhaust valve

1

2

X

3

X

4

X

5

X

6

X

X

M201065

A

B

B

Cylinder

Inlet valve

Exhaust valve

1

X

X

2

X

3

X

4

X

5

X

6
