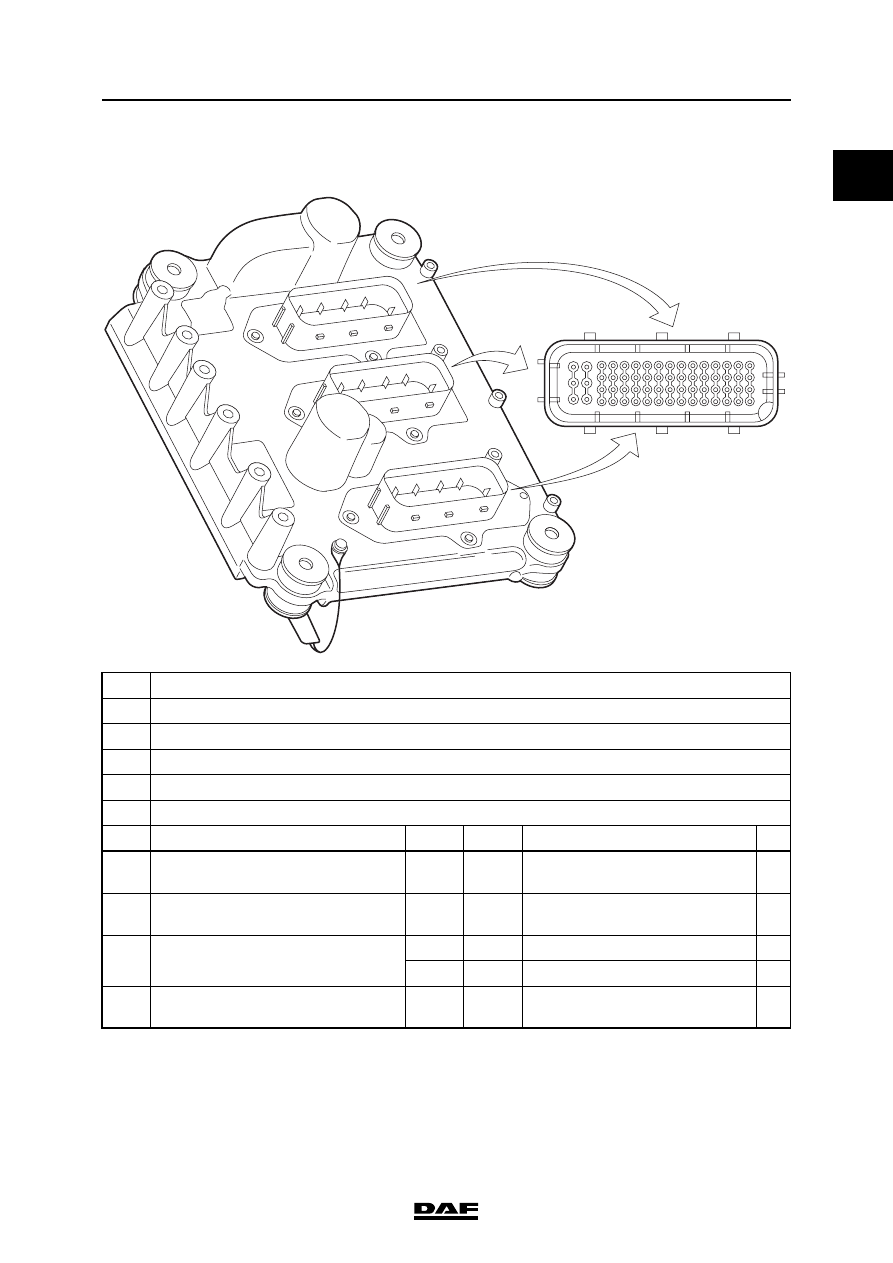

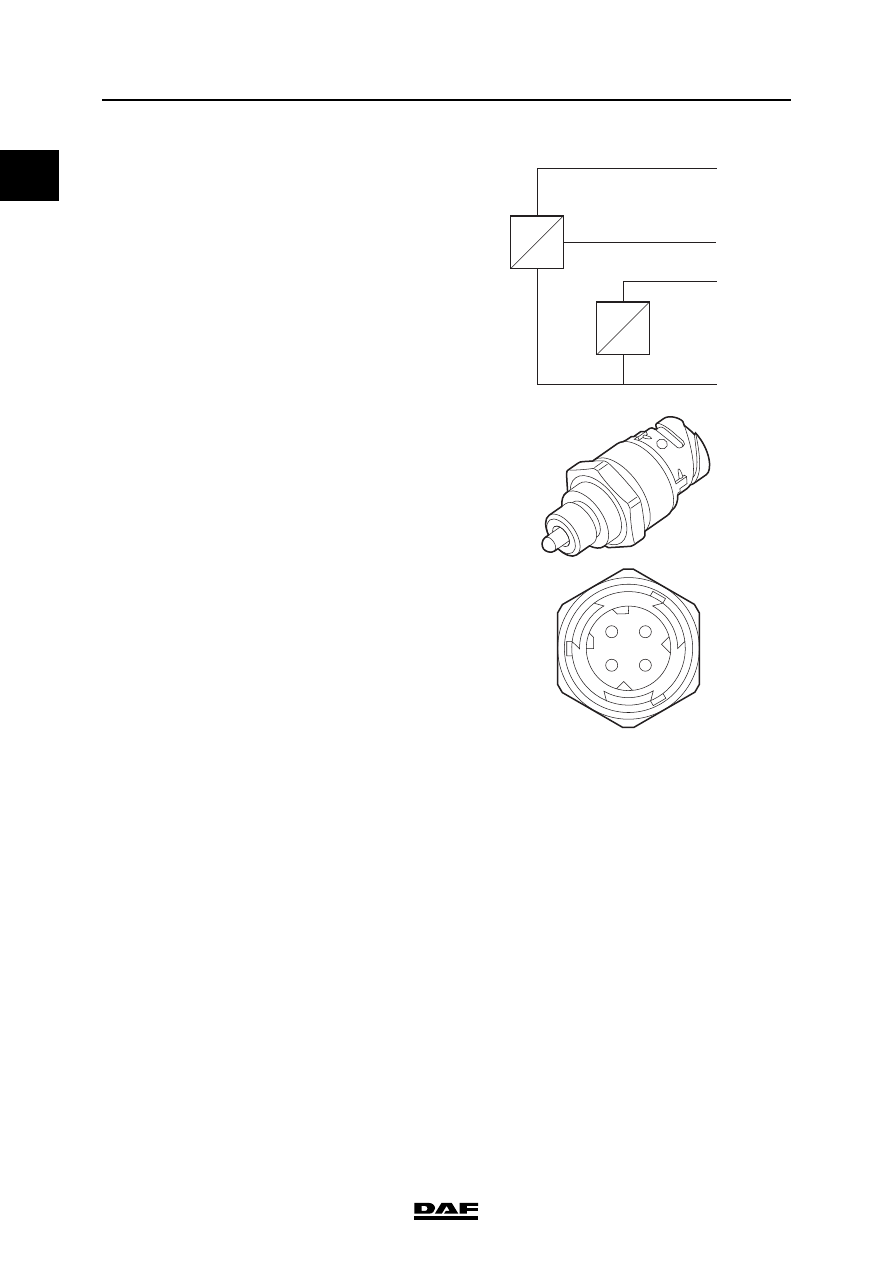

0 © 200528 1-13 DMCI engine management system TECHNICAL DATA XF105 series 1.8 FUEL PRESSURE AND TEMPERATURE SENSOR A C B i400726 1 4 5 9 13 17 21 25 29 33 37 41 45 49 53 57 60 62 A Electronic unit connection point B Description of connection point C Reading at connection point (Ubat = battery voltage) D Measuring unit E Explanatory notes (if applicable) F Additional information available in Technical Data at "X" mark A B C D E F A41 Input signal fuel temperature (F713). 5 V DC Open voltage, with detached connector X A42 Supply voltage fuel pressure and temperature sensor (F713) 5 V DC Open voltage, with detached connector A45 Input signal fuel pressure (F713) 0.5 V DC Fuel pressure 0 bar X 4.5 V DC Fuel pressure 15 bar X A46 Earth, fuel pressure and temperature sensor (F713) 0 V DC |
