DAF LF45, LF55 Series. Manual - part 612





0

9

LF45/55 series

Shock absorbers, stabilisers, torque rods and leaf suspension

TECHNICAL DATA

2-1

2. SHOCK ABSORBERS, STABILISERS, TORQUE RODS AND LEAF

SUSPENSION

2.1 GENERAL

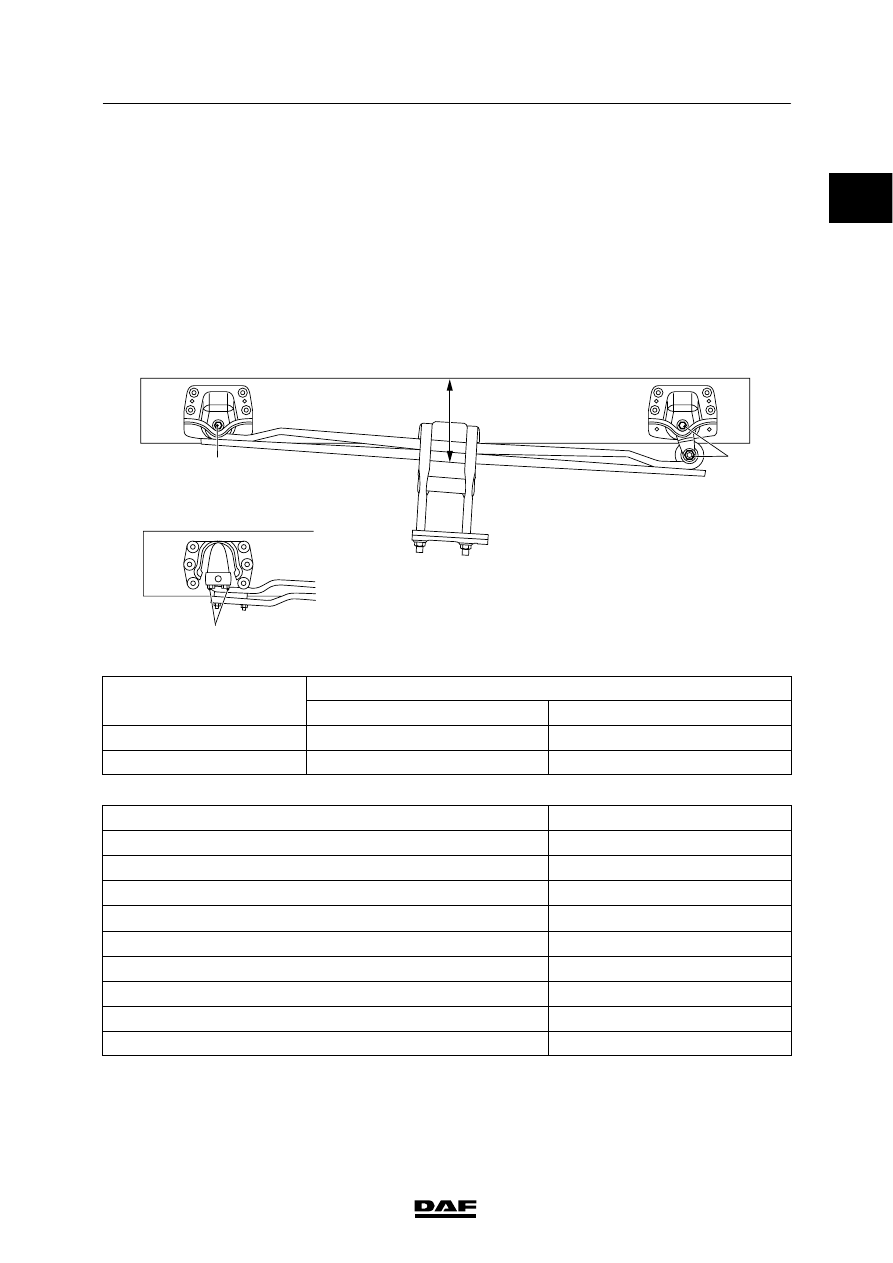

Fixing the attachment bolts for the leaf
spring
Ensure that when fixing the attachment bolts (1)
for the leaf spring that the leaf spring is at the
prescribed height (A). The height (A) is to be
measured above the axle, between the top edge
of the chassis cross member and the underside
of the leaf spring.

2

A

1

1

C9 00 409

Front axle

MODEL

HEIGHT (A)

frontmost attachment point (1)

rearmost attachment point (2)

LF45 All models

404 mm

459 mm

LF45 All models

502 mm

566 mm

Rear axle

MODEL

HEIGHT (A)

LF45 7.5T GVW

295 mm

LF45 7.5T GVW A-symmetric

295 mm

LF45 10-12T GVW

327 mm

LF45 10-12T GVW A-symmetric

295 mm

LF55 13-15T GVW

391 mm

LF55 13-15T GVW A-symmetric

362 mm

LF55 16-18T GVW

414 mm

LF55 16-18T GVW type Kipper

391 mm

LF55 16-18T GVW A-symmetric

362 mm

Note:
With the rear axle height (A) applies to both
the frontmost (1) and the rearmost attachment
point (2) of the leaf spring.

ǹ 0207

9

TECHNICAL DATA

Shock absorbers, stabilisers, torque rods and leaf suspension

LF45/55 series

2-2

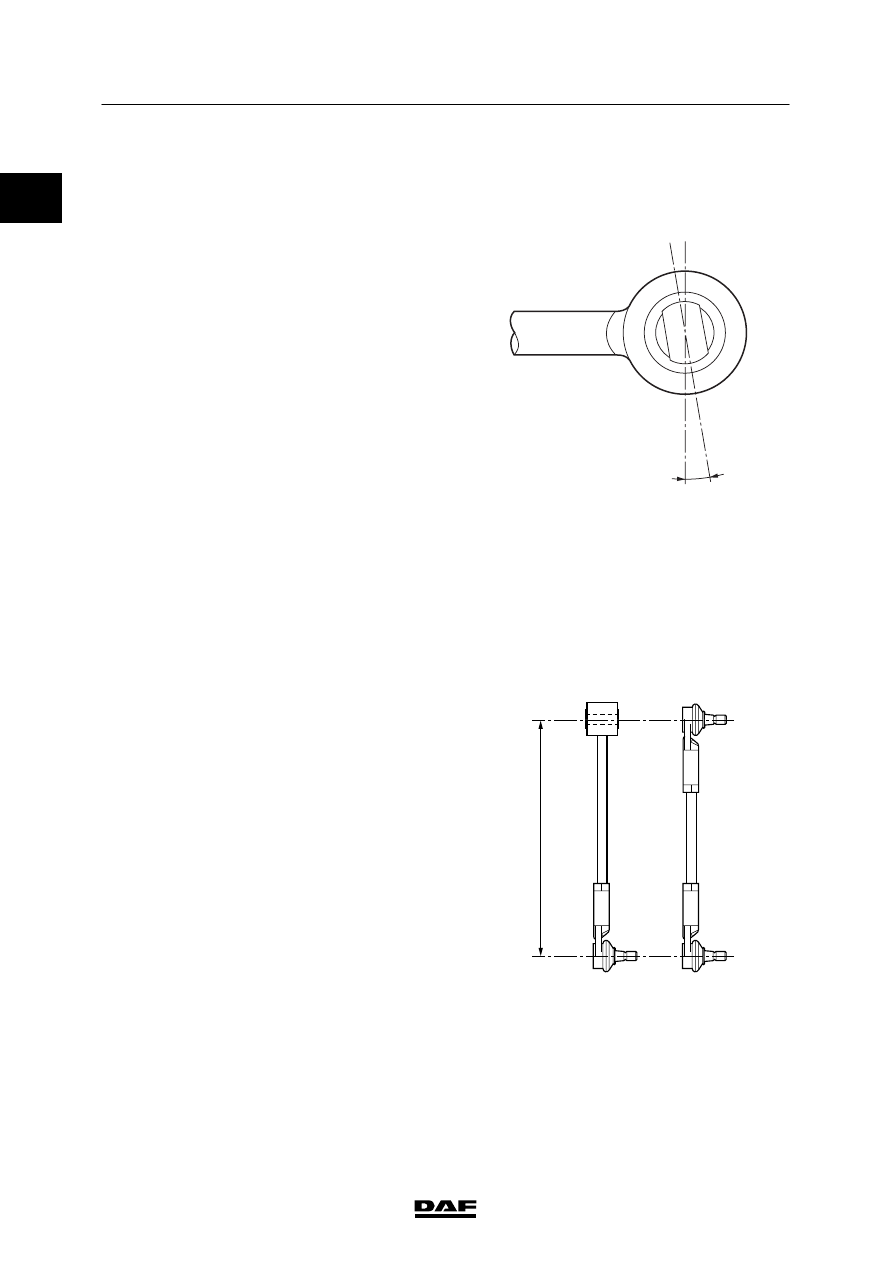

Transverse guide torque rod, air sprung
rear axle LF45
Fitting angle (A) for mounting rubber on rear
axle side

8 - 12

°

A

C9 00 408

Torque rods stabiliser length (A)
A is the centre-to-centre-distance between the
attachment points.
Front axle
LF45 all models

342 - 344 mm

LF55 all models

348 - 352 mm

Rear axle
LF55 FAN steered rear axle

598 - 602 mm

A

C9 00 413

0

ǹ 0207

0

9

LF45/55 series

Shock absorbers, stabilisers, torque rods and leaf suspension

TECHNICAL DATA

2-3

2.2 TIGHTENING TORQUES

The tightening torques stated in this paragraph
are different from the standard tightening
torques stated in the overview of the standard
tightening torques. The other threaded
connections which are not stated must therefore
be tightened to the tightening torque stated in
the overview of standard tightening torques.

When attachment bolts and nuts are to be
replaced, it is important - unless stated
otherwise - that these bolts and nuts are of
exactly the same length and property class as
the removed ones.

U-bolt nuts

MODEL

FRONT AXLE

REAR AXLE

LF45 all models

215 Nm*

468 Nm*

LF55 13 - 15 ton GVW

468 Nm*

468 Nm*

LF55 16-18 ton GVW Leaf suspension

537 Nm*

537 Nm*

LF55 16-18 ton GVW Air suspension

537 Nm*

880 Nm*

LF55 FAN steered rear axle

468 Nm*

*

Tighten the U-bolt nuts evenly and
alternately.

Shock absorbers
If using self-locking nut M14x2

52 Nm

Front axle torque rod locking nut
LF45

135 Nm

LF55

80 Nm

ǹ 0207

9

TECHNICAL DATA

Shock absorbers, stabilisers, torque rods and leaf suspension

LF45/55 series

2-4

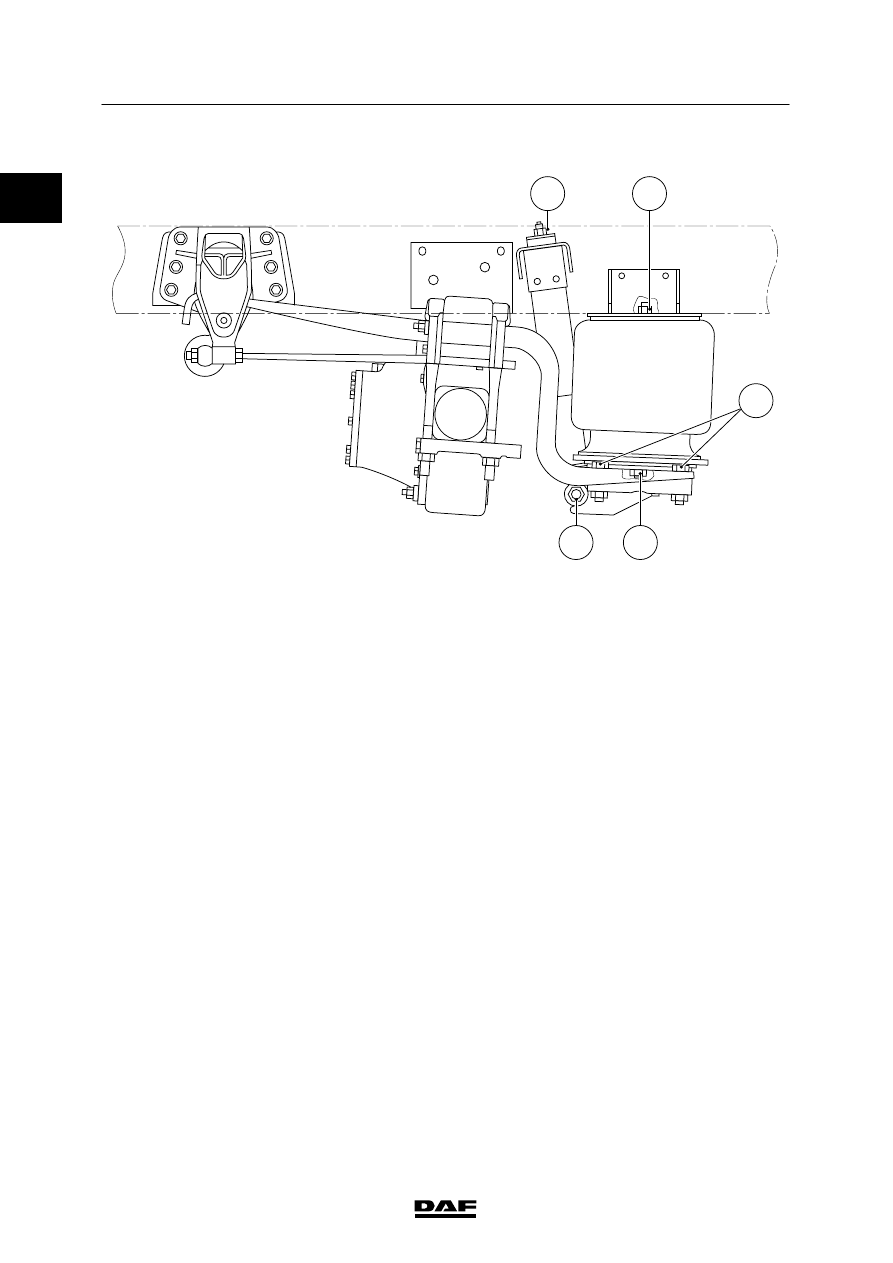

LF45 rear axle, air suspension

C9 00 323

A

B

C

D

E

A

M14 shock absorber attachment nut

52 Nm

B

M12 air bellows attachment nut

31 Nm

C

M20 bolt

525 Nm

D

M12 air bellows attachment nut

60 Nm

E

M20 shock absorber attachment bolt

525 Nm

0

ǹ 0207
