3.26 REMOVAL AND INSTALLATION, BRAKE-CHAMBER DIAPHRAGM
Removal of the brake chamber
1.
Clean the spring brake cylinder.
2.
Apply pressure to connection point 12
(min. 6.0 bar).
3.
Slacken the release bolt (1) of the spring
brake cylinder as much as possible.
4.
Remove the clamping strap.
5.
Remove the spring brake section (2) from
the brake cylinder.
6.
Remove the diaphragm (3).
Installation of the brake chamber
1.
Apply pressure to connection point 12
(min. 6.0 bar).
2.
Fit the diaphragm (3).
3.
Place the complete spring brake section (2)
on the brake cylinder and fit the clamping
strip, tightening it to the specified torque. See
"Technical data".
4.
Screw the release bolt (1) in as far as
possible.

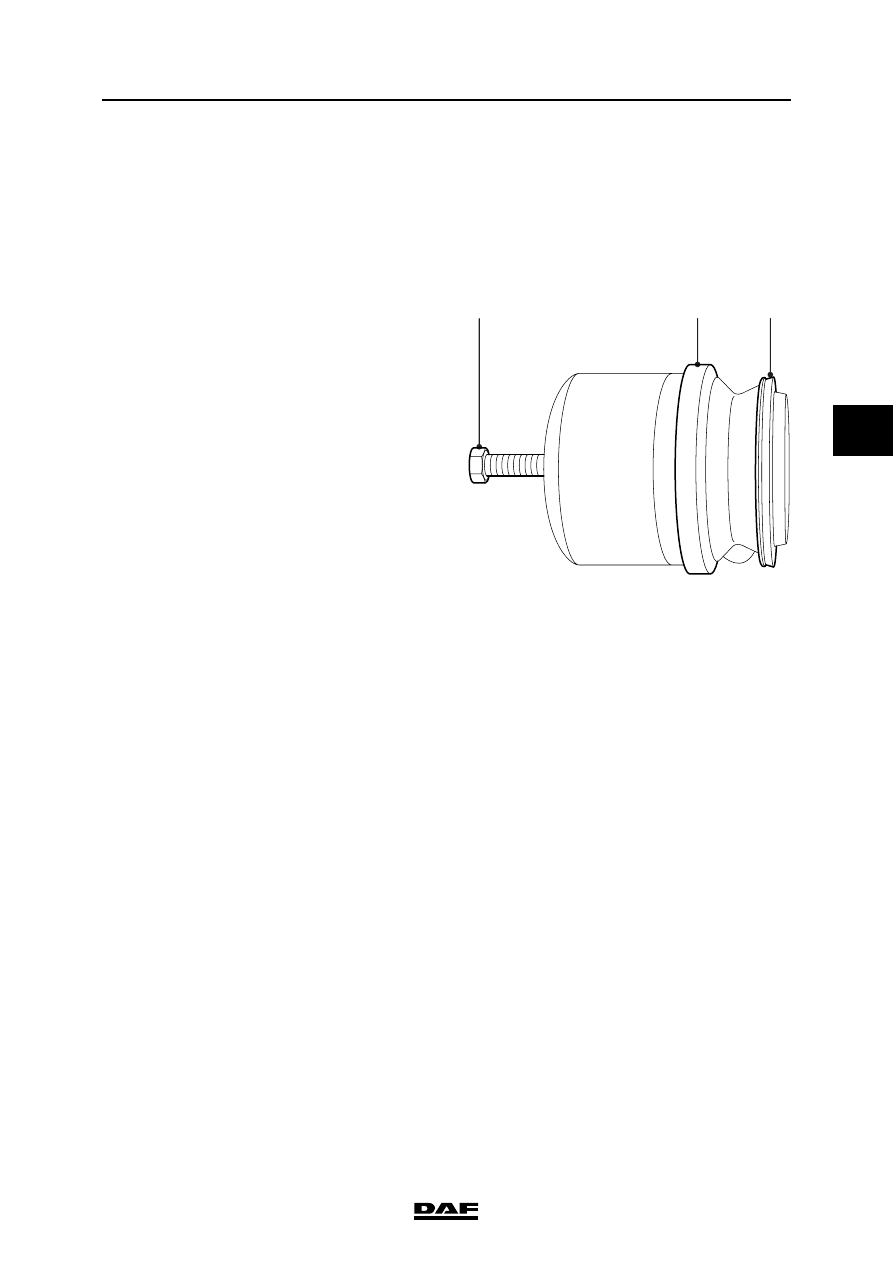

3
2
1
R600787
