Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΛΦ45/55 series

6

4

8.

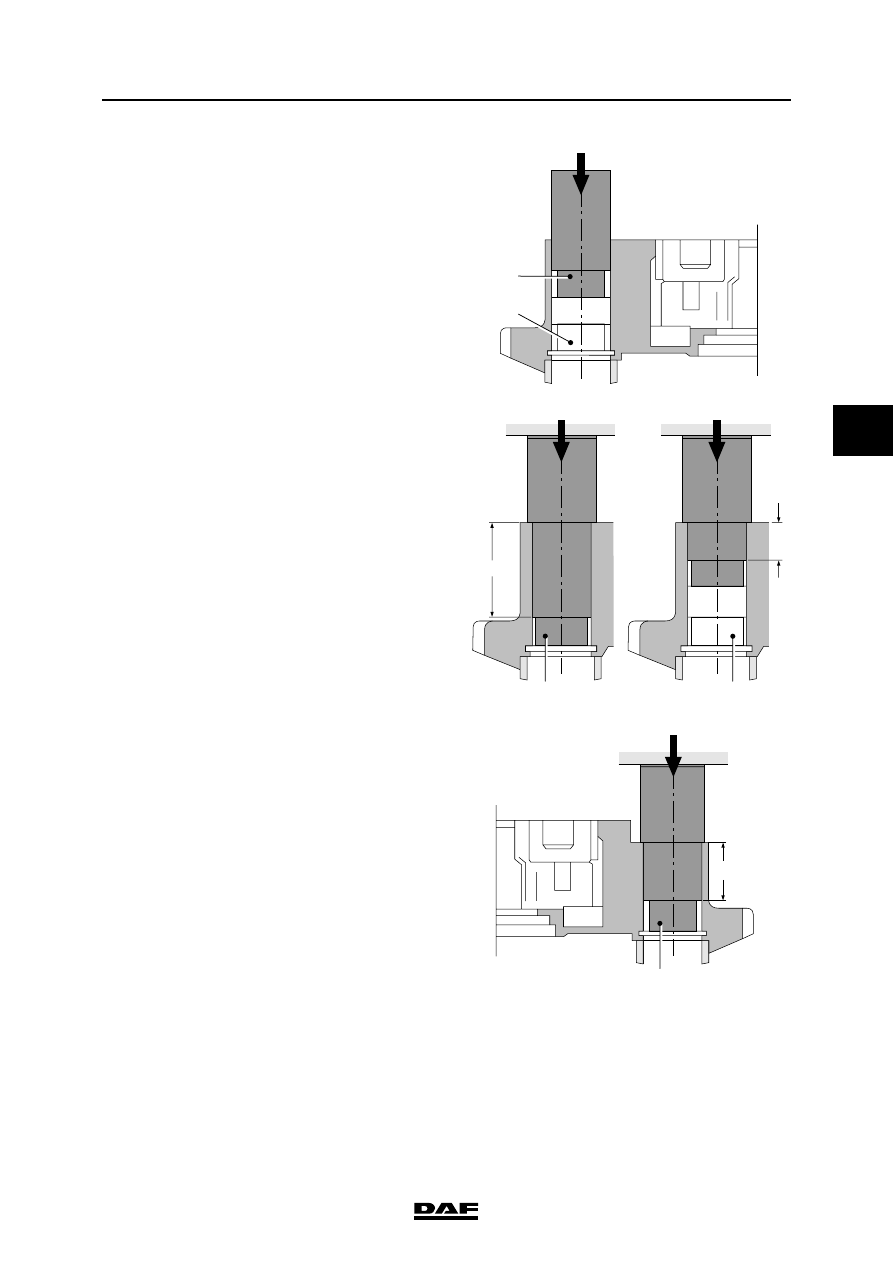

Force the bearing bushes out of the brake

calliper using the ejector tool, special tool set

(DAF no. 1451974); the attachment side for

the brake cylinder must point upwards.

Installation, bearing bushes
1.

Clean the bearing bush bores.

2.

Force a bearing bush into the bearing bush

bore (A) using the forcing tool, special tool

set (DAF no. 1451974) for the long guide

bush.

3.

Force a bearing bush into the bearing bush

bore (B) using the forcing tool, special tool

set (DAF no. 1451974), for the short guide

bush.

4.

Apply the prescribed lubricant to the bearing

bushes and the space between them. See

"Technical data".

5.

Force a bearing bush into the bearing bush

bore (C) using the forcing tool, special tool

set (DAF no. 1451974), for the guide bush.

6.

Apply the lubricant provided to the bearing

bush.

7.

Position the new guide bush dust covers in

the brake calliper.

8.

Apply the lubricant provided to the guide

bushes.

9.

Position the guide bushes in the brake

calliper.

10. Position the guide bush dust covers over the

guide bushes.

11. Position the brake carrier on the brake

calliper.

12. Insert the new Allen screws into the brake

calliper and tighten to the specified torque.

See "Technical data".

4

4

R600592

R600593

L

1

L

2

A

B

R600603

L

3

C

BRAKE SYSTEM AND COMPONENTS

3-36

©

 200436

Removal and installation

4

ΛΦ45/55 series

6

Note:

To prevent damage to the guide bush dust

covers, the Allen screw of the long guide bush

must be tightened first.

13. Check the brake carrier guide and the brake

calliper in relation to each other.

14. Position the new covers in the brake calliper.

15. Mount the brake calliper on the hub.

16. Mount the brake cylinder on the brake

calliper.

©

 200436

3-37

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΛΦ45/55 series

6

4

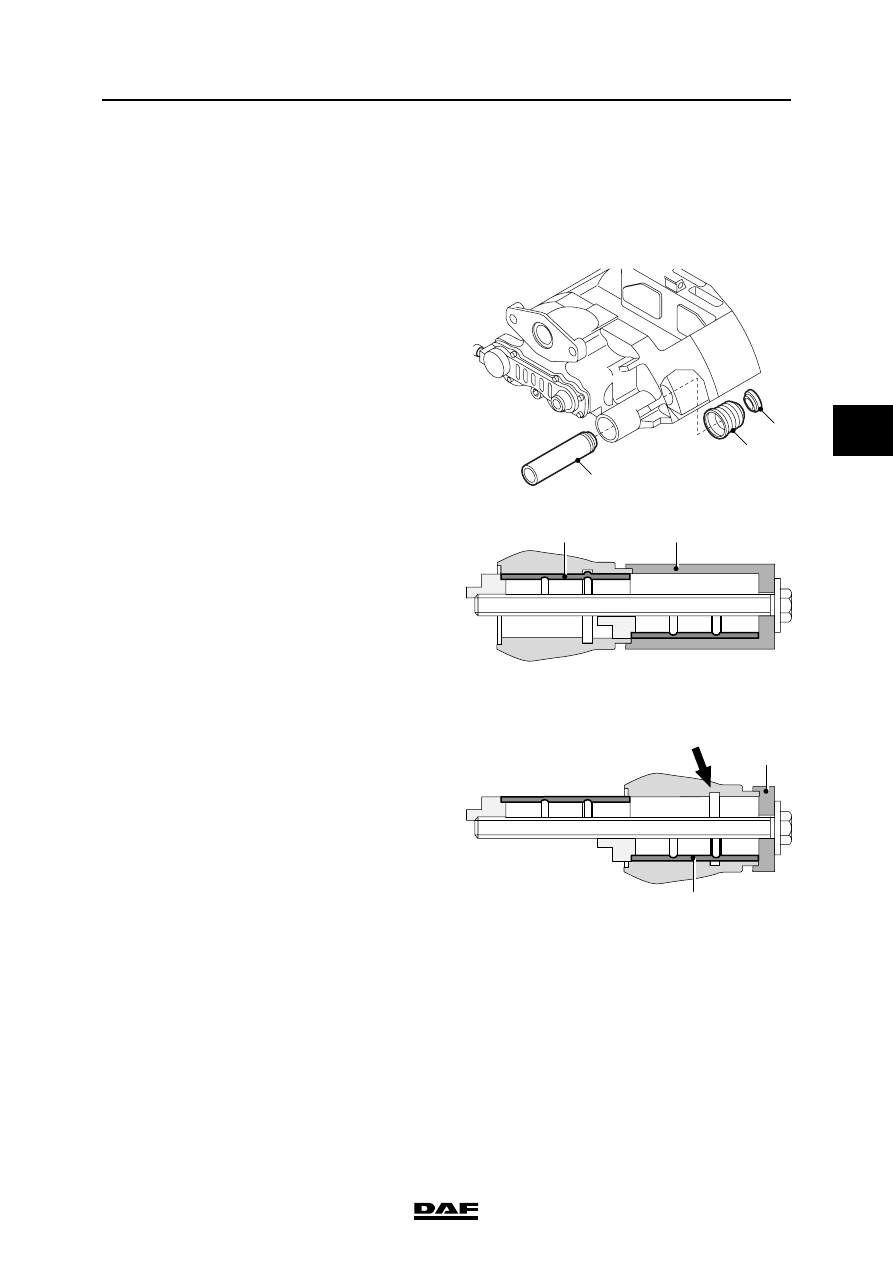

3.19 REMOVING AND INSTALLING BRASS BEARING BUSH OF BRAKE

CALLIPER, KNORR SB7000 VERSION

Removing brass bearing bush
1.

Remove the brake calliper.

2.

Remove washer (1).

3.

Remove guide bush (2).

4.

Remove the bellows (3).

5.

Remove the brass bearing bush (4) using a

bearing bush extractor (5), special tool set

(DAF no. 1329494).

6.

Clean the bearing bush bore.

Fitting brass bearing bush
1.

Fit the new brass bearing bush (4) using

bearing bush extractor 5,special tool set

(DAF no. 1329494).

2

3

1

R600723

R600727

4

5

R600728

4

5

BRAKE SYSTEM AND COMPONENTS

3-38

©

 200436

Removal and installation

4

ΛΦ45/55 series

6

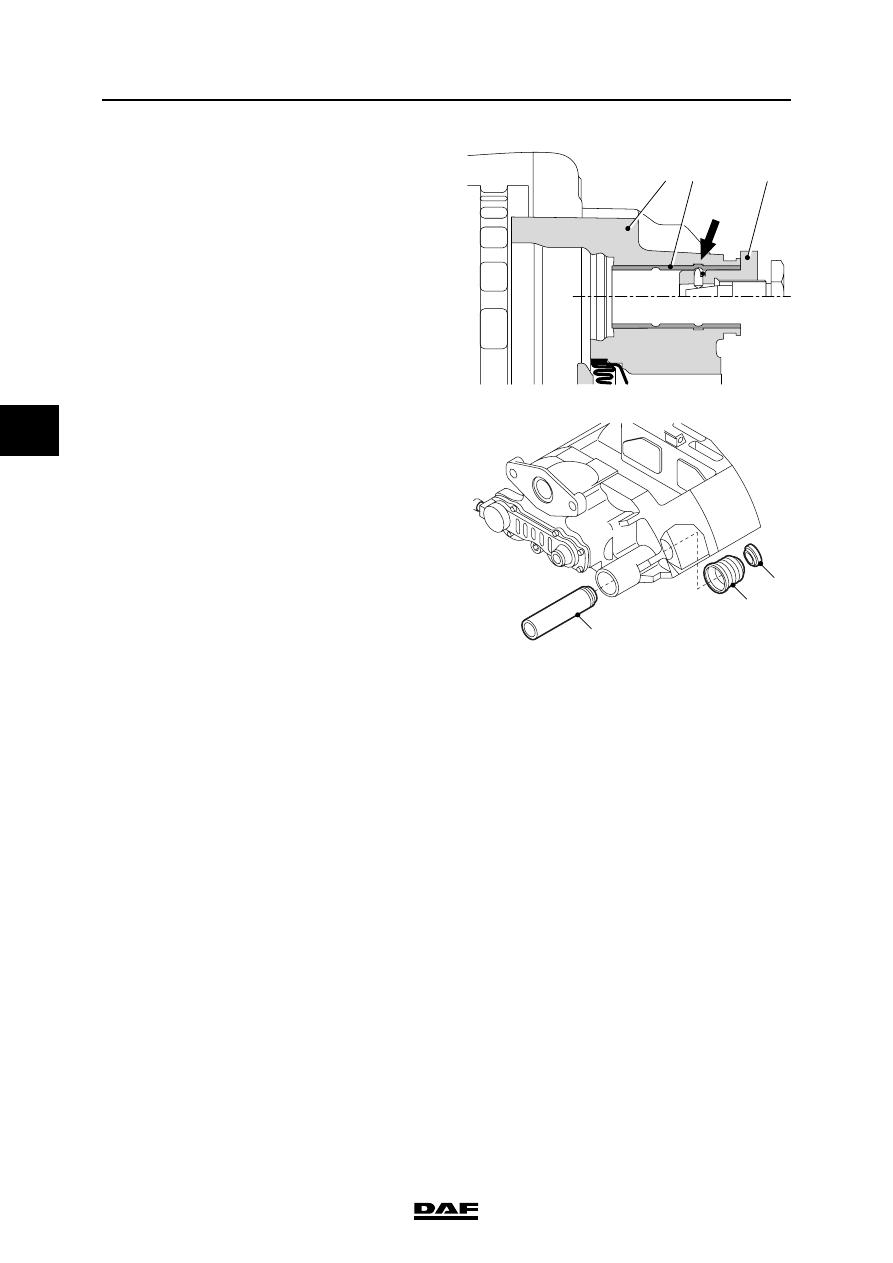

2.

Lock the bearing bush (4) in the brake

calliper (5) using a locking tool (6),special

tool set (DAF no. 1329494).

After the first locking operation, release the

locking tool, rotate 60

 and lock normally.

3.

Check the bearing bush for burrs.

4.

Apply lubricant to the bearing bush. See

"Technical data".

5.

Fit the bellows (3).

6.

Install the guide bush (2).

7.

Install the washer (1).

6

5

4

R600726

2

3

1

R600723
