Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΛΦ45/55 series

6

4

3.9 REMOVAL AND INSTALLATION, BRAKE DISC, WABCO MODEL

Removal, brake disc
1.

Remove the wheel.

2.

Remove the brake calliper from the axle.

3.

Remove the hub from the axle.

4.

Loosen the Allen screws of the brake disc.

5.

Remove the brake disc from the hub.

Installation, brake disc
1.

Clean the contact surfaces between the hub

and the brake disc.

2.

Fit the brake disc on the hub.

3.

Fit the Allen screws and tighten them to the

specified torque. See "Technical data".

4.

Fit the hub and brake disc on the axle.

5.

Fit the brake calliper.

BRAKE SYSTEM AND COMPONENTS

3-16

©

 200436

Removal and installation

4

ΛΦ45/55 series

6

3.10 REMOVAL AND INSTALLATION, BRAKE DISC, KNORR MODEL

Removal, brake disc
1.

Remove the hub.

2.

Remove the locking plates.

3.

Remove the spring plates between the disc

and hub and tap the disc off the hub using a

copper hammer.

If the disc does not come free from the hub,

it can be removed by placing it on an old

brake drum and pushing it off the hub using

a press.

Installation, brake disc
1.

Remove dirt and corrosion from the contact

surfaces of the brake disc and hub.

2.

Position the brake disc on the hub.

3.

Fit the spring plates and tighten them to the

specified torque. See "Technical data".

©

 200436

3-17

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΛΦ45/55 series

6

4

3.11 REMOVAL AND INSTALLATION, BRAKE CALLIPER, WABCO MODEL

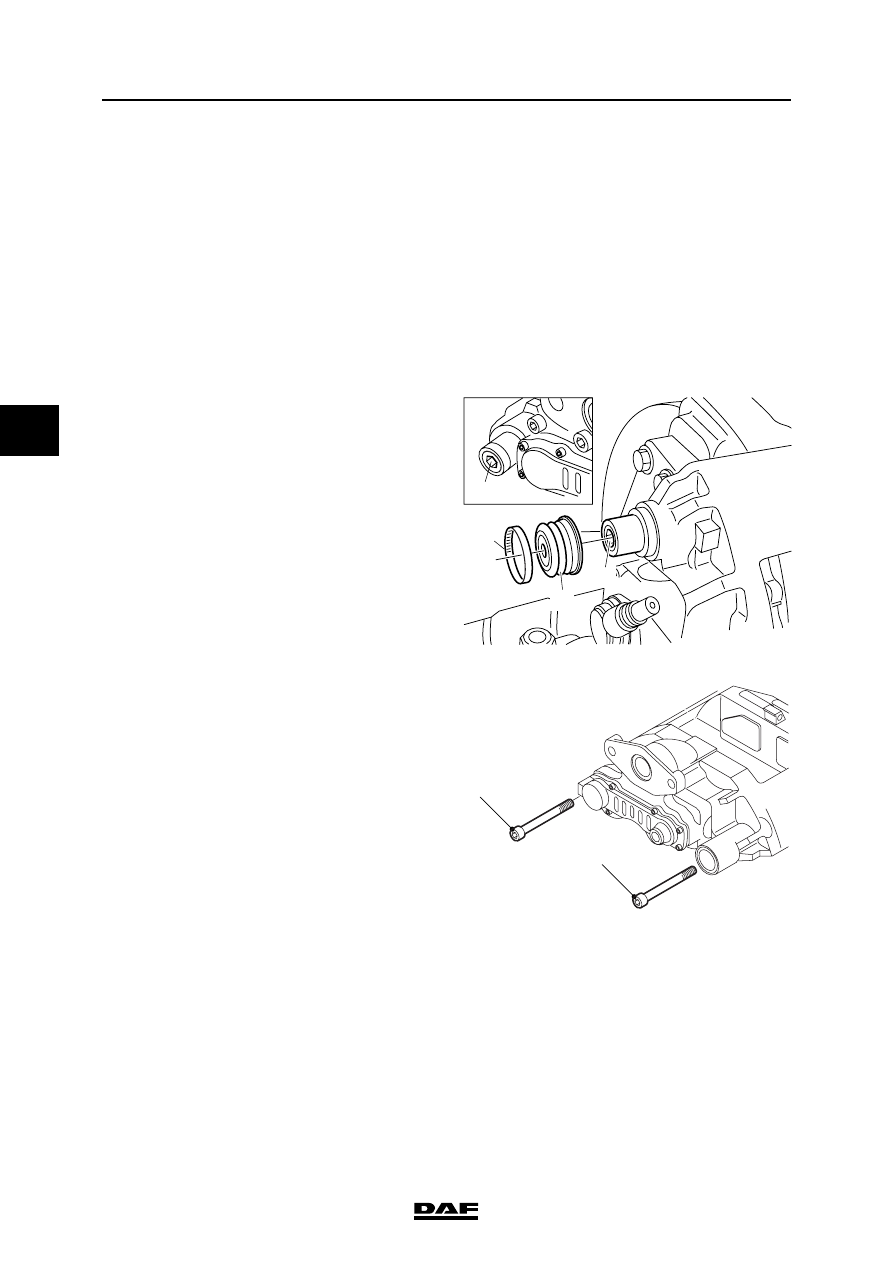

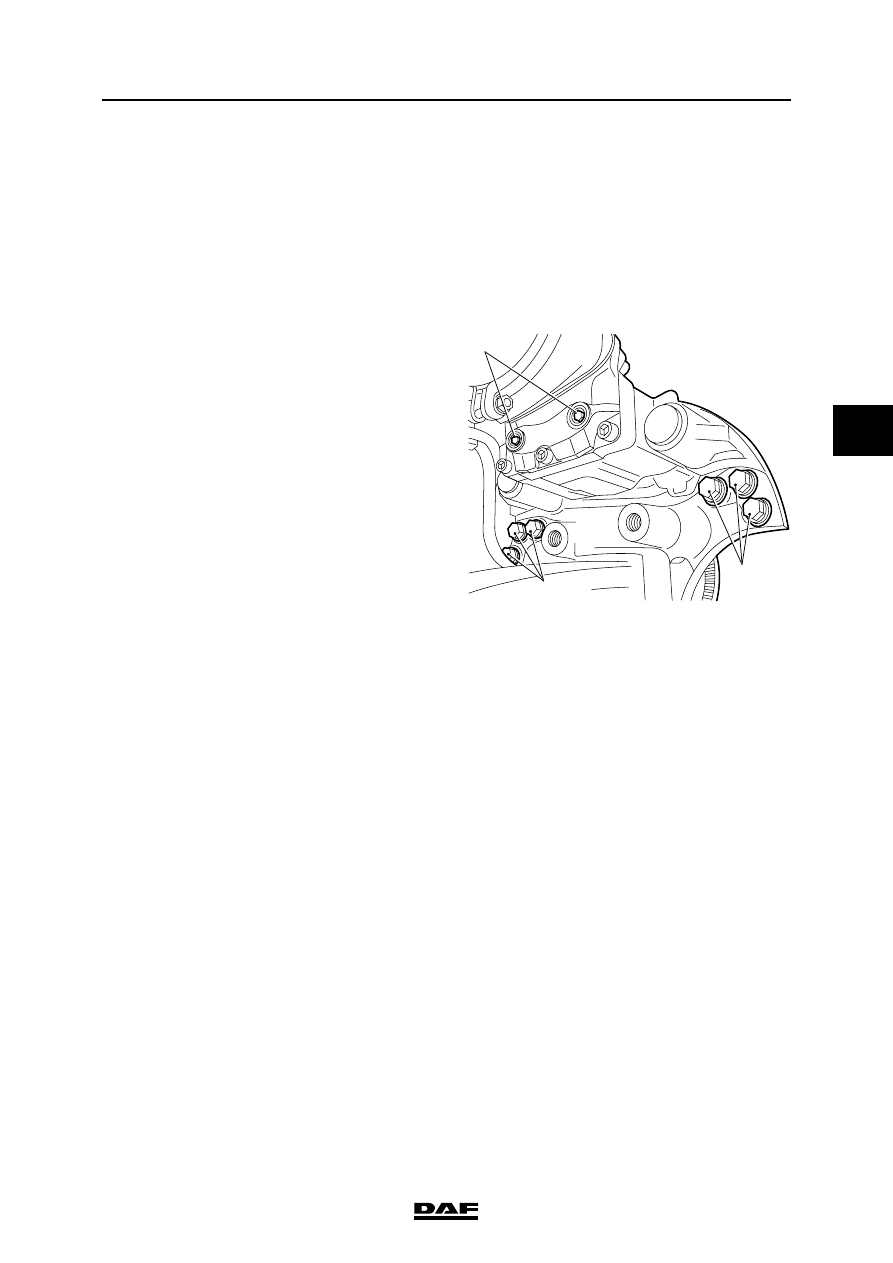

Removing the brake calliper
1.

Remove the plug for the brake pad wear

indicator.

2.

Remove the brake pads.

3.

Remove the brake cylinder.

4.

Remove the attachment bolts (8) from the

brake calliper.

5.

Remove the brake calliper from the axle.

Installing the brake calliper
1.

Place the brake calliper on the axle.

2.

Turn the attachment bolts into the brake

calliper and tighten them to the specified

torque. See "Technical data".

Note:

Tighten the attachment bolts in the specified

sequence. See "Technical data".

3.

Fit the brake cylinder.

4.

Fit the brake pads.

5.

Fit the plug for the brake pad wear indicator.

R600572

9

8

8

BRAKE SYSTEM AND COMPONENTS

3-18

©

 200436

Removal and installation

4

ΛΦ45/55 series

6

3.12 REMOVAL AND INSTALLATION, BRAKE CALLIPER, KNORR SB7000

VERSION

Never insert fingers between the

brake calliper and the brake calliper

carrier during and following removal

of the brake pads and when a new

brake calliper is installed (danger of

getting them trapped). Always take

hold of the brake calliper on the

outside.

Removing the brake calliper
1.

Remove the brake pads.

2.

Remove the brake cylinder.

3.

Remove the plug for the brake pad wear

indicator.

4.

Remove the clamping strap (31) and the

rubber bellows (10).

5.

Remove the Allen screws (2 and 3).

6.

Remove the brake calliper.

Fitting the brake calliper
1.

Clean all parts and check for damage. The

sliding surfaces of moving parts must be

clean and undamaged.

2.

Position the brake calliper on the brake

calliper carrier.

}

31

39

R600466

10

40

2

3

R600720
