2-1

General

BE ENGINE FUEL SYSTEM

ΛΦ45/55 series

4

2

2. GENERAL

2.1 LOCATION OF COMPONENTS

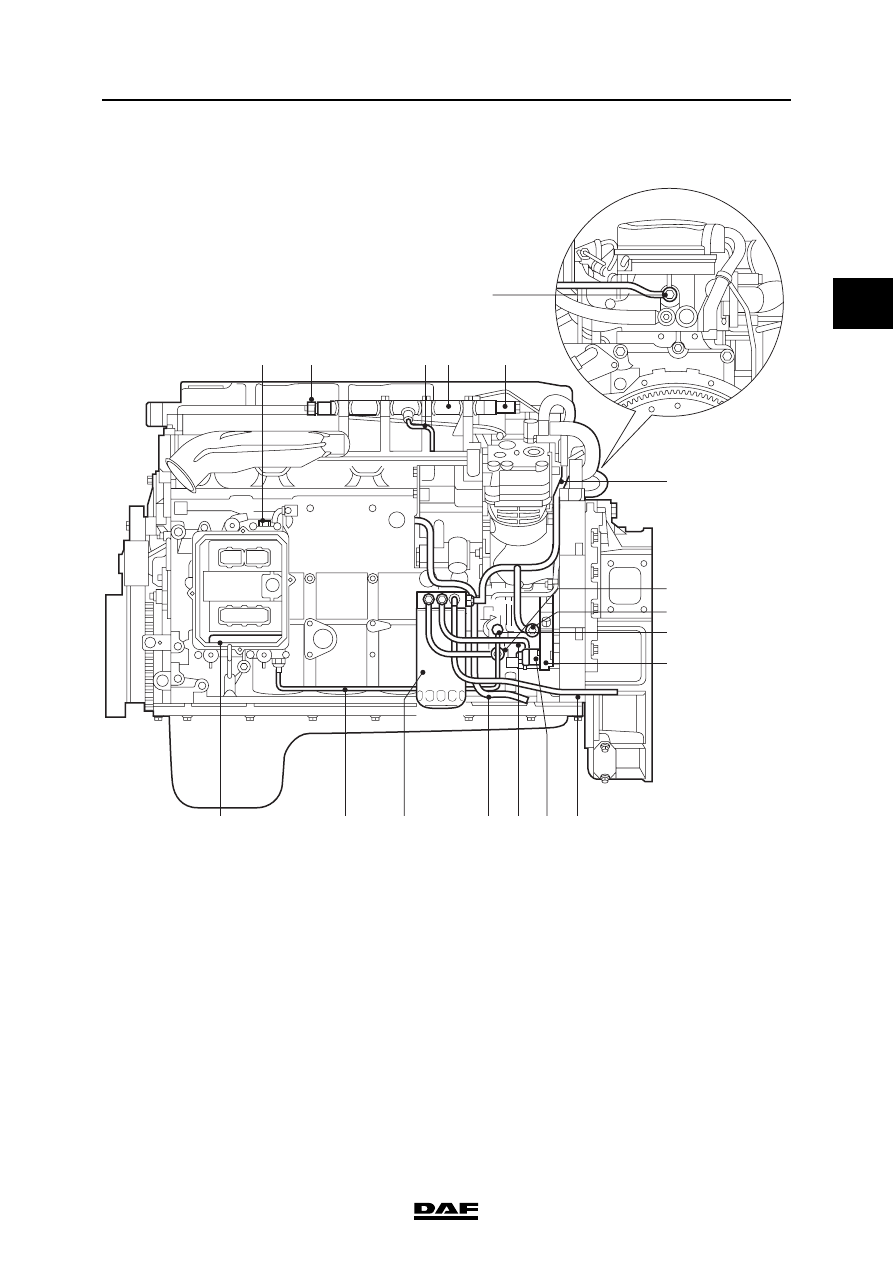

Location of components, production date
< 2003-49 (chassis number < 0L253643)

1

2

3

4 5

6

7

8

13

14

15

16

17

19

20

18

12

11

10

9

i400870

BE ENGINE FUEL SYSTEM

2-2

©

 200416

General

2

ΛΦ45/55 series

4

1.

Suction pipe to electronic unit cooling plate

2.

Injector pipe

3.

Fuel rail pressure sensor

4.

Fuel pipe to fuel rail

5.

Fuel rail

6.

Fuel return overflow valve

7.

Fuel rail pressure-limiting valve

8.

Return pipe from fuel return overflow valve

9.

Fuel pipe to high-pressure pump

10. Fuel pipe to fuel fine filter

11. High-pressure pump leak-off pipe

12. Fuel pipe to fuel lift pump

13. High-pressure pump

14. Fuel pump control solenoid valve

15. Fuel pipe to high-pressure pump

16. Return pipe to fuel tank

17. Fuel temperature sensor

18. Fuel fine filter

19. Fuel pipe from electronic unit cooling plate

20. ECS-DC3 electronic unit

©

 200416

2-3

General

BE ENGINE FUEL SYSTEM

ΛΦ45/55 series

4

2

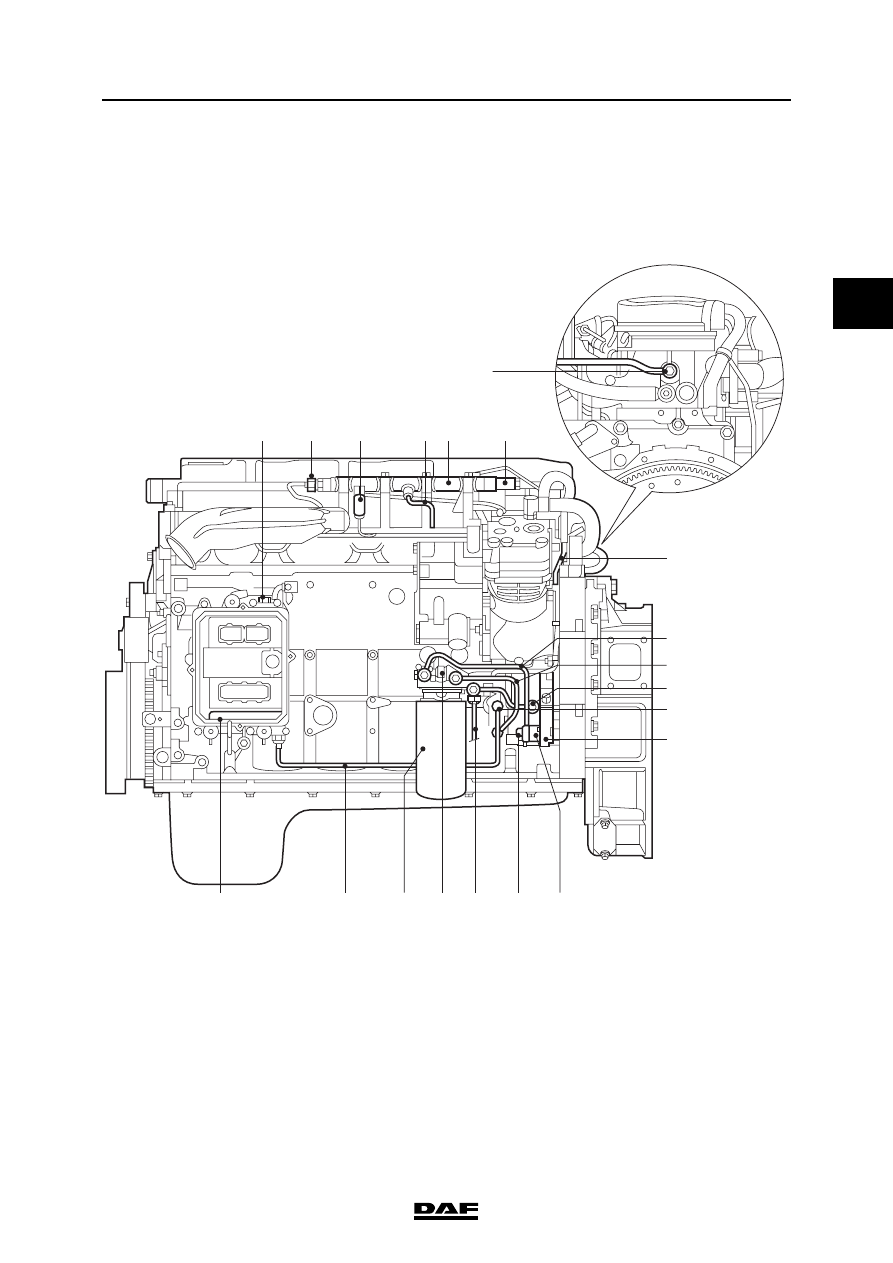

Location of components, production date

 2003-49 (chassis number  0L253643)

1

2

3 4

5

6

7

11

13

17

18

16

10

9

8

i400872

14

15

12

BE ENGINE FUEL SYSTEM

2-4

©

 200416

General

2

ΛΦ45/55 series

4

1.

Suction pipe to electronic unit cooling plate

2.

Fuel rail pressure sensor

3.

Fuel pipe to fuel rail

4.

Fuel rail

5.

Fuel return overflow valve

6.

Fuel rail pressure-limiting valve

7.

Return pipe from fuel return overflow valve

8.

Fuel pipe to fuel fine filter

9.

High-pressure pump leak-off pipe

10. Fuel pipe to fuel lift pump

11. High-pressure pump

12. Return pipe to fuel tank

13. Fuel pump control solenoid valve

14. Fuel pipe to high-pressure pump

15. Fuel supply pipe

16. Fuel fine filter

17. Fuel pipe from electronic unit cooling plate

18. ECS-DC3 electronic unit
