DAF LF45, LF55 Series. Manual - part 271

©

 200508

5-7

Removal and installation

CLUTCH

ΛΦ45/55 series

3

9

5.6 REMOVING AND INSTALLING CLUTCH CYLINDER

Removing the clutch cylinder
1.

Drain the clutch system; see "Draining and

filling".

2.

Remove the retainer clip and the hydraulic

pipe.

3.

Remove the attachment screw from the

fastening bridge (1).

4.

Using a screwdriver, press the lock levers (2)

back and remove the fastening bridge (1).

5.

Screw the plastic fastening jig (1) out of

the clutch pedal. If necessary, detach the

spring (2).

6.

Remove the clutch cylinder.

Fitting clutch cylinder
1.

Reposition the clutch cylinder in the holder.

2

1

V3 00 577

2

1

V3 00 579

CLUTCH

5-8

©

 200508

Removal and installation

9

ΛΦ45/55 series

3

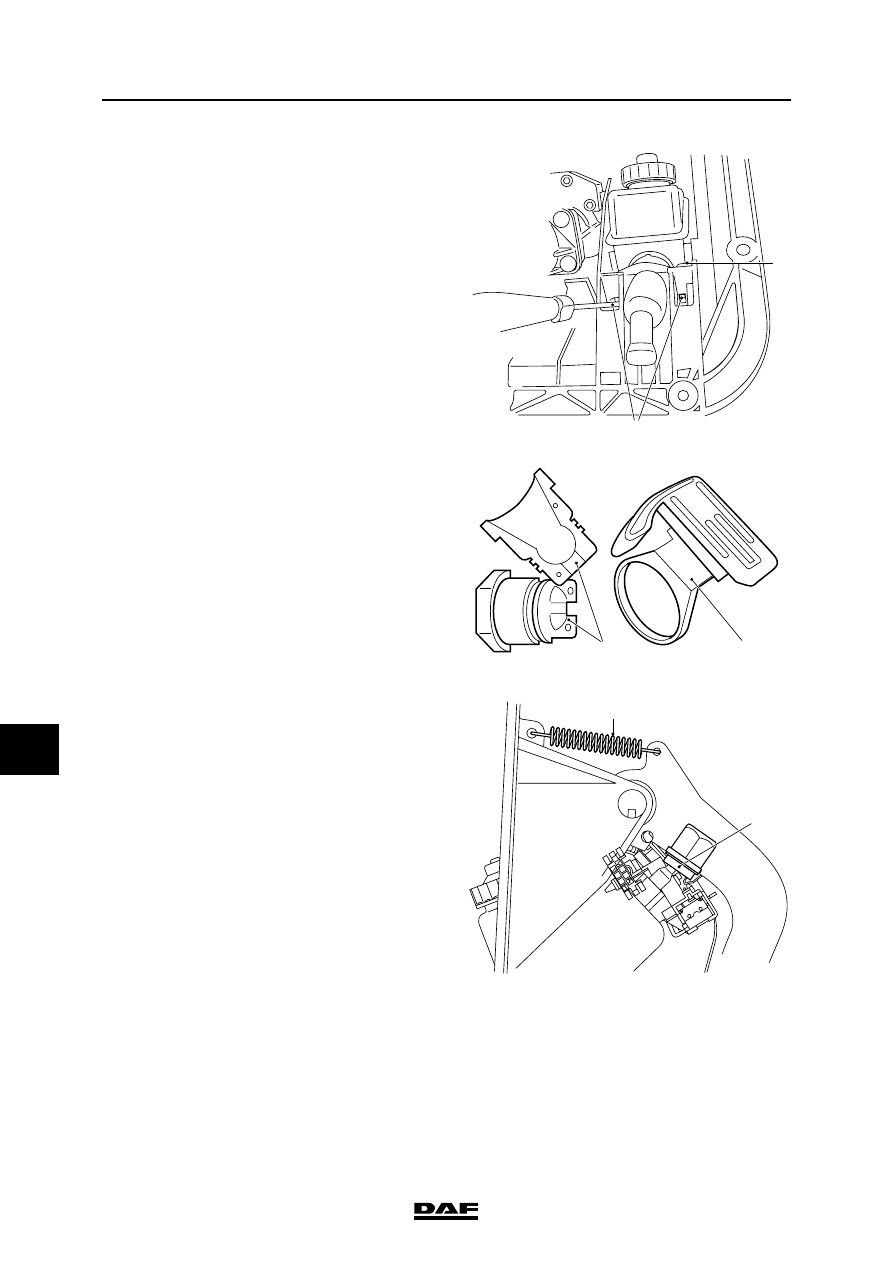

2.

Fit the fastening bridge (1) and tighten the

attachment screw.

3.

Clip the plastic fastening jig (1) around the

clutch cylinder push rod and fit the switch

control (2) over the jig.

4.

Screw the plastic fastening jig (1) into the

pedal.

5.

Fit the spring (2) if it has been removed.

6.

Fill the clutch system; see "Draining and

filling".

2

1

V3 00 577

2

1

V3 00 576

2

1

V3 00 579

©

 200508

6-1

Draining and filling

CLUTCH

ΛΦ45/55 series

3

9

6. DRAINING AND FILLING

6.1 DRAINING AND FILLING CLUTCH SYSTEM

Hydraulic fluid is toxic and can

therefore have a damaging effect on

your health. Any direct or indirect

physical contact should therefore be

avoided. As hydraulic fluid is also

corrosive it may damage the

paintwork of the vehicle. Any

contact between hydraulic fluid and

paintwork should therefore be

avoided.

Always use new and clean hydraulic

fluid which has been kept in a sealed

container that meets the

specifications. Hydraulic fluid which

has absorbed water (from the

ambient air) may have an adverse

effect on the operation of the clutch

system. Avoid any contact with

mineral oil. Even one drop of mineral

oil in the system will damage the

seals.

Draining clutch system
1.

Place a container beneath the clutch servo.

2.

Disconnect the supply pipe from the clutch

servo and drain the oil from the reservoir by

moving the pedal up and down.

3.

Reinstall the supply pipe.

Filling clutch system
1.

Fill the reservoir with the specified fluid and

bleed the system.

}

}

CLUTCH

6-2

©

 200508

Draining and filling

9

ΛΦ45/55 series

3

6.2 BLEEDING CLUTCH SYSTEM

Hydraulic fluid is toxic and can

therefore have a damaging effect on

your health. Any direct or indirect

physical contact should therefore be

avoided. As hydraulic fluid is also

corrosive it may damage the

paintwork of the vehicle. Any

contact between hydraulic fluid and

paintwork should therefore be

avoided.

Always use new and clean hydraulic

fluid which has been kept in a sealed

container that meets the

specifications. Hydraulic fluid which

has absorbed water (from the

ambient air) may have an adverse

effect on the operation of the clutch

system. Avoid any contact with

mineral oil. Even one drop of mineral

oil in the system will damage the

seals.

Bleeding the clutch system using the "servo"
bleed tank
1.

Connect the "servo" bleed tank to the

reservoir.

Note:

Filling too quickly causes foaming, which makes

bleeding virtually impossible.

2.

Fill the system via the "servo" bleed tank.

3.

Connect a transparent pipe to the clutch

servo's bleed nipple. Ensure that the

hydraulic fluid is collected.

4.

Open the bleed nipple two full turns.

5.

As soon as no more air bubbles escape from

the transparent pipe, the bleed nipple can be

closed again.

6.

Check the fluid level. See "Inspection and

adjustment".

}

}
