Removal and installation

ZF S5-42 GEARBOX

ΛΦ45/55 series

3

4

4.4 REMOVING AND INSTALLING GEARBOX FRONT COVER OIL SEAL

Removing gearbox front cover oil seal
1.

Remove the gearbox.

2.

Remove the release mechanism.

3.

Remove the gearbox front cover (3).

4.

Prise the oil seal (2) out of the gearbox front

cover. Inspect the O-ring. If it is damaged,

replace the O-ring.

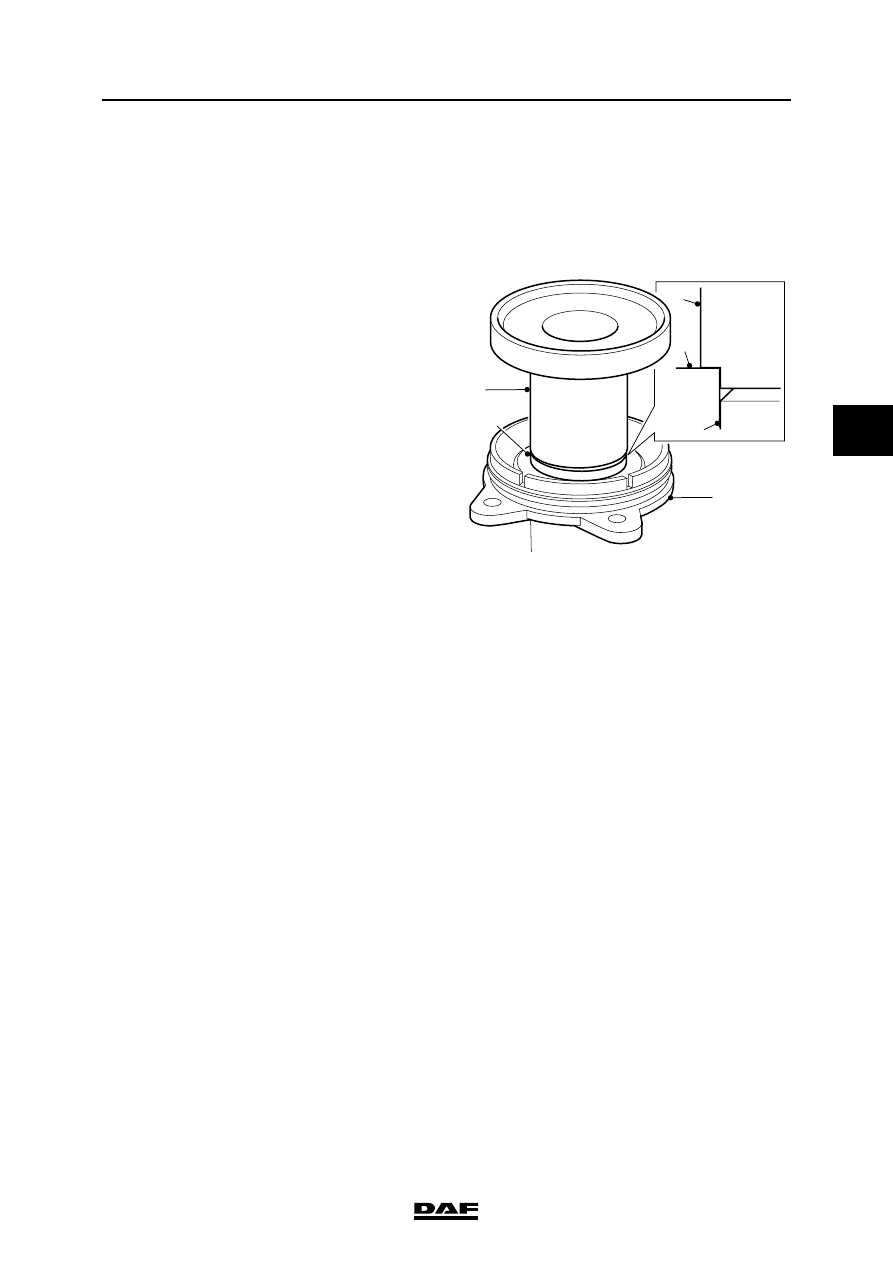

Installing gearbox front cover oil seal
1.

Fit the oil seal using special tool

(DAF no. 1240498) (1) at the right depth in

the gearbox front cover (3).

2.

Install the gearbox front cover (3) with the

O-ring on the gearbox. Tighten the

attachment bolts to the specified torque.

See "Technical data".

3.

Fit the release mechanism.

4.

Fit the gearbox.

V301013

2

1

3

3

1

2

ZF S5-42 GEARBOX

4-6

©

 200508

Removal and installation

4

ΛΦ45/55 series

3

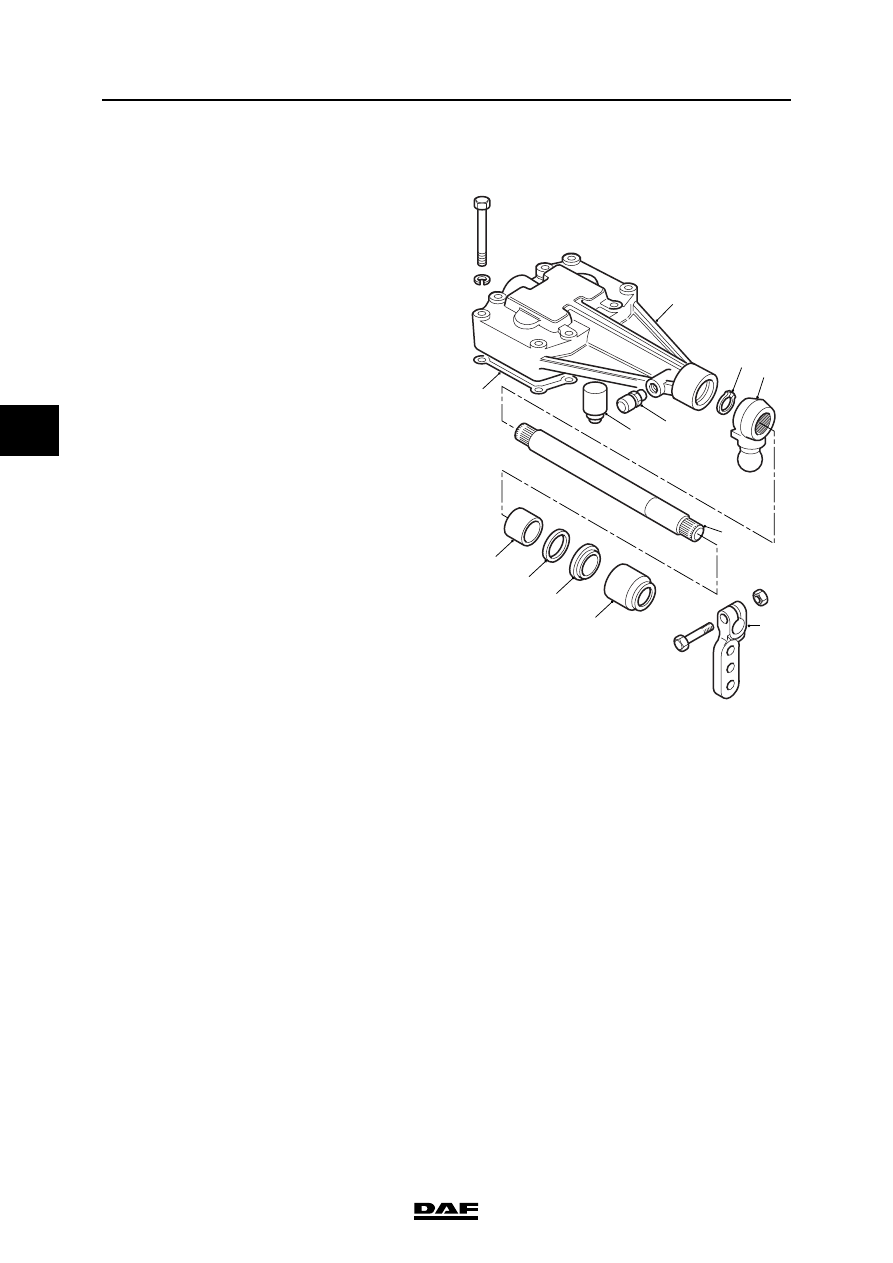

4.5 REMOVING AND INSTALLING SELECTOR SHAFT OIL SEAL

Removing selector shaft oil seal
1.

Make a reference marking on the shifting

arm (12) and the selector finger (6) in relation

to the selector shaft (7).

2.

Loosen the locking bolt. Take the shifting

arm (12) and the protective cover (11) off the

selector shaft.

3.

Remove the spring washer (5). Drive the

selector shaft (7) out of the selector finger

and the housing.

4.

Remove the retainer (3) from the housing.

5.

Remove the oil seal (9) and the wiper seal

(10) from the housing.

6.

Use the special tools (DAF no. 0535790)

and (DAF no. 0535817) to remove the

selector shaft bush (8) from the housing (2).

7.

Remove the bleeder (4).

V301014

12

11

10

9

8

7

6

5

4

3

2

1

©

 200508

4-7

Removal and installation

ZF S5-42 GEARBOX

ΛΦ45/55 series

3

4

Installing selector shaft oil seal
1.

Fit the selector shaft bush (8) using the

special tool (DAF no. 0192545). Heat the

housing (2), if necessary, in order to facilitate

assembly.

2.

Lubricate the circumference of the seal (9)

with a soap solution. Fit the seal with special

tool (DAF no. 0535659) in the housing, with

the sealing lip on top.

3.

Fit the wiper seal (10).

4.

Place the special tool (DAF no. 0192546) on

the selector shaft (7). Fit the selector shaft.

5.

Heat the selector finger (6) to a max. of

100

″C. Install the selector shaft (7) in the old

position according to the markings made.

6.

Fit the spring washer (5).

7.

Install the retainer (3). To ease fitting, the

housing (2) around the bore can be heated to

120

″C.

8.

Fit the protective cap (11).

9.

Install the shifting arm (12) in the old position

in accordance with the markings made.

Tighten the shifting arm locking bolt to the

specified torque. See "Technical data".

10. Tighten the bleeder (4) to the specified

torque. See "Technical data".
