DAF LF45, LF55 Series. Manual - part 220

©

 200508

6-3

Allison 1000 & 2000 automatic gearboxes

TECHNICAL DATA

ΛΦ45/55 series

3

0

6.3 FILLING CAPACITIES

Gearbox

Capacity

Allison 1000 & 2000 series

Approx. 10 litre

TECHNICAL DATA

6-4

©

 200508

Allison 1000 & 2000 automatic gearboxes

0

ΛΦ45/55 series

3

©

 200508

7-1

Allison MD3060 automatic gearbox

TECHNICAL DATA

ΛΦ45/55 series

3

0

7. ALLISON MD3060 AUTOMATIC GEARBOX

7.1 GENERAL

The Allison MD3060 automatic gearbox is

electronically controlled and has a diagnostics

system that can record possible faults in the

memory of the ECU (Electronic Control Unit). The

faults can be read at a later date. The system is

operated and the faults are read via the selector

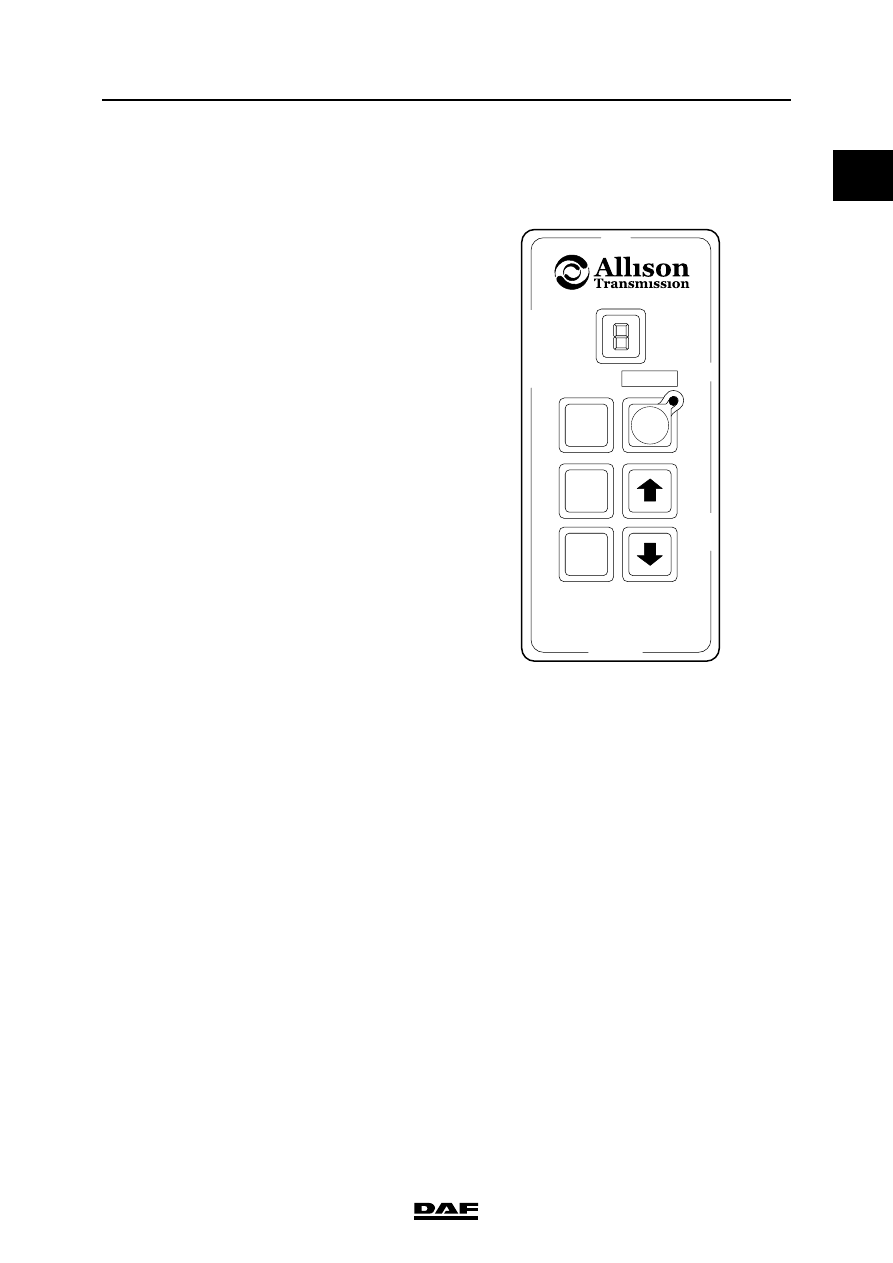

keypad. This selector keypad has a display and is

located next to the driver's seat; it replaces the

gear lever with manual gearboxes.

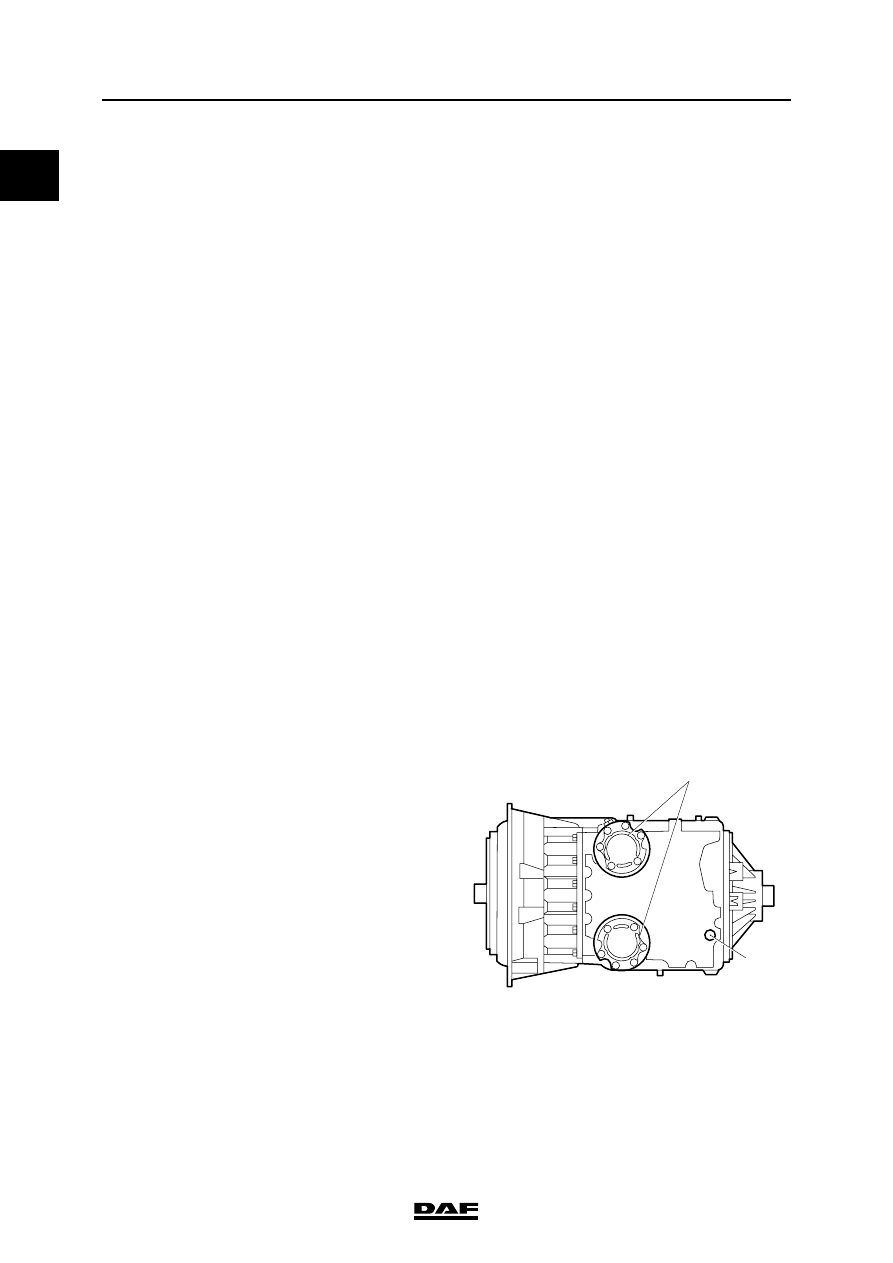

Torque converter pilot bearing

R

D

MODE

N

V300392

Lubricant on installation

Molykote BR2S or BR2 Plus

TECHNICAL DATA

7-2

©

 200508

Allison MD3060 automatic gearbox

0

ΛΦ45/55 series

3

7.2 TIGHTENING TORQUES

The tightening torques stated in this paragraph

are different from the standard tightening torques

stated in the overview of the standard tightening

torques.

The other threaded connections not specified

must therefore be tightened to the torque

mentioned in the overview of standard tightening

torques.

When attachment bolts and nuts are replaced, it

is important that - unless stated otherwise - these

bolts and nuts are of exactly the same length and

property class as those removed.

Gearbox

Drive flange

Flexplates

Oil cooler

Plugs

Attachment bolts

60 Nm

Bleeder

14 Nm

Main connector

2.5 Nm

Coolant pipes

55 Nm

Rear mounting bracket

100 Nm

PTO bracket

55 Nm

Flywheel housing adapter, M10 x 1.5

55 Nm

Attachment bolt

75 Nm

Flexplate adapter attachment bolts

36 Nm

Torque converter attachment bolts

36 Nm

Hydraulic lines

60 Nm

V300371

2

1

Oil drain plug (1)

28 Nm

Oil filter cover attachment bolts (2)

55 Nm
