LF45/55 series
Cab suspension
TECHNICAL DATA
2-3
2.2 TIGHTENING TORQUES
The tightening torques stated in this paragraph
are different from the standard tightening
torques stated in the overview of the standard
tightening torques. The other threaded
connections which are not stated must therefore
be tightened to the tightening torque stated in
the overview of standard tightening torques.
When attachment bolts and nuts are to be
replaced, it is important - unless stated
otherwise - that these bolts and nuts are of
exactly the same length and property class as
the removed ones.

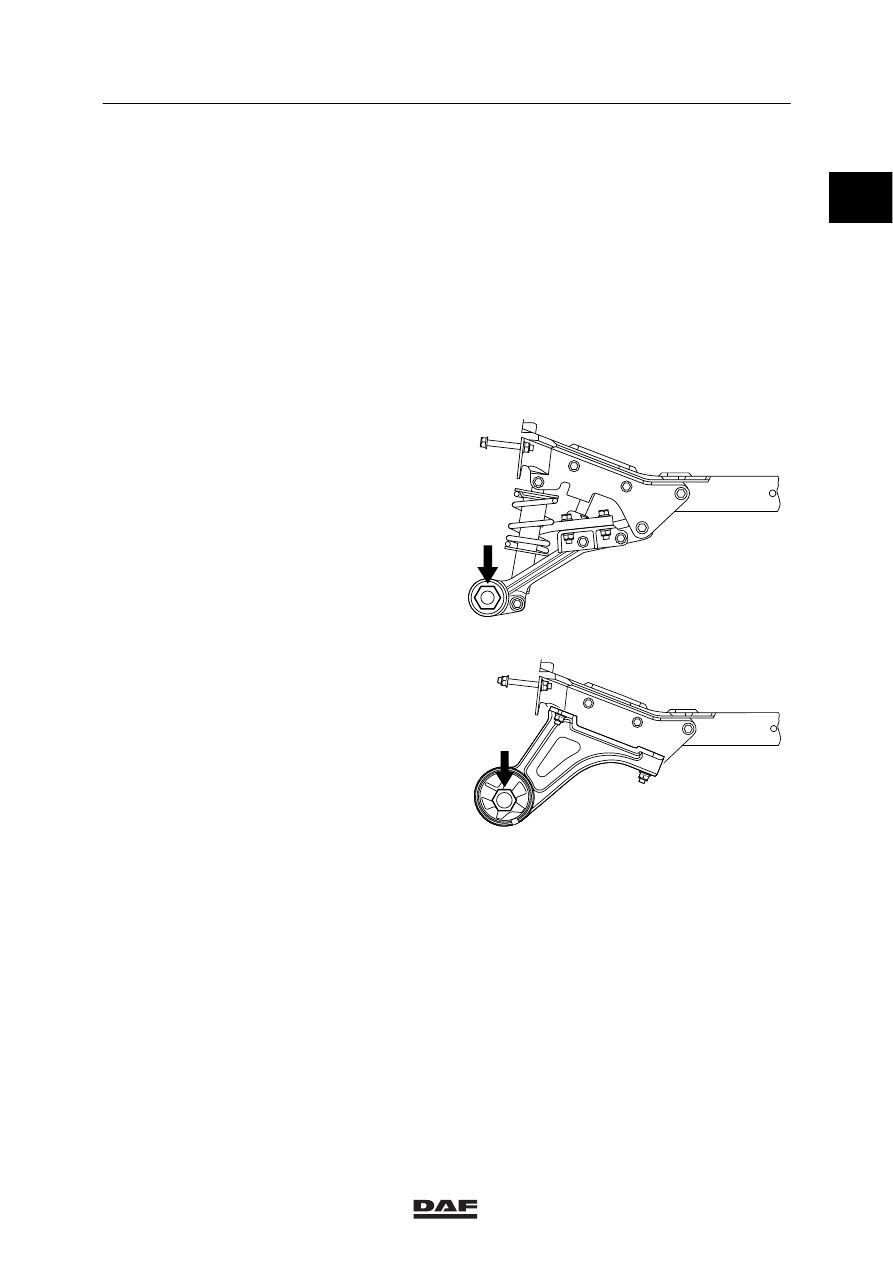

Attachment bolts for cab suspension
using coil springs
Cab suspension
attachment bolt
250 Nm + 150
_
angular
displacement
K1 01 573
Attachment bolts for cab suspension
using rubber spring elements
Cab suspension
attachment bolt
250 Nm + 150
_
angular
displacement
K1 01 574
