DAF 95XF. Manual - part 566





8

TECHNICAL DATA

Tandem rear axle 1355 T

95XF series

3-4

0

 200424

0

8

95XF series

Trailing axles

TECHNICAL DATA

4-1

4. TRAILING AXLES

4.1 GENERAL

Wheel bearings
Wheel bearing play

0.025 - 0.25 mm

Hub cap
Sealant

Loctite 572

4.2 TIGHTENING TORQUES

The tightening torques stated in this section are

different from the standard tightening torques

stated in the overview of the standard tightening

torques. Any other threaded connections that

are not specified must therefore be tightened to

the torque stated in the overview of standard

tightening torques.

When attachment bolts and nuts are replaced, it

is important that - unless stated otherwise -

these bolts and nuts are of exactly the same

length and property class as the ones removed.

Hub of trailing axle 09N075
Hub lock nut, 09N075

210 Nm

Wheel nuts

700 Nm

(1)

Hub of trailing axle 09N220
Hub lock nut, 09N220

560 Nm

Hub cap attachment bolts

70 Nm

Wheel nuts

700 Nm

(1)

 200424

8

TECHNICAL DATA

Trailing axles

95XF series

4-2

Bearing block
A

Attachment bolts, bearing block to

bearing support
-

if M16 8.8 nut

195 Nm

-

if M16 10.9 nut

260 Nm

B

Pull-rod/push-rod

attachment nut

130 Nm

C

Adjusting nut, outer bearing

block

90 Nm

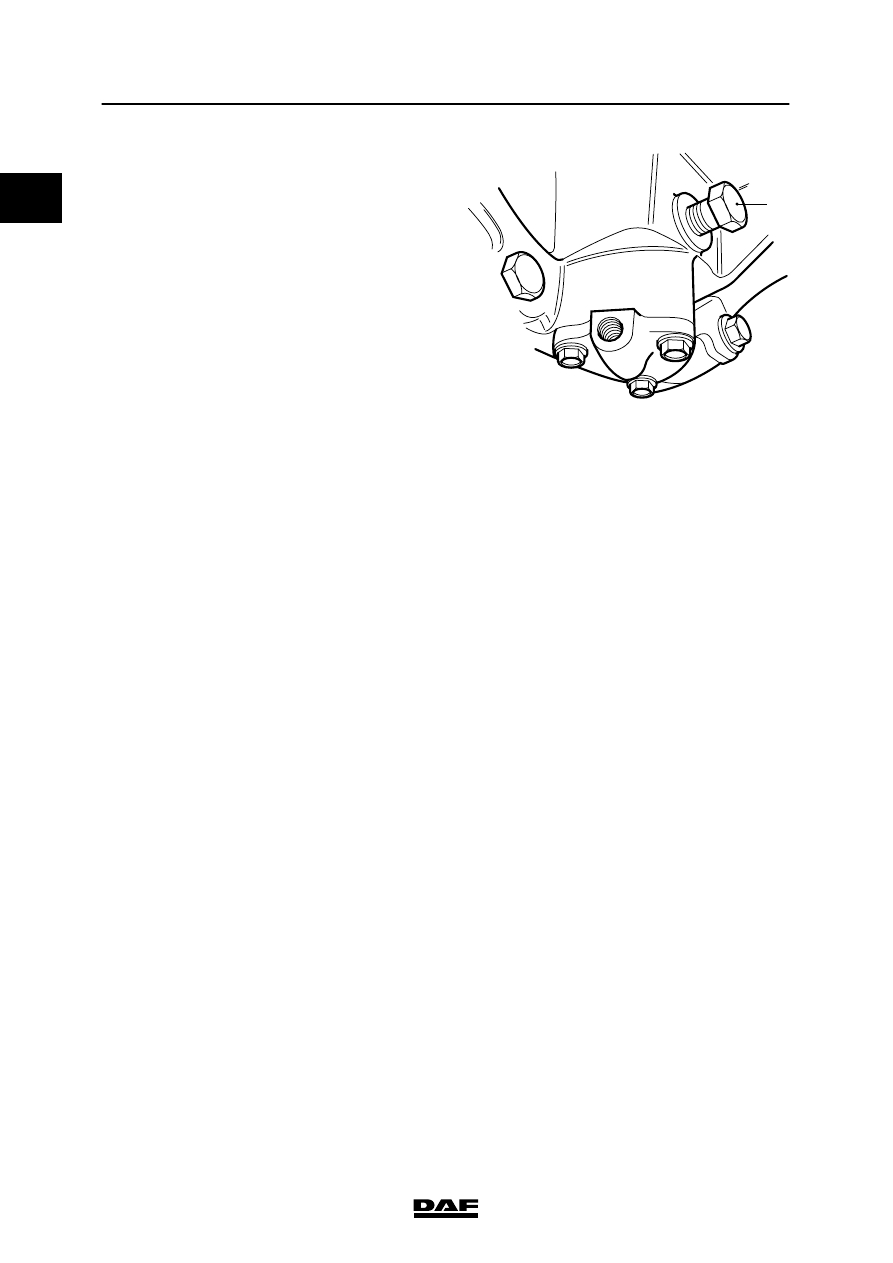

A8 00 346

A

Note:

(1)

Retighten after 100 km; if new wheel nuts have been

fitted, the wheels need additional retightening after

500 km.

0

 200424

0

8

95XF series

Hydraulic lifting gear

TECHNICAL DATA

5-1

5. HYDRAULIC LIFTING GEAR

5.1 GENERAL

Cut-out pressure, pressure switch

160 bar

Pre-set value, pressure relief valve

180 bar

Maximum admissible system pressure

200 bar

Test pressure, lifting cylinder

220 bar

Delivery pipe while lifting

Line connection B

Delivery pipe while lowering

Line connection A
(The characters are printed on the pump unit)

Safety device

Once the trailing axle has been lowered, it can

only be lifted again after approx. 2.5 minutes.

If the control switch is put into the “lifting”

position within approx. 2.5 minutes, the lifting

gear will not be activated and the time relay

will be reset. In that case you will have to wait

about another 2.5 minutes before the trailing

axle can be lifted.

5.2 TIGHTENING TORQUES

The tightening torques stated in this section are

different from the standard tightening torques

stated in the overview of the standard tightening

torques. Any other threaded connections that

are not specified must therefore be tightened to

the torque stated in the overview of standard

tightening torques.

When attachment bolts and nuts are replaced, it

is important that - unless stated otherwise -

these bolts and nuts are of exactly the same

length and property class as the ones removed.

Pump unit
2/2 valve

25 Nm

4/2 valve

25 Nm

Pressure relief valve

30 Nm

Pressure switch

25 Nm

Pump attachment bolts

25 Nm

Engine attachment bolts

17 Nm

Cylinder
Piston attachment nut

200 Nm

 200424
