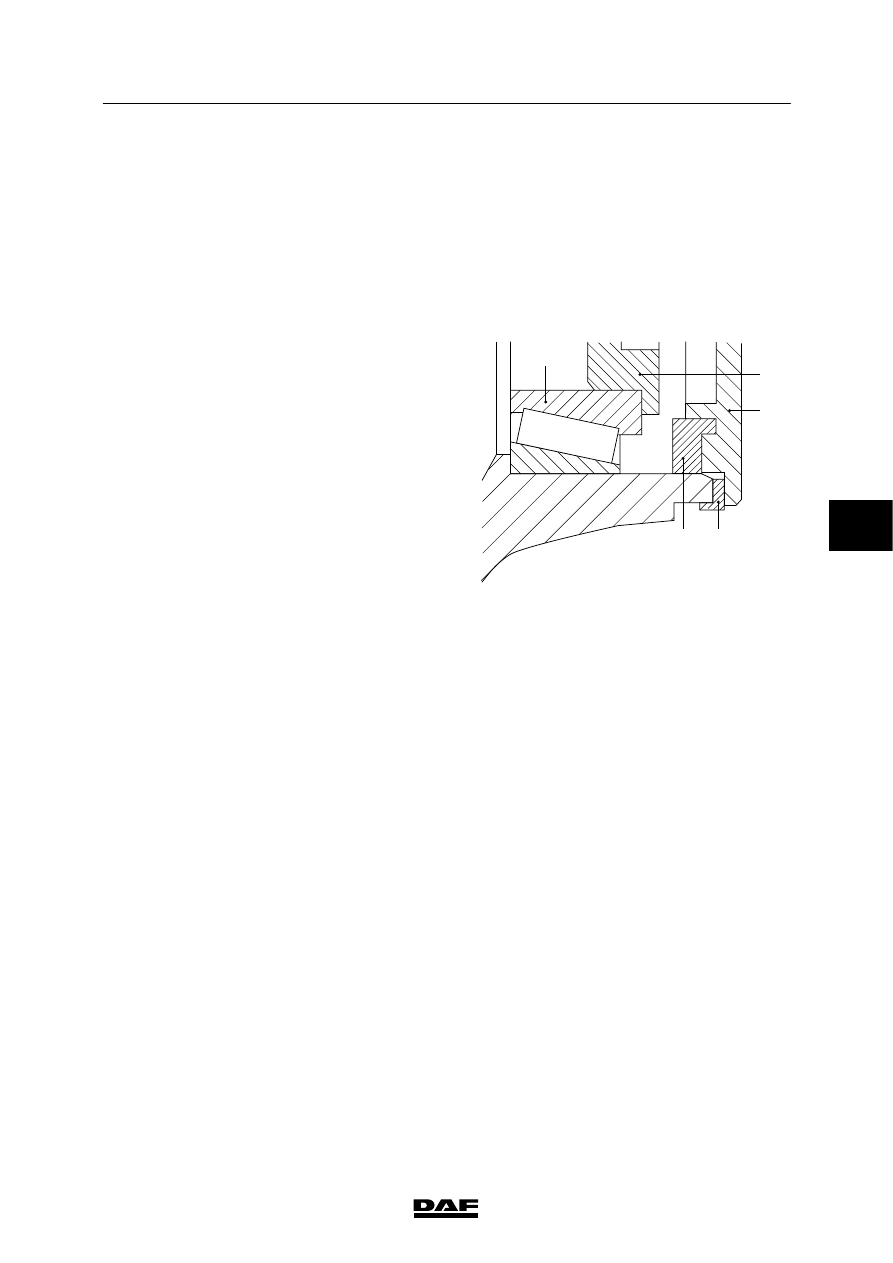

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES Removal and installation 4-32 5. Fit the wheel bearing (13) into the hub. 6. Fill the inside circumference of the hub with 7. Fit a new hub oil seal (14) in the hub. 8. Apply a little grease to the sealing lips of the 9. Position the wheel in front of the axle 10. Slide the hub over the axle journal. Do not pry, as the oil seal (14) might be damaged 11. Fit the hub nut (9) to the axle journal. 12. Adjust the specified wheel bearing play (see chapter “Inspection and adjustment”) and fit 13. Fit a new locking washer (6) to the axle journal. The cam of the locking washer 14. Fit the lock nut (5) to the axle journal. Tighten the lock nut (5) to the specified 15. Secure lock nut (5) by tapping back the locking washer (6) against the side of the 16. Apply the specified grease to the front of the outer wheel bearing. 17. Fit the hub cap (4) applying a sealant. 18. Adjust the brakes. 5 200424 |
