5
Modifications to the electrical installation from chassis number 0E473500
MODIFICATIONS TO THE ELECTRICAL INSTALLATION
3-1
3. MODIFICATIONS TO THE ELECTRICAL INSTALLATION FROM
CHASSIS NUMBER 0E473500

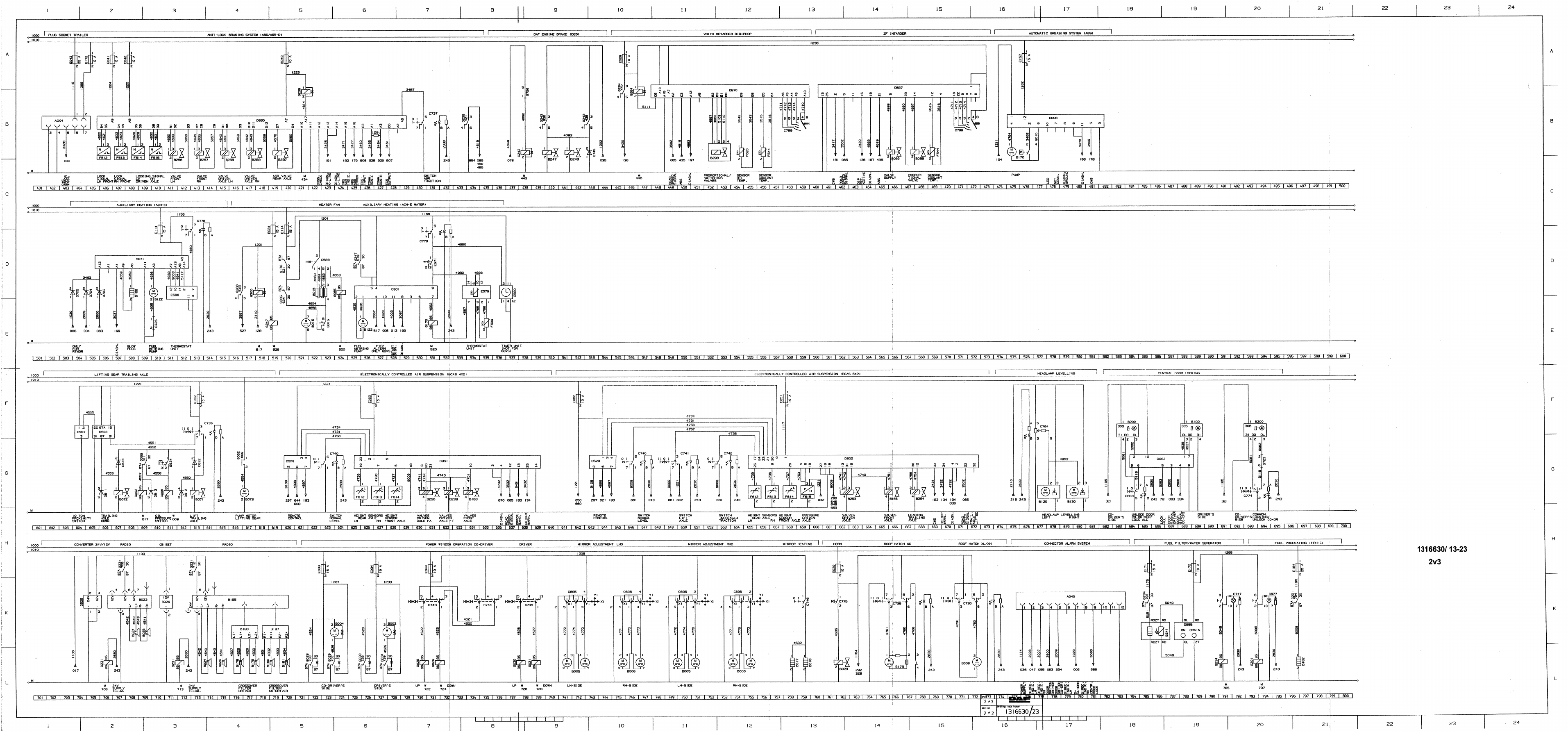

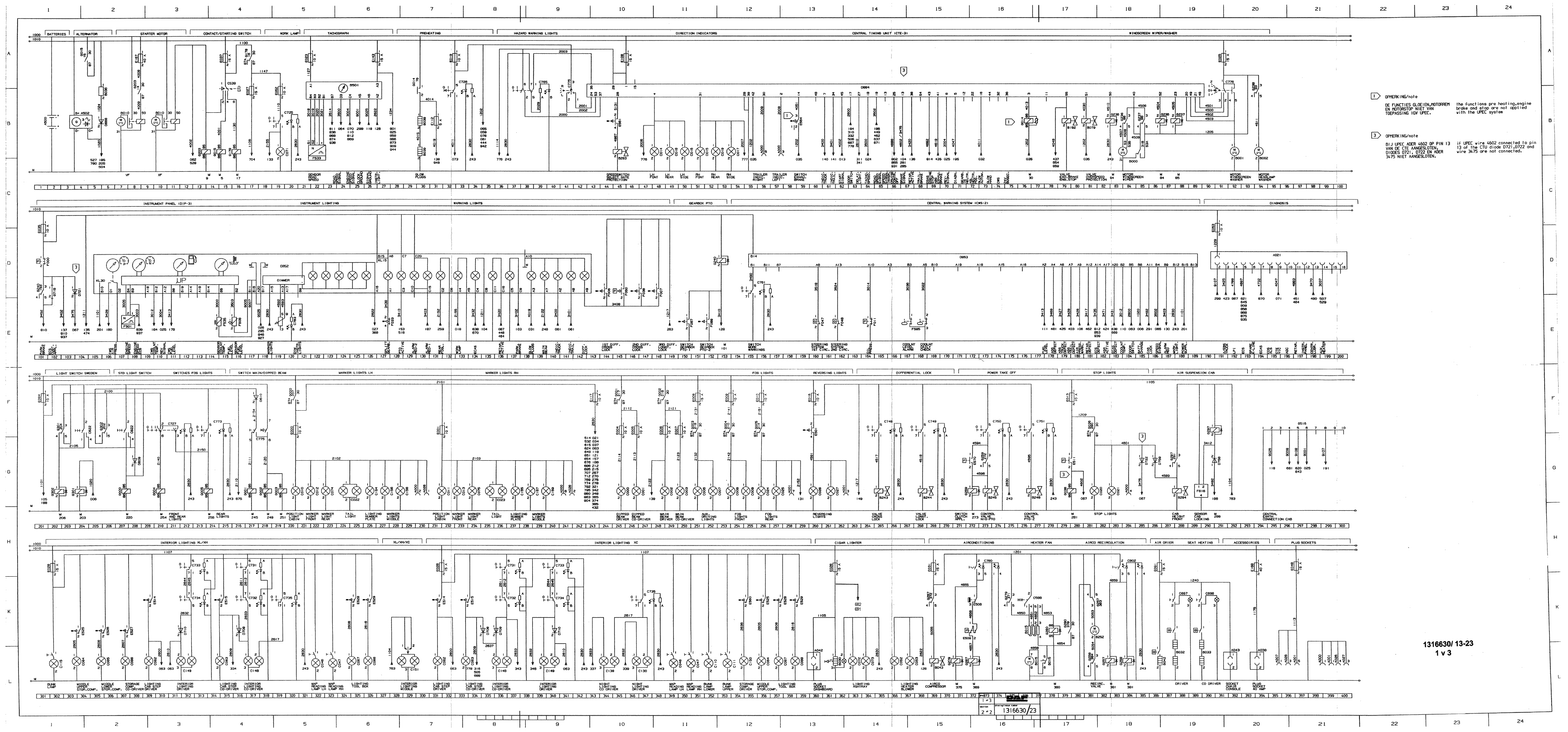

3.1 OVERVIEW OF MODIFICATIONS TO THE ELECTRICAL INSTALLATION
Modification/Chassis numbers
Electrical system
From chassis
number
Modification
See sub-
diagram no.
Voltage before and
after the contact
0E473500
Changed connector on printed circuit for wires
1000 and 1010
A
CTE
0E473500
CTE-2 (D550) changed to CTE-3 (D884)
5
Air conditioning
0E473500
Air-conditioning relay (G279) no longer connec-
ted in series with switches E508 and E509
20
Starting circuit
0E477514
Starter lock relay (G303) removed, now
mechanical starter lock in ignition lock
1
Gearbox gate
safety
0E473500
Gate safety activation changed, now activated
through CTE-3
13
E-gas 3
0E473500
Fuse for E-gas (E197) added
28
Oil level HGS
0E475536
Switch for oil level HGS (F076) removed
7
Search light
0E481530
LED-lighting added for air-conditioning switch
(C760) and recirculation switch (C802)
19
Door lock
0E481530
Fuse E182 changed to fuse E026
Wire mark 1181 changed to 1105
36
Air conditioning
0E481530
LED-lighting added for air-conditioning switch
(C760) and air-conditioning recirculation switch
(C802)
20
CWS-2
0E493304
Air filter switch (F016) removed
7
UPEC
Depending on
whether vehicle is
fitted with UPEC
UPEC system added
47
ABS / ASC
Depending on
whether vehicle is
fitted with UPEC
Wires 3484 and 3485 added in connection with
UPEC system
23
Connector sockets
FT
Depending on
whether vehicle is
fitted with UPEC
Various changes in connections because of
modified and new systems
Connector A046 added in view of UPEC system
42
Connector sockets
FA
Depending on
whether vehicle is
fitted with UPEC
Various changes in connections because of
modified and new systems
Connector A046 added in view of UPEC system
43
Auxiliary heating
0E502734
Webasto Thermo 90 replaced by Eberspächer
Hydronic 10
46
11
