Location of connectors

LOCATION OF CONNECTORS

1-5

Other connectors

1

2

3

4

5

6

356

4

White

Wiring air-sprung front axle

Floor pan

1-34

358

9

Grey

Cable harness Cummins

Floor pan, co-driver’ s side

1-23

371

18

Yellow

Connection dashboard
wiring Cummins

Central box, left-hand side

1-13

373

18

Blue

Connection dashboard
wiring ECAS-2 (4x2)

Central box, left-hand side

1-13

376

21

Black

Assembly radio panel

Left of heater

1-15

377

21

Black

ABS

Central box, left-hand side

1-13

378

21

Yellow

Connection dashboard
wiring E-gas

Central box, left-hand side

1-13

380

21

Blue

Assembly heater-control
panel

Heater

1-15

383

12

Black

Electronic unit for
WEBASTO auxiliary
heating, Thermo 90

Central box, left-hand side

1-13/41

385

12

Blue

2 x 24V accessories

Central box

1-55

387

12

Yellow

Alarm installation

Central box, left-hand side

1-13

394

10

Black

Central door locking

Under central box

1-40

397

5

Black

Heater wiring

Central box, right-hand side

1-13

398

9

Yellow

Cruise-control switch, E-gas

Central box, left-hand side

1-13/20/23

407

6

Yellow

Clutch pedal sensor, E-gas

Under instrument panel

Under clutch pedal

1-14/21

408

9

Yellow

Direction-indicator switch

Steering column

1-15

411

9

Black

Intermittent-wipe switch,
E-gas

Steering column

1-15

412

9

Blue

Ignition lock

Behind steering column

1-15

424

8

Grey

Radio power supply

In dashboard

1-53

425

8

Brown

Loudspeakers

In dashboard

1-53

426

4

White

12V memory

In dashboard

1-53

427

4

White

Converter

In dashboard

1-49

433

21

Yellow

Connection dashboard
wiring for Groeneveld speed
limiter

Left side of central box

1-26

434

21

Yellow

Connection dashboard
wiring for VDO speed limiter

Left side of central box

1-27

9

ǹ 9711

5

LOCATION OF CONNECTORS

Location of connectors

1-6

Other connectors

1

2

3

4

5

6

441

8

White

ASL-G diagnosis

Central box

1-26

443

9

Yellow

Connection dashboard
wiring for cruise control,
Cummins

Central box, left-hand side

1-13

445

18

Blue

Connection dashboard
wiring ECAS (6x2)

Central box, left-hand side

1-13

446

25

Black

Electronic unit for ECAS-2
(4x2)

Central box

1-32

453

18

Black

A connector ABS-D

Central box

1-36

454

6

Black

B connector ABS-D

Central box

1-36

455

9

Black

C connector ABS-D

Central box

1-36

456

15

Black

D connector ABS-D

Central box

1-36

461

21

Blue

Dashboard wiring, ZF
intarder

Central box, left-hand side

1-13

464

8

White

Wiring ZF-intarder switch

At radio-control panel

1-30

465

21

Blue

Dashboard wiring, Voith
retarder

Central box, left-hand side

1-13

468

18

Black

Electronic unit for Voith
retarder

Central box

1-28

469

9

Black

Electronic unit for Voith
retarder

Central box

1-28

470

12

Black

Electronic unit for Voith
retarder

Central box

1-28

471

8

White

Wiring dashboard switch,
Voith retarder

At radio-control panel

1-28

478

9

Black

Webasto auxiliary heating,
Thermo 90

Central box, left-hand side

1-13

480

8

Black

Timer

Back panel

1-40

482

18

Black

EBERSPäCHER D1LC /
D3LC auxiliary heating

Behind co-driver’s seat

1-38

483

12

Black

EBERSPäCHER
DILC/D3LC auxiliary heating

Central box, right-hand side

1-13

491

4

Black

PTO cable harness

On gearbox, right-hand side,
rear

1-54

493

12

Black

Cable-harness connector
sockets (FT)

Cable trough below cab,
right-hand side

1-48

495

12

Black

Cable-harness connnector
sockets (FA)

Chassis rear, at the right-hand
side in front of the rear cross
member

1-48

499

127

Black

Cable harness ABS / ASC

In chassis, right-hand side,
1000 mm in front of the driven
axle

1-BB

9

ǹ 9711

5

Location of connectors

LOCATION OF CONNECTORS

1-7

Other connectors

1

2

3

4

5

6

515

4

Black

Axle-load protection

In chassis cross member, in front
of the driven axle

1-53

525

8

Black

Substructure cable harness

Valve assembly, left-hand side,
below the cab

1-54

530

12

Grey

Webasto auxiliary heating,
Thermo 90

On auxiliary-heating unit

1-40

537

3

Green

Cable-harness supply,
Cummins

Floor pan, co-driver’ s side

1-25

9

ǹ 9711

5

LOCATION OF CONNECTORS

Location of connectors

1-8

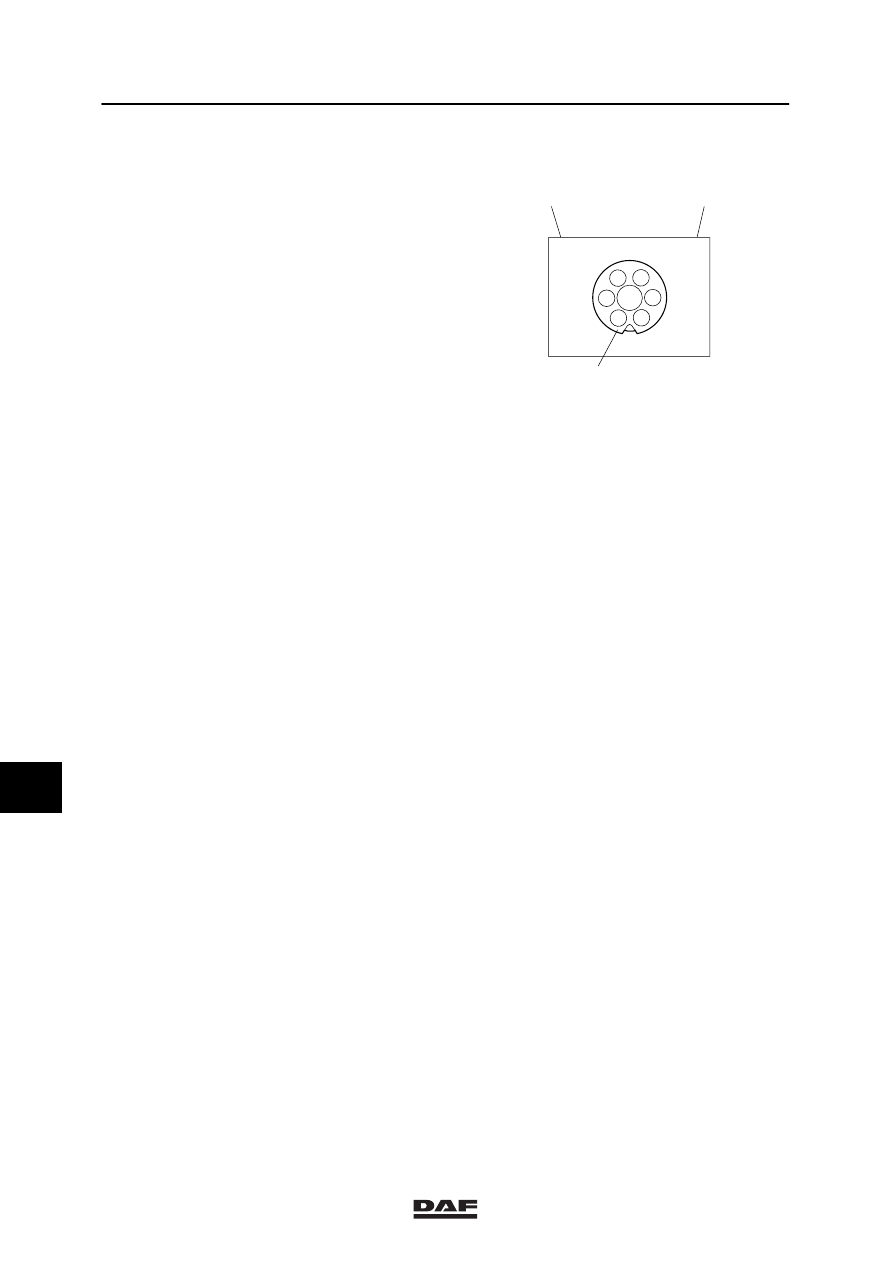

1.2 ILLUSTRATIONS OF CONNECTOR LOCATIONS

Explanation of connector illustrations
A:

Connector coding

B:

Colour of the connector
BN =

Brown

BW =

Blue

GL =

Yellow

GS =

Grey

OE =

Orange

RD =

Red

WT =

White

ZT =

Black

C:

Overview of pin numbers on connector

Pin numbers on the connector as viewed from
the wire-input side.

E500122

174

C

ZT

2

7

5

3

4

1

6

A

B
