2

General

XF ENGINE

2-3

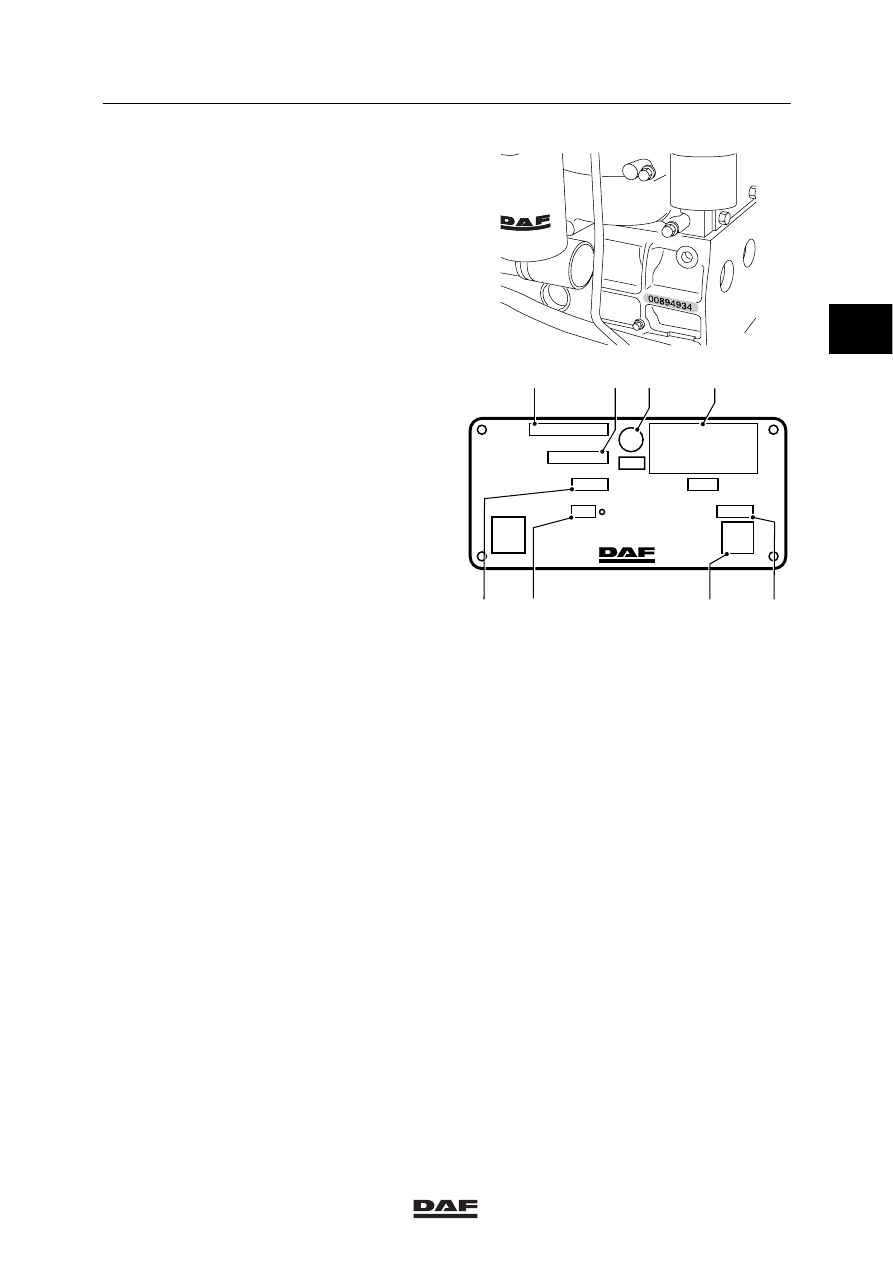

Engine number
The engine number is marked on the engine
block at the rear left.

XF Engine information-code plate
Fitted to the inlet manifold

1.

Injection timing

2.

Maximum governed engine speed

3.

Engine number

4.

Engine type

5.

Indication of country of origin

6.

Certificate number

7.

Fuel pump setting (output)

8.

Smoke level at maximum engine speed,
without load

D000311

E

4

ENGINE
TYPE

ENGINE
NUMBER

GOVERNED SPEED

INJECTION TIMING

EINDHOVEN

HOLLAND

PUMPSETTING

OUTPUT

BEFORE
T.D.C.

kW

cm 3

min-1

m -1

SMOKE LEVEL FREE ACCELERATION

4

2

3

5

6

7

8

1

M200678

2

ǹ 0008

2

XF ENGINE

General

2-4

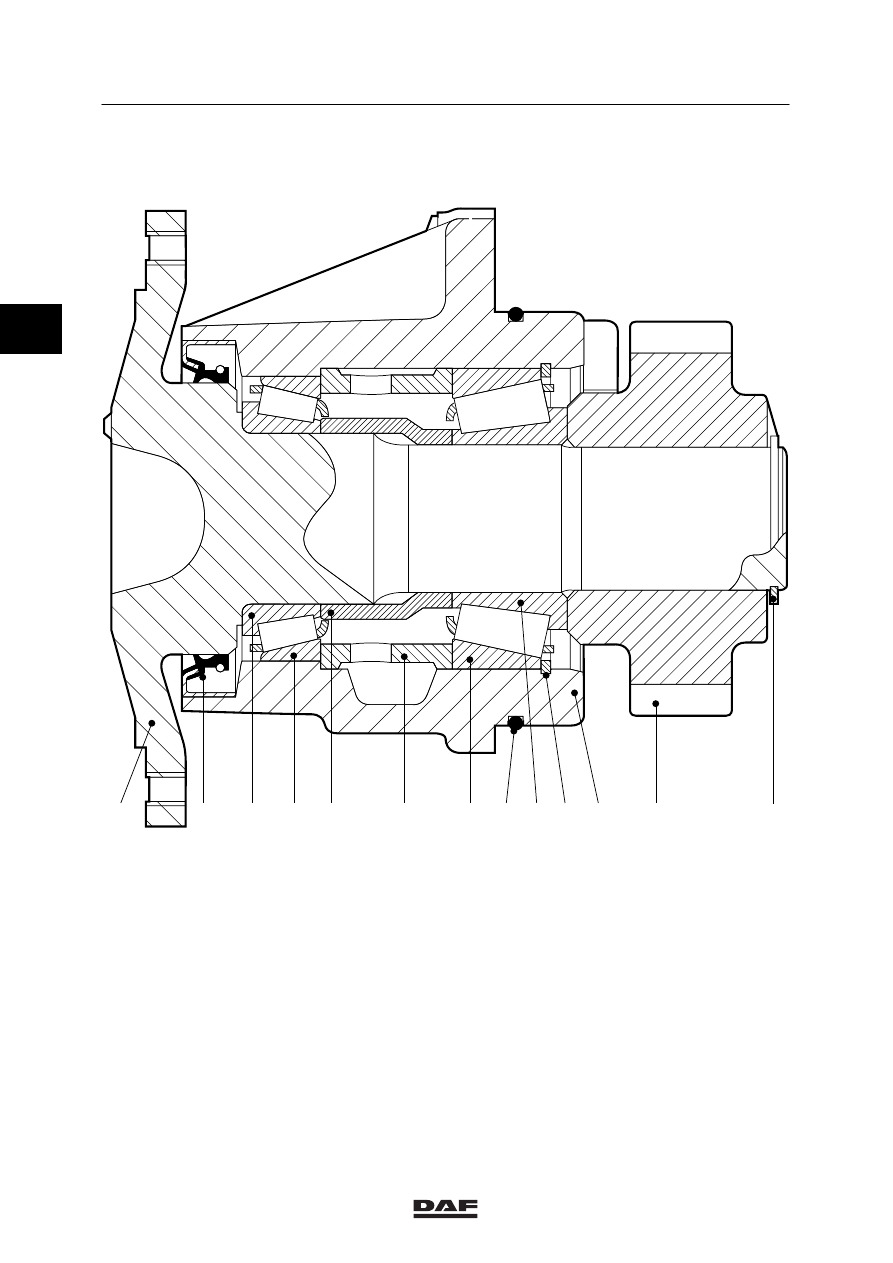

2.2 OVERVIEW DRAWING OF FAN DRIVE

13

8

2

1

12

3

4 5

6

7

9 10 11

M200671

Legend
1.

Fan clutch shaft

2.

Oil sealing ring

3.

Bearing

4.

Bearing ring

5.

Spacer sleeve

6.

Intermediate ring

7.

Bearing ring

8.

O-ring

9.

Bearing

10. Retaining ring
11.

Bearing housing

12. Gearwheel
13. Retaining ring

2

ǹ 0008

2

General

XF ENGINE

2-5

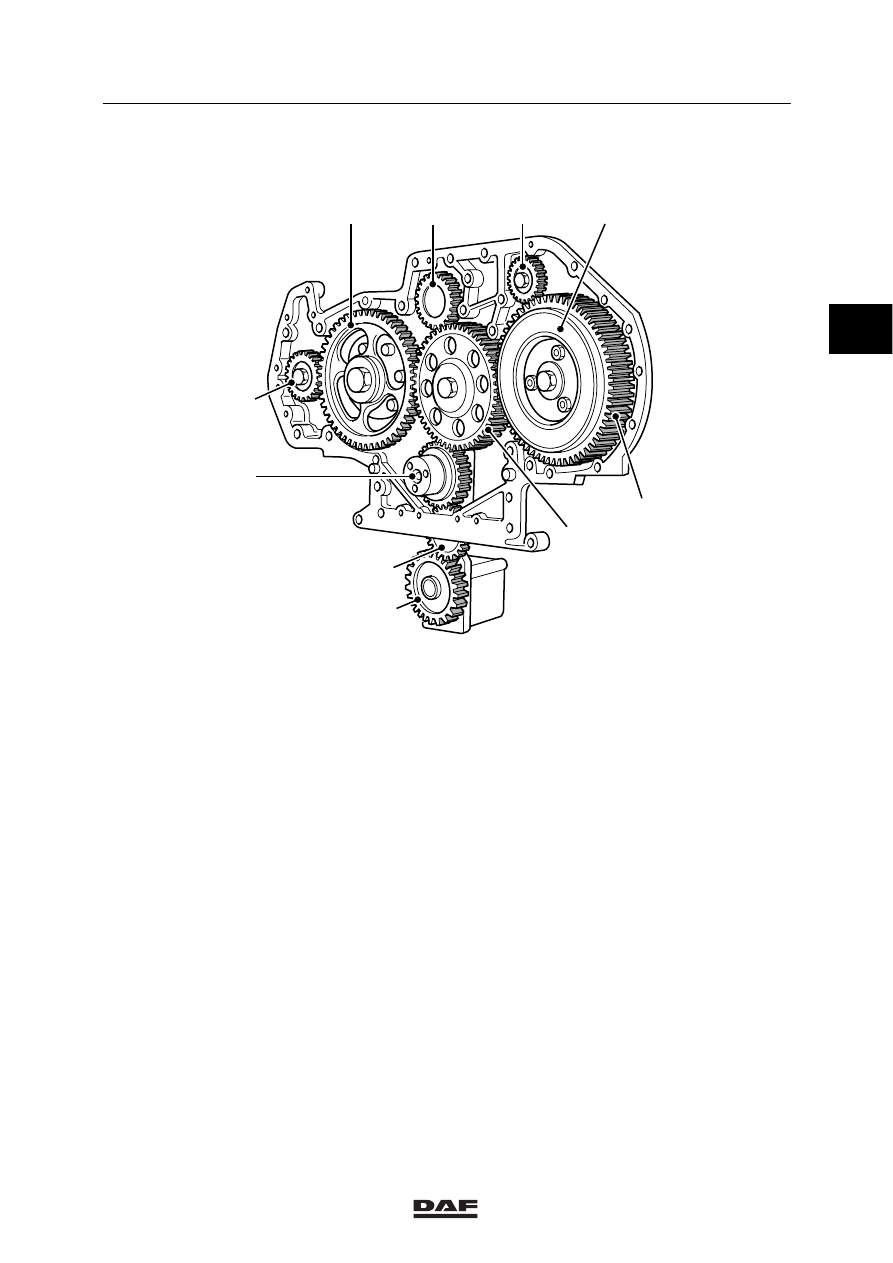

2.3 OVERVIEW DRAWING OF TIMING GEAR

M200549

2

4

5

10

7

1

8

9

3

6

Legend
1.

Crankshaft

2.

Camshaft

3.

Intermediate gear wheel

4.

Fan drive

5.

Steering pump

6.

Fuel-pump drive gear wheel

7.

Air compressor

8.

Intermediate gear wheel of oil pump

9.

Oil pump

10. Silencer

2

ǹ 0008

2

XF ENGINE

General

2-6

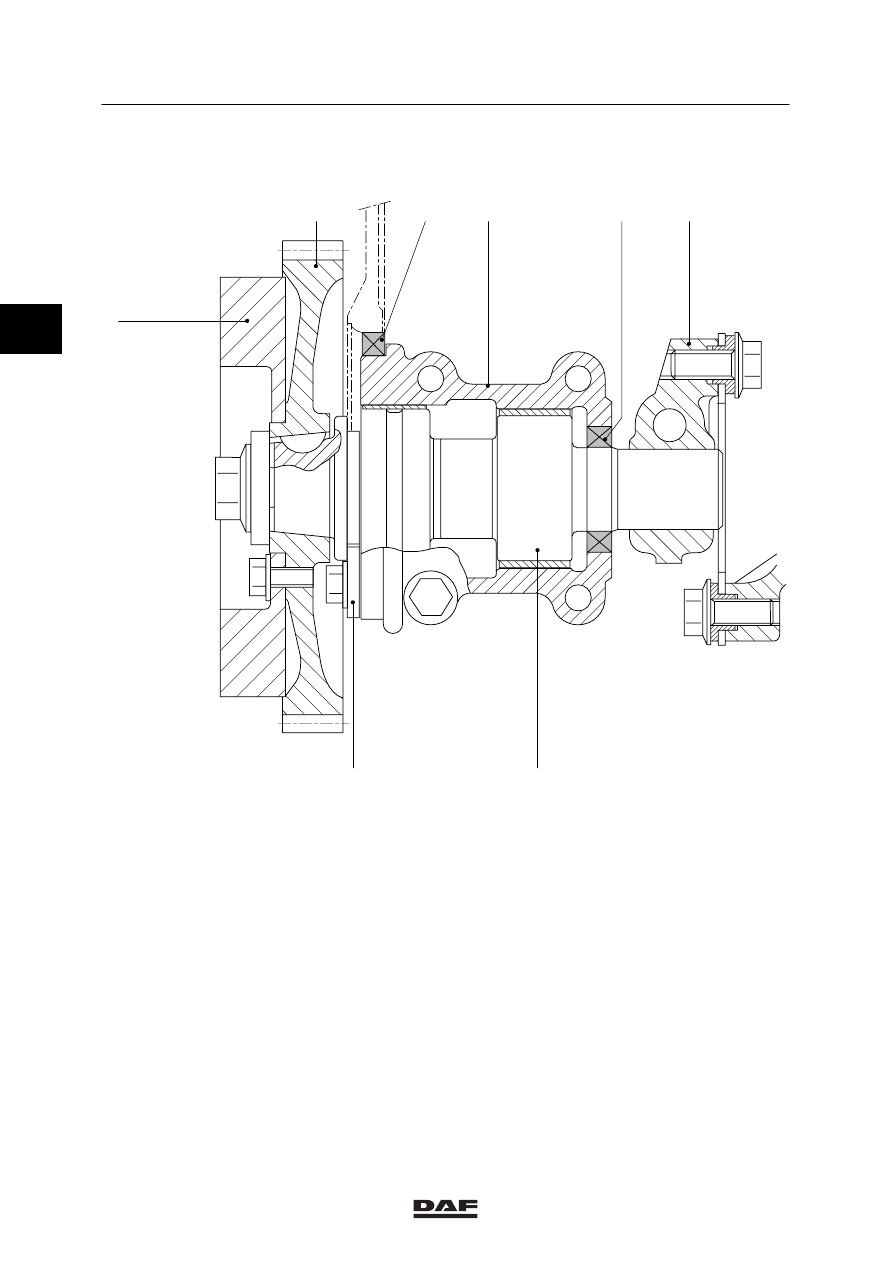

2.4 OVERVIEW DRAWING FUEL PUMP DRIVE

1

2

3

4

5

6

8

7

M200582

Legend
1.

Silencer

2.

Fuel-pump drive gear wheel

3.

Timing gear sealing ring

4.

Bearing housing

5.

Fuel-pump drive sealing ring

6.

Clamping piece

7.

Axial retainer plate

8.

Drive shaft

2
