Chrysler Pacifica Hybrid (2022 year). Manual in english - page 7

106

GETTING TO KNOW YOUR VEHICLE

STOW ‘N PLACE ROOF RACK — IF EQUIPPED

The crossbars and side rails are designed to carry

weight on vehicles equipped with a luggage rack.

The load must not exceed 150 lb (68 kg), and

should be uniformly distributed over the luggage

rack crossbars.
The crossbars on your vehicle are delivered stowed

within the roof rack side rails. Crossbars should

always be used whenever cargo is placed on the

roof rack. Check the straps frequently to be sure

that the load remains securely attached.

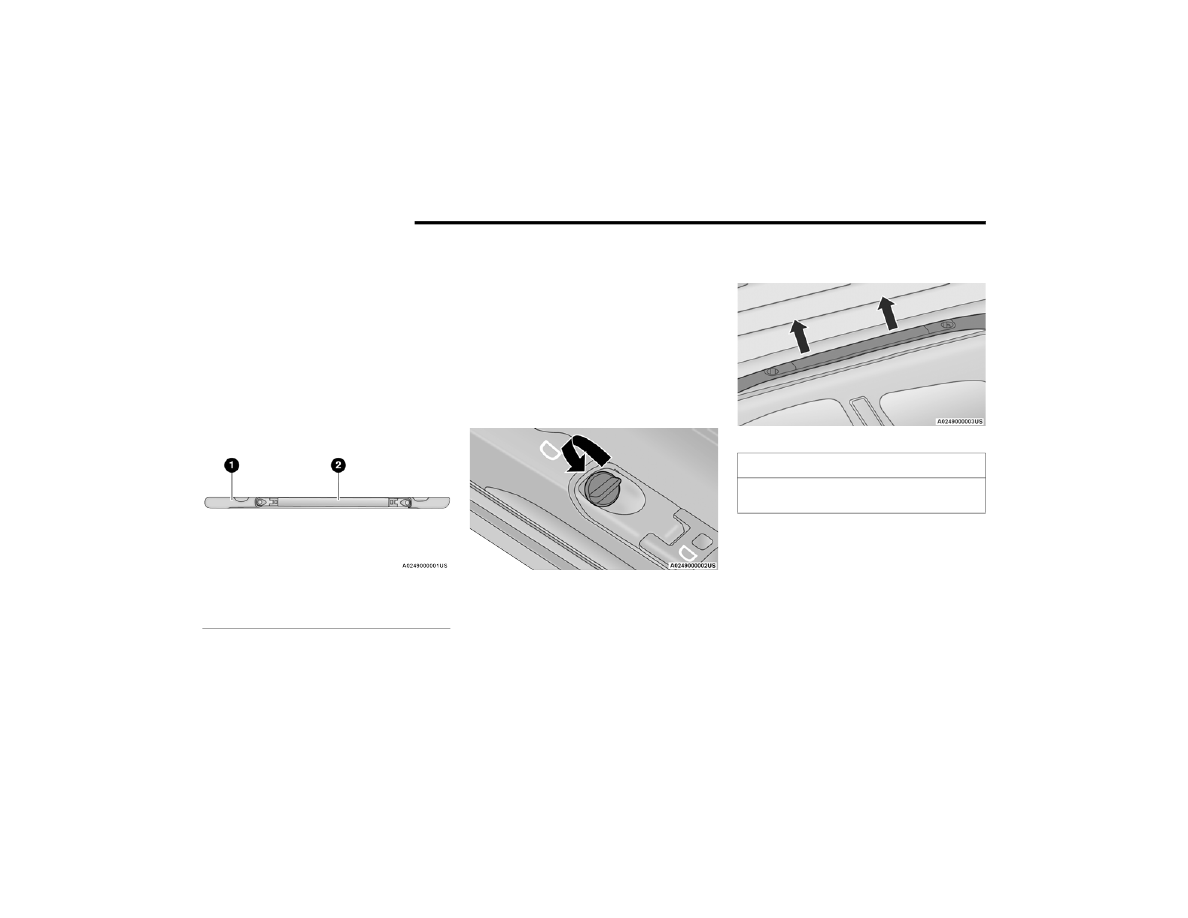

Roof Rack

The Stow ‘N Place roof rack does not increase the

total load carrying capacity of the vehicle. Be sure

the total load of cargo inside the vehicle plus that

on the external rack does not exceed the maximum

vehicle load capacity.

EPLOYING

ROSSBARS

1. To deploy the crossbars, completely loosen

the thumb screws at both ends of the

crossbar and lift the crossbar from its stowed

position in the side rail. Repeat with crossbar

on the opposite side.

Thumb Screw

NOTE:

The thumb screws cannot be fully removed.

Removing Crossbars

1 — Side Rail
2 — Crossbar

CAUTION!

Use care when removing and handling the

crossbars to prevent damage to the vehicle.

GETTING TO KNOW YOUR VEHICLE

107

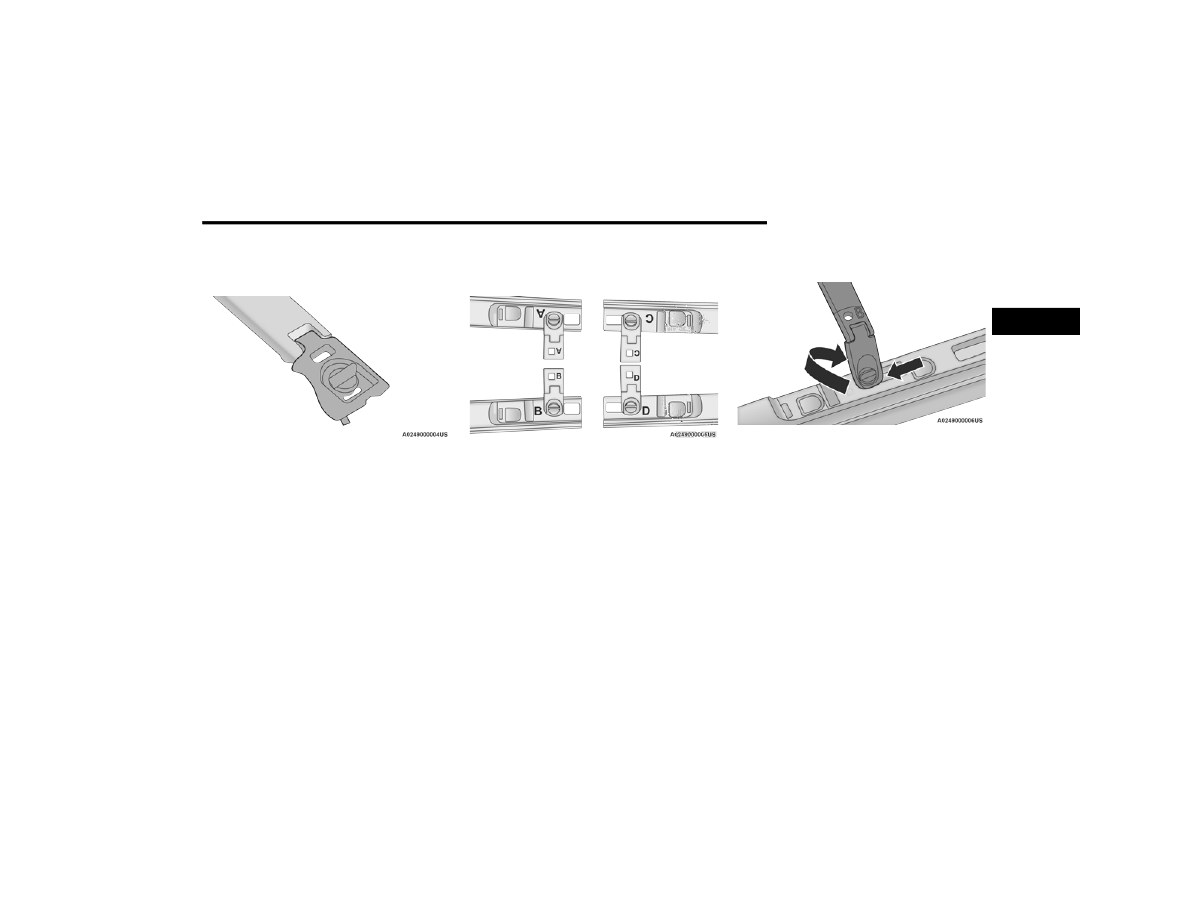

2. Bend the crossbar supports at each end,

taking care to keep hand clear of pivoting joint.

Slide the thumb screw down.

Bending Pivot

3. Position the crossbars across the roof making

sure the letters on the crossbars align with the

matching letters on the side rail.

Positioning Crossbars

4. Once the crossbar is in place, tighten both

thumb screws completely.

Installing Crossbars

5. Deploy and tighten the second crossbar to

complete the deployment of the crossbars.

NOTE:

The crossbars are not identical and have fixed

deployment positions. Rear crossbar can be

deployed in two different positions.

108

GETTING TO KNOW YOUR VEHICLE

TOWING

ROSSBARS

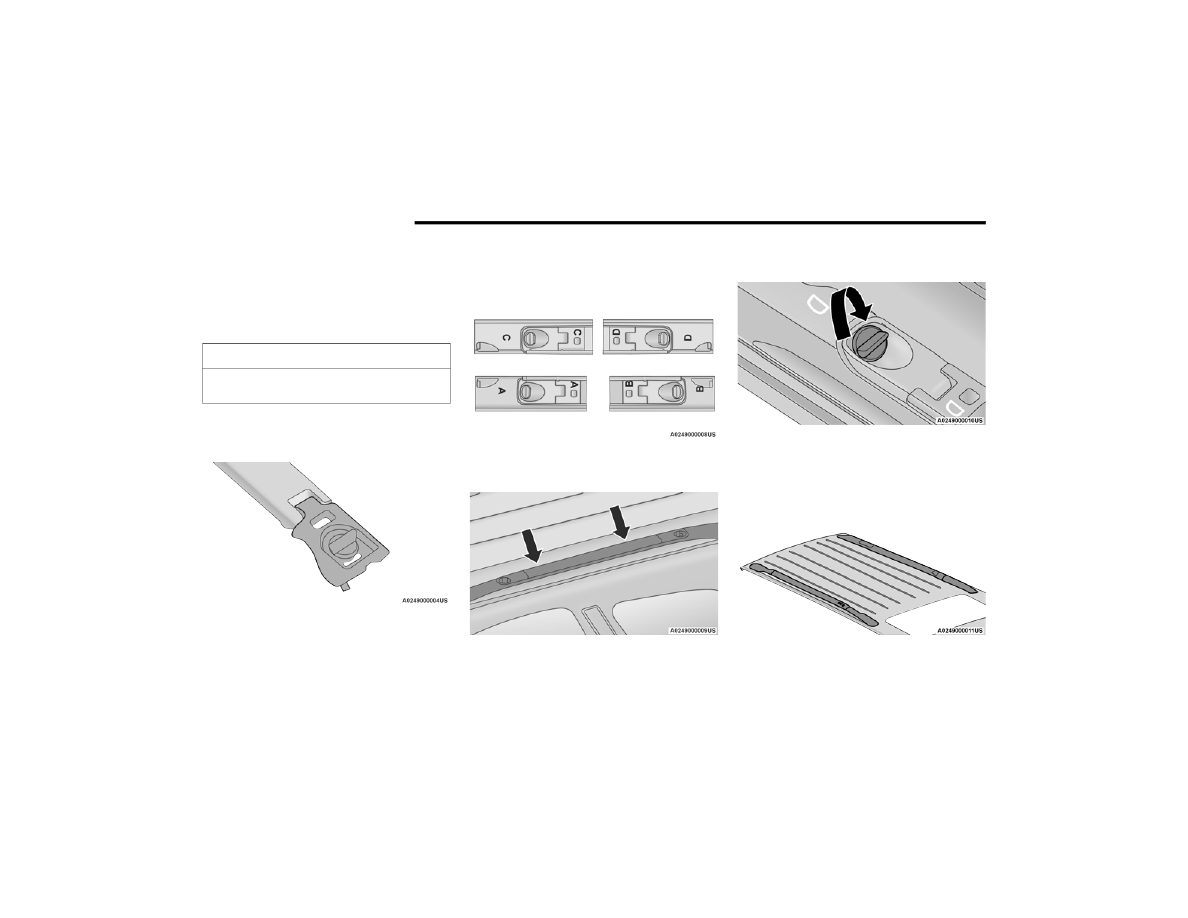

1. Starting with one crossbar, completely loosen

the thumb screws at both ends. Lift the

crossbar away from the matching letter to

remove it from the deployed position.

Repeat with the other crossbar.

2. Starting with the one crossbar, bend up the

pivot supports at each end.

Crossbar Pivot

3. Then, position the crossbar along the correct

side rail. Make sure the letters on the crossbar

align with the matching letters on the side rail.

Stowing Crossbars

4. The crossbar will nest fully within the side rail.

Crossbar To Side Rail

5. Once the driver’s side crossbar is in place,

tighten the thumb screws completely.

Tightening Crossbar

6. Repeat the procedure to stow the second

crossbar on the opposite side.

Stowed Crossbars

CAUTION!

Use care when removing and handling the

crossbars to prevent damage to the vehicle.

GETTING TO KNOW YOUR VEHICLE

109

(Continued)

NOTE:



To help control wind noise, stow the crossbars in

the side rails when they are not in use.



If any metallic object is placed over the satellite

radio antenna (if equipped), you may experience

interruption of satellite radio reception.

WARNING!

Cargo must be securely tied down before driving

your vehicle. Improperly secured loads can fly off

the vehicle, particularly at high speeds, resulting

in personal injury or property damage. Follow

the roof rack cautions when carrying cargo on

your roof rack.

CAUTION!



To prevent damage to the roof of your vehicle,

DO NOT carry any loads on the roof rack

without the crossbars deployed. The load

should be secured and placed on top of the

crossbars, not directly on the roof. If it is

necessary to place the load on the roof, place

a blanket or other protective layer between

the load and the roof surface.



To avoid damage to the roof rack and vehicle,

do not exceed the maximum roof rack load

capacity of 150 lb (68 kg). Always distribute

heavy loads as evenly as possible and secure

the load appropriately.



Load should always be secured to cross bars

first, with tie down loops used as additional

securing points if needed. Tie loops are

intended as supplementary tie down points

only. Do not use ratcheting mechanisms with

the tie loops. Check the straps and thumb

wheels frequently to be sure that the load

remains securely attached.



Long loads that extend over the windshield,

such as wood panels or surfboards, or loads

with large frontal area should be secured to

both the front and rear of the vehicle.



Travel at reduced speeds and turn corners

carefully when carrying large or heavy loads

on the roof rack. Wind forces, due to natural

causes or nearby truck traffic, can add sudden

upward lift to a load. This is especially true on

large flat loads and may result in damage to

the cargo or your vehicle.

CAUTION!

110

GETTING TO KNOW YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER

GETTING TO KNOW YOUR INSTRUMENT PANEL

111

112

GETTING TO KNOW YOUR INSTRUMENT PANEL

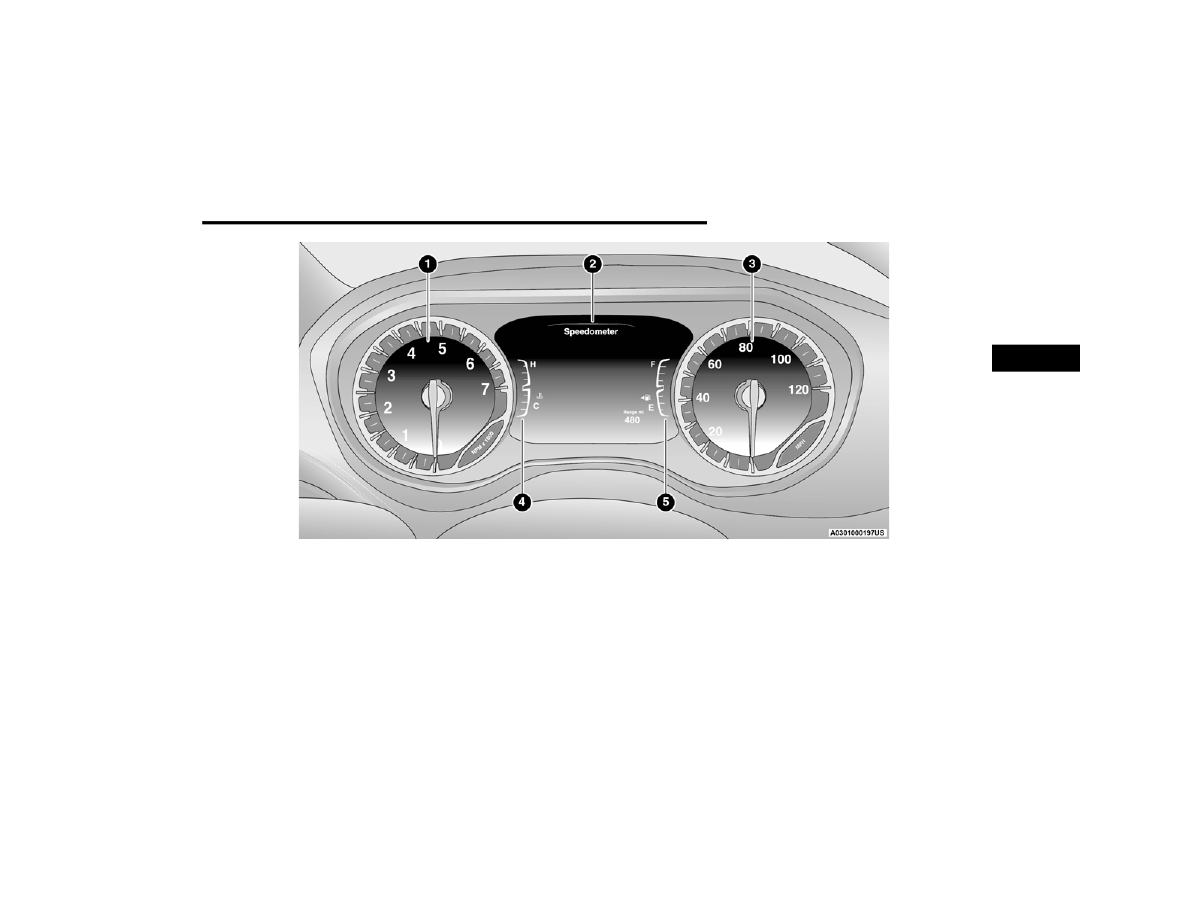

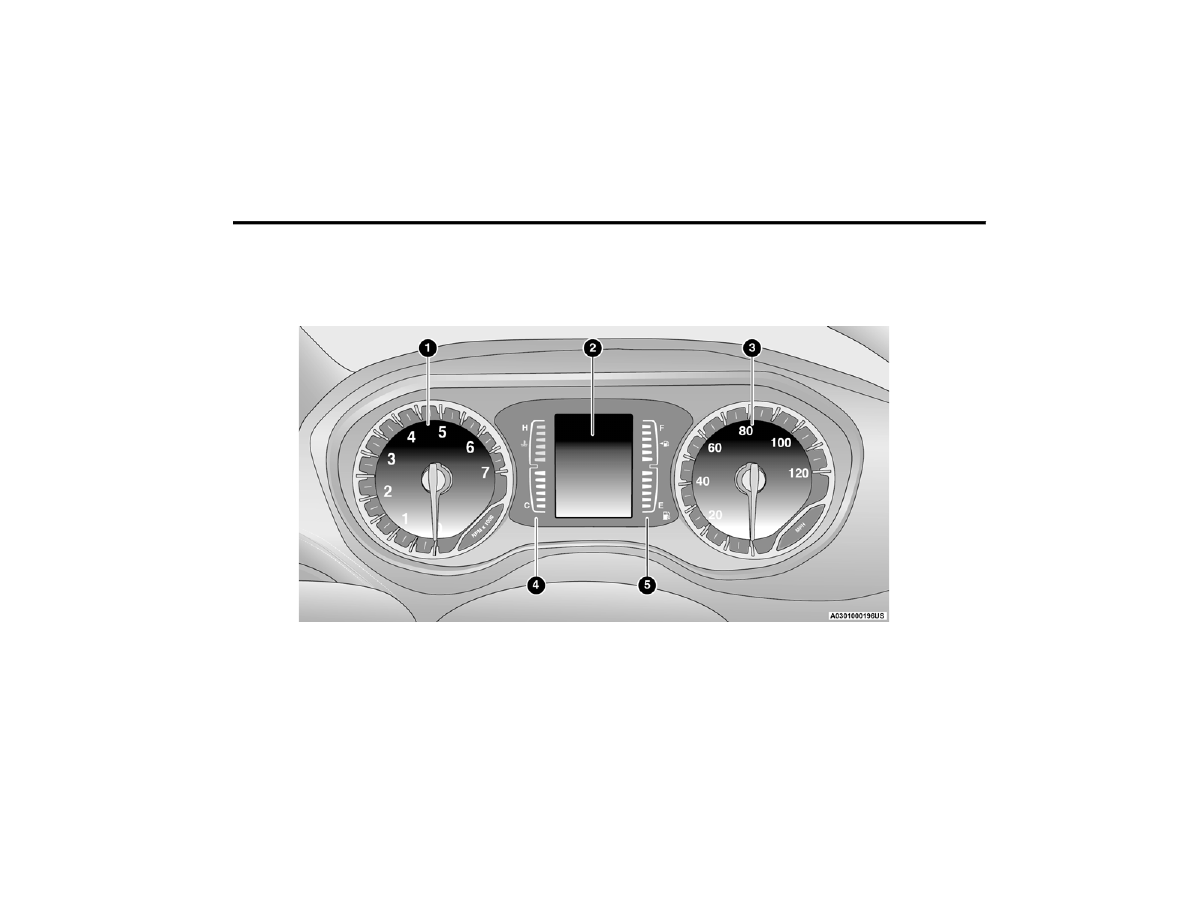

NSTRUMENT

LUSTER

ESCRIPTIONS

1. Tachometer



Indicates the engine speed in revolutions

per minute (RPM x 1000).

2. Instrument Cluster Display



When the appropriate conditions exist, this

display shows the instrument cluster

display messages

page 113.



The display shows one of the main menu

items after the ignition is turned/placed on.

3. Speedometer



Indicates vehicle speed.

4. Temperature Gauge



The temperature gauge shows engine

coolant temperature. Any reading within the

normal range indicates that the engine

cooling system is operating satisfactorily.



The gauge can indicate a higher tempera

ture when driving in hot weather or up

mountain grades. It should not be allowed

to exceed the upper limits of the normal

operating range.

5. Fuel Gauge



The gauge shows the level of fuel in the

fuel tank when the ignition switch is in the

ON/RUN position.



The fuel pump symbol points to

the side of the vehicle where the

fuel door is located.

NOTE:

The hard telltales will illuminate for a bulb check

when the ignition is first cycled.

INSTRUMENT CLUSTER DISPLAY

Your vehicle is equipped with an instrument cluster

display, which offers useful information to the

driver. With the ignition in the OFF position (and the

key removed, for vehicles with mechanical key),

opening/closing of a door will activate the display

for viewing, and display the total miles or

kilometers in the odometer. Your instrument

cluster display is designed to display important

information about your vehicle’s systems and

features. Using a driver interactive display located

on the instrument panel, your instrument cluster

display can show you how systems are working and

give you warnings when they are not. The steering

wheel mounted controls allow you to scroll through

and enter the main menus and submenus. You can

access the specific information you want and

make selections and adjustments.

WARNING!

Driving with a hot engine cooling system could

damage your vehicle. If the temperature gauge

reaches “H” pull over and stop the vehicle. Idle

the vehicle with the air conditioner turned off

until the gauge drops back into the normal range

and is no longer red. If the gauge remains on the

“H”, turn the engine off immediately and call an

authorized dealer for service.

WARNING!

A hot engine cooling system is dangerous. You or

others could be badly burned by steam or boiling

coolant. You may want to call an authorized

dealer for service if your vehicle overheats

page 324.

GETTING TO KNOW YOUR INSTRUMENT PANEL

113

NSTRUMENT

LUSTER

ISPLAY

OCATION

ONTROLS

The vehicle’s instrument cluster is equipped with

an instrument cluster display (base or premium

cluster), which offers useful information to the

driver.

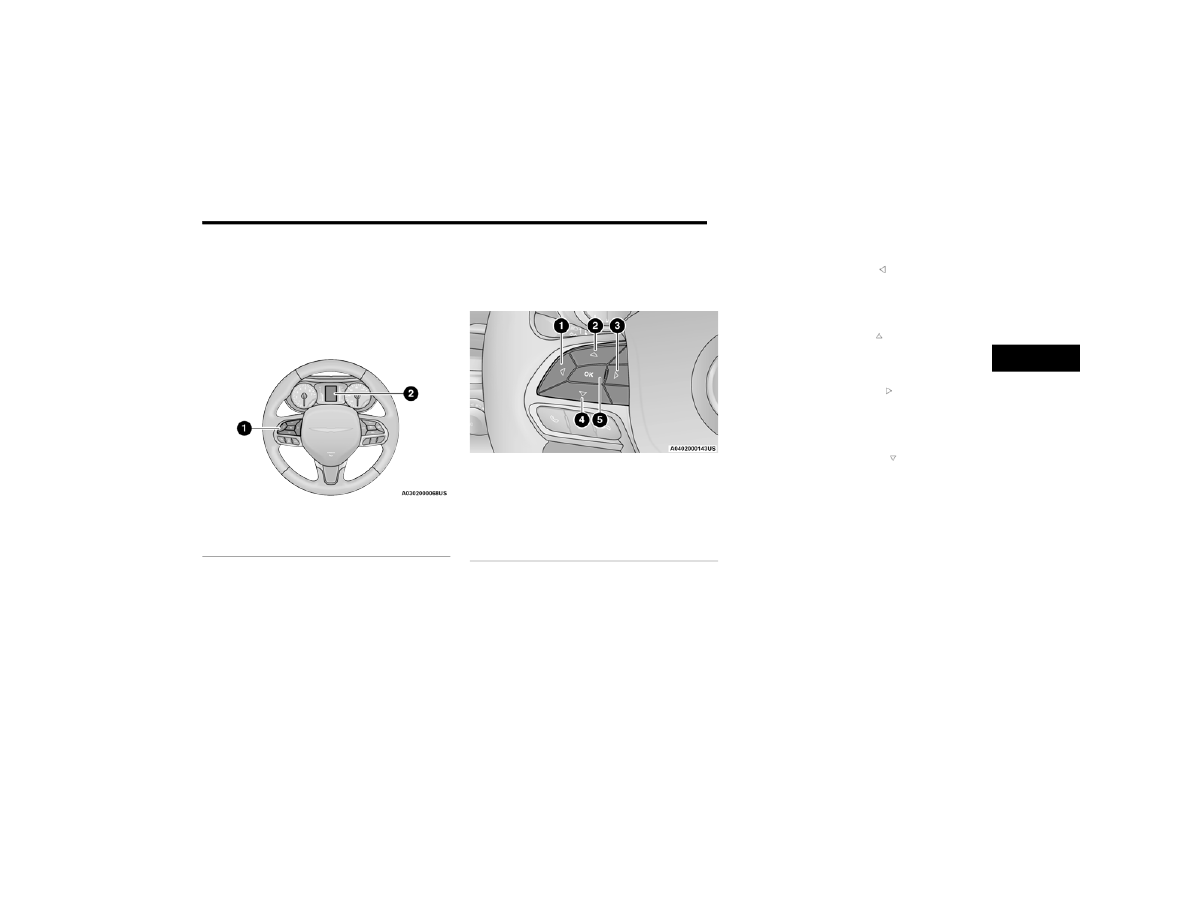

Instrument Cluster Display Location

The instrument cluster display controls allows the

driver to select information by pushing the

directional buttons mounted on the steering

wheel:

Instrument Cluster Display Controls



Back / Left Arrow Button
Push and release the left arrow button to

access the information screens or submenu

screens of a main menu item.



Up Arrow Button
Push and release the up arrow button to

scroll upward through the Main Menu items.



Right Arrow Button
Push and release the right arrow button to

access the information screens or submenu

screens of a main menu item.



Down Arrow Button
Push and release the down arrow button to

scroll downward through the Main Menu items.



OK Button
Push the OK button to access/select the infor

mation screens or submenu screens of a Main

Menu item. Push and hold the OK button for two

seconds to reset displayed/selected features

that can be reset.

1 – Instrument Cluster Display Controls
2 – Instrument Cluster Display Screen

1 — Left Arrow Button
2 — Up Arrow Button
3 — Right Arrow Button
4 — Down Arrow Button
5 — OK Button

114

GETTING TO KNOW YOUR INSTRUMENT PANEL

NGINE

IFE



Your vehicle is equipped with an engine oil

change indicator system. The “Oil Change

Required” message will display for approxi

mately five seconds after a single chime has

sounded, to indicate it is time to change the

engine oil. The engine oil change indicator

system is duty cycle based, which means the

engine oil change interval may fluctuate, depen

dent upon your personal driving style.



Unless reset, this message will continue to

display each time the ignition is cycled to the

ON/RUN position.



To reset the oil change indicator after

performing the scheduled maintenance, refer to

the following procedure.

NOTE:

This procedure should only be performed after

scheduled maintenance is completed. Resetting

oil life other than when associated with a

scheduled maintenance may result in damage due

to not properly maintaining the engine oil.

Oil Life Reset
1. Without pressing the brake pedal, push the

ENGINE START/STOP button and place the

ignition in the ON/RUN position (do not start

the vehicle.)

2. Push the OK button to enter the instrument

cluster display menu screen.

3. Push and release the down arrow button to

access the ”Vehicle Info” menu screen.

4. Push the left arrow button or right arrow

button to access the “Oil Life” submenu.

5. Hold the OK button to reset the “Oil Life” to

100%.

6. Push the up arrow button to exit the

instrument cluster display menu screen.

Secondary Method For Oil Life Reset Procedure
1. Without pushing the brake pedal, place the

ignition in the ON/RUN position (do not start

the engine).

2. Fully press the accelerator pedal, slowly,

three times within 10 seconds.

3. Without pushing the brake pedal, place the

ignition in the OFF position.

NOTE:

If the indicator message illuminates when you start

the vehicle, the oil change indicator system did not

reset. If necessary, repeat this procedure.

GETTING TO KNOW YOUR INSTRUMENT PANEL

115

ENSE

LUSTER

ESSAGES

— I

QUIPPED

When the KeySense key is in use there will be:



Continuous, dedicated telltale



Unique Display Splash Screen

With KeySense in use there will be multiple associated messages shown in the following table:

Setting

Instrument Cluster Display Message

None – With vehicle ignition ON

“KeySense in use. Max vehicle speed set to xx MPH/or km/h”

Max Vehicle Speed



“Max speed reached. KeySense in use” supported by a chime



“Approaching max speed xx MPH/km/h” supported by a chime

Start Up Fuel Alert message

“Range to empty xxx miles or km”

Early Low Fuel Alert Message

“Fuel Low”

ParkSense

“Feature cannot be disabled. KeySense in use”

Blind Spot

“Feature cannot be disabled. KeySense in use”

Forward Collision Warning

“Feature cannot be disabled. KeySense in use”

116

GETTING TO KNOW YOUR INSTRUMENT PANEL

NSTRUMENT

LUSTER

ISPLAY

ENU

TEMS

The instrument cluster display can be used to view

the main menu items for several features. Use the
up and down arrow buttons to scroll through

the driver interactive display menu options until

the desired menu is reached

page 113.

NOTE:

The instrument cluster display menu items display

in the center of the instrument cluster. Menu items

may vary depending on your vehicle features.

Speedometer

Push and release the up or down arrow

button until Speedometer is highlighted in the

instrument cluster display. Push and release the

OK button to toggle between MPH and km/h.

Vehicle Info

Push and release the up or down arrow

button until Vehicle Info is highlighted in the
instrument cluster display. Push the left or
right arrow button to scroll through the following

information submenus:

Tire Pressure
If tire pressure is OK for all tires, a vehicle ICON is

displayed with tire pressure values in each corner

of the ICON.
If one or more tires have low pressure, “Inflate Tire

To XX” is displayed with the vehicle ICON, and the

tire pressure values in each corner of the ICON with

the pressure value of the low tire displayed in a

different color than the other tire pressure value.
If the Tire Pressure system requires service,

“Service Tire Pressure System” is displayed.
Tire PSI is an information only function and cannot

be reset

page 236.

Coolant Temp
Displays the actual coolant temperature.
Transmission Temp
Displays the actual transmission temperature.
Oil Temp — If Equipped
Displays the actual oil temperature.
Oil Pressure
Displays the actual oil pressure.

Oil Life
Displays the remaining engine oil life as a

percentage.
To reset the Oil Life, you must hold the OK button.

The “Hold OK to Reset” instruction will be

displayed at all times, but the following conditions

will need to be met in order to reset Oil Life:



The ignition must be in the ON/RUN position.

If the conditions are met, holding the OK button will

reset the gauge and the numeric display will return

to 100%.
If the conditions are not met, a pop-up message

will display for five seconds, describing the

required conditions, and then the Oil Life screen

will reappear.
Battery Voltage
Displays the actual battery voltage.
Engine Hours — If Equipped
Displays the number of hours of engine operation.

GETTING TO KNOW YOUR INSTRUMENT PANEL

117

Driver Assist — If Equipped

Push and release the up or down arrow

button until the Driver Assist display icon is

highlighted in the instrument cluster display.

Fuel Economy

Push and release the up or down arrow

button until the Fuel Economy Menu item is

highlighted in the instrument cluster display.

The Fuel Economy Menu will display the following:



Two submenu pages that can be toggled
between using the left and right arrow

buttons; one with Current Value displayed and

one without the Current Value displayed:



Average Fuel Economy (MPG, L/100 km, or

km/L)



Range To Empty (miles or km)



Current Fuel Economy (MPG, L/100 km, or

km/L)



The Max and Min values will correspond to

the particular engine requirements



Hold OK to reset average fuel economy informa

tion.

Trip Info

Push and release the up or down arrow

button until the Trip Menu item is highlighted in the
instrument cluster display. Push the left or
right arrow button to scroll through the Trip A

and Trip B submenus. The Trip information will

display the following:



Distance



Average Fuel Economy



Elapsed Time

Hold the OK button to reset feature information.

Stop / Start – If Equipped

Push and release the up or down arrow

button until the Stop/Start menu title is displayed

in the instrument cluster display.

Audio

Push and release the up or down arrow

button until the Audio Menu displays in the

instrument cluster display.

Messages

Push and release the up or down arrow

button until Messages is highlighted in the

instrument cluster display. This feature shows the

number of stored warning messages. Pushing the
right arrow button will allow you to see what the

stored messages are.

NOTE:

The pop-up messages indicate the status of the

system and/or the conditions that need to be met.

Messages remain in the stored stack until

condition is cleared.

Screen Setup

Push and release the up or down arrow

button until the Screen Setup Menu displays in the

instrument cluster display. Push and release the

OK button to enter the submenus. The Screen

Setup feature allows you to change what

information is displayed in the instrument cluster

as well as the location that information is

displayed.

118

GETTING TO KNOW YOUR INSTRUMENT PANEL

Odometer (Premium Instrument Cluster)



Show



Hide (Odometer will still appear when door

is open)

Defaults



Restore



Cancel

Premium Instrument Cluster Display

Screen Setup Options:

Lower Left

None

Compass

Outside Temp

Time

Range

Average

(MPG,

L/100km,

or km/L)

Current

(MPG,

L/100km,

or km/L)

Trip B Distance Trip A Distance

Premium Instrument Cluster Display

Screen Setup Options:

Upper Center

None

Compass

Outside Temp

Time

Range

Average

(MPG,

L/100km,

or km/L)

Current

(MPG,

L/100km,

or km/L)

Average

(L/100km,

or km/L)

Current

(L/100km,

or km/L)

Trip A Distance Trip B Distance Audio/Phone
Digital Speed

Menu Title

Premium Instrument Cluster Display

Screen Setup Options:

Lower Right

None

Compass

Outside Temp

Time

Range

Average

(MPG,

L/100km,

or km/L)

Current

(MPG,

L/100km,

or km/L)

Trip B Distance Trip A Distance

Premium Instrument Cluster Display

Screen Setup Options:

Upper Center

Base Instrument Cluster Display

Screen Setup Options:

Upper Left

None

Compass

Outside Temp

Time

Range

Average

(MPG,

L/100km,

or km/L)

Current

(MPG,

L/100km,

or km/L)

Trip B Distance Trip A Distance

Base Instrument Cluster Display

Screen Setup Options:

Upper Right

None

Compass

Outside Temp

Time

Range

Average

(MPG,

L/100km,

or km/L)

GETTING TO KNOW YOUR INSTRUMENT PANEL

119

Defaults



Restore



Cancel

Speed Warning — If Equipped

Push and release the up or down arrow

button until Speed Warning is highlighted in the

instrument cluster display. Push and release the
OK button to enter Speed Warning. Use the up
or down arrow button to turn the Speed Warning

ON or OFF, then push and release the OK button to

confirm the selection. If the ON status is selected,
use the up or down arrow button to set the

desired speed, then push the OK button to set the

speed for the Speed Warning. A Speed Warning

light will illuminate in the instrument cluster, with a

number matching the set speed, with a pop-up

message to inform the driver that the Speed

Warning has been set to the desired speed. Each

time the set speed is exceeded, a single chime will

sound and a pop-up warning message will display.

If the set speed is exceeded more than 2 mph

(3 km/h), a continuous chime will sound for up to

10 seconds, or until the speed is no longer

exceeded. The telltale in the instrument cluster will

also change from white to yellow, and a pop-up

warning message will pop-up on the instrument

cluster display.

NOTE:

Speed Warning is unavailable while KeySense is

in use.

ATTERY

AVER

ATTERY

AVER

ODE

ESSAGE

— E

LECTRICAL

OAD

EDUCTION

CTIONS

— I

QUIPPED

This vehicle is equipped with an Intelligent Battery

Sensor (IBS) to perform additional monitoring of

the electrical system and status of the vehicle

battery.
In cases when the IBS detects charging system

failure, or the 12 Volt vehicle battery conditions are

deteriorating, electrical load reduction actions will

take place to extend the driving time and distance

of the vehicle. This is done by reducing power to or

turning off non-essential 12 Volt electrical loads.

Load reduction will be functional when the vehicle

propulsion system is active.
The vehicle may not be running depending on the

High Voltage (HV) battery State Of Charge (SOC) or

temperature. It will display a message if there is a

risk of battery depletion to the point where the

vehicle may stall due to lack of electrical supply, or

will not restart after the current drive cycle.
When 12 Volt load reduction is activated, the

message “Battery Saver On” or “Battery Saver

Mode” will appear in the instrument cluster display.
These messages indicate the vehicle battery has a

low state of charge and continues to lose electrical

charge at a rate that the charging system cannot

sustain.

Current

(MPG,

L/100km,

or km/L)

Trip B Distance Trip A Distance

Base Instrument Cluster Display

Screen Setup Options:

Center

None

Compass

Outside Temp

Time

Range

Average

(MPG,

L/100km,

or km/L)

Current

(MPG,

L/100km,

or km/L)

Trip A Distance Trip B Distance

Audio Menu

Title

Menu Title

Digital Speed

Base Instrument Cluster Display

Screen Setup Options:

Upper Right

120

GETTING TO KNOW YOUR INSTRUMENT PANEL

NOTE:



The charging system is independent from load

reduction. The charging system performs a diag

nostic on the charging system continuously.



If the Battery Charge Warning Light is on it may

indicate a problem with the charging system

page 121.

The electrical loads that may be switched off (if

equipped), and vehicle functions which can be

effected by load reduction:



Heated Seat/Vented Seats/Heated Wheel



Heated/Cooled Cup Holders — If Equipped



Rear Defroster And Heated Mirrors



HVAC System



115 Volts AC Power Inverter System



Audio and Telematics System

Loss of the battery charge may indicate one or

more of the following conditions:



The charging system cannot deliver enough

electrical power to the vehicle system because

the electrical loads are larger than the capability

of charging system. The charging system is still

functioning properly.



Turning on all possible vehicle electrical loads

(e.g. HVAC to max settings, exterior and interior

lights, overloaded power outlets +12 Volts,

150W, USB ports) during certain driving condi

tions (city driving, towing, frequent stopping).



Installing options like additional lights, upfitter

electrical accessories, audio systems, alarms

and similar devices.



Unusual driving cycles (short trips separated by

long parking periods).



The vehicle was parked for an extended period

of time (weeks, months).



The battery was recently replaced and was not

charged completely.



The battery was discharged by an electrical load

left on when the vehicle was parked.



The battery was used for an extended period

with the engine not running to supply radio,

lights, chargers, +12 Volt portable appliances

like vacuum cleaners, game consoles and

similar devices.

What to do when an electrical load reduction

action message is present (“Battery Saver On” or

“Battery Saver Mode”)
During a trip:



Reduce power to unnecessary loads if possible:



Turn off redundant lights (interior or exterior)



Check what may be plugged in to power

outlets +12 Volts, 150W, USB ports



Check HVAC settings (blower, temperature)



Check the audio settings (volume)

After a trip:



Check if any aftermarket equipment was

installed (additional lights, upfitter electrical

accessories, audio systems, alarms) and review

specifications if any (load and Ignition Off Draw

currents).



Evaluate the latest driving cycles (distance,

driving time and parking time).



The vehicle should have service performed if

the message is still present during consecutive

trips and the evaluation of the vehicle and

driving pattern did not help to identify the cause.

GETTING TO KNOW YOUR INSTRUMENT PANEL

121

TRIP COMPUTER

The Trip Computer is located in the instrument
cluster display. Push and release the up or
down arrow button until “Trip Info” is

highlighted in the instrument cluster display.

Navigate between Trip A or Trip B by using the
right and left arrow buttons.
For each trip the following information will be

displayed:
Trip A



Shows the total distance traveled for Trip A

since the last reset.



Shows the Average MPG for Trip A since the last

reset.



Shows the elapsed time traveled for Trip A since

the last reset. Elapsed time will increment when

the ignition switch is in the ON or START position.

Trip B



Shows the total distance traveled for Trip B

since the last reset.



Shows the Average MPG for Trip B since the last

reset.



Shows the elapsed time traveled for Trip B since

the last reset. Elapsed time will increment when

the ignition switch is in the ON or START position.

To Reset A Trip Function
Push and hold the OK button to reset the currently

displayed trip.

WARNING LIGHTS AND MESSAGES

The warning/indicator lights will illuminate in the

instrument panel together with a dedicated

message and/or acoustic signal when applicable.

These indications are indicative and precautionary

and as such must not be considered as exhaustive

and/or alternative to the information contained in

the Owner’s Manual, which you are advised to read

carefully in all cases. Always refer to the

information in this chapter in the event of a failure

indication. All active telltales will display first if

applicable. The system check menu may appear

different based upon equipment options and

current vehicle status. Some telltales are optional

and may not appear.

ARNING

IGHTS

Air Bag Warning Light

This warning light will illuminate to

indicate a fault with the air bag, and will

turn on for four to eight seconds as a bulb

check when the ignition is placed in the

ON/RUN or ACC/ON/RUN position. This light will

illuminate with a single chime when a fault with the

air bag has been detected, it will stay on until the

fault is cleared. If the light is either not on during

startup, stays on, or turns on while driving, have

the system inspected at an authorized dealer as

soon as possible.

Battery Charge Warning Light

This warning light will illuminate when

the battery is not charging properly. If it

stays on while the engine is running,

there may be a malfunction with the

charging system. Contact an authorized dealer as

soon as possible.
This indicates a possible problem with the

electrical system or a related component.

Content .. 5 6 7 8 ..
