IN CASE OF EMERGENCY

HAZARD WARNING FLASHERS

The Hazard Warning Flashers button is located in

the lower center area of the instrument panel.

Hazard Warning Flashers Button

Push the button to turn on the Hazard Warning

Flashers. When the button is activated, all

directional turn signals will flash on and off to warn

oncoming traffic of an emergency. Push the button

a second time to turn off the Hazard Warning

Flashers.

This is an emergency warning system and it should

not be used when the vehicle is in motion. Use it

only when your vehicle is disabled or signaling a

safety hazard warning for other motorists.
When you must leave the vehicle to seek

assistance, the Hazard Warning Flashers will

continue to operate even though the ignition is

placed in the OFF position.

NOTE:

With extended use, the Hazard Warning Flashers

may wear down your battery.

ASSIST AND SOS MIRROR — IF EQUIPPED

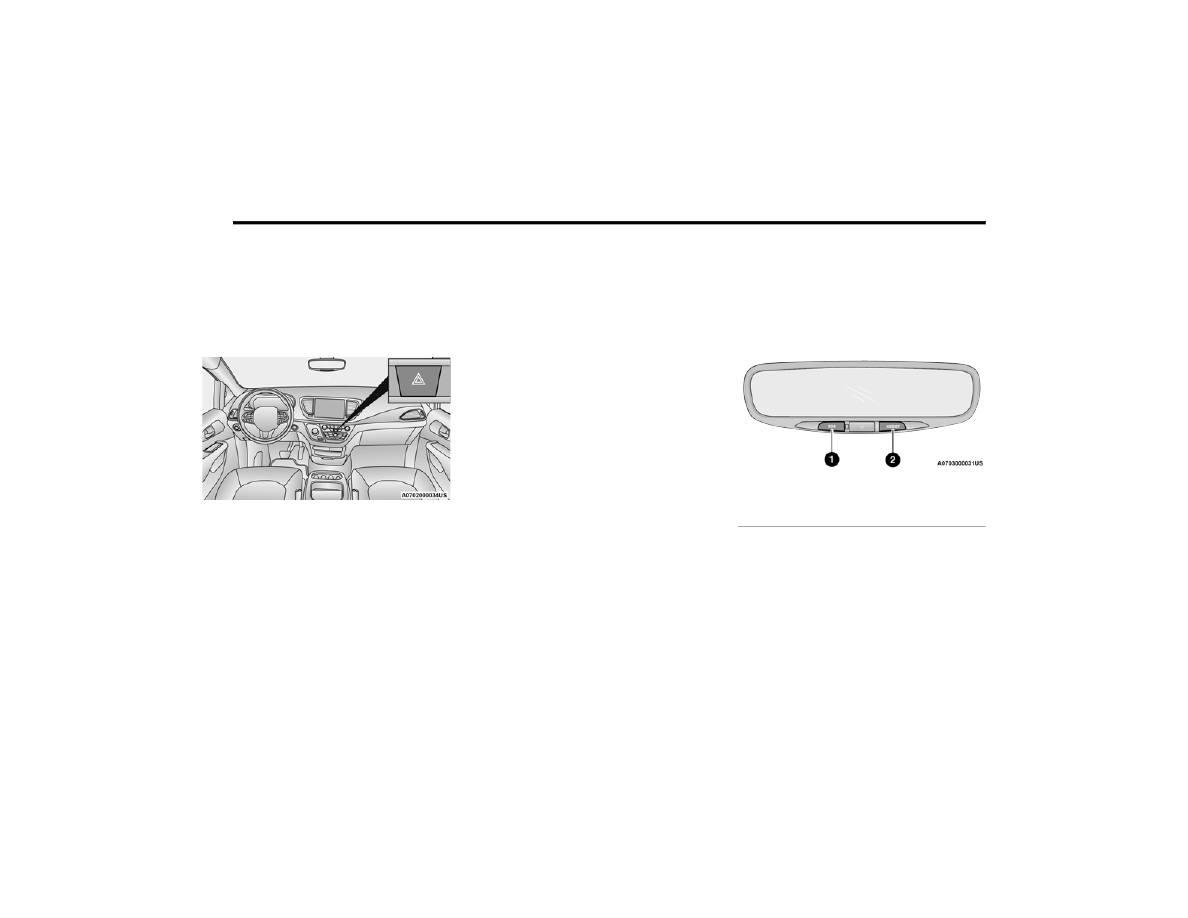

Assist And SOS Mirror

1 — SOS Button
2 — ASSIST Button

IN CASE OF EMERGENCY

283

If equipped, the rearview mirror contains an SOS

and ASSIST button.

NOTE:



Your vehicle may be transmitting data as

authorized by the subscriber

page 370.



The SOS and ASSIST buttons will only function

if you are connected to an operable LTE

(voice/data) or 4G (data) network, which comes

as a built in function. Other Uconnect services

will only be operable if your SiriusXM Guardian™

service is active and you are connected to an

operable LTE (voice/data) or 4G (data) network.

ASSIST Call
The ASSIST Button is used to automatically

connect you to any one of the following support

centers:



Roadside Assistance – If you get a flat tire, or

need a tow, just push the ASSIST button and you

will be connected to a representative for assis

tance. Roadside Assistance will know what

vehicle is being driven and its location. Addi

tional fees may apply for roadside assistance.



SiriusXM Guardian™ Customer Care – In-vehicle

support for SiriusXM Guardian™.



Vehicle Customer Care – Total support for all

other vehicle issues.



Uconnect Customer Care - Total support for

Radio, Phone and NAV issues.

SOS Call
1. Push the SOS Call button on the Rearview

Mirror.

NOTE:

In case the SOS Call button is pushed in error,

there will be a 10 second delay before the SOS Call

system initiates a call to a SOS operator. To cancel

the SOS Call connection, push the SOS call button

on the Rearview Mirror or press the cancellation

button on the Device Screen. Termination of the

SOS Call will turn off the green LED light on the

Rearview Mirror.

2. The LED light located between the SOS and

ASSIST buttons on the Rearview Mirror will

turn green once a connection to a SOS

operator has been made.

3. Once a connection between the vehicle and a

SOS operator is made, the SOS Call system

may transmit the following important vehicle

information to a SOS operator:



Indication that the occupant placed a SOS

Call



The vehicle brand



The last known GPS coordinates of the

vehicle

4. You should be able to speak with the SOS

operator through the vehicle audio system to

determine if additional assistance is needed.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

284

IN CASE OF EMERGENCY

(Continued)

NOTE:



Your vehicle may be transmitting data as

authorized by the subscriber.



Once a connection is made between the

vehicle’s SOS Call system and the SOS oper

ator, the SOS operator may be able to open

a voice connection with the vehicle to deter

mine if additional assistance is needed.

Once the SOS operator opens a voice

connection with the vehicle’s SOS Call

system, the operator should be able to

speak with you or other vehicle occupants

and hear sounds occurring in the vehicle.

The vehicle’s SOS Call system will attempt

to remain connected with the SOS operator

until the SOS operator terminates the

connection.

5. The SOS operator may attempt to contact

appropriate emergency responders and

provide them with important vehicle

information and GPS coordinates.

WARNING!



If anyone in the vehicle could be in danger

(e.g., fire or smoke is visible, dangerous road

conditions or location), do not wait for voice

contact from an Emergency Services Agent. All

occupants should exit the vehicle immediately

and move to a safe location.



Never place anything on or near the vehicle’s

operable network and GPS antennas. You

could prevent operable network and GPS

signal reception, which can prevent your

vehicle from placing an emergency call. An

operable network and GPS signal reception is

required for the SOS Call system to function

properly.



The SOS Call system is embedded into the

vehicle’s electrical system. Do not add after

market electrical equipment to the vehicle’s

electrical system. This may prevent your

vehicle from sending a signal to initiate an

emergency call. To avoid interference that can

cause the SOS Call system to fail, never add

aftermarket equipment (e.g., two-way mobile

radio, CB radio, data recorder, etc.) to your

vehicle’s electrical system or modify the

antennas on your vehicle. IF YOUR VEHICLE

LOSES BATTERY POWER FOR ANY REASON

(INCLUDING DURING OR AFTER AN ACCI

DENT), THE UCONNECT FEATURES, APPS AND

SERVICES, AMONG OTHERS, WILL NOT

OPERATE.



Modifications to any part of the SOS Call

system could cause the air bag system to fail

when you need it. You could be injured if the

air bag system is not there to help protect you.

WARNING!

IN CASE OF EMERGENCY

285

(Continued)

SOS Call System Limitations
Vehicles sold in Mexico DO NOT have SOS Call

system capabilities.
SOS or other emergency line operators in Mexico

may not answer or respond to SOS system calls.
If the SOS Call system detects a malfunction, any

of the following may occur at the time the

malfunction is detected, and at the beginning of

each ignition cycle:



The Rearview Mirror light located between the

SOS and ASSIST buttons will continuously be

illuminated red.



The Device Screen will display the following

message “Vehicle device requires service.

Please contact an authorized dealer.”



An In-Vehicle Audio message will state “Vehicle

device requires service. Please contact an

authorized dealer.”

Even if the SOS Call system is fully functional,

factors beyond FCA US LLC’s control may prevent

or stop the SOS Call system operation. These

include, but are not limited to, the following

factors:



The ignition is in the OFF position



The vehicle’s electrical systems are not intact



The SOS Call system software and/or hardware

are damaged during a crash



The vehicle battery loses power or becomes

disconnected during a vehicle crash



LTE (voice/data) or 4G (data) network and/or

Global Positioning Satellite signals are unavail

able or obstructed



Equipment malfunction at the SOS operator

facility



Operator error by the SOS operator



LTE (voice/data) or 4G (data) network conges

tion



Weather



Buildings, structures, geographic terrain, or

tunnels

WARNING!



Ignoring the Rearview Mirror light could mean

you will not have SOS Call services. If the Rear

view Mirror light is illuminated, have an autho

rized dealer service the SOS Call system

immediately.



The Occupant Restraint Control module turns

on the air bag Warning Light on the instrument

panel if a malfunction in any part of the

system is detected. If the Air Bag Warning

Light is illuminated, have an authorized dealer

service the Occupant Restraint Control system

immediately.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

286

IN CASE OF EMERGENCY

(Continued)

NOTE:



Your vehicle may be transmitting data as autho

rized by the subscriber.



Never place anything on or near the vehicle’s

LTE (voice/data) or 4G (data) and GPS

antennas. You could prevent LTE (voice/data) or

4G (data) and GPS signal reception, which can

prevent your vehicle from placing an emergency

call. An operable LTE (voice/data) or 4G (data)

network connection and a GPS signal is

required for the SOS Call system to function

properly.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void

the user's authority to operate the equipment.
Automatic SOS — If Equipped
Automatic SOS is a hands-free safety service that

can immediately connect you with help in the event

that your vehicle’s airbags deploy. Please refer to

your provided radio supplement for complete

information.

JACKING AND TIRE CHANGING —

IF EQUIPPED

REPARATIONS

ACKING

1. Park the vehicle on a firm, level surface. Avoid

ice or slippery areas.

2. Turn on the Hazard Warning Flashers.
3. Apply the parking brake.
4. Place the gear selector into PARK (P).
5. Place the ignition in OFF mode.

CAUTION!

To avoid damage to the mirror during cleaning,

never spray any cleaning solution directly onto

the mirror. Apply the solution onto a clean cloth

and wipe the mirror clean.

WARNING!



Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid the danger of

being hit when operating the jack or changing

the wheel.



Being under a jacked-up vehicle is dangerous.

The vehicle could slip off the jack and fall on

you. You could be crushed. Never put any part

of your body under a vehicle that is on a jack.

If you need to get under a raised vehicle, take

it to a service center where it can be raised on

a lift.



The jack is designed to be used as a tool for

changing tires only. The jack should not be

used to lift the vehicle for service purposes.

The vehicle should be jacked on a firm level

surface only. Avoid ice or slippery areas.

WARNING!

Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid being hit when

operating the jack or changing the wheel.

WARNING!

IN CASE OF EMERGENCY

287

6. Block both the front and rear of the wheel

diagonally opposite the jacking position. For

example, if the driver’s front wheel is being

changed, block the passenger’s rear wheel.

Wheel Blocked Example

NOTE:

Passengers should not remain in the vehicle when

the vehicle is being lifted or raised.

ACK

PARE

IRE

OCATION

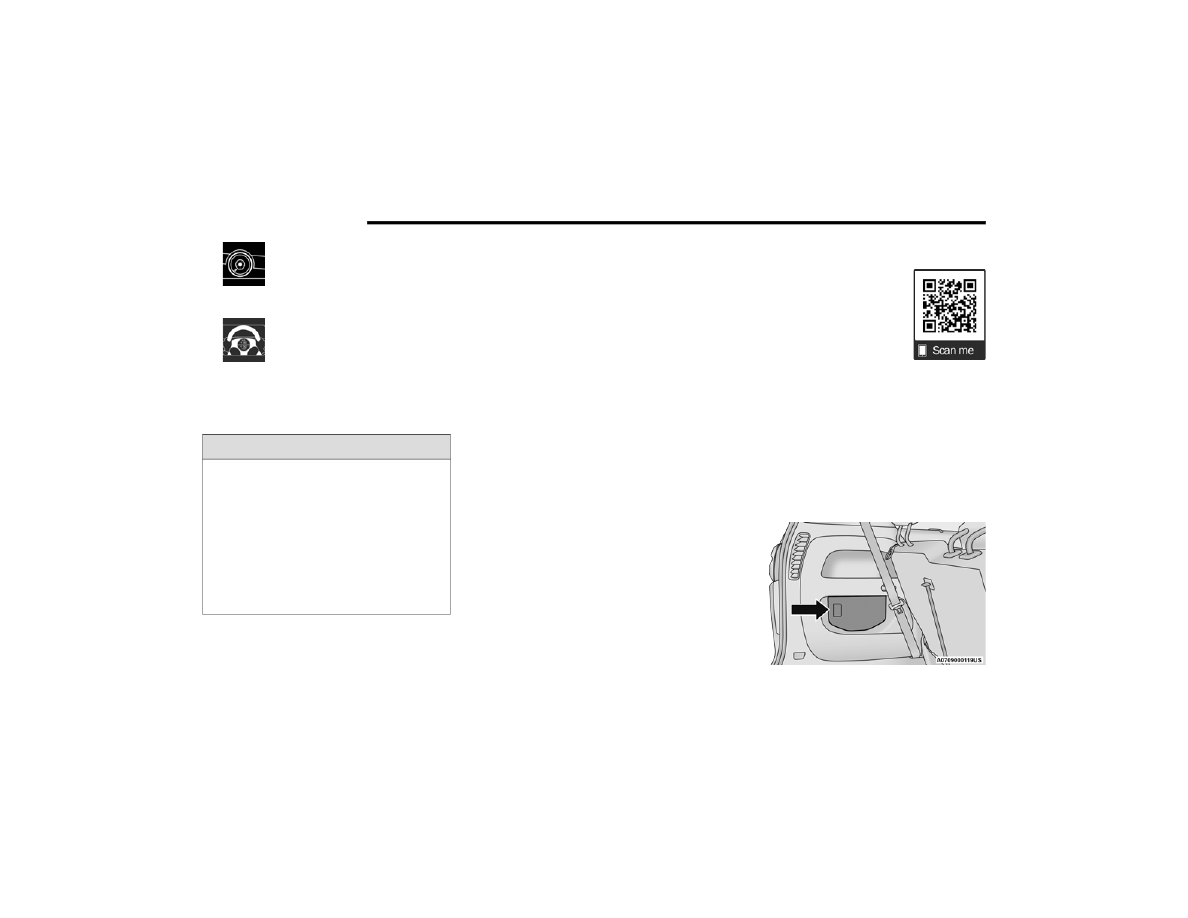

The jacking tools, spare tire and portable air

compressor (if equipped) or tire service kit (if

equipped) are stowed behind an access panel on

the left hand side of the vehicle.

Jacking Equipment Location

QUIPMENT

EMOVAL

1. Remove the access panel to the jacking

equipment.

2. Unlatch the Portable Air Compressor or Tire

Service Kit if equipped. Unscrew the wing nut

that is holding the Inflatable Spare Tire and

gently remove it from the storage area.

Remove wrench from foam tray.

NOTE:

Depending on the trim level of the vehicle, the

options for spare tire equipment may vary.

Jacking Equipment

1 — Inflatable Spare Tire
2 — Tire Service Kit
3 — Wrench
4 — Fuel Filler Funnel

288

IN CASE OF EMERGENCY

(Continued)

Jacking Equipment

3. Turn the jack screw counterclockwise to

remove the jack from the storage area behind

the tire.

Jack Location

ACKING

NSTRUCTIONS

Jack Warning Label

1 — Inflatable Spare Tire
2 — Portable Air Compressor

1 — Jack Screw
2 — Jack

WARNING!

Carefully follow these tire changing warnings to

help prevent personal injury or damage to your

vehicle:



Always park on a firm, level surface as far from

the edge of the roadway as possible before

raising the vehicle.



Turn on the Hazard Warning Flashers.



Apply the parking brake firmly and set the

transmission in PARK.



Block the wheel diagonally opposite the wheel

to be raised.



Do not let any passenger sit in the vehicle

when it is on a jack.



Do not get under the vehicle when it is on a

jack. If you need to get under a raised vehicle,

take it to a service center where it can be

raised on a lift.



Only use the jack in the positions indicated

and for lifting this vehicle during a tire change.



If working on or near a roadway, be extremely

careful of motor traffic.

WARNING!

IN CASE OF EMERGENCY

289

Detailed information about the inflatable spare

tire, its use, and operation

page 351.

Extending The Wrench

1. Loosen (but do not remove) the wheel lug

nuts by turning them to the left, one turn while

the wheel is still on the ground.

2. There are two jack engagement locations on

each side of the vehicle body. These locations

are on the sill flange of the vehicle body.

NOTE:

Placement for the front and rear jacking locations

are critical. See the following images for proper

jacking locations.

Jacking Locations

Front Lifting Point

Front Jack Location

CAUTION!

Do not attempt to raise the vehicle by jacking on

locations other than those indicated in the

Jacking Instructions for this vehicle.

290

IN CASE OF EMERGENCY

Rear Lifting Point

Rear Jacking Location

3. Place the wrench on the jack screw and turn

clockwise until the jack head is properly

engaged in the described location. Do not

raise the vehicle until you are sure the jack is

securely engaged.

4. Raise the vehicle by turning the jack screw

clockwise using the swivel wrench. Raise the

vehicle only until the tire just clears the surface

and enough clearance is obtained to install the

compact spare tire. Minimum tire lift provides

maximum stability.

5. Remove the wheel lug nuts. For vehicles with

wheel covers, remove the cover from the

wheel by hand. Do not pry the wheel cover off.

Then pull the wheel off the hub.

WARNING!

Being under a jacked-up vehicle is dangerous.

The vehicle could slip off the jack and fall on

you. You could be crushed. Never get any part of

your body under a vehicle that is on a jack. If you

need to get under a raised vehicle, take it to a

service center where it can be raised on a lift.

CAUTION!

Do not attempt to raise the vehicle by jacking on

locations other than those indicated.

WARNING!

Raising the vehicle higher than necessary can

make the vehicle less stable. It could slip off the

jack and hurt someone near it. Raise the vehicle

only enough to remove the tire.

IN CASE OF EMERGENCY

291

6. Install the inflatable spare on the vehicle,

located in the rear cargo area of the vehicle.

Mounting Inflatable Spare Tire

NOTE:

Do not install the wheel cover on the inflatable

spare tire.
7. Leave the vehicle on the jack and start

inflating the inflatable spare after the tire has

been mounted to the vehicle. Secure the

wheel to the hub by tightening the nuts with

the wrench. After inflation, once the vehicle is

lowered you will have a second opportunity to

torque the lug nuts

page 360.

8. Inflate the tire to the prescribed pressure

60 psi (4.2 Bar) using the Portable Air

Compressor

page 293 or Tire Service Kit if

equipped

page 294.

9. Lower the vehicle once the inflatable Spare

has reached its pressure and the

compressor-hose has been removed from the

tire valve.

10. Finish tightening the lug nuts. Push down on

the wrench while at the end of the handle for

increased leverage. Tighten the lug nuts in a

star pattern until each nut has been tightened

twice

page 360. If in doubt about the

correct tightness, have them checked with a

torque wrench by an authorized dealer or at a

service station.

11. Lower the jack to its fully-closed position.

12. Place the deflated (flat) tire and foam tray

cover assembly in the rear cargo area. Do not

stow the deflated tire in the inflatable spare

tire location. Have the full-sized tire repaired or

replaced, as soon as possible.

WARNING!

To avoid the risk of forcing the vehicle off the

jack, do not tighten the wheel nuts fully until the

vehicle has been lowered. Failure to follow this

warning may result in serious injury.

CAUTION!

Be sure to mount the inflatable spare tire with

the valve stem facing outward. The vehicle could

be damaged if the inflatable spare tire is

mounted incorrectly.

WARNING!

A loose tire or jack thrown forward in a collision

or hard stop could endanger the occupants of

the vehicle. Always stow the jack parts and the

spare tire in the places provided. Have the

deflated (flat) tire repaired or replaced

immediately.

292

IN CASE OF EMERGENCY

13. Stow the jack back in the stowage

compartment and place the access panel

back. The stud of the storage area must be

threaded through the lower part of the jack.

Then turn the Jack Screw clockwise to secure

it in place.

NOTE:

Stow the foam tray and components in the cargo

area.

Storing The Jack

OAD

IRE

NSTALLATION

Vehicles Equipped With Wheel Covers

1. Mount the road tire on the axle.
2. To ease the installation process for steel

wheels with wheel covers, install two lug nuts

on the mounting studs which are on each side

of the valve stem. Install the lug nuts with the

cone shaped end of the nut toward the wheel.

Lightly tighten the lug nuts.

Tire And Wheel Cover Or Center Cap

3. Align the valve notch in the wheel cover with

the valve stem on the wheel. Install the cover

by hand, snapping the cover over the two lug

nuts. Do not use a hammer or excessive force

to install the cover.

4. Install the remaining lug nuts with the cone

shaped end of the nut toward the wheel.

Lightly tighten all the lug nuts until the wheel

sits flush onto the hub and there is no play. The

nuts will have to be fully tightened once the

vehicle is lowered. Tightening an improperly

seated wheel under vehicle load can damage

the threads, cause vibration, and undermine

safety.

1 — Jack Screw
2 — Jack
3 — Stud

1 — Valve Stem
2 — Valve Notch
3 — Road Tire
4 — Wheel Cover
5 — Wheel Lug Nut

WARNING!

To avoid the risk of forcing the vehicle off the

jack, do not tighten the wheel nuts fully until the

vehicle has been lowered. Failure to follow this

warning may result in serious injury.

IN CASE OF EMERGENCY

293

5. Lower the vehicle to the ground by turning the

jack handle counterclockwise.

6. Finish tightening the lug nuts. Push down on

the wrench while at the end of the handle for

increased leverage. Tighten the lug nuts in a

star pattern until each nut has been tightened

twice

page 360. If in doubt about the

correct tightness, have them checked with a

torque wrench by an authorized dealer or at a

service station.

7. After 25 miles (40 km) check the lug nut

torque with a torque wrench to ensure that all

lug nuts are properly seated against the wheel.

ORTABLE

OMPRESSOR

—

QUIPPED

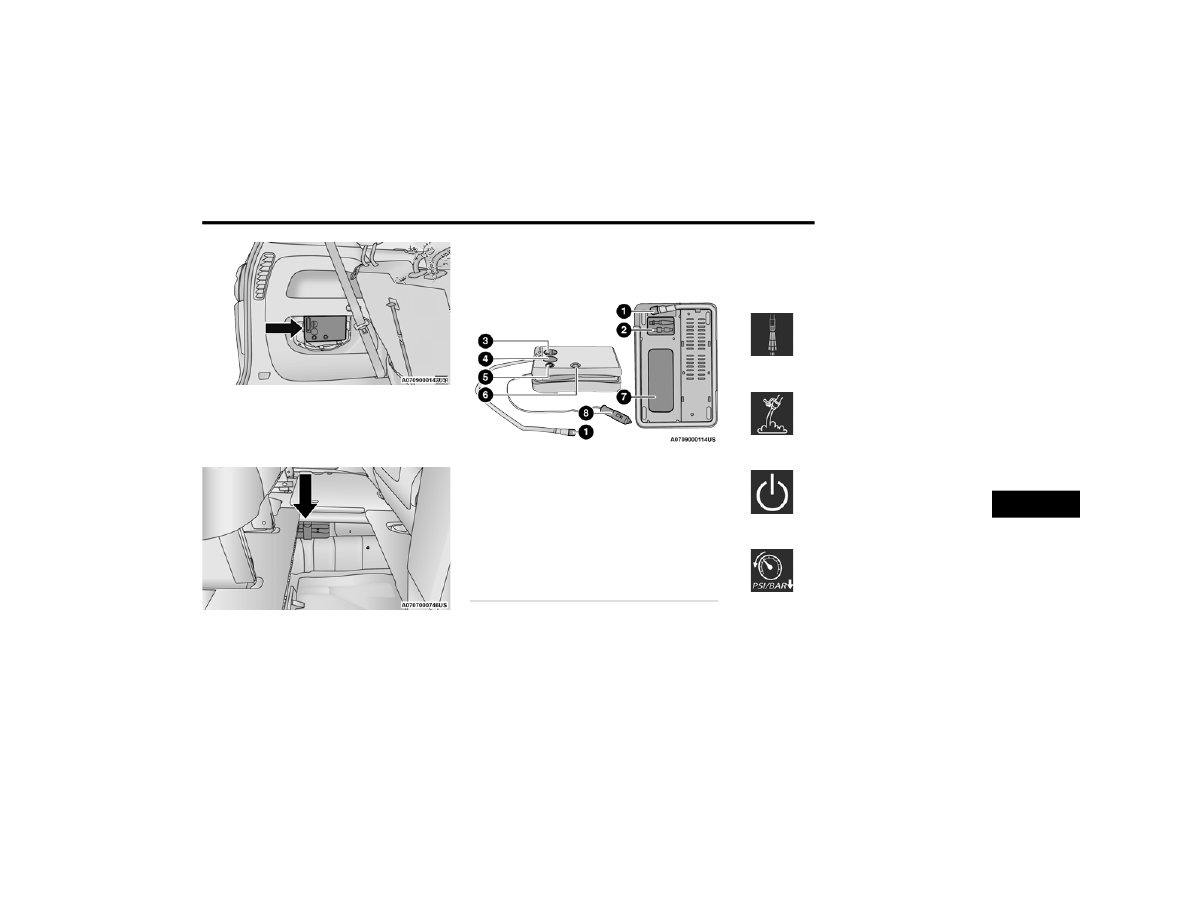

Your vehicle may be equipped with a Portable Air

Compressor. Use the Portable Air Compressor

located in the side compartment of the cargo area

to inflate the inflatable tire to 60 psi (4.2 Bar).

Portable Air Compressor

Portable Air Compressor Usage With Inflatable

Spare Tire
1. Remove the Portable Air Compressor from the

storage location.

2. Raise the vehicle as described in

the Jacking Instructions within this

section.

3. Install the Inflatable Spare tire as

described in the Jack Instructions

section in this manual. Make sure

that the valve stem is located near

the ground, and then screw the air hose of the

Portable Air Compressor to the valve stem.

4. Uncoil the power plug and connect

it the vehicles 12 Volt power Outlet.

5. Always start the engine before

turning ON the Portable Air

Compressor.
6. Switch the power button ON.

7. Inflate the tire to 60 psi (4.2 Bar)

recommended as per the label on

the wheel or if the vehicle equipped

with the inflatable spare tire

pressure indicated on the Tire and Loading

information label located on the driver-side

door opening.

NOTE:

If the tire is overinflated, use the deflation button

to reduce the tire air pressure.

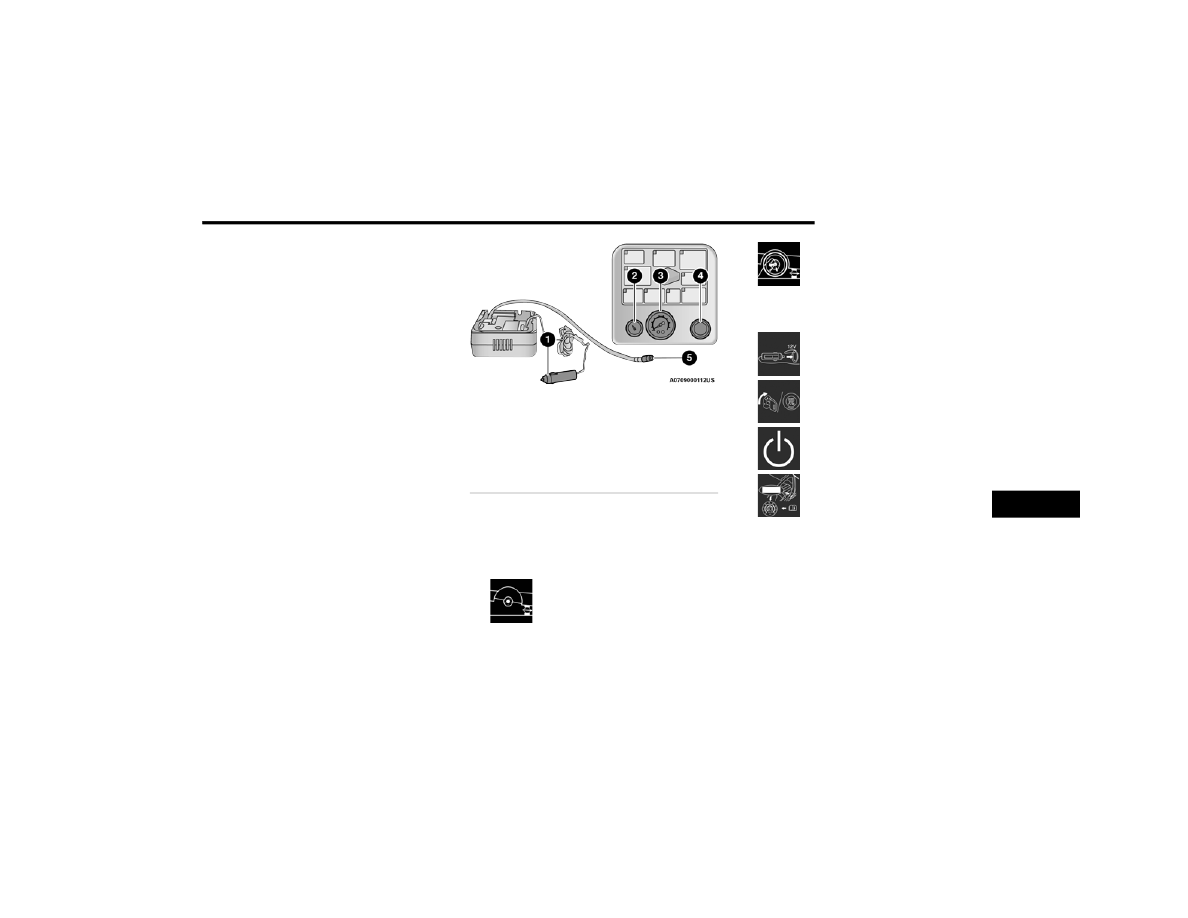

1 — Power Plug
2 — Deflation Button
3 — Pressure Gauge
4 — Power Button
5 — Air Hose

294

IN CASE OF EMERGENCY

8. After the tire reaches the

recommended pressure, lower the

vehicle with the jack as described in

the Jack Instructions section in this

manual.
9. Remove the speed limit label

sticker from the Portable Air

Compressor and place it on the

center of the steering wheel.

10. Return the Portable Air Compressor to the

foam tray and secure it with the strap. Store

the foam tray in the cargo area.

ETURN

NFLATABLE

PARE

IRE

To return Inflatable Spare Tire to its storage

location.
1. Return the Jack.
2. Deflate the spare tire. Use the Tire Service Kit

or Portable Air Compressor and push the

deflation button to do this step. See the

Portable Air Compressor in this section for

additional information. The inflatable spare

tire will return to its original shape.

3. Install the inflatable spare tire back into its

original stowage location and position facing

outward.

4. Install the foam tray with wrench and funnel

installed.

5. Install and tighten the wing nut by hand.
6. Install the Tire Service Kit or Portable Air

Compressor (if equipped) and tighten the

strap.

7. Install access panel door.

TIRE SERVICE KIT — IF EQUIPPED

Use this QR code to access your

digital experience.
Your vehicle may be equipped

with a Tire Service Kit. Small

punctures up to 1/4 inch (6 mm)

in the tire tread can be sealed with

Tire Service Kit. Foreign objects

(e.g., screws or nails) should not be removed from

the tire. Tire Service Kit can be used in outside

temperatures down to approximately -4°F (-20°C).

This kit will provide a temporary tire seal, allowing

you to drive your vehicle up to 100 miles (160 km)

with a maximum speed of 50 mph (80 km/h).
Tire Service Kit Storage
Remove the rear panel to access the Tire Service

Kit.

Tire Service Kit Access Panel Location — If Equipped

WARNING!



Do not lift or carry the Portable Air Compressor

by the hose.



Always stow the Portable Air Compressor only

in the provided place.



The metal end fitting from Power Plug may get

hot after use, so it should be handled care

fully.



Keep the Portable Air Compressor away from

open flames or heat source.

IN CASE OF EMERGENCY

295

Tire Service Kit

NOTE:

Depending on the vehicle’s trim level, Tire Service

Kit storage locations may vary.

Tire Service Kit Location — If Equipped

The Tire Service Kit is secured with a strap, and is

stored under the load floor within the second row.
Tire Service Kit Components And Operation

Tire Service Kit Components

Using The Mode Select Knob And Hoses
Your Tire Service Kit is equipped with the following

symbols to indicate the air or sealant mode.



Selecting Air Mode

Push in the Mode Select Knob and

turn to this position for air pump oper

ation only.



Selecting Sealant Mode

Push in the Mode Select Knob and

turn to this position to inject the Tire

Service Kit Sealant and to inflate the

tire.



Using The Power Button

Push and release the Power Button

once to turn On the Tire Service Kit.

Push and release the Power Button

again to turn Off the Tire Service Kit.



Using The Deflation Button

Push the Deflation Button to reduce

the air pressure in the tire if it

becomes overinflated.

1 — Sealant/Air Hose
2 — Hose Accessories
3 — Mode Select Knob
4 — Pressure Gauge
5 — Deflation Button
6 — Power Switch
7 — Sealant Bottle
8 — Power Plug

296

IN CASE OF EMERGENCY

(Continued)

Tire Service Kit Usage Precautions



Replace the Tire Service Kit Sealant Bottle prior

to the expiration date (printed at the lower right

hand corner on the bottle label) to assure

optimum operation of the system. See the

Sealant Bottle Replacement in this section for

further information.



The Sealant Bottle is a one tire application use

and needs to be replaced after each use. Always

replace these components immediately at your

original equipment vehicle dealer.



When the Tire Service Kit sealant is in a liquid

form, clean water, and a damp cloth will remove

the material from the vehicle or tire and wheel

components. Once the sealant dries, it can

easily be peeled off and properly discarded.



For optimum performance, make sure the valve

stem on the wheel is free of debris before

connecting the Tire Service Kit.



The Tire Service Kit Sealant is only intended to

seal punctures less than 1/4 inch (6 mm) diam

eter in the tread/contact surface of your

vehicle’s tires.



The Tire Service Kit Sealant is not intended to

seal punctures on the tires' side walls.



You can use the Tire Service Kit air pump to

inflate bicycle tires. The kit also comes with two

needles, located in the Accessory Storage

Compartment (on the bottom of the air pump)

for inflating sport balls, rafts, or similar inflat

able items. However, use only the Air Pump and

make sure the Mode Select Knob is in the Air

Mode when inflating such items to avoid

injecting sealant into them.



Do not lift or carry the Tire Service Kit by the

hoses.

WARNING!



Do not attempt to seal a tire on the side of the

vehicle closest to traffic. Pull far enough off

the road to avoid the danger of being hit when

using the Tire Service Kit.



Do not use Tire Service Kit or drive the vehicle

under the following circumstances:



If the puncture in the tire tread is approxi

mately 1/4 inch (6 mm) or larger.



If the tire has any sidewall damage.



If the tire has any damage from driving

with extremely low tire pressure.



If the tire has any damage from driving on

a flat tire.



If the wheel has any damage.



If you are unsure of the condition of the

tire or the wheel.



Keep Tire Service Kit away from open flames

or heat source.



A loose Tire Service Kit thrown forward in a

collision or hard stop could endanger the

occupants of the vehicle. Always stow the Tire

Service Kit in the place provided. Failure to

follow these warnings can result in injuries

that are serious or fatal to you, your passen

gers, and others around you.



Take care not to allow the contents of Tire

Service Kit to come in contact with hair, eyes,

or clothing. Tire Service Kit sealant is harmful

if inhaled, swallowed, or absorbed through the

skin. It causes skin, eye, and respiratory irrita

tion. Flush immediately with plenty of water if

there is any contact with eyes or skin. Change

clothing as soon as possible, if there is any

contact with clothing.



Tire Service Kit Sealant solution contains

latex. In case of an allergic reaction or rash,

consult a physician immediately. Keep Tire

Service Kit out of reach of children. If swal

lowed, rinse mouth immediately with plenty of

water and drink plenty of water. Do not induce

vomiting! Consult a physician immediately.

WARNING!

IN CASE OF EMERGENCY

297

Sealing A Tire With Tire Service Kit
Whenever You Stop To Use Tire Service Kit:
1. Pull over to a safe location and turn on the

vehicle’s Hazard Warning Flashers.

2. Verify that the valve stem (on the wheel with

the deflated tire) is in a position that is near to

the ground. This will allow the Tire Service Kit

Hose to reach the valve stem and keep the Tire

Service Kit flat on the ground. This will provide

the best positioning of the kit when injecting

the sealant into the deflated tire and running

the air pump. Move the vehicle as necessary to

place the valve stem in this position before

proceeding.

3. Place the gear selector in PARK, then push and

release the ENGINE START/STOP button to set

the ignition switch to the OFF position.

4. Apply the parking brake.

Setting Up To Use Tire Service Kit:
1. Uncoil the Sealant Hose and then remove the

cap from the fitting at the end of the hose.

2. Place the Tire Service Kit flat on

the ground next to the deflated tire.

3. Remove the cap from the valve stem and then

screw the fitting at the end of the Sealant Hose

onto the valve stem.

4. Uncoil the Power Plug and insert

the plug into the vehicle’s 12 Volt

power outlet.

NOTE:

Do not remove foreign objects (e.g., screws or

nails) from the tire.
Injecting Tire Service Kit Sealant Into The

Deflated Tire:

1. Always start the vehicle before

turning the Tire Service Kit on.

2. Ensure the Mode Select Knob is to

the Sealant Mode position.

3. After pushing the Power Button,

the sealant (white fluid) will flow from

the Sealant Bottle through the

Sealant Hose and into the tire.

NOTE:

Sealant may leak out through the puncture in the

tire.
If the sealant (white fluid) does not flow within

0 – 10 seconds through the Sealant Hose:
1. Push the Power Button to turn the Tire Service

Kit off. Disconnect the Sealant Hose from the

valve stem. Make sure the valve stem is free

of debris. Reconnect the Sealant Hose to the

valve stem. Check that the Mode Select Knob

is in the Sealant Mode position and not Air

Mode. Push the Power Button to turn the Tire

Service Kit on.

2. Connect the Power Plug to a different 12 Volt

power outlet in your vehicle or another vehicle,

if available. Make sure the vehicle is running

before turning the Tire Service Kit on.

3. The Sealant Bottle may be empty due to

previous use. Call for assistance.

Content .. 16 17 18 19 ..
