Chrysler Town, Dodge Caravan. Manual - part 371





(10) Remove three (3) right engine mount bracket-

to-transaxle bolts (Fig. 20).

(11) Raise vehicle on hoist.
(12) Remove front wheel/tires and halfshafts.
(13) Remove underbody splash shield.
(14) Drain transaxle fluid into suitable container.
(15) Remove front harness retainer and secure

harness out of way.

(16)

Using Tool 6638A, disconnect clutch hydrau-

lic circuit quick connect (located on slave cylinder
tube). Remove clutch slave cylinder by depressing
towards case and rotating counter-clockwise 60°,
while lifting anti-rotation tab out of case slot with
screwdriver (Fig. 21).

(17) Remove engine left mount bracket (Fig. 22).
(18) Remove starter motor (Fig. 23).
(19) Disconnect back-up lamp switch connector.
(20) Position screw jack and wood block to engine

oil pan.

(21) Remove transmission upper mount through-

bolt from left frame rail.

(22) Lower engine/transaxle assembly on screw

jack.

(23) Remove four (4) upper mount-to-transaxle

bolts and remove mount (Fig. 24).

Fig. 19 Gearshift Cables at Transaxle

1 - SELECTOR CABLE
2 - CABLE RETAINER
3 - CABLE RETAINER
4 - CROSSOVER CABLE
5 - MOUNT BRACKET

Fig. 20 Transaxle Right Mount and Bracket

1 - MOUNT BRACKET
2 - BOLT (3)
3 - MOUNT
4 - BOLT (1)

Fig. 21 Slave Cylinder Removal/Installation

1 - MOUNTING HOLE
2 - SLAVE CYLINDER
3 - ACCESS HOLE
4 - NYLON ANTI-ROTATION TAB
5 - QUICK CONNECT

21 - 34

T850 MANUAL TRANSAXLE

RS

T850 MANUAL TRANSAXLE (Continued)

(24) Obtain helper and transmission jack. Secure

transaxle to transmission jack and remove transaxle-
to-engine bolts.

(25) Remove transaxle from engine (Fig. 25).
(26) Inspect clutch, clutch release components, and

flywheel.

DISASSEMBLY

(1) Remove clutch release lever and bearing (Fig.

26). Inspect release lever pivot balls and replace if
necessary (Fig. 27). Use slide hammer C-3752 and
remover/installer 6891 (Fig. 28) if pivot ball replace-
ment is necessary.

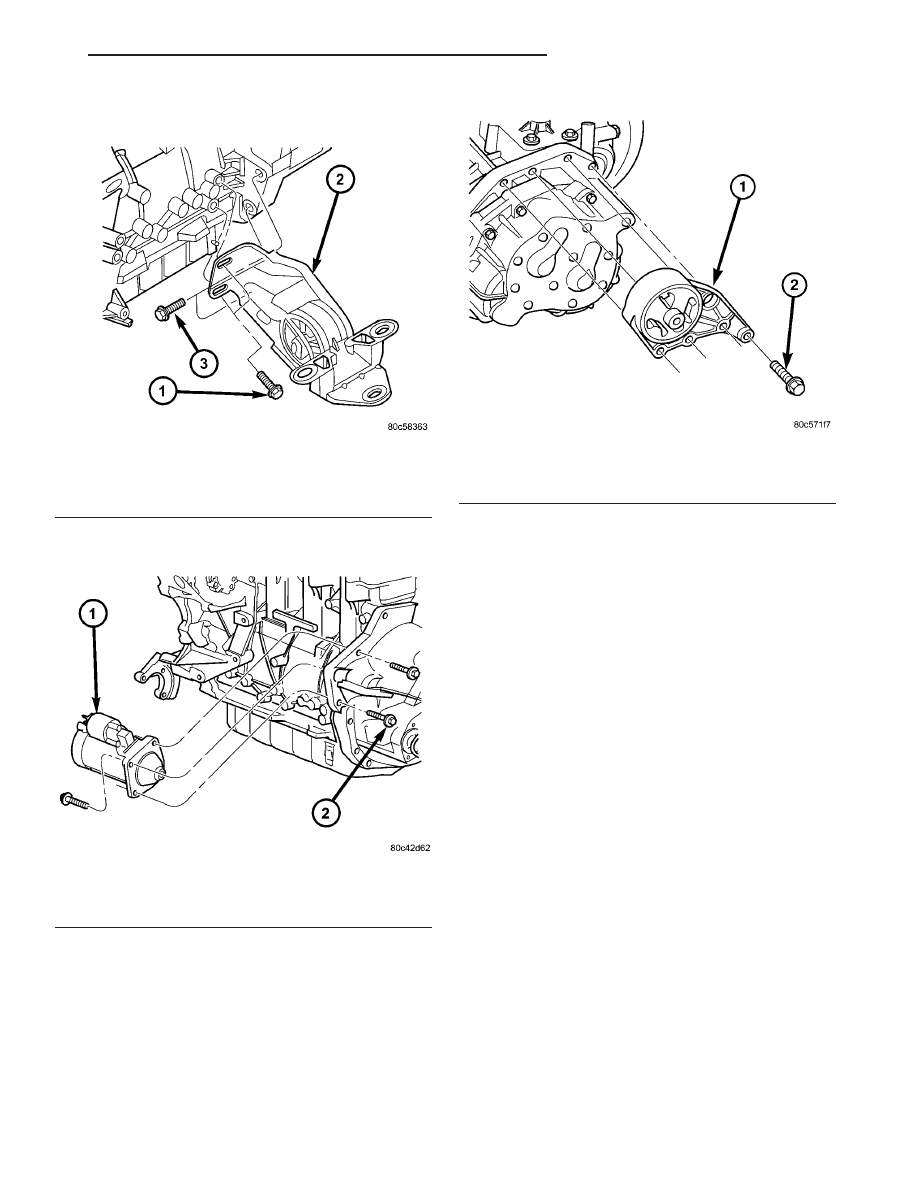

Fig. 22 Left Mount Bracket Removal/Installation

1 - BOLT (2)
2 - MOUNT BRACKET
3 - BOLT (2)

Fig. 23 Starter Motor Removal/Installation

1 - STARTER MOTOR
2 - BOLT (3)

Fig. 24 Transaxle Upper Mount

1 - MOUNT
2 - BOLT (4)

RS

T850 MANUAL TRANSAXLE

21 - 35

T850 MANUAL TRANSAXLE (Continued)

Fig. 25 Transaxle Removal/Installation

1 - TRANSAXLE
2 - BOLT

Fig. 26 Release Bearing and Lever

1 - RELEASE LEVER
2 - RELEASE BEARING

Fig. 27 Pivot Ball Orientation

1 - PIVOT BALL (1)

21 - 36

T850 MANUAL TRANSAXLE

RS

T850 MANUAL TRANSAXLE (Continued)

(2) Remove input shaft bearing retainer (Fig. 29).

NOTE: Place transaxle in neutral before shift cover
removal.

(3) Remove shift cover-to-case bolts and remove

shift cover assembly (Fig. 30).

(4) Using a suitable screwdriver, remove extension

housing axle oil seal (Fig. 31).

Fig. 28 Pivot Ball Removal/Installation

1 - C-3752 SLIDE HAMMER
2 - REMOVER/INSTALLER 6891
3 - PIVOT BALL

Fig. 29 Input Bearing Retainer

1 - INPUT BEARING RETAINER

Fig. 30 Shift Cover Removal/Installation

1 - SHIFT COVER ASSEMBLY

Fig. 31 Extension Housing Seal

1 - SCREWDRIVER
2 - EXTENSION HOUSING
3 - SEAL

RS

T850 MANUAL TRANSAXLE

21 - 37

T850 MANUAL TRANSAXLE (Continued)
