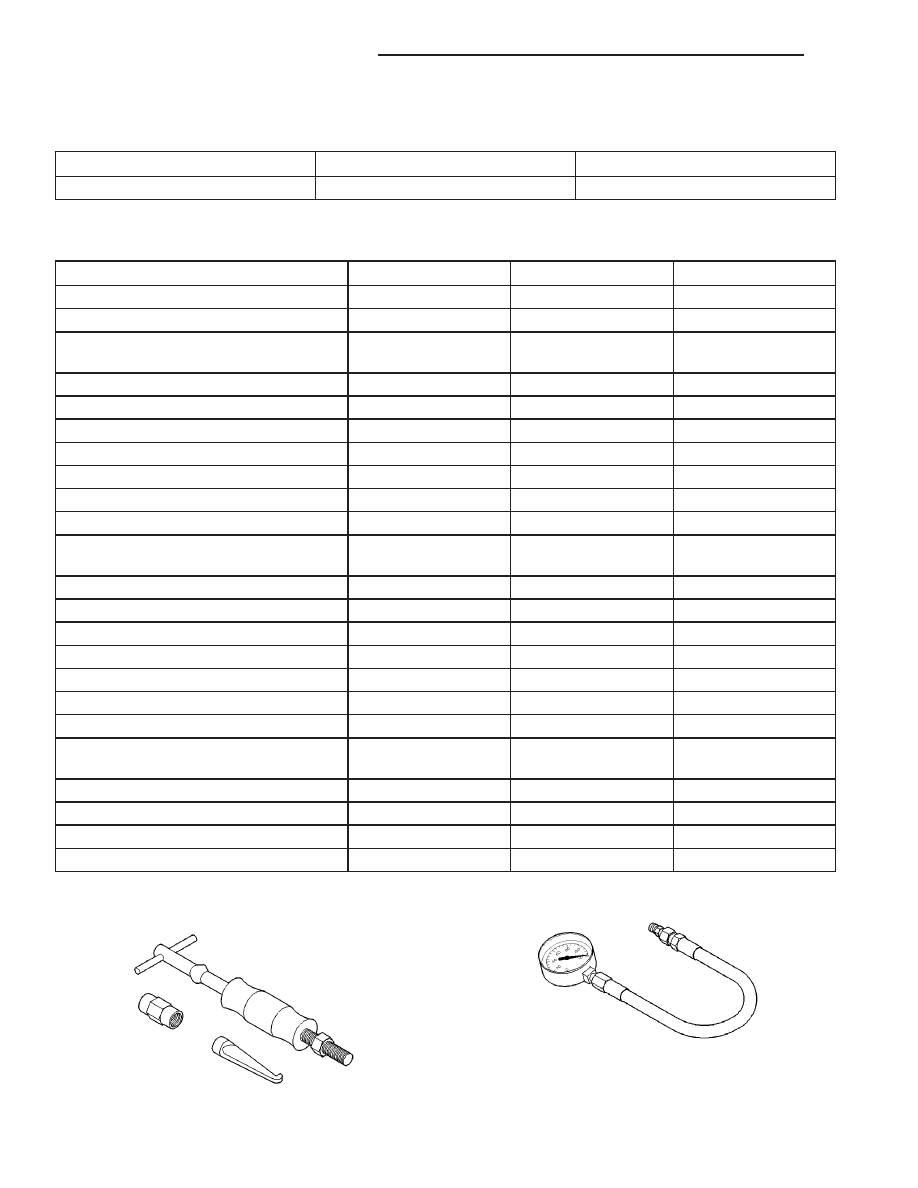

SPECIFICATIONS - 41TE TRANSAXLE
GENERAL SPECIFICATIONS
DESCRIPTION
SPECIFICATION
Transaxle Type
Fully adaptive, electronically controlled, four speed
automatic with torque converter and integral differential
Cooling Method
Air-to-oil heat exchanger
Lubrication
Pump (internal-external gear-type
GEAR RATIOS
DESCRIPTION
SPECIFICATION
First Gear
2.84
Second Gear
1.57
Direct Gear
1.00
Overdrive Gear
0.69
Reverse Gear
2.21
BEARING SETTINGS (END PLAY & TURNING TORQUE)
DESCRIPTION
METRIC
STANDARD
Differential Assembly
0.6-2 N·m
5-18 in. lbs.
Output Hub
0.3-2 N·m
3-8 in. lbs.
Transfer Shaft (End Play)
0.051-0.102 mm
0.002-0.004 in.
Overall Drag At Output Hub
0.3-1.9 N·m
3-16 in. lbs.
CLUTCH CLEARANCES
DESCRIPTION
METRIC
STANDARD
Low/Rev Clutch (Select Reaction
Plate)
0.89-1.47 mm
0.035-0.058 in.
Two/Four Clutch (No Selection)
0.76-2.64 mm
0.030-0.104 in.
Reverse Clutch (Select Snap Ring)
0.89-1.37 mm
0.035-0.054 in.
Overdrive Clutch (No Selection)
1.07-3.25 mm
0.042-0.128 in.
Underdrive Clutch (Select Pressure
Plate)
0.94-1.50 mm
0.037-0.059 in.
OIL PUMP CLEARANCES
DESCRIPTION
METRIC
STANDARD
Outer Gear-to-Crescent
0.060-0.298 mm
0.0023-0.0117 in.
Inner Gear-to-Crescent
0.093-0.385 mm
0.0036-0.0151 in.
Outer Gear-to-Pocket
0.089-0.202 mm
0.0035-0.0079 in.
Outer Gear Side Clearance
0.020-0.046 mm
0.0008-0.0018 in.
Inner Gear Side Clearance
0.020-0.046 mm
0.0008-0.0018 in.
JR
41TE AUTOMATIC TRANSAXLE
21 - 257
41TE AUTOMATIC TRANSAXLE (Continued)
