CONDITION

POSSIBLE CAUSES

CORRECTION

3. Steering column coupling worn,
broken or loose.

3. Replace steering column coupling.

4. Free play in steering column.

4. Check all components of the steering
system and repair or replace as required.

5. Worn control arm ball joints.

5. Replace ball joint or control arm as
required.

6. Loose steering knuckle to ball joint
stud pinch bolt.

6. Inspect pinch bolts, replace as
necessary, and tighten to specified torque.

7. Front wheel bearings loose or
worn.

7. Replace wheel bearing or knuckle as
necessary.

8. Loose outer tie rod ends.

8. Replace outer tie rod ends that have
excessive free play.

9. Loose inner tie rod ends.

9. Replace power steering gear.

10 Defective steering gear rotary
valve.

10. Replace power steering gear.

NOTE: * Steering shudder can be expected in new
vehicles and vehicles with recent steering system
repairs. Shudder should dissipate after the vehicle
has been driven several weeks.

NOTE: ** To evaluate this condition, it may be nec-
essary to disconnect the coupling at the base of the
steering column. Turn the steering wheel and feel or
listen for internal rubbing in steering column. To
avoid damaging the column clockspring, note the

following. Before disconnecting coupling, place
tires in the straight-ahead position and center steer-
ing wheel. Once disconnected, DO NOT rotate
steering wheel more than one revolution in either
direction and place steering wheel in original loca-
tion before reconnecting coupling. If this position is
lost, the steering column clockspring must be
recentered following the procedure found within the
procedure for steering column installation in the
steering column section.

POWER STEERING FLUID

CONDITION

POSSIBLE CAUSES

CORRECTION

LOW FLUID LEVEL WITH
VISIBLE LEAK.

1. Loose power steering hose
fittings.

1. Tighten the fitting to its specified torque.

2. Damaged or missing fitting seal,
gasket, or O-ring.

2. Replace as necessary.

3. Power steering pump or power
steering gear leaking.

3. Repair or replace the leaking component
as required.

AERATED FLUID.

1. Low fluid level.*

1. Fill power steering fluid reservoir to
proper level.

2. Air leak between power steering
fluid reservoir and pump.

2. Inspect for proper sealing. Replace the
power steering pump (with reservoir).

3. Cracked power steering pump
housing.

3. Replace the power steering pump.

RESERVOIR FLUID
OVERFLOW AND FLUID
THAT IS MILKY IN COLOR

1. Water contamination.

1. Drain the power steering fluid from the
system. Flush the system with fresh clean
power steering fluid, drain, then refill to the
proper level.

JR

STEERING

19 - 7

STEERING (Continued)

NOTE: * Extremely cold temperatures may cause
power steering fluid aeration if the power steering
fluid is low.

SPECIFICATIONS

POWER STEERING FASTENER TORQUE

DESCRIPTION

N·m

Ft.

Lbs.

In.

Lbs.

Gear Mounting Bolts

68

50

Hose Tube Nuts

31

23

275

Pump Discharge Fitting

75

55

Pump Front Mounting Bolts

54

40

Pump Rear Mounting Bolts

54

40

Pump Bracket-To-Engine
Mounting Bolts

54

40

Reservoir Mounting Screw

6

53

Tie Rod Adjustment Jam
Nuts

75

55

Tie Rod Steering Knuckle
Nut

55

40

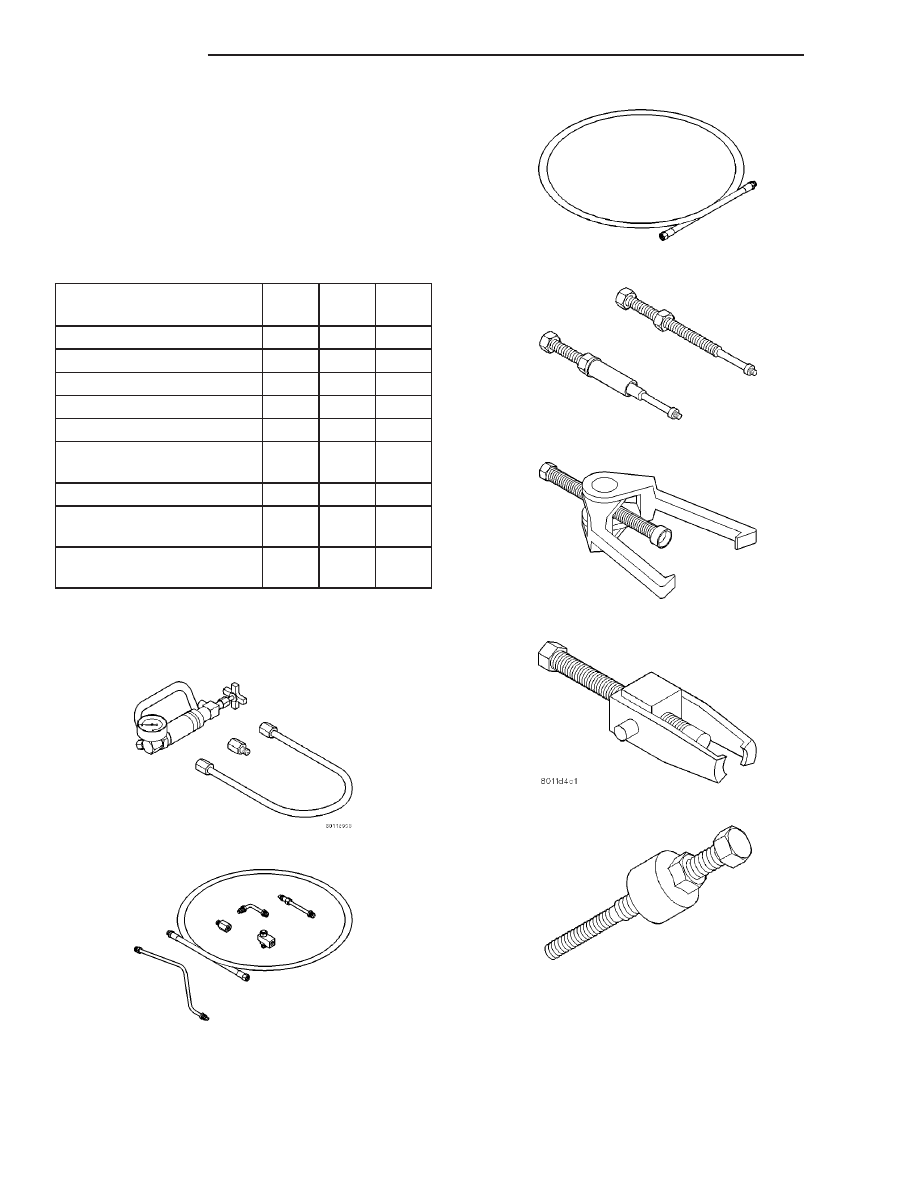

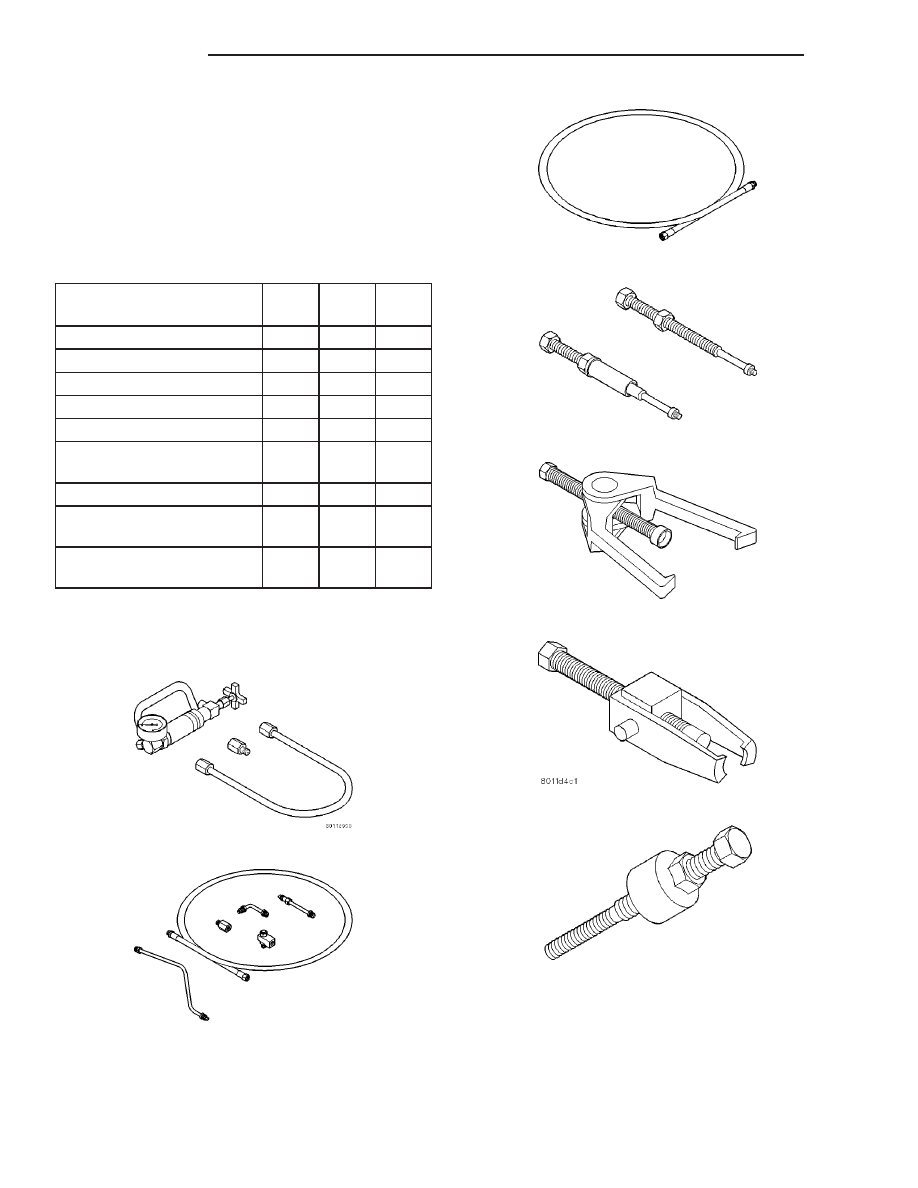

SPECIAL TOOLS

POWER STEERING

Power Steering Analyzer 6815

Adapters, Power Steering Analyzer 6893

Hose, Power Steering Analyzer 6959

Puller C-3894-A

Puller C-4333

Installer C-4063B

19 - 8

STEERING

JR

STEERING (Continued)

COLUMN

TABLE OF CONTENTS

page

page

COLUMN

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 9

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

WARNING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CAUTION

CAUTIONS

. . . . . . . . . . . . . . . . . . . . . . . . . . 10

DIAGNOSIS AND TESTING - STEERING

COLUMN

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

REMOVAL - STEERING COLUMN

. . . . . . . . . . . 10

INSTALLATION - STEERING COLUMN

. . . . . . . 14

SPECIFICATIONS

COLUMN FASTENER TORQUE

. . . . . . . . . . . 16

INTERMEDIATE SHAFT

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 16

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 16

DIAGNOSIS AND TESTING - STEERING

COLUMN INTERMEDIATE SHAFT

. . . . . . . . . 16

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 17

STEERING WHEEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 19

COLUMN

DESCRIPTION

The steering column mounted to the underside of

the instrument panel is a tilt type (Fig. 1). It has
been designed to be serviced only as an assembly if it
is determined to be defective. These replaceable com-
ponents mounted on the steering column can be ser-
viced without removal of the steering column from
the vehicle:

• key cylinder

• lock cylinder trim ring

• ignition switch

• multi-function switch

• clockspring

• SKIM module

• trim shrouds, and

• steering wheel
The steering column intermediate shaft can also be

serviced separately from the steering column.

The speed control switches and driver airbag

mounted on the steering wheel are also serviced sep-
arately.

OPERATION

Turning of the steering wheel is transferred

through the steering column and intermediate shaft,
to the power steering gear pinion shaft. The gear
then moves the steering knuckles, steering the vehi-
cle.

The steering column used on vehicles equipped

with a manual transaxle has an anti-theft provision.
With the key/lock cylinder turned to the LOCK posi-

tion, and the key removed, the steering shaft (and
steering wheel) cannot be turned more than 180
degrees

from

center

before

locking.

Vehicles

equipped with an automatic transaxle do not
have this feature.

WARNING

WARNING:

BEFORE

BEGINNING ANY

SERVICE

PROCEDURES THAT INVOLVES REMOVING THE
AIR BAG. REMOVE AND ISOLATE THE NEGATIVE
(-) BATTERY CABLE (GROUND) FROM THE VEHI-
CLE BATTERY. THIS IS THE ONLY SURE WAY TO
DISABLE THE AIR BAG SYSTEM. FAILURE TO DO
THIS COULD RESULT IN ACCIDENTAL AIR BAG
DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

WARNING: WHEN AN UNDEPLOYED AIRBAG MOD-
ULE IS TO BE REMOVED FROM THE STEERING
WHEEL, DISCONNECT BATTERY GROUND CABLE
AND ISOLATE. ALLOW SYSTEM CAPACITOR TO
DISCHARGE FOR A MINIMUM OF TWO MINUTES,
THEN BEGIN AIRBAG REMOVAL.

JR

COLUMN

19 - 9

WARNING: THE AIR BAG SYSTEM IS A SENSITIVE,
COMPLEX ELECTRO-MECHANICAL UNIT. BEFORE
ATTEMPTING TO DIAGNOSE, REMOVE OR INSTALL
THE AIR BAG SYSTEM COMPONENTS YOU MUST
FIRST DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE. FAILURE TO DO SO
COULD RESULT IN ACCIDENTAL DEPLOYMENT OF
THE AIR BAG AND POSSIBLE PERSONAL INJURY.
THE FASTENERS, SCREWS, AND BOLTS, ORIGI-
NALLY USED FOR THE AIR BAG COMPONENTS,
HAVE SPECIAL COATINGS AND ARE SPECIFI-
CALLY DESIGNED FOR THE AIR BAG SYSTEM.
THEY MUST NEVER BE REPLACED WITH ANY SUB-
STITUTES.

ANYTIME

A

NEW

FASTENER

IS

NEEDED, REPLACE WITH THE CORRECT FASTEN-
ERS PROVIDED IN THE SERVICE PACKAGE OR
FASTENERS

LISTED

IN

THE

PARTS

BOOKS.

BEFORE

SERVICING

A

STEERING

COLUMN

EQUIPPED WITH AN AIR BAG, (Refer to 8 - ELEC-
TRICAL/RESTRAINTS - WARNING)

WARNING: WHEN HANDLING AN UNDEPLOYED
AIRBAG MODULE DURING SERVICING OF THE
STEERING COLUMN THE FOLLOWING PRECAU-
TIONS

SHOULD

BE

OBSERVED. AT

NO

TIME

SHOULD ANY SOURCE OF ELECTRICITY BE PER-
MITTED NEAR THE INFLATOR ON THE BACK OF
THE AIRBAG MODULE. WHEN CARRYING A LIVE
MODULE, THE TRIM COVER SHOULD BE POINTED
AWAY FROM THE BODY TO MINIMIZE INJURY IF
MODULE ACCIDENTLY DEPLOYS. IF AIRBAG MOD-
ULE IS PLACED ON A BENCH OR OTHER SUR-
FACE, PLASTIC COVER SHOULD BE FACE UP TO
MINIMIZE MOVEMENT IN CASE OF ACCIDENTAL
DEPLOYMENT.

WARNING: SAFETY GOGGLES SHOULD BE WORN
AT ALL TIMES WHEN WORKING ON STEERING
COLUMNS.

CAUTION

CAUTIONS

CAUTION: Disconnect the negative (ground) cable
from the battery, before servicing any column com-
ponent.

CAUTION: Do not attempt to remove the pivot pins
to disassemble the tilting mechanism. Damage will
occur.

DIAGNOSIS AND TESTING - STEERING
COLUMN

For diagnosis of conditions relating to the steering

column, (Refer to 19 - STEERING - DIAGNOSIS
AND TESTING).

REMOVAL - STEERING COLUMN

NOTE: Before proceeding, review all WARNINGS
and CAUTIONS. (Refer to 19 - STEERING/COLUMN -
WARNING) (Refer to 19 - STEERING/COLUMN -
CAUTION)

(1) Open hood and remove remote ground cable

from ground stud on left front shock tower. Isolate
ground cable from vehicle by installing cable isolator
on ground stud (Fig. 2).

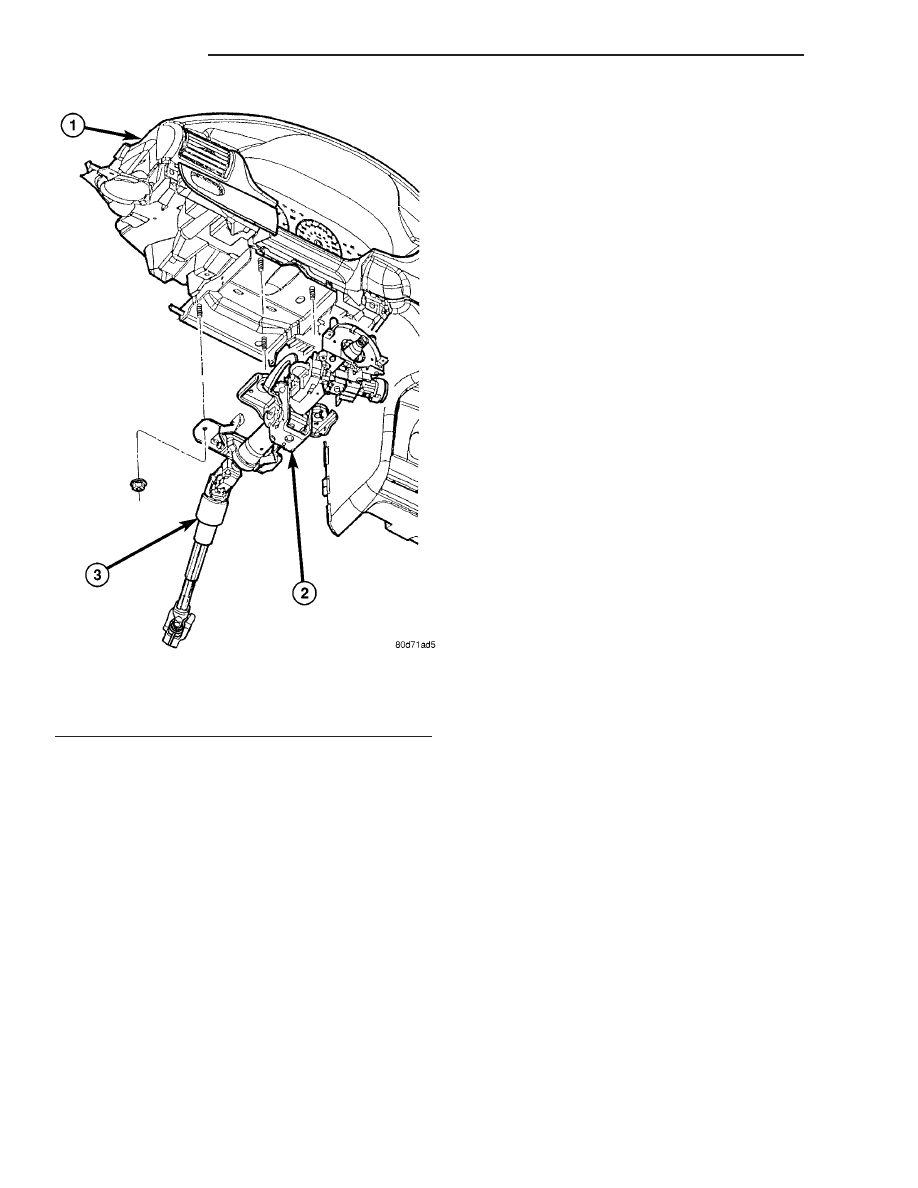

Fig. 1 Steering Column And Intermediate Shaft

1 - INSTRUMENT PANEL
2 - STEERING COLUMN
3 - INTERMEDIATE SHAFT

19 - 10

COLUMN

JR

COLUMN (Continued)
