8W-63 POWER SEAT
Component
Page
Body Control Module . . . . . . . . . . . . . . . . . 8W-63-5
Circuit Breaker No. 1 . . . . . . . . . . . . . . . . . 8W-63-3
Circuit Breaker No. 1 (JB) . . . . . . . . . . . . . 8W-63-2
Driver Heated Seat Back . . . . . . . . . . . . . . 8W-63-6
Driver Heated Seat Cushion . . . . . . . . . . . . 8W-63-6
Driver Heated Seat Module . . . . . . . . . . . . 8W-63-6
Front Vertical Motor . . . . . . . . . . . . . . . . 8W-63-2, 3
Fuse 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-63-4
Fuse 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-63-5
Fuse 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-63-5
G301 . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-63-2, 3, 6
Component
Page
Heated Seat Relay . . . . . . . . . . . . . . . . . . . 8W-63-5

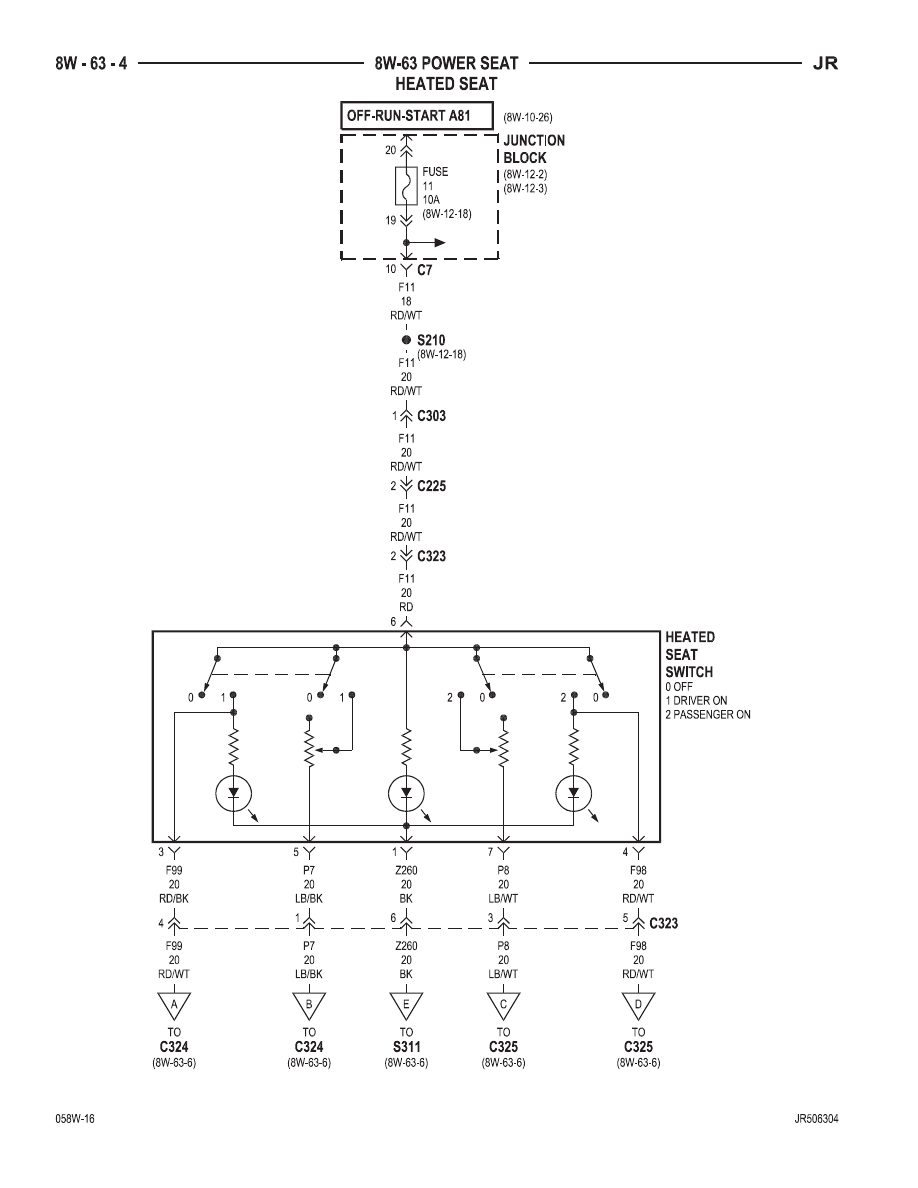

Heated Seat Switch . . . . . . . . . . . . . . . . . . 8W-63-4
Horizontal Motor . . . . . . . . . . . . . . . . . . 8W-63-2, 3
Junction Block . . . . . . . . . . . . . . . . 8W-63-2, 3, 4, 5
Passenger Heated Seat Back . . . . . . . . . . . 8W-63-6
Passenger Heated Seat Cushion . . . . . . . . . 8W-63-6
Passenger Heated Seat Module . . . . . . . . . 8W-63-6
Power Distribution Center . . . . . . . . . . . . . 8W-63-5

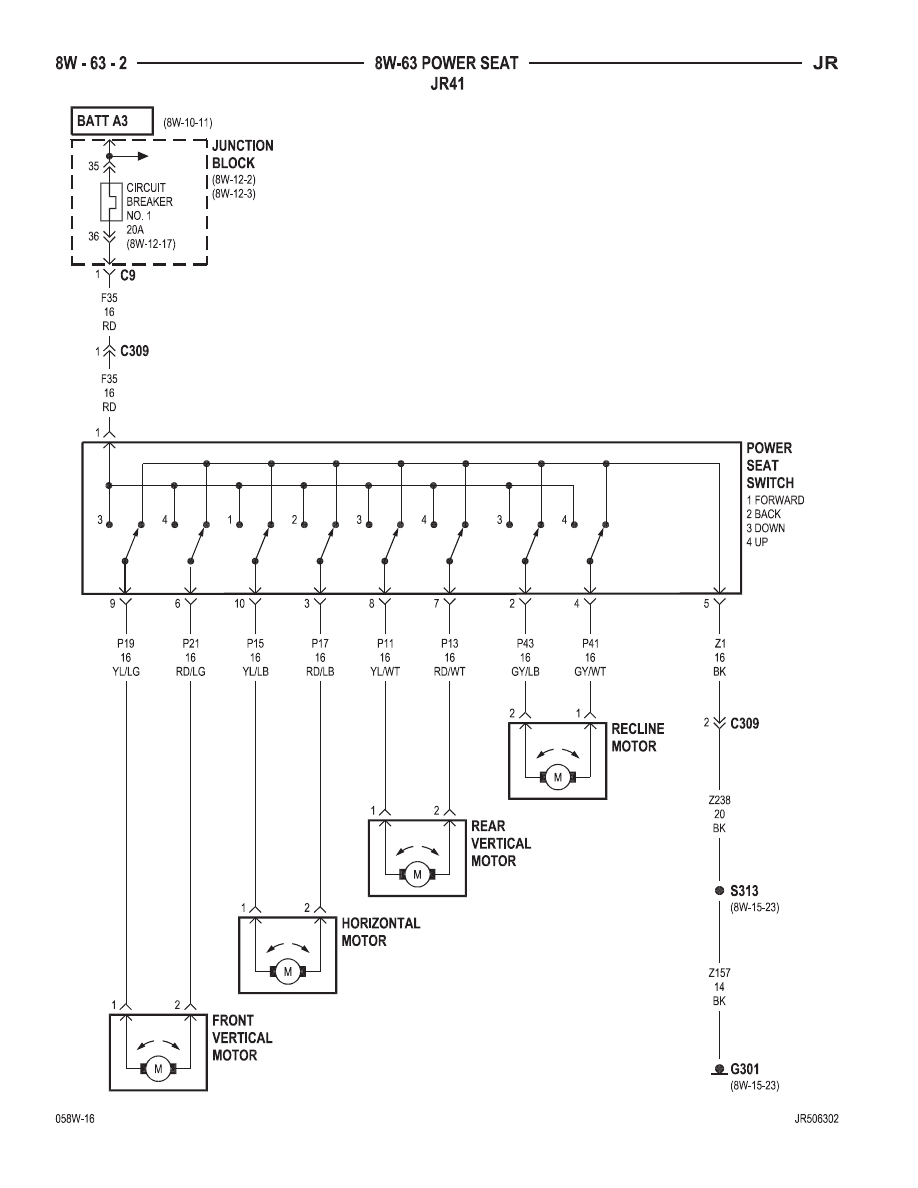

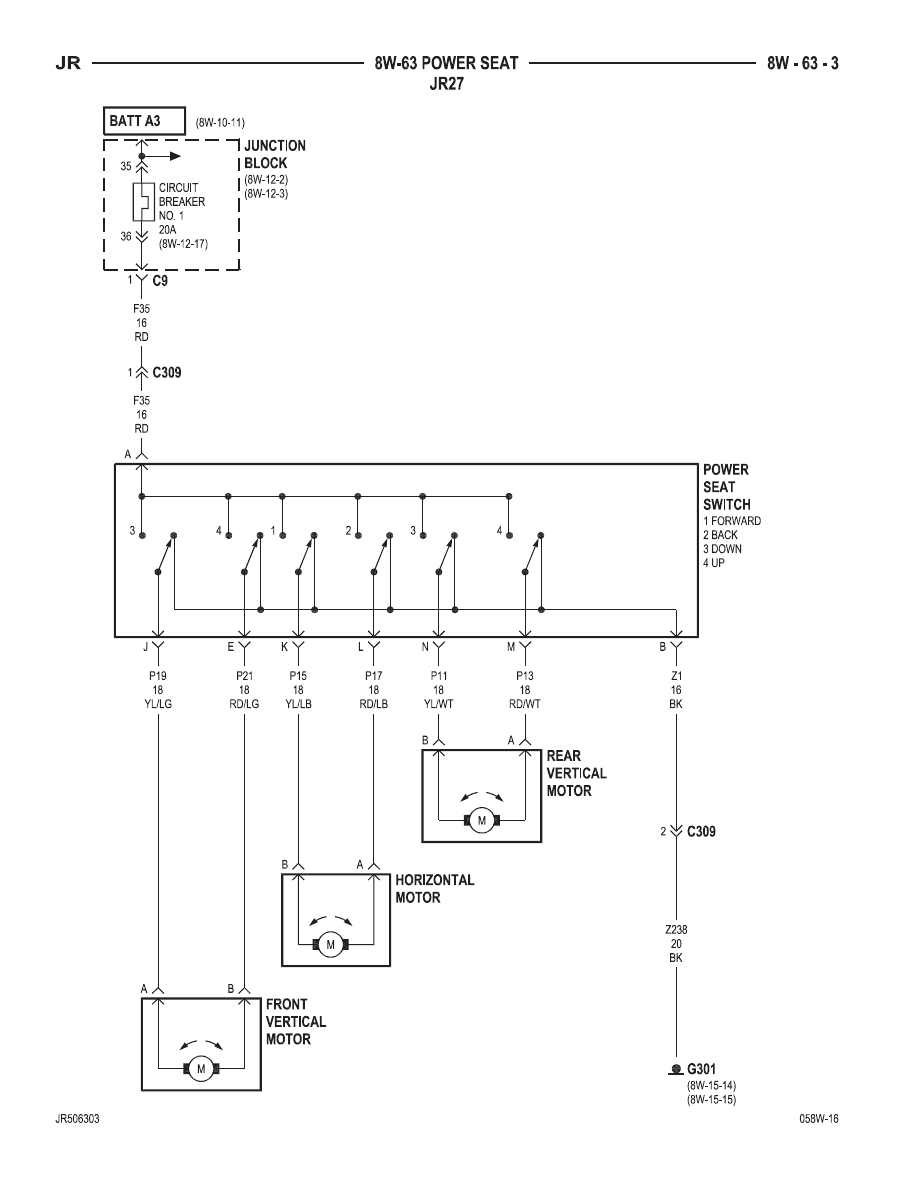

Power Seat Switch . . . . . . . . . . . . . . . . . 8W-63-2, 3
Rear Vertical Motor . . . . . . . . . . . . . . . . 8W-63-2, 3
Recline Motor . . . . . . . . . . . . . . . . . . . . . . . 8W-63-2
JR
8W-63 POWER SEAT
8W - 63 - 1
