8W-42 AIR CONDITIONING-HEATER
Component
Page
A/C Compressor Clutch . . . . . . . . . . . . . . . 8W-42-9
A/C Compressor Clutch Relay . . . . . . . . . . 8W-42-9
A/C Evaporator Temperature Sensor . . . . . 8W-42-6
A/C Pressure Transducer . . . . . . . . . . . . . . 8W-42-9

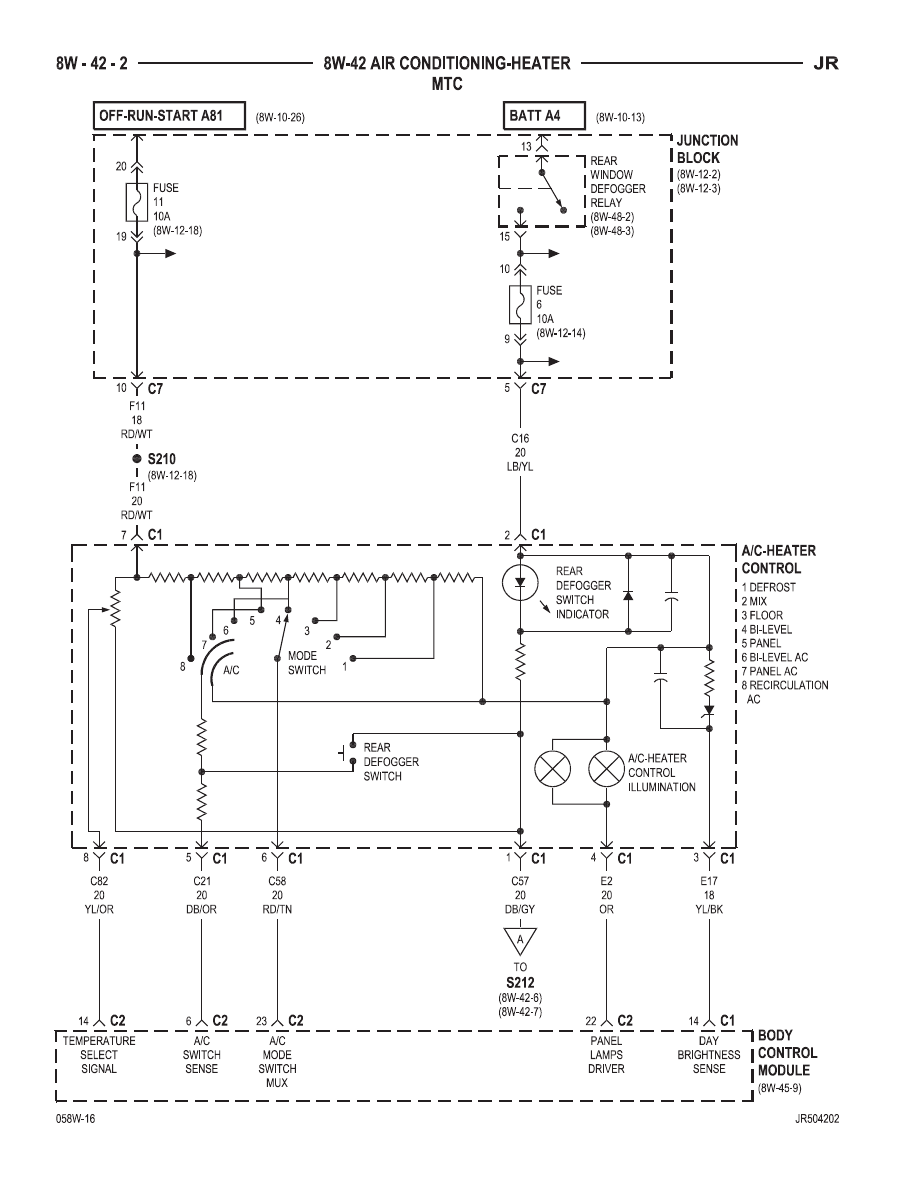

A/C-Heater Control . . . . . . . . . . . . . 8W-42-2, 3, 6, 7

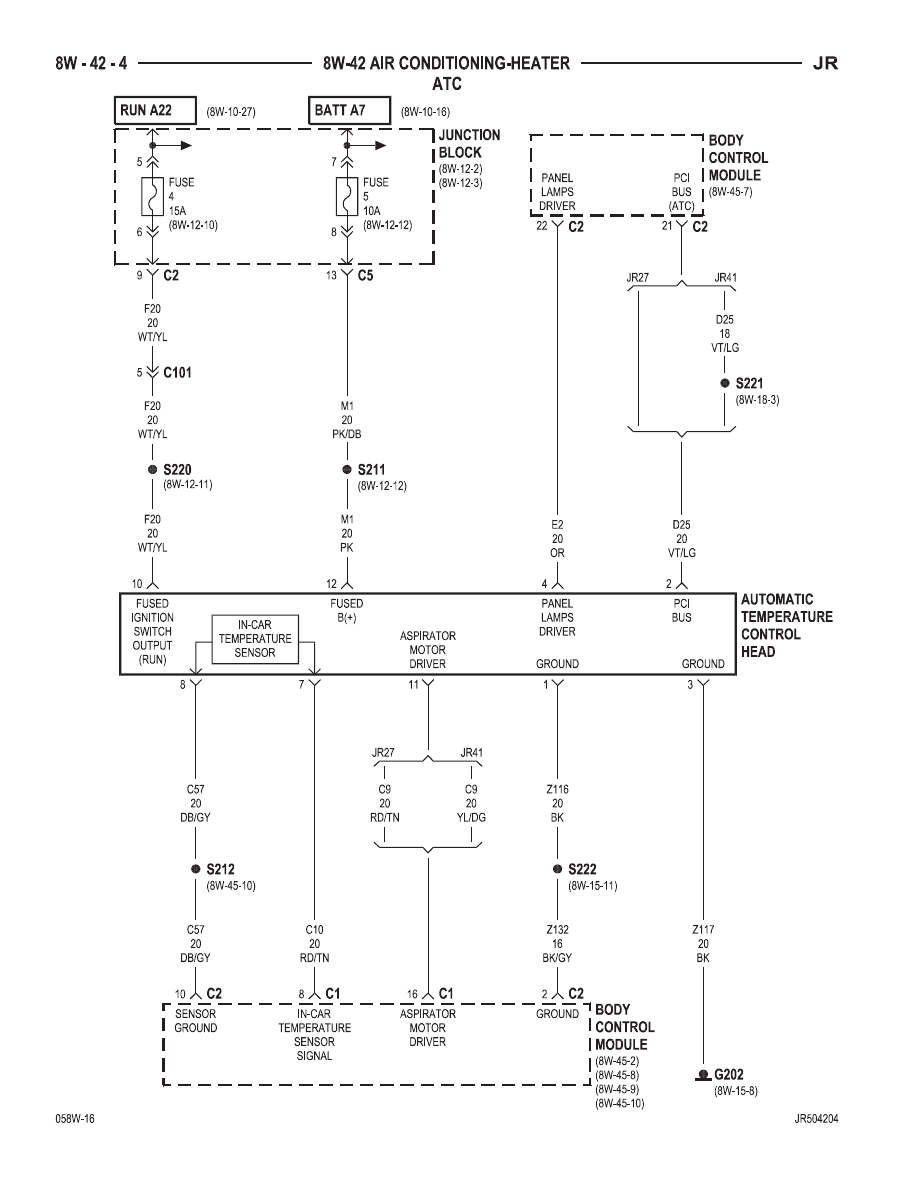

Automatic Temperature Control Head . . . . 8W-42-4
Blend Door Actuator . . . . . . . . . . . . . . . . . . 8W-42-6

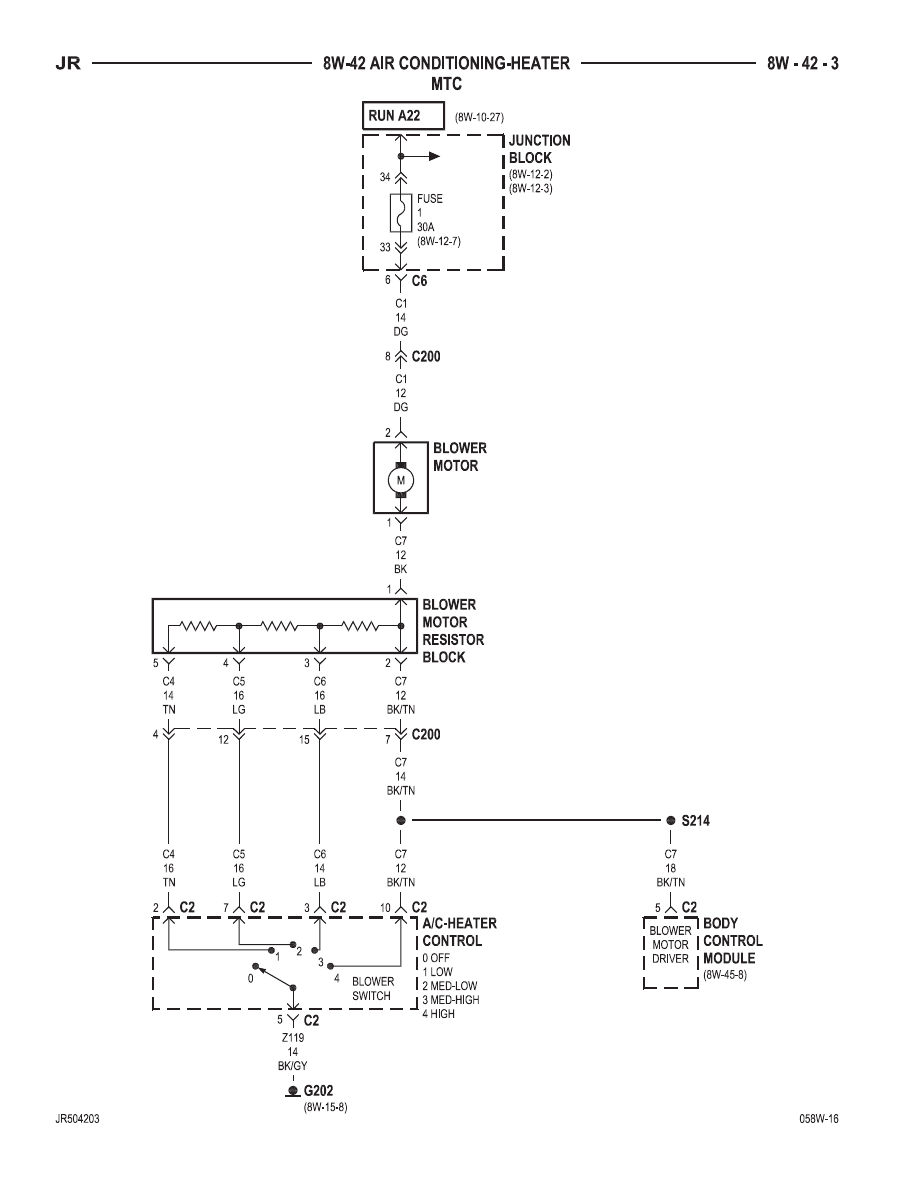

Blower Motor . . . . . . . . . . . . . . . . . . . . . 8W-42-3, 5
Blower Motor Power Module . . . . . . . . . . . 8W-42-5
Blower Motor Resistor Block . . . . . . . . . . . 8W-42-3
Body Control Module . . . . . 8W-42-2, 3, 4, 5, 6, 7, 9
Fuse 1 . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42-3, 5
Fuse 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42-4
Fuse 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42-4
Fuse 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42-2
Fuse 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42-2
Component
Page
Fuse 12 . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42-8, 9
Fuse 23 . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42-8, 9
G108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42-8
G202 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42-3, 4
G203 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42-5
High Speed Radiator Fan Relay . . . . . . . . . 8W-42-8
Junction Block . . . . . . . . . . . . . . . . 8W-42-2, 3, 4, 5
Low Speed Radiator Fan Relay . . . . . . . . . 8W-42-8
Mode Door Actuator . . . . . . . . . . . . . . . . . . 8W-42-7
Power Distribution Center . . . . . . . . . . . 8W-42-8, 9
Powertrain Control Module . . . . . . . . . . 8W-42-8, 9
Radiator Fan . . . . . . . . . . . . . . . . . . . . . . . 8W-42-8
Rear Window Defogger Relay . . . . . . . . . . . 8W-42-2
Recirculation Door Actuator . . . . . . . . . . . . 8W-42-7
Sun Sensor . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42-5
JR
8W-42 AIR CONDITIONING-HEATER
8W - 42 - 1
