8W-39 VEHICLE THEFT SECURITY SYSTEM
Component
Page
Body Control Module . . . . . . . 8W-39-2, 3, 4, 5, 6, 7

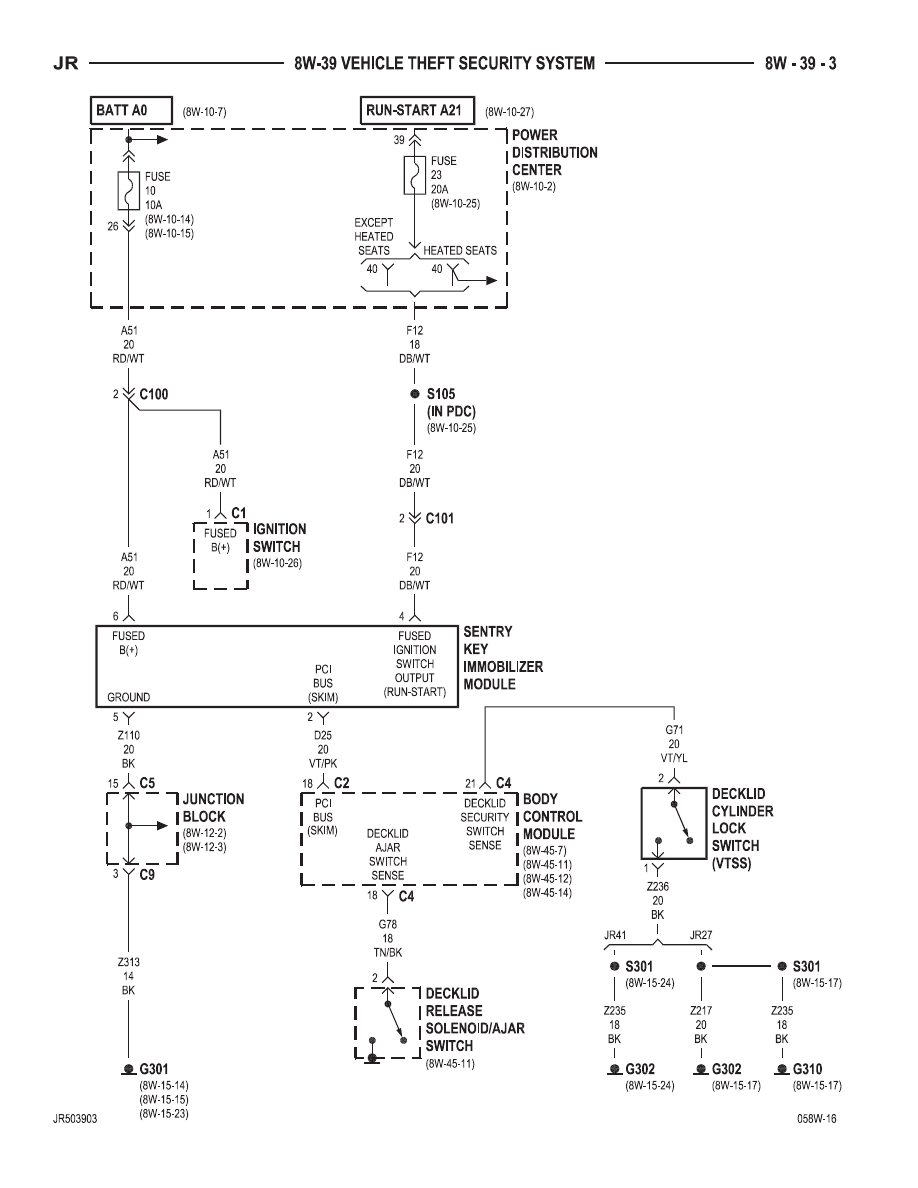

Decklid Cylinder Lock Switch . . . . . . . . . . 8W-39-3
Decklid Release Solenoid/Ajar Switch . . . . . 8W-39-3

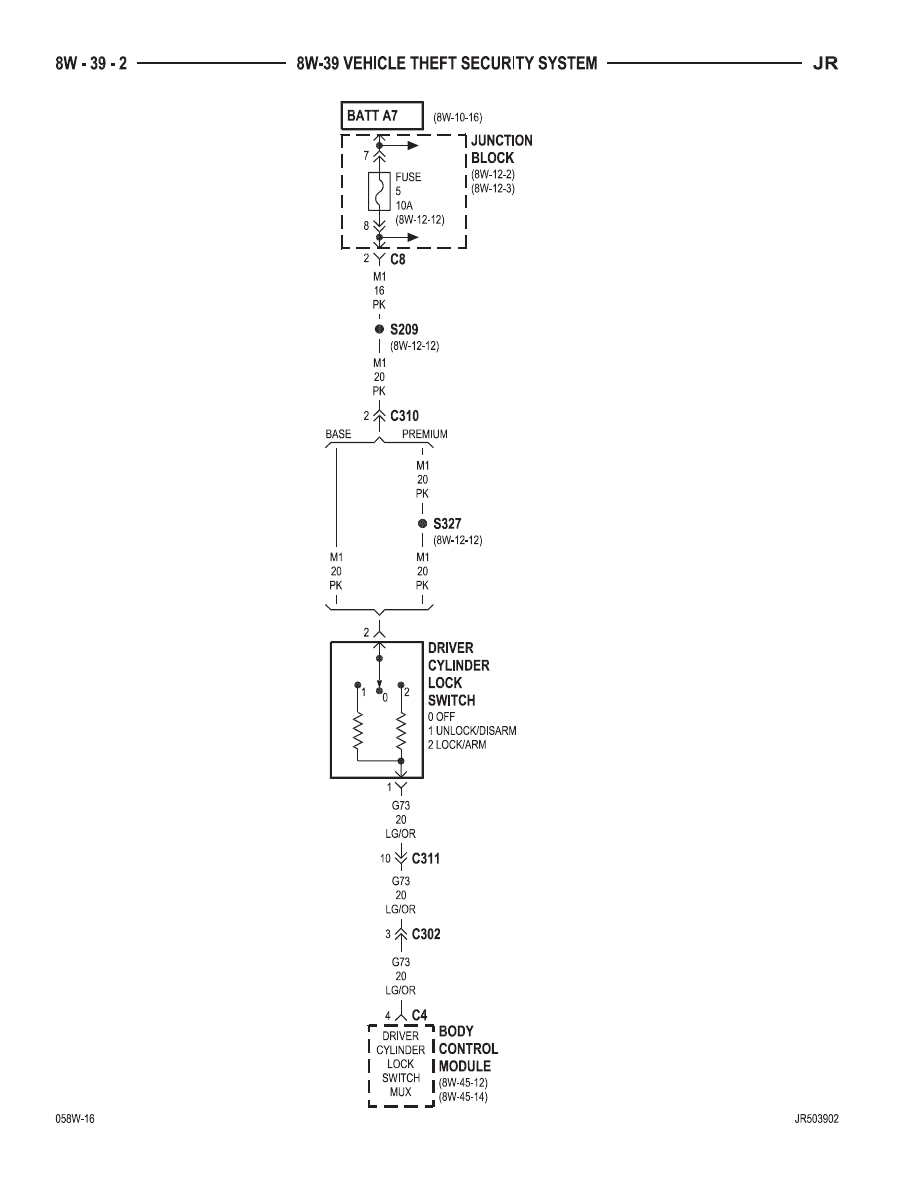

Driver Cylinder Lock Switch . . . . . . . . . . . 8W-39-2

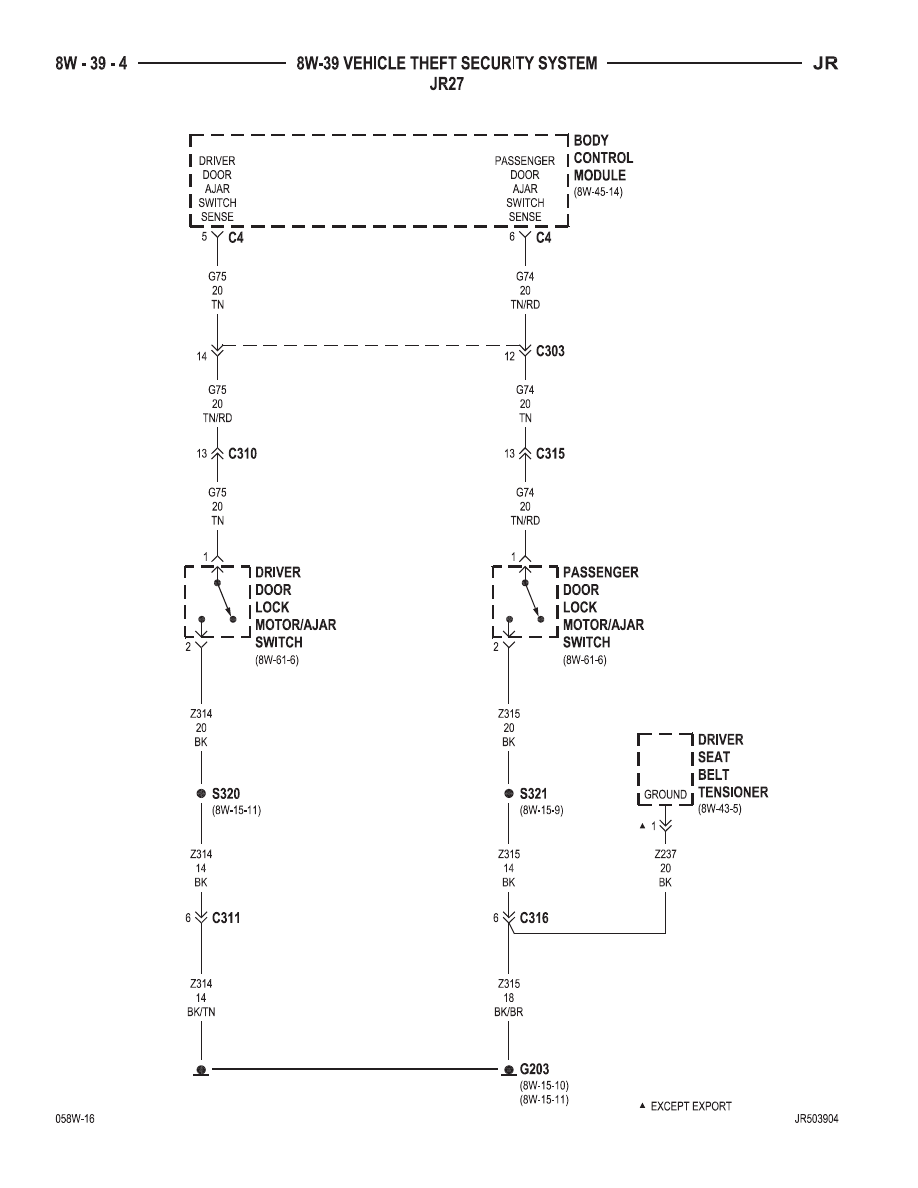

Driver Door Lock Motor/Ajar Switch . . . 8W-39-4, 5
Driver Seat Belt Tensioner . . . . . . . . . . . . . 8W-39-4
Fuse 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-39-2
Fuse 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-39-7
Fuse 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-39-6
Fuse 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-39-3
Fuse 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-39-3
G203 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-39-4, 5
G301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-39-3, 5
G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-39-3
G310 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-39-3
Headlamp Delay Relay . . . . . . . . . . . . . . . . 8W-39-6
Component
Page
Horn Relay . . . . . . . . . . . . . . . . . . . . . . . . . 8W-39-6
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . 8W-39-3
Instrument Cluster . . . . . . . . . . . . . . . . . . . 8W-39-7
Junction Block . . . . . . . . . . . . . . . . 8W-39-2, 3, 6, 7
Left Lavalier Module . . . . . . . . . . . . . . . . . 8W-39-6
Left Park/Turn Signal Lamp . . . . . . . . . . . 8W-39-6
Left Rear Door Lock Motor/Ajar Switch . . . 8W-39-5
Passenger Door Lock Motor/Ajar
Switch . . . . . . . . . . . . . . . . . . . . . . . . 8W-39-4, 5
Power Distribution Center . . . . . . . . . . . . . 8W-39-3
Powertrain Control Module . . . . . . . . . . . . 8W-39-7
Right Lavalier Module . . . . . . . . . . . . . . . . 8W-39-6
Right Park/Turn Signal Lamp . . . . . . . . . . 8W-39-6
Right Rear Door Lock Motor/Ajar Switch . . 8W-39-5
Sentry Key Immobilizer Module . . . . . . . . . 8W-39-3
JR
8W-39 VEHICLE THEFT SECURITY SYSTEM
8W - 39 - 1
