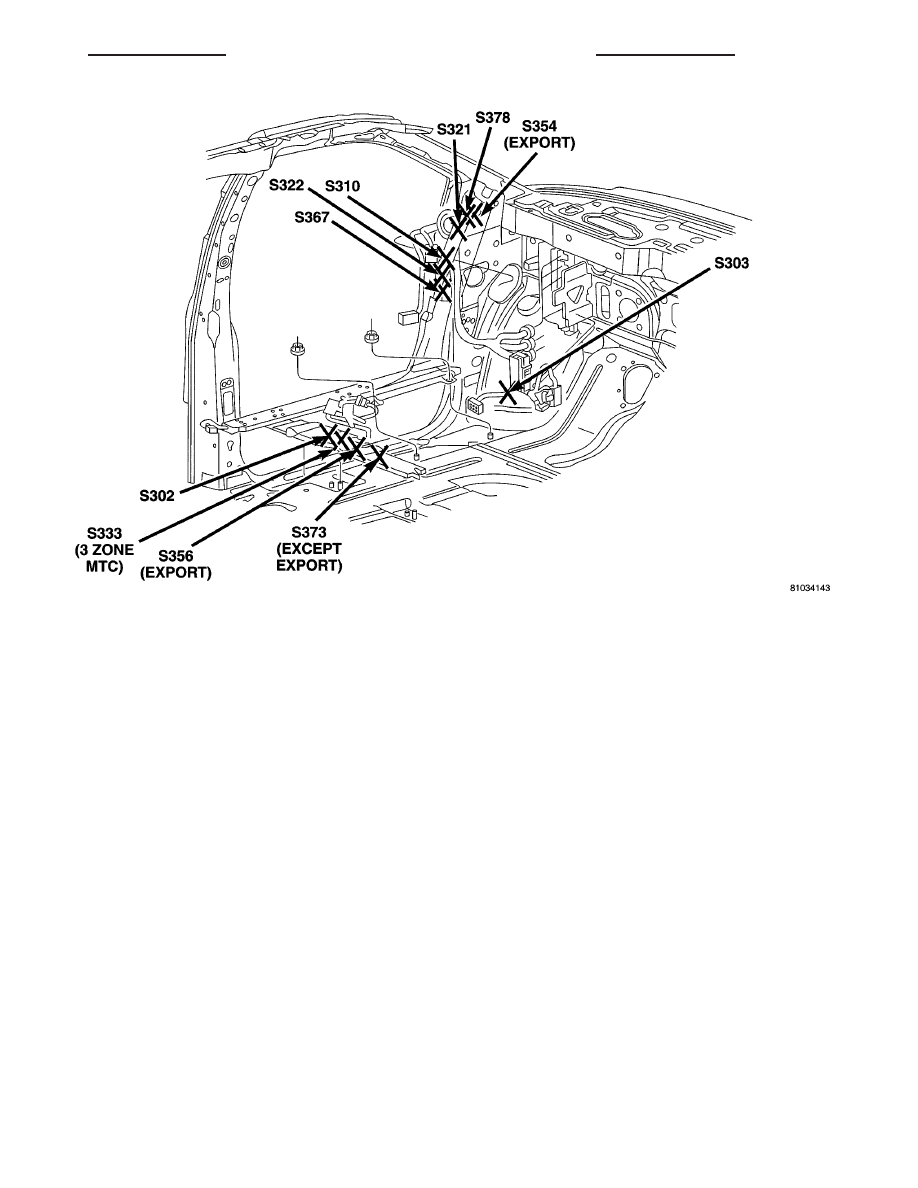

Fig. 39 LEFT FRONT BODY SPLICES

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 51

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

40

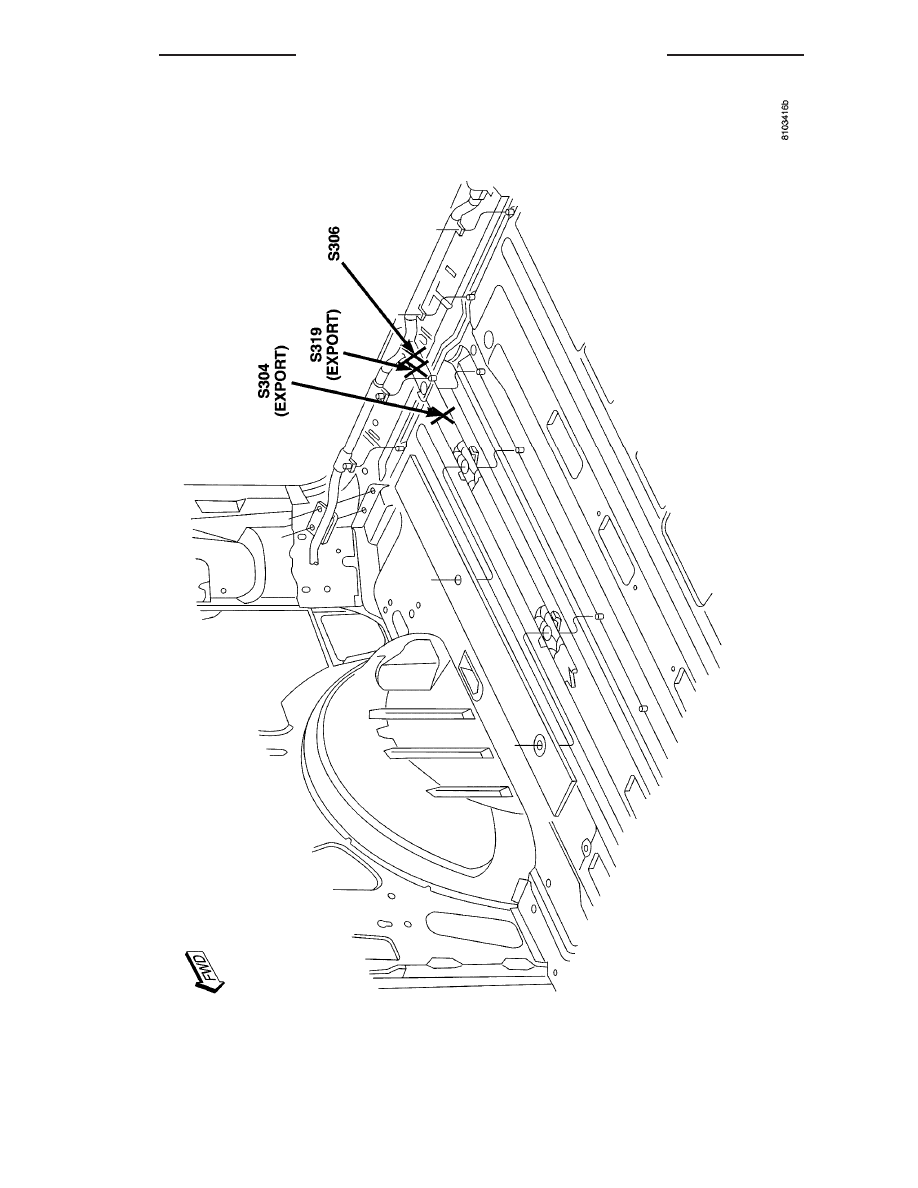

REAR

BODY

SPLICES

8W - 91 - 52

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

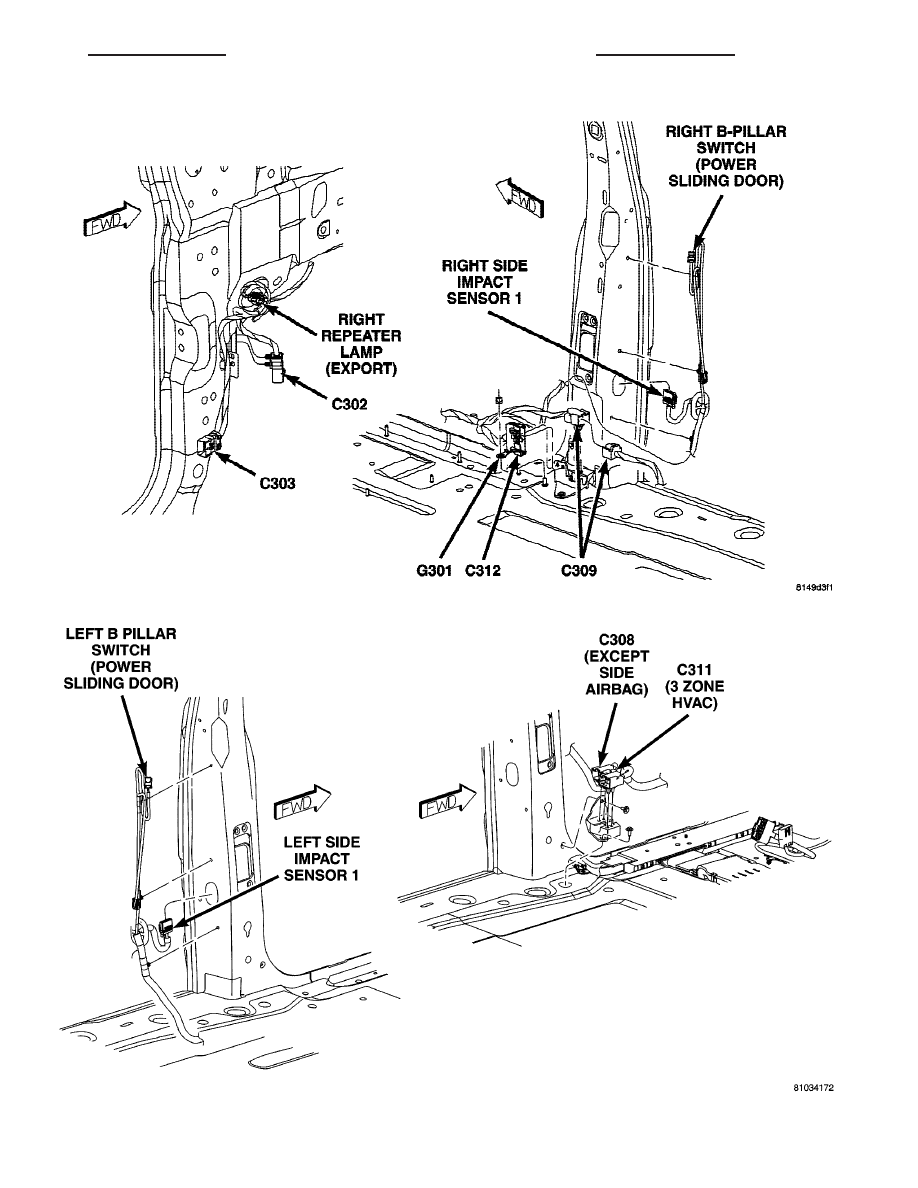

Fig. 41 RIGHT B PILLAR

Fig. 42 LEFT B PILLAR

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 53

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

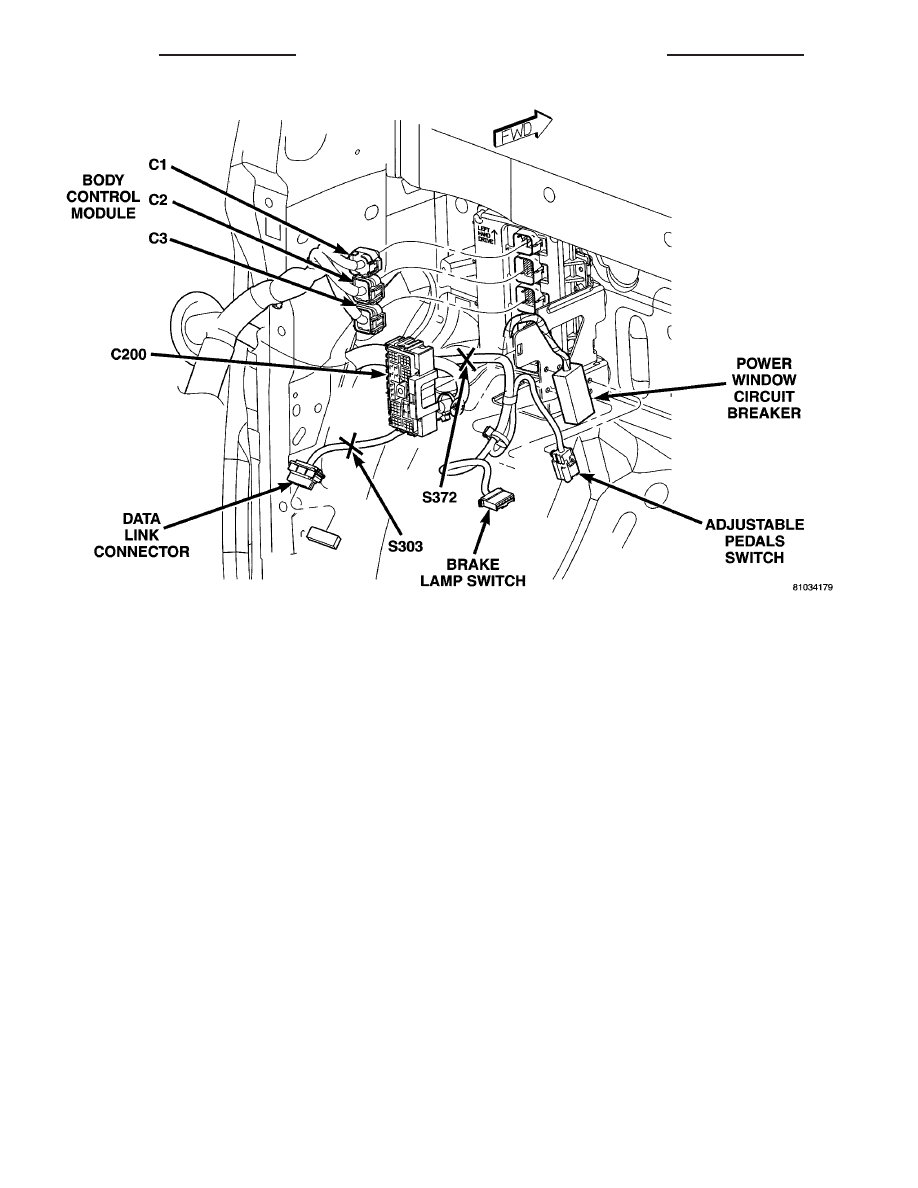

Fig. 43 LEFT SIDE KICK PANEL LHD

8W - 91 - 54

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
