1

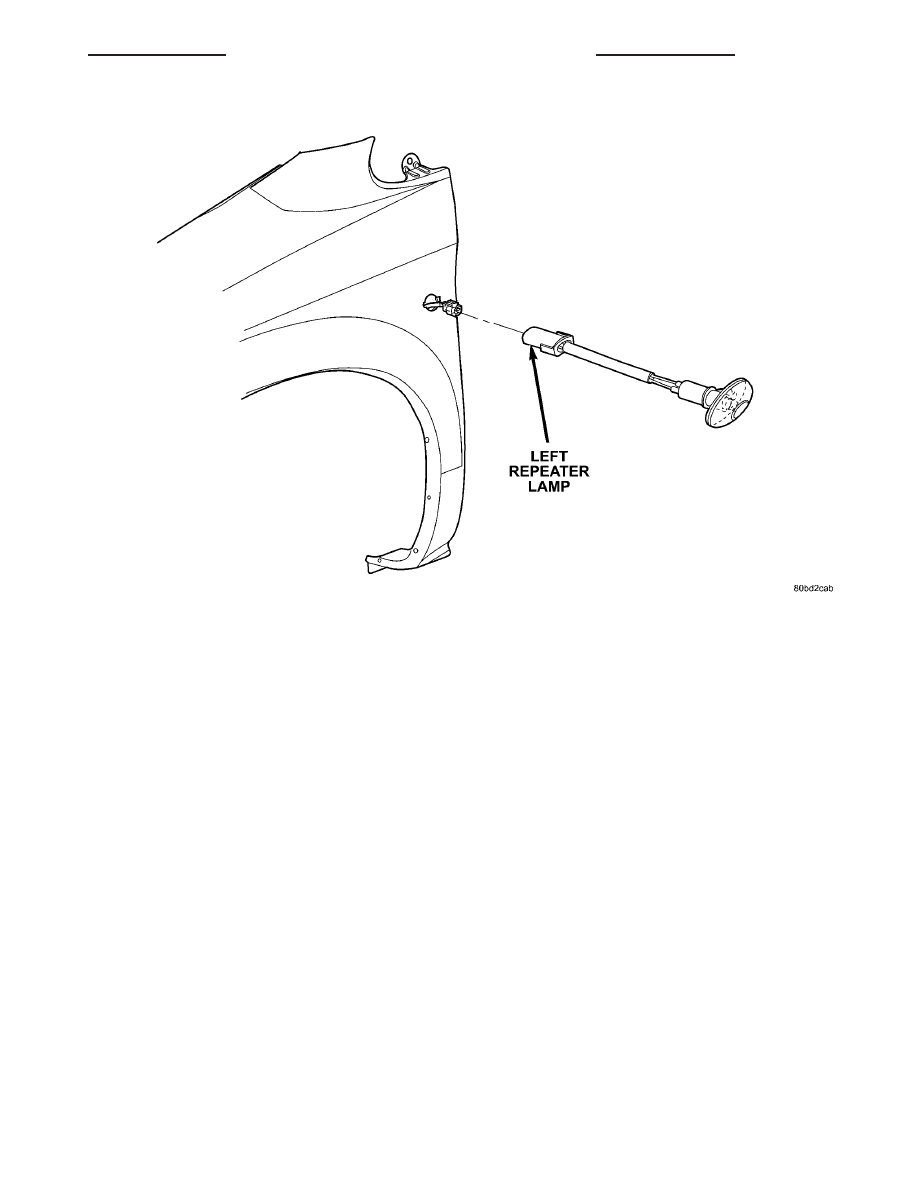

Fig. 4 LEFT REPEATER LAMP

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 19

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

5

LEFT

FENDER

SHIELD

8W - 91 - 20

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

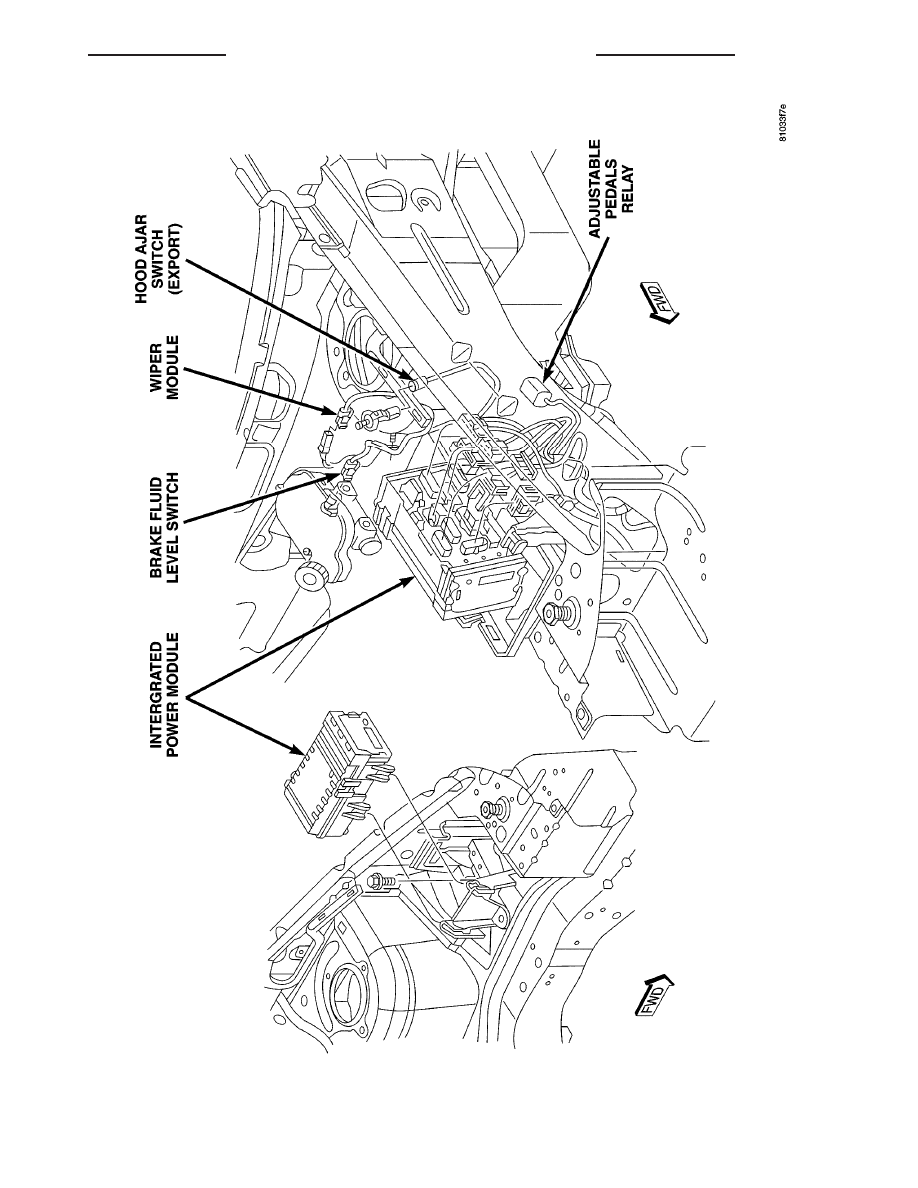

Fig.

6

LEFT

SIDE

ENGINE

COMP

AR

TMENT

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 21

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

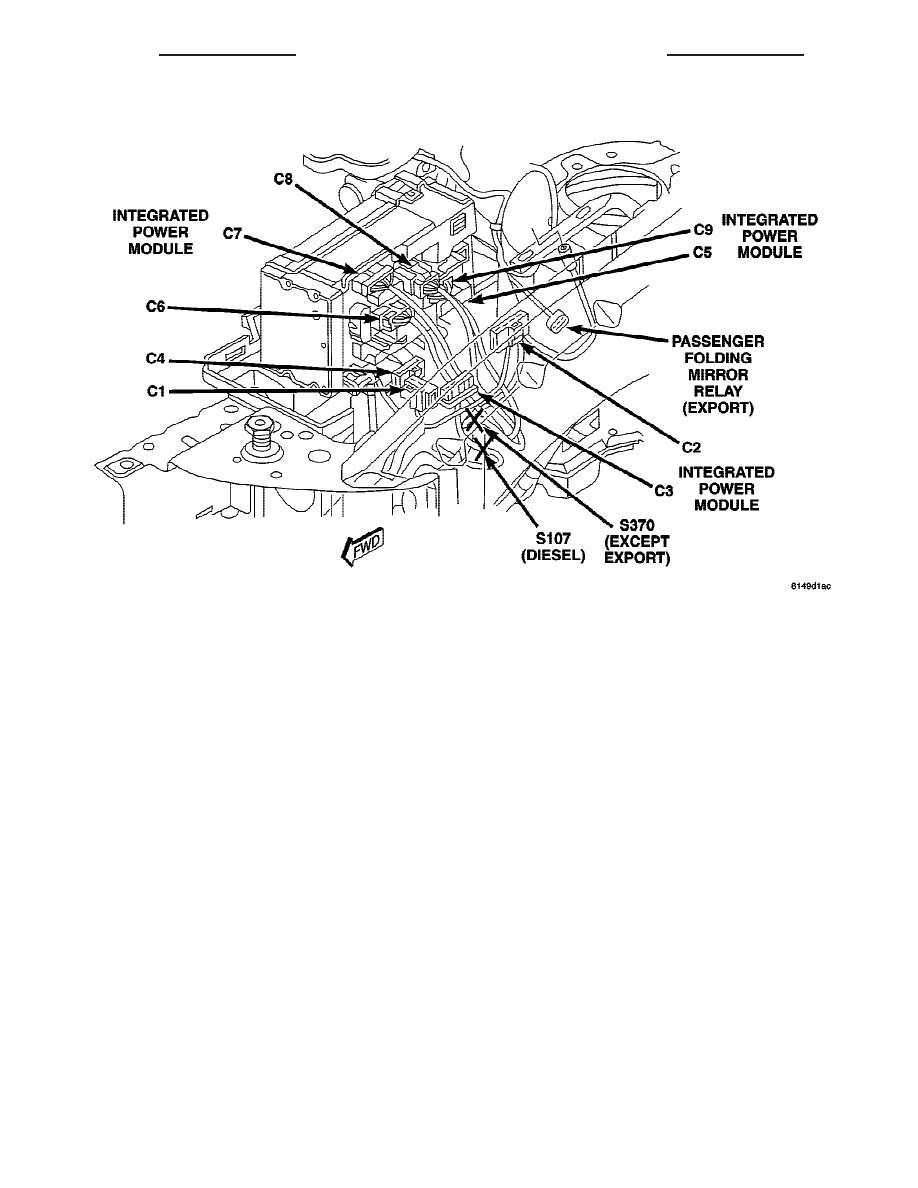

Fig. 7 INTEGRATED POWER MODULE

8W - 91 - 22

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
