WATER PUMP INLET TUBE -
3.3/3.8L

REMOVAL

(1) Drain the cooling system. (Refer to 7 - COOL-

ING - STANDARD PROCEDURE)

(2) Raise vehicle on hoist and remove the belt

splash shield.

(3) Remove the radiator lower hose from inlet tube

(Fig. 33).

(4) Remove the oil cooler outlet/heater return hose

from inlet tube (only if equipped with engine oil
cooler) (Fig. 34).

(5) Remove the inlet tube bolts (Fig. 35).
(6) Remove the inlet tube (Fig. 35). Discard the

O-ring seal.

INSTALLATION

(1) Clean the inlet tube O-ring sealing surfaces on

the timing cover housing and tube.

(2) Apply Mopar

t Dielectric Grease or equivalent

to the O-ring before installation.

(3) Position new O-ring seal on inlet tube (Fig. 35).
(4) Install the inlet tube (Fig. 35). Tighten bolts to

28 N·m (250 in. lbs.).

(5) Connect radiator lower hose (Fig. 33) and

heater return hose (if equipped with engine oil
cooler) (Fig. 34) to the inlet tube.

(6) Install the drive belt splash shield and lower

vehicle.

(7) Fill the cooling system. (Refer to 7 - COOLING

- STANDARD PROCEDURE)

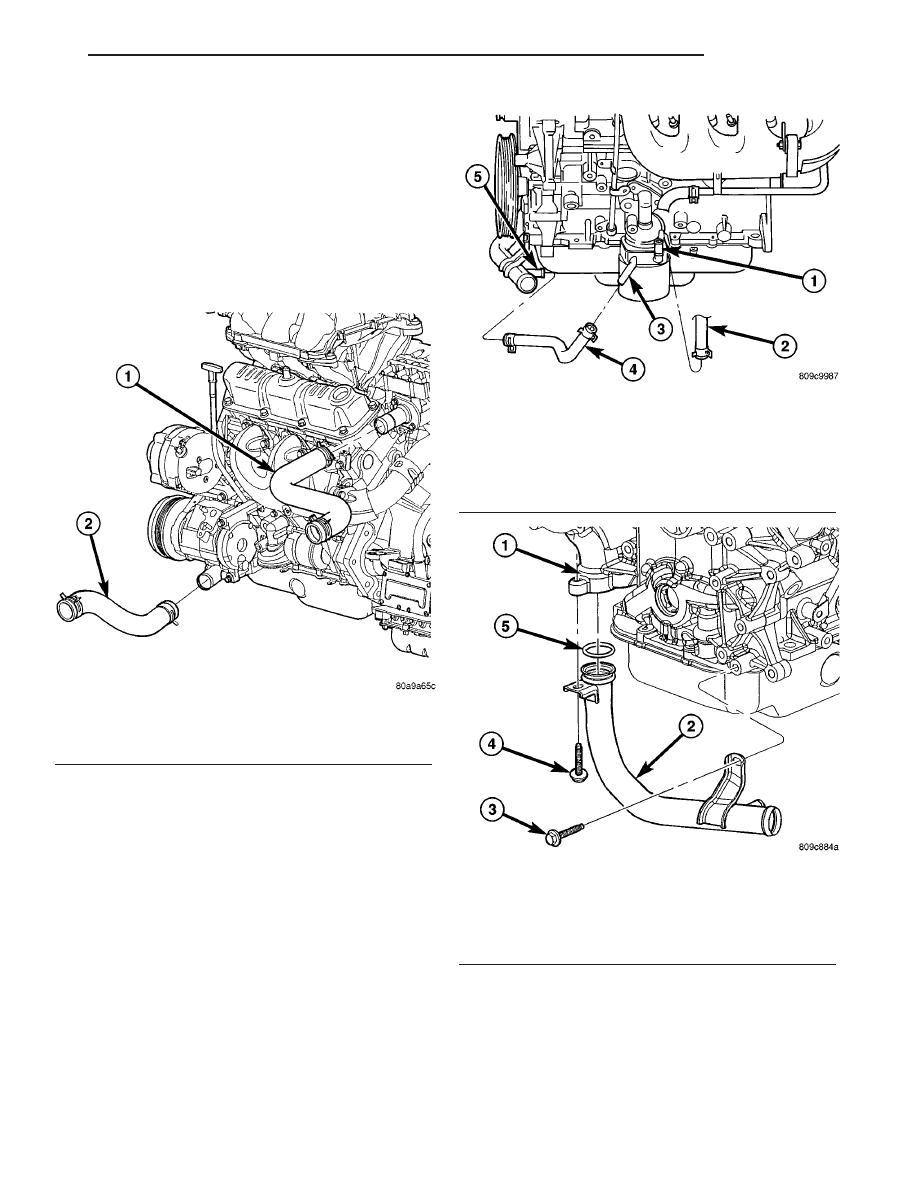

Fig. 33 RAD HOSES TO ENGINE - 3.3/3.8L

1 - UPPER HOSE
2 - LOWER HOSE

Fig. 34 Engine Oil Cooler Hoses (Engine Oil Cooler

Equipped)

1 - OIL COOLER INLET TUBE
2 - INLET HOSE
3 - OIL COOLER OUTLET TUBE
4 - OUTLET HOSE
5 - WATER PUMP INLET TUBE

Fig. 35 WATER PUMP INLET TUBE

1 - TIMING CHAIN COVER
2 - INLET TUBE
3 - BOLT
4 - BOLT
5 - O-RING

RS

ENGINE

7 - 37

TRANSMISSION

TABLE OF CONTENTS

page

page

TRANSMISSION

STANDARD PROCEDURE - TRANSMISSION

COOLER LINE QUICK CONNECT FITTING
DISASSEMBLY/ASSEMBLY

. . . . . . . . . . . . . . 38

TRANSMISSION OIL COOLER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 39

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 39

TRANSMISSION OIL COOLER LINES

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 40

TRANSMISSION

STANDARD PROCEDURE - TRANSMISSION
COOLER LINE QUICK CONNECT FITTING
DISASSEMBLY/ASSEMBLY

DISCONNECT

(1) Remove dust cap by pulling it straight back off

of quick connect fitting. (Fig. 1)

(2) Place disconnect tool Special Tool 8875A onto

transmission cooler line with the fingers of the tool
facing the quick connect fitting.

(3) Slide disconnect tool down the transmission

line and engage the fingers of the tool into the
retaining clip. When properly engaged in the clip, the
tool will fit flush against the quick connect fitting.

(4) Rotate the disconnect tool 60° to expand the

retaining clip.

(5) While holding the disconnect tool against the

quick connect fitting, pull back on the transmission
cooler line to remove.

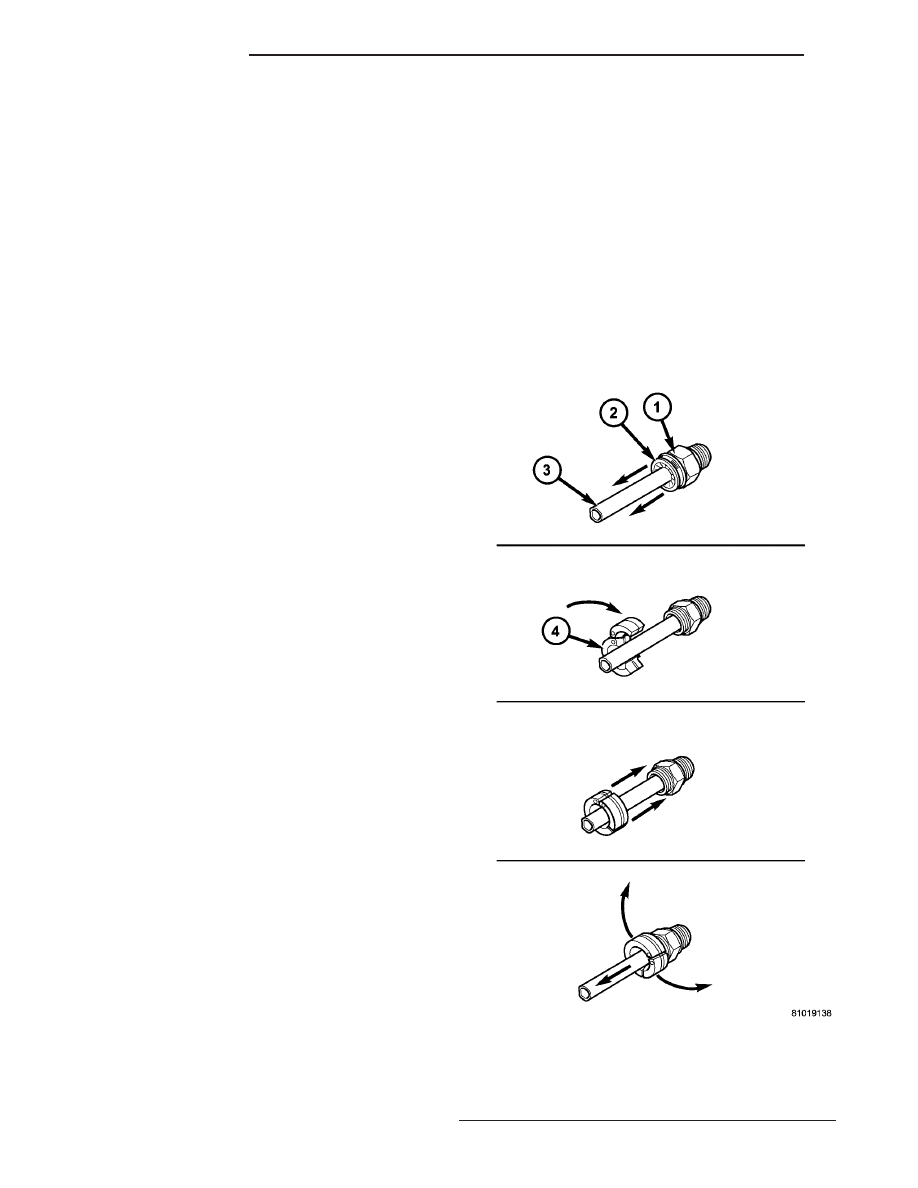

Fig. 1 Oil Cooler Line Quick Connect

Fitting - Disassembly

1 - QUICK CONNECT FITTING
2 - DUST CAP
3 - OIL COOLER LINE
4 - SPECIAL TOOL 8875A

7 - 38

TRANSMISSION

RS

CONNECT

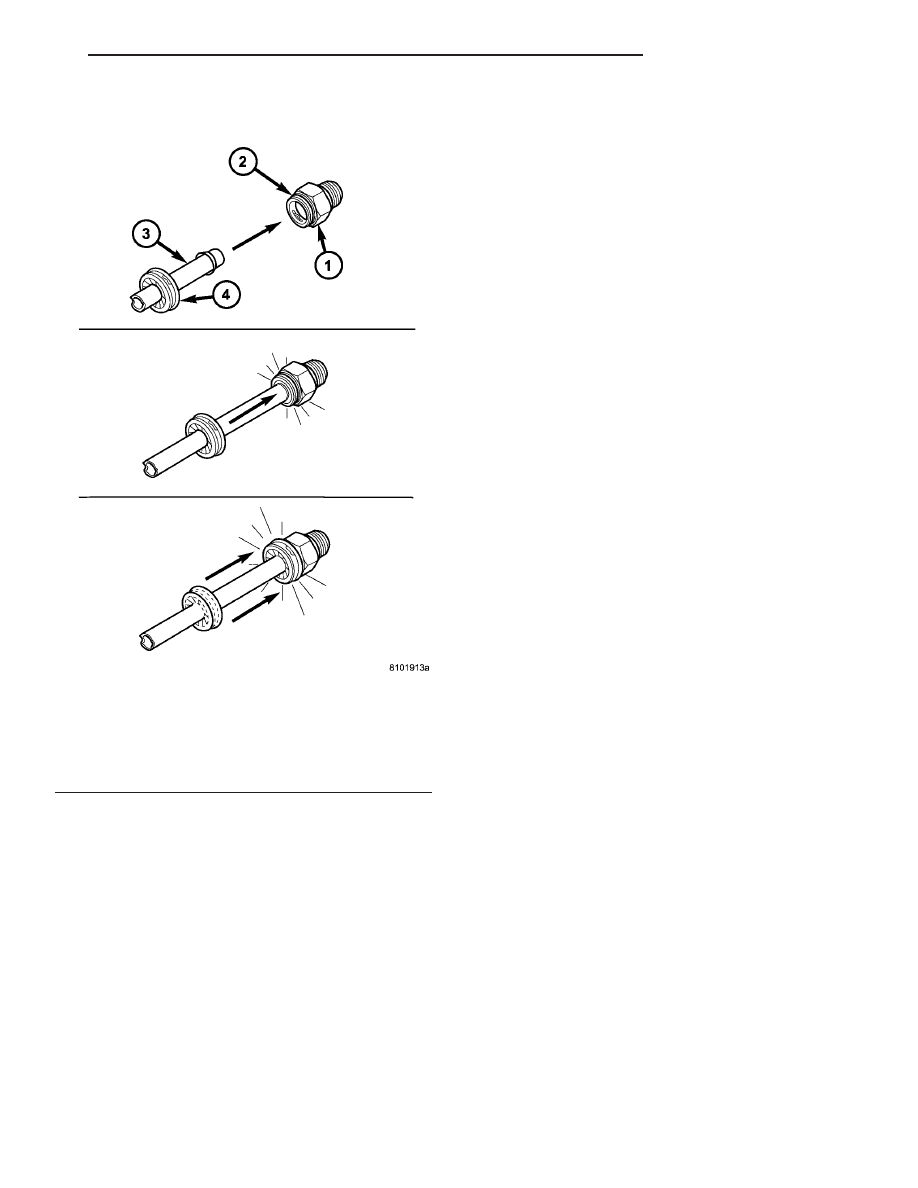

(1) Align transmission cooler line with quick con-

nect fitting while pushing straight into the fitting.

(2) Push in on transmission cooler line until a

“click” is heard or felt (Fig. 2).

(3) Slide dust cap down the transmission cooler

line and snap it over the quick connect fitting until it
is fully seated and rotates freely (Fig. 2). Dust cap
will only snap over quick connect fitting when the
transmission cooler line is properly installed.

NOTE: If dust cap will not snap into place, repeat
assembly step #2.

TRANSMISSION OIL COOLER

DESCRIPTION

The automatic transmission cooler is located in the

front of the radiator and behind the front fascia and
is conbined with the A/C condensor. The transmission
cooler is a heat exchanger that allows heat in the
transmission flud to be transferred to the air passing
over the cooler fins.

The Transmission oil cooler/A/C condenser assem-

blly is equipped with quick connect fitting for the
transmission oil cooler lines, a tapping block, for the
receiver/drier, and mounting provisions for the power
steering cooler.

The transmission oil cooler/AC condenser is ser-

viced as an assembly. For removal on vehicles
equipped with 2.4L/3.3L/3.8L engines, (Refer to 24 -
HEATING & AIR CONDITIONING/PLUMBING/A/C
CONDENSER - REMOVAL), vehicles equipped with
2.5L/2.8L engines (Refer to 24 - HEATING & AIR
CONDITIONING/PLUMBING/A/C

CONDENSER

-

REMOVAL). For installation on vehicles equipped
with 2.4L/3.3L/3.8L engines (Refer to 24 - HEATING
&

AIR

CONDITIONING/PLUMBING/A/C

CON-

DENSER - INSTALLATION), and vehicles equipped
with 2.5L/2.8L engines (Refer to 24 - HEATING &
AIR

CONDITIONING/PLUMBING/A/C

CON-

DENSER - INSTALLATION).

INSPECTION

Inspect all hoses, tubes, clamps and connections for

leaks, cracks, or damage. Replace as necessary. Use
only approved transmission oil cooler hoses that are
molded to fit the space available.

Inspect external coolers for leaks, loose mounts, or

damage. Replace as necessary.

Fig. 2 Oil Cooler Line Quick Connect Fitting -

Assembly

1 - QUICK CONNECT FITTING
2 - CLIP
3 - OIL COOLER LINE
4 - DUST CAP

RS

TRANSMISSION

7 - 39

TRANSMISSION (Continued)

TRANSMISSION OIL COOLER
LINES

REMOVAL

(1) Remove the two large screws that secure the

front fascia and the outboard ends of the radiator
sight shield to the radiator closure panel crossmem-
ber (Fig. 3).

(2) Remove the five small screws that secure the

front fascia grille inserts to the radiator sight shield.

(3) Remove the radiator sight shield from the radi-

ator closure panel crossmember.

(4) Remove the two bolts that secure the hood

latch to the front of the radiator closure panel cross-
member and move the latch out of the way over the
top of the crossmember. Mark the location of latch for
reinstallation.

(5) Using tool 8875A, disconnect the transmission

oil cooler line quick-connect fittings located on the
driver side of the A/C condenser from the transmis-
sion oil cooler (Refer to 7 - COOLING/TRANSMIS-
SION

-

STANDARD

PROCEDURE

-

TRANSMISSION COOLING).

(6) Using Tool 8875A, disconnect transmission oil

cooler line quick-disconnect fittings at the transaxle
(Refer to 7 - COOLING/TRANSMISSION - STAN-
DARD PROCEDURE).

INSTALLATION

(1) Position transmission cooler lines in vehicle.
(2) Install transmission cooler line at transaxle fit-

tings (Refer to 7 - COOLING/TRANSMISSION -
STANDARD PROCEDURE).

(3) Install transmission cooler lines at transmis-

sion oil cooler/condensor (Refer to 7 - COOLING/
TRANSMISSION - STANDARD PROCEDURE).

(4) Reposition the hood latch to the front of the

radiator closure panel crossmember.

(5) Install the two screws that secure the hood

latch to the front of the radiator closure panel cross-
member. Check and adjust the hood latch as needed.
Tighten the screws to 14 N·m (123 in. lbs.).

(6) Position the radiator sight shield onto the radi-

ator closure panel crossmember.

(7) Install the five small screws that secure the

front fascia grille inserts to the radiator sight shield.
Tighten the screws to 2 N·m (17 in. lbs.).

(8) Install the two large screws that secure the

front fascia and the outboard ends of the radiator
sight shield to the radiator closure panel crossmem-
ber. Tighten the screws to 6 N·m (53 in. lbs.) (Fig. 4)

(9) Start engine and check transaxle fluid level.

Adjust fluid level as necessary.

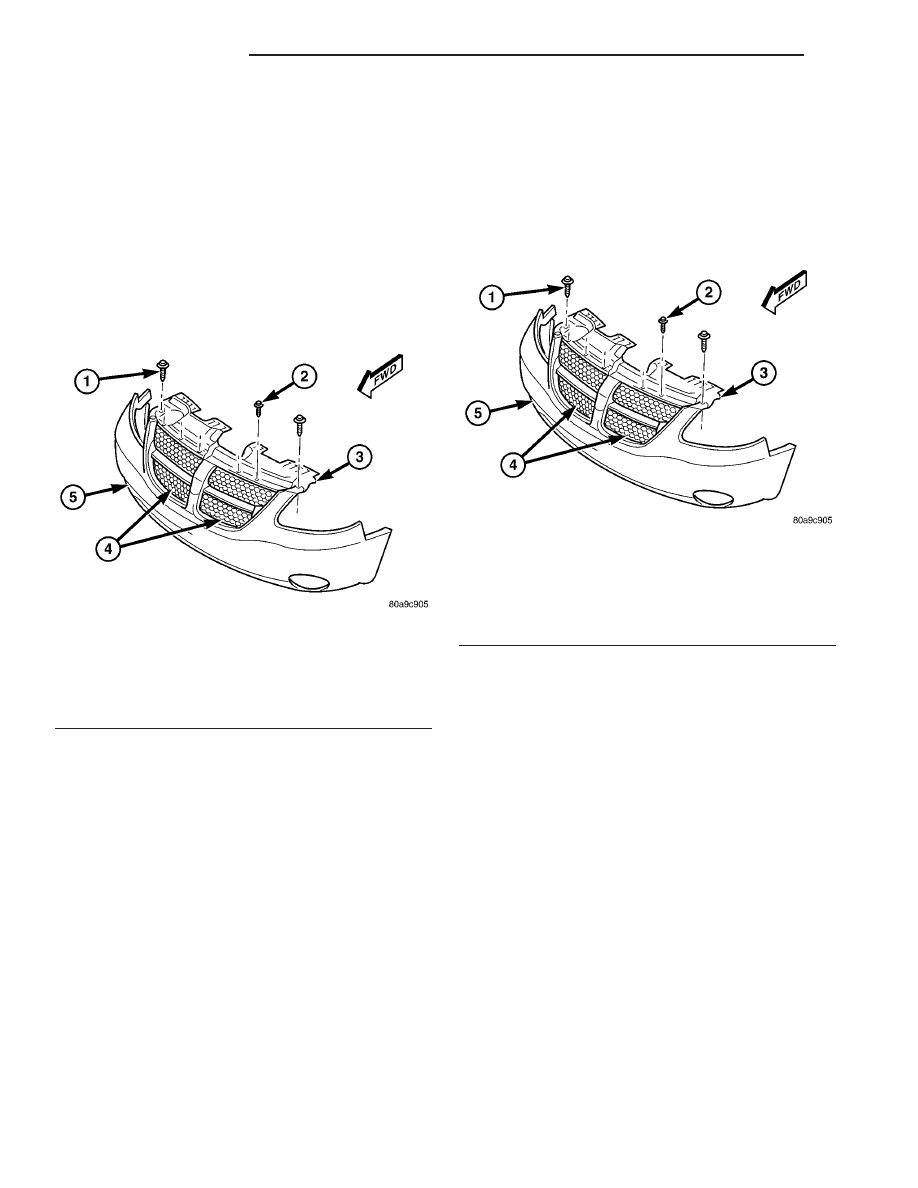

Fig. 3 Radiator Sight Shield - Typical

1 - LARGE SCREWS (2)
2 - SMALL SCREWS (5)
3 - RADIATOR SIGHT SHIELD
4 - GRILLE INSERTS
5 - FRONT FASCIA

Fig. 4 Radiator Sight Shield – Typical

1 - LARGE SCREWS (2)
2 - SMALL SCREWS (5)
3 - RADIATOR SIGHT SHIELD
4 - GRILLE INSERTS
5 - FRONT FASCIA

7 - 40
