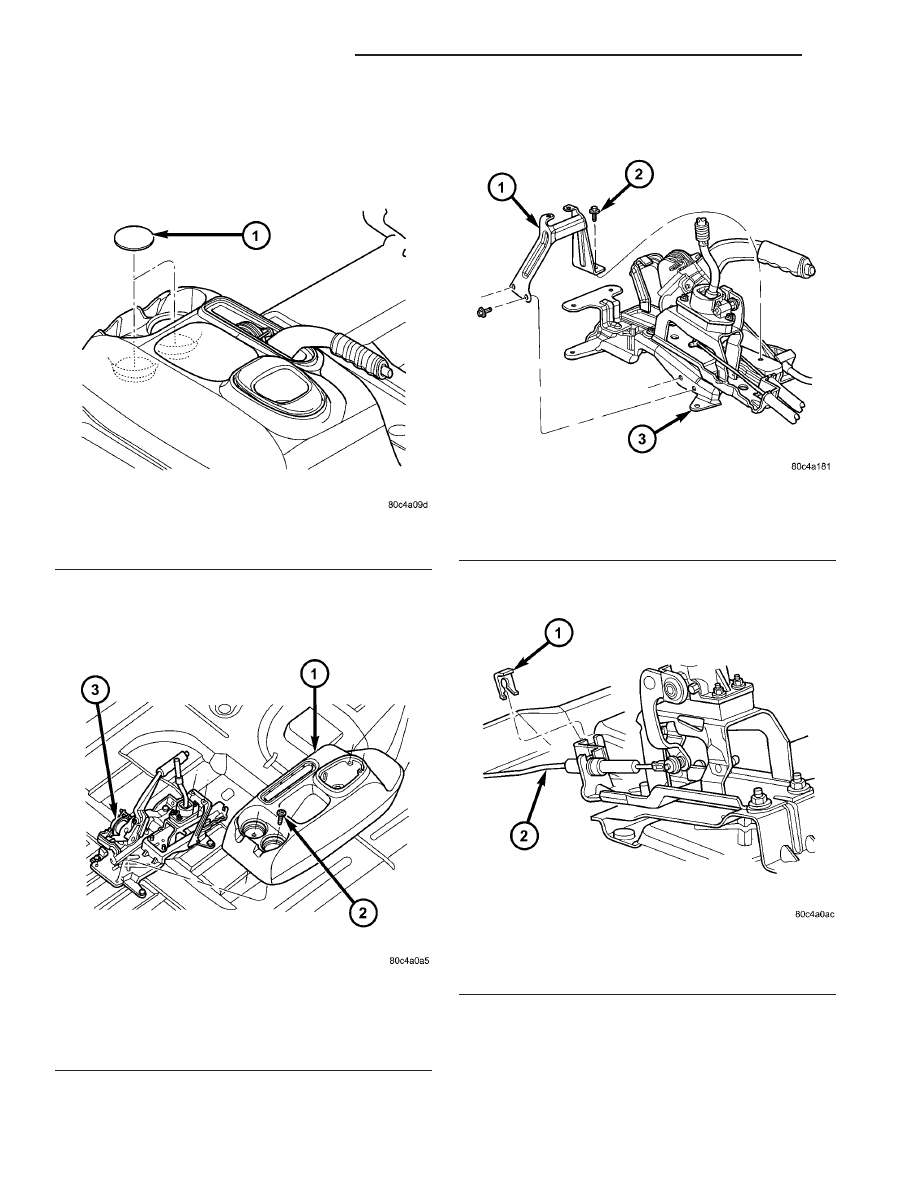

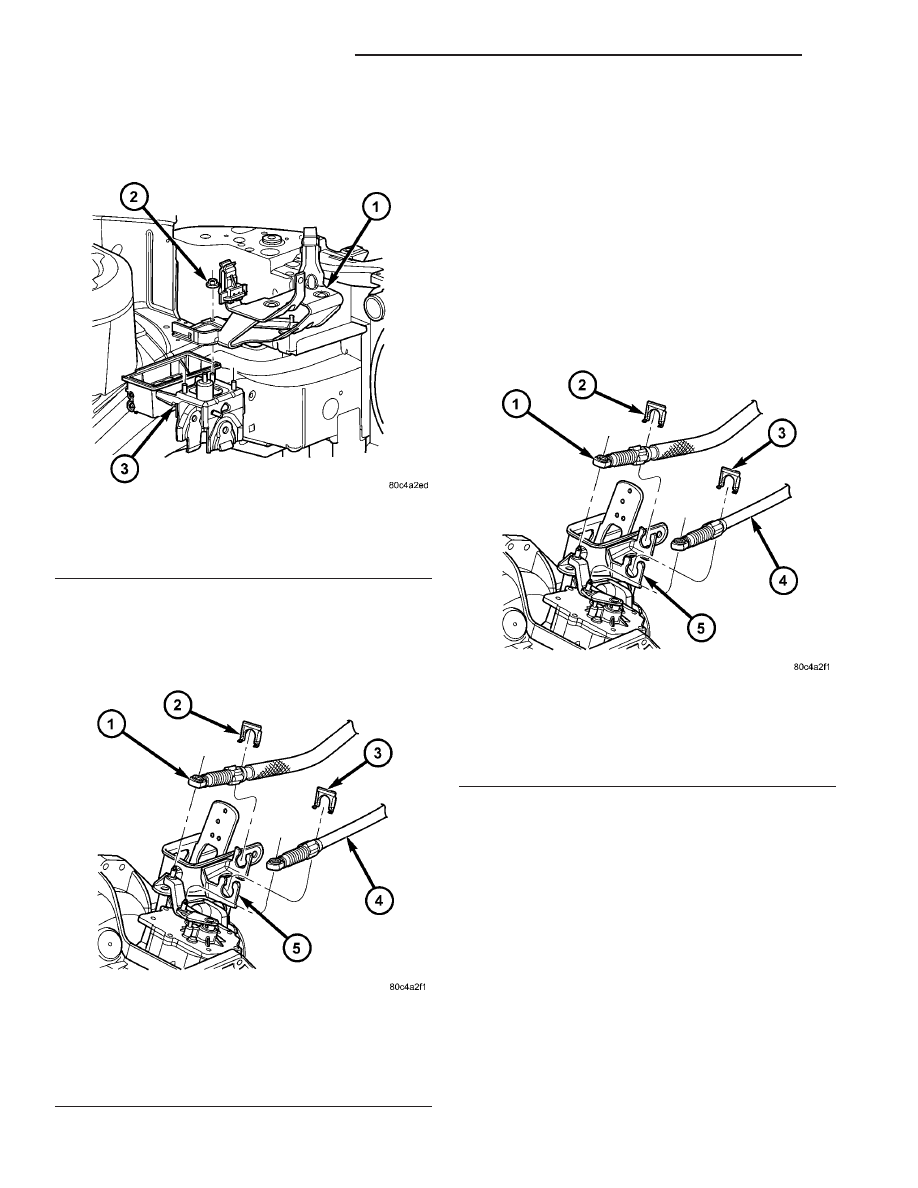

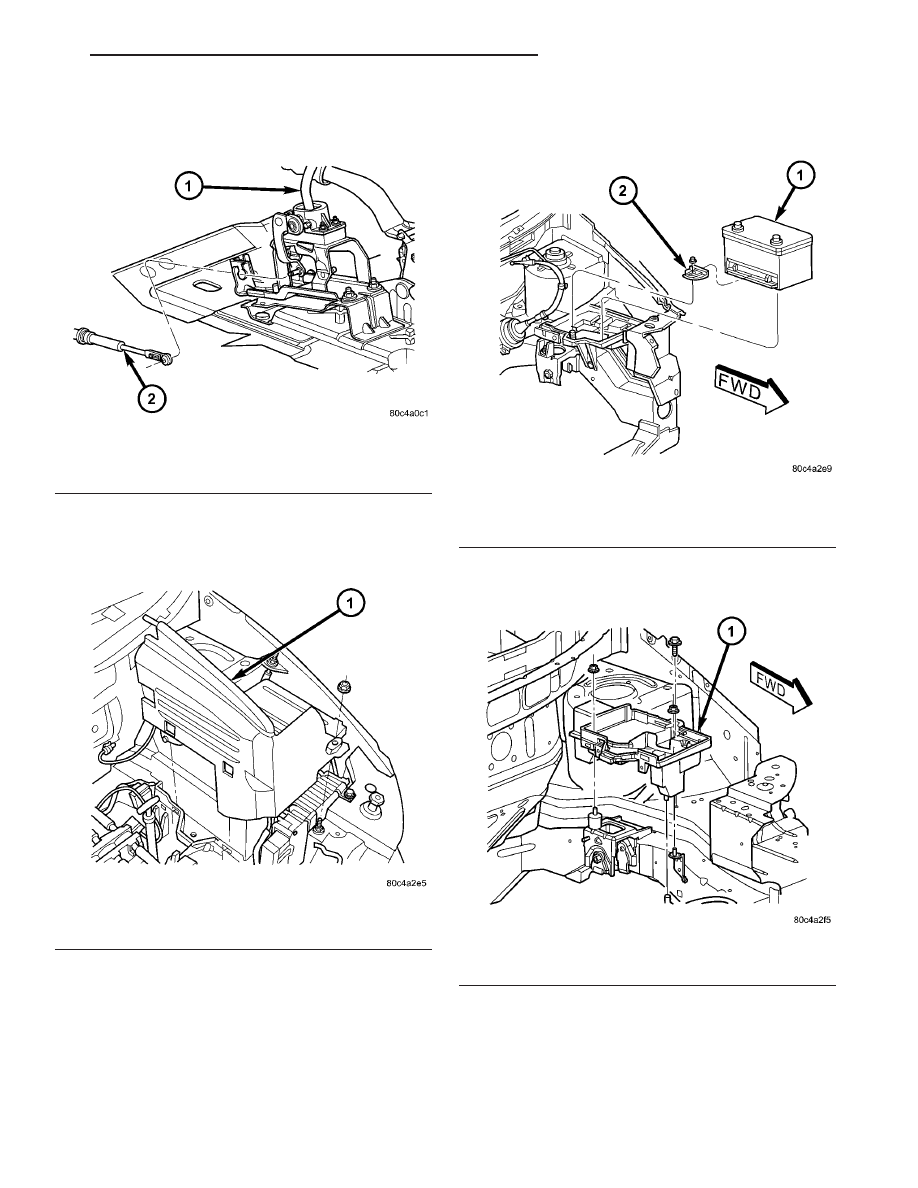

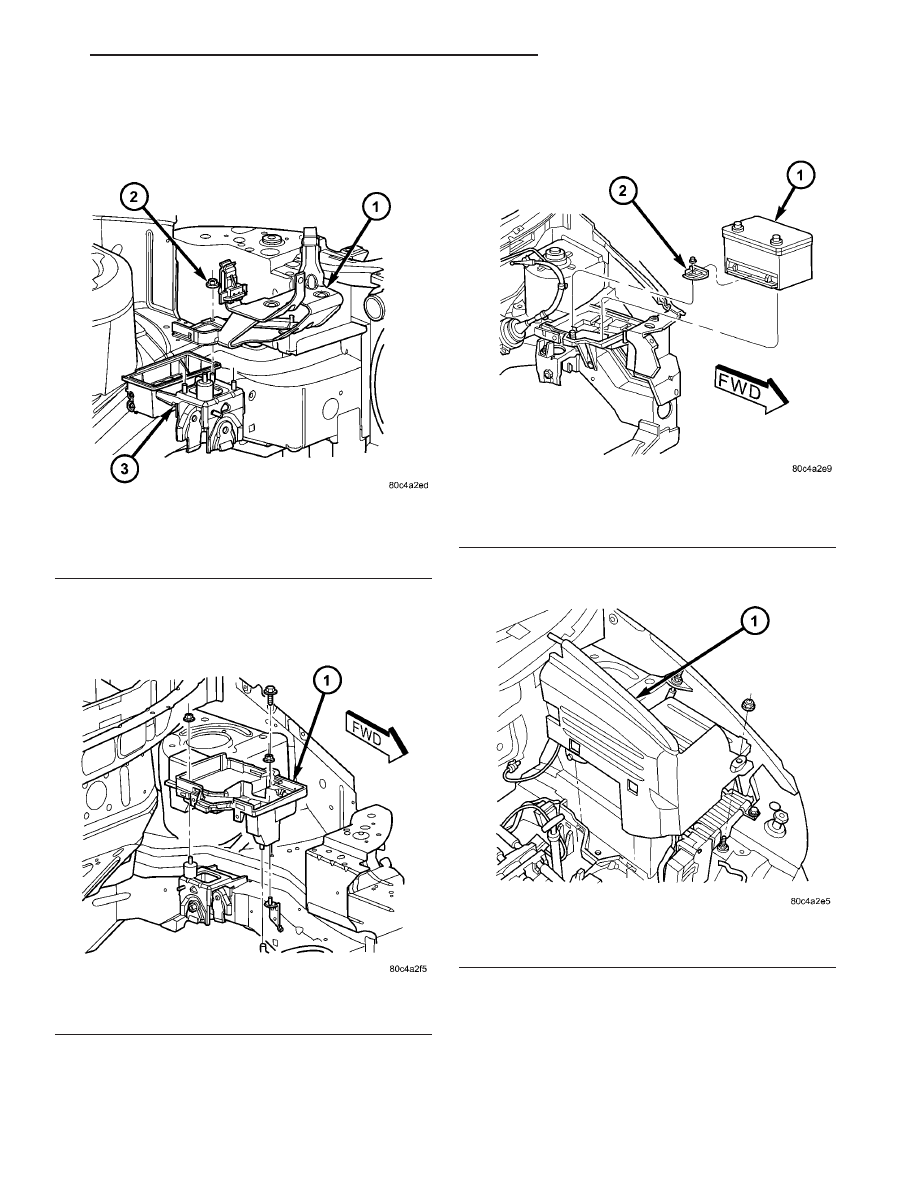

(4) Apply park brake to allow park brake handle to clear center console upon removal. (5) Remove two (2) cupholder bottom plugs (Fig. 143). (6) Remove four (4) center console-to-gearshift mechanism screws. Remove console assembly (Fig. (7) Remove center console support bracket (Fig. 145). (8) Remove crossover cable retainer clip (Fig. 146). Fig. 143 Cup Holder Plugs 1 - CUPHOLDER PLUG (2) Fig. 144 Center Console Removal/Installation (LHD Shown — RHD Typical) 1 - CENTER CONSOLE Fig. 145 Center Console Support Bracket 1 - BRACKET Fig. 146 Crossover Cable Retainer Clip 1 - RETAINER CLIP 21a - 78 T850 MANUAL TRANSAXLE RG GEARSHIFT CABLE - CROSSOVER (Continued) |
