HVAC HOUSING

WARNING: Refer to the applicable warnings and
cautions for this system before performing the fol-
lowing operation (Refer to 24 - HEATING & AIR
CONDITIONING/PLUMBING - FRONT - WARNINGS)
and (Refer to 24 - HEATING & AIR CONDITIONING/
PLUMBING - FRONT - CAUTIONS). Failure to follow
the warnings and cautions could result in possible
personal injury or death.

WARNING: On vehicles equipped with airbags, dis-
able the airbag system before attempting any steer-
ing wheel, steering column, or instrument panel
component diagnosis or service. Disconnect and
isolate the battery negative (ground) cable, then
wait two minutes for the airbag system capacitor to
discharge before performing further diagnosis or
service. This is the only sure way to disable the air-
bag system. Failure to take the proper precautions
could result in accidental airbag deployment and
possible personal injury or death.

NOTE: The HVAC housing must be removed from
the vehicle and disassembled for service of the air
inlet housing, air distribution housing and the A/C
evaporator.

NOTE: Take the proper precautions to protect the
front face of the instrument panel from cosmetic
damage while performing this procedure.

NOTE: LHD model shown in illustrations. RHD
model similar.

(1) Recover the refrigerant from the refrigerant

system (Refer to 24 - HEATING & AIR CONDITION-
ING/PLUMBING - FRONT - STANDARD PROCE-
DURE - REFRIGERANT SYSTEM RECOVERY).

(2) Drain the engine cooling system (Refer to 7 -

COOLING - STANDARD PROCEDURE - COOLING
SYSTEM DRAIN).

(3) Disconnect and isolate the negative battery

cable.

(4) Disconnect the liquid and suction lines from

the A/C expansion valve (Refer to 24 - HEATING &
AIR CONDITIONING/PLUMBING - FRONT/LIQ-
UID LINE - REMOVAL).

(5) Disconnect the heater hoses from the heater

core (Refer to 24 - HEATING & AIR CONDITION-
ING/PLUMBING - FRONT/HEATER INLET HOSE -
REMOVAL) and (Refer to 24 - HEATING & AIR
CONDITIONING/PLUMBING

-

FRONT/HEATER

RETURN HOSE - REMOVAL).

(6) Remove the three nuts that secure the HVAC

housing to the engine compartment side of the dash
panel (Fig. 18).

(7) Remove the instrument panel from the passen-

ger compartment (Refer to 23 - BODY/INSTRU-
MENT PANEL/INSTRUMENT PANEL ASSEMBLY -
REMOVAL).

(8) Remove the nut and bolt that secure the HVAC

housing to the passenger compartment side of the
dash panel (Fig. 19).

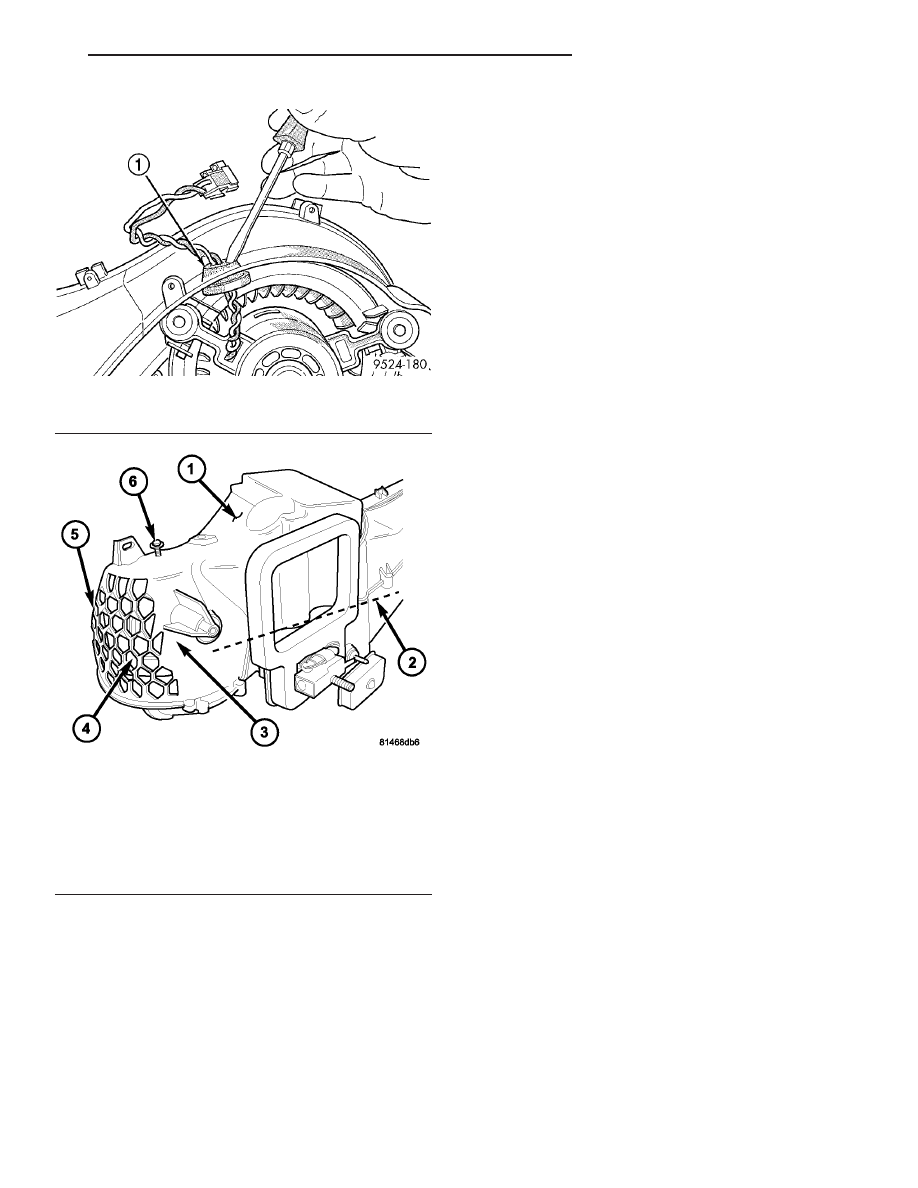

Fig. 16 Blower Motor Wire Lead Grommet

1 - BLOWER MOTOR WIRE LEAD GROMMET

Fig. 17 Upper Air Inlet Housing

1 - HVAC HOUSING
2 - PARTING LINE
3 - UPPER AIR INLET HOUSING
4 - RECIRCULATION-AIR DOOR
5 - SCREW (3)
6 - SCREW

RS

DISTRIBUTION - FRONT

24 - 53

HVAC HOUSING (Continued)

(9) Pull the HVAC housing rearward to clear the

dash panel and remove the HVAC housing from the
passenger compartment.

(10) If required, disassemble the HVAC housing

(Refer to 24 - HEATING & AIR CONDITIONING/
DISTRIBUTION -FRONT/HVAC HOUSING - DISAS-
SEMBLY).

DISASSEMBLY

AIR DISTRIBUTION HOUSING

NOTE:

The

air

distribution

housing

must

be

removed from the HVAC housing and disassembled
for service of the mode-air and blend-air doors.

NOTE: LHD model shown in illustrations. RHD
model similar.

(1) Remove the air distribution housing from the

HVAC housing and place it on a workbench (Refer to
24 - HEATING & AIR CONDITIONING/DISTRIBU-
TION - FRONT/HVAC HOUSING - AIR DISTRIBU-
TION HOUSING - REMOVAL).

(2) Remove the two screws that secure the heater

core to the driver side of the air distribution housing
and carefully remove the heater core (Fig. 20).

(3) Remove the screws that secure the mode door

actuator and the blend door actuator(s) to the driver
side of the air distribution housing and remove the
actuators.

(4) Remove the defrost door linkage arm, instru-

ment panel door linkage arm, mode door cam, floor
door gear, driver side blend door gear (if equipped)
and the passenger side blend door stop from the
driver side of the air distribution housing (Fig. 21).

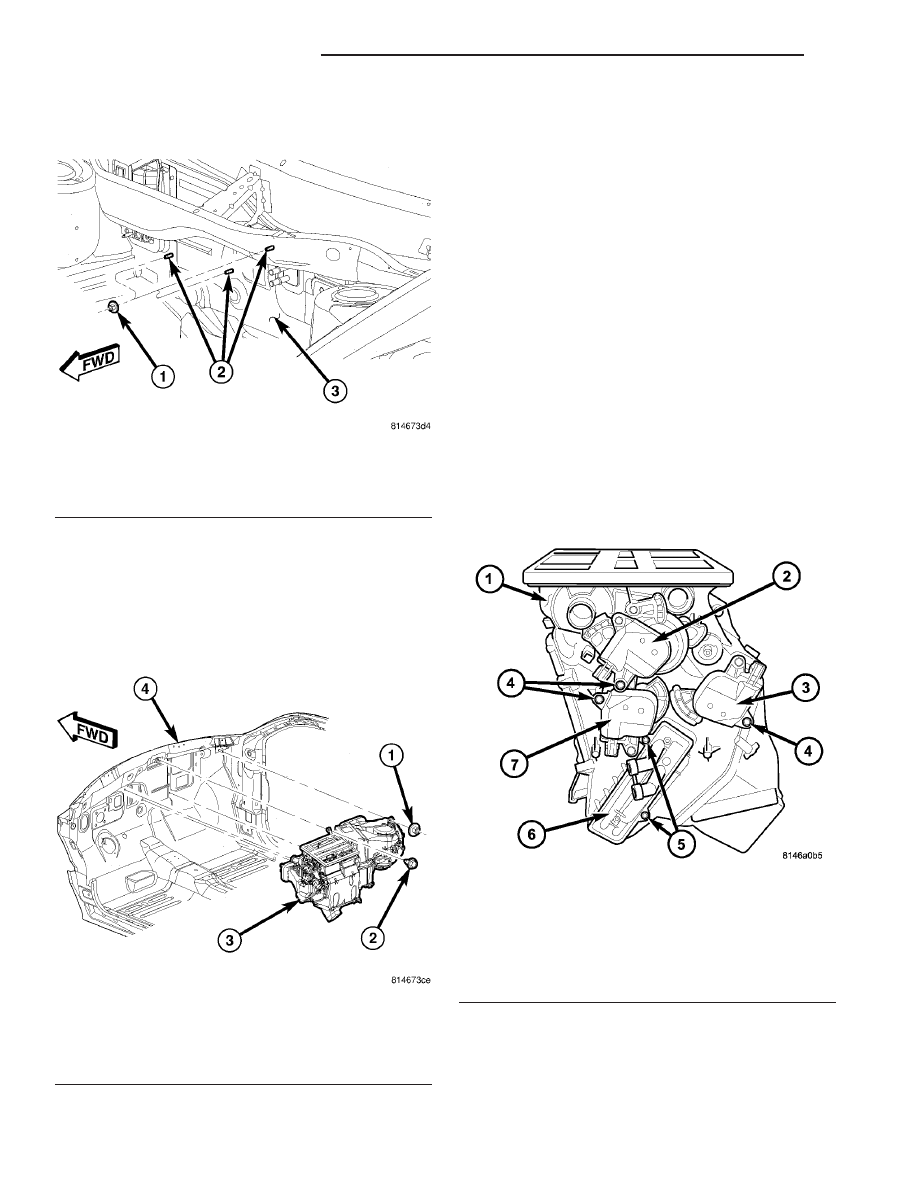

Fig. 18 HVAC Housing-Engine Compartment

1 - NUT (3)
2 - HVAC HOUSING MOUNTING STUDS
3 - DASH PANEL

Fig. 19 HVAC Housing-Passenger Compartment

1 - NUT
2 - BOLT
3 - HVAC HOUSING ASSEMBLY
4 - DASH PANEL

Fig. 20 Actuators and Heater Core

1 - AIR DISTRIBUTION HOUSING
2 - MODE DOOR ACTUATOR
3 - BLEND DOOR ACTUATOR (DRIVER)
4 - SCREW (2)
5 - SCREWS
6 - HEATER CORE
7 - BLEND DOOR ACTUATOR (PASSENGER)

24 - 54

DISTRIBUTION - FRONT

RS

HVAC HOUSING (Continued)

(5) Remove the six screws that secure the floor dis-

tribution ducts to the air distribution housing and
remove the ducts (Fig. 22).

(6) Remove the screw from the center of the driver

side of the air distribution housing (Fig. 23).

(7) Carefully cut the foam seal along the parting

line of the two halves of the air distribution housing.
If the seal is deformed or damaged, it must be
replaced.

(8) Remove the seven screws that secure the two

halves of the air distribution housing together and
carefully separate the housing.

(9) If equipped with dual zone heating -A/C sys-

tem, push down on the retaining tab of the driver
side blend door gear and carefully pull the gear out
of the blend door pivot shaft (Fig. 24).

NOTE: If the seal on the air door is deformed or
damaged, the air door must be replaced.

(10) Remove the blend-air door from the driver

side of the air distribution housing.

(11) Remove the screw that secures the driver side

air vane to the passenger side of the air distribution
housing and remove the vane (Fig. 25).

NOTE: If the seal on any air door is deformed or
damaged, the air door must be replaced.

(12) Remove the air doors and the partition from

the air distribution housing.

(13) Remove the screw that secures the passenger

side air vane to the passenger side of the air distri-
bution housing and remove the vane (Fig. 26).

NOTE: If the seal on any air door is deformed or
damaged, the air door must be replaced.

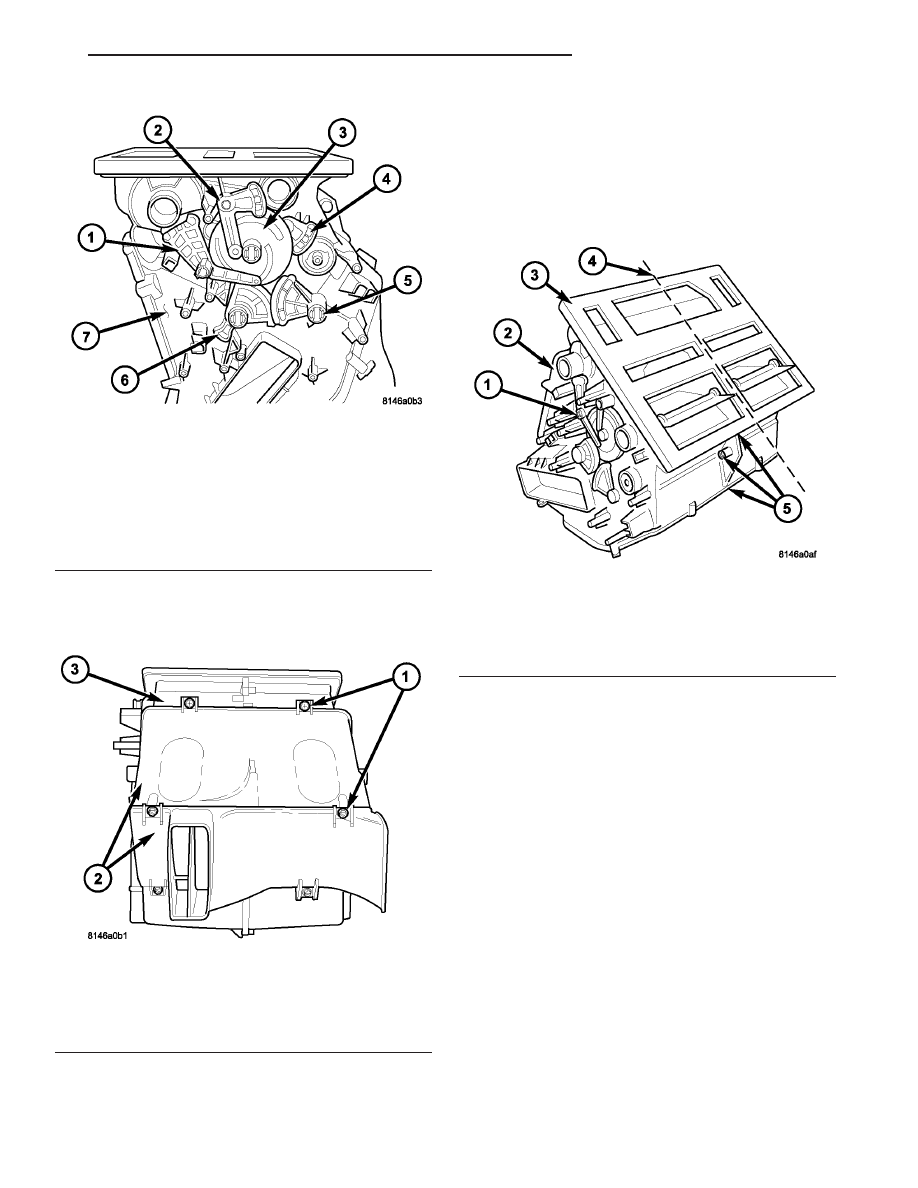

Fig. 21 Air Door Linkage

1 - DEFROST DOOR LINKAGE ARM
2 - INSTRUMENT PANEL DOOR LINKAGE ARM
3 - MODE DOOR CAM
4 - FLOOR DOOR GEAR
5 - DRIVER SIDE BLEND DOOR GEAR
6 - PASSENGER SIDE BLEND DOOR STOP
7 - AIR DISTRIBUTION HOUSING

Fig. 22 Front Floor Distribution Duct

1 - SCREWS (6)
2 - FLOOR DISTRIBUTION DUCTS
3 - HVAC HOUSING

Fig. 23 Air Distribution Housing Screws

1 - SCREW
2 - AIR DISTRIBUTION HOUSING
3 - FOAM SEAL
4 - PARTING LINE
5 - SCREWS (7)

RS

DISTRIBUTION - FRONT

24 - 55

HVAC HOUSING (Continued)

(14) Remove the air doors from the passenger side

of the air distribution housing.

HVAC HOUSING

NOTE: The HVAC housing must be removed from
the vehicle and disassembled for service of the A/C
evaporator.

NOTE: LHD model shown in illustrations. RHD
model similar.

(1) Remove the HVAC housing from the vehicle

and place it on a workbench (Refer to 24 - HEATING
& AIR CONDITIONING/DISTRIBUTION - FRONT/
HVAC HOUSING - REMOVAL).

(2) Remove the air distribution housing from the

HVAC housing (Fig. 27) (Refer to 24 - HEATING &
AIR

CONDITIONING/DISTRIBUTION

-

FRONT/

HVAC HOUSING - AIR DISTRIBUTION HOUSING
- REMOVAL).

(3) Remove the air inlet housing from the HVAC

housing (Refer to 24 - HEATING & AIR CONDI-
TIONING/DISTRIBUTION - FRONT/HVAC HOUS-
ING - AIR INLET HOUSING - REMOVAL).

(4) Remove the A/C expansion valve from the A/C

evaporator (Refer to 24 - HEATING & AIR CONDI-
TIONING/PLUMBING - FRONT/A/C EXPANSION
VALVE - REMOVAL).

(5) Disconnect the HVAC wiring harness from the

blower motor resistor or power module (depending on
application) (Fig. 28).

Fig. 24 Dual Zone Driver Side Blend-Air Door

1 - BLEND-AIR DOOR (DRIVER SIDE)
2 - AIR DISTRIBUTION HOUSING
3 - GEAR RETAINING TAB
4 - BLEND DOOR GEAR

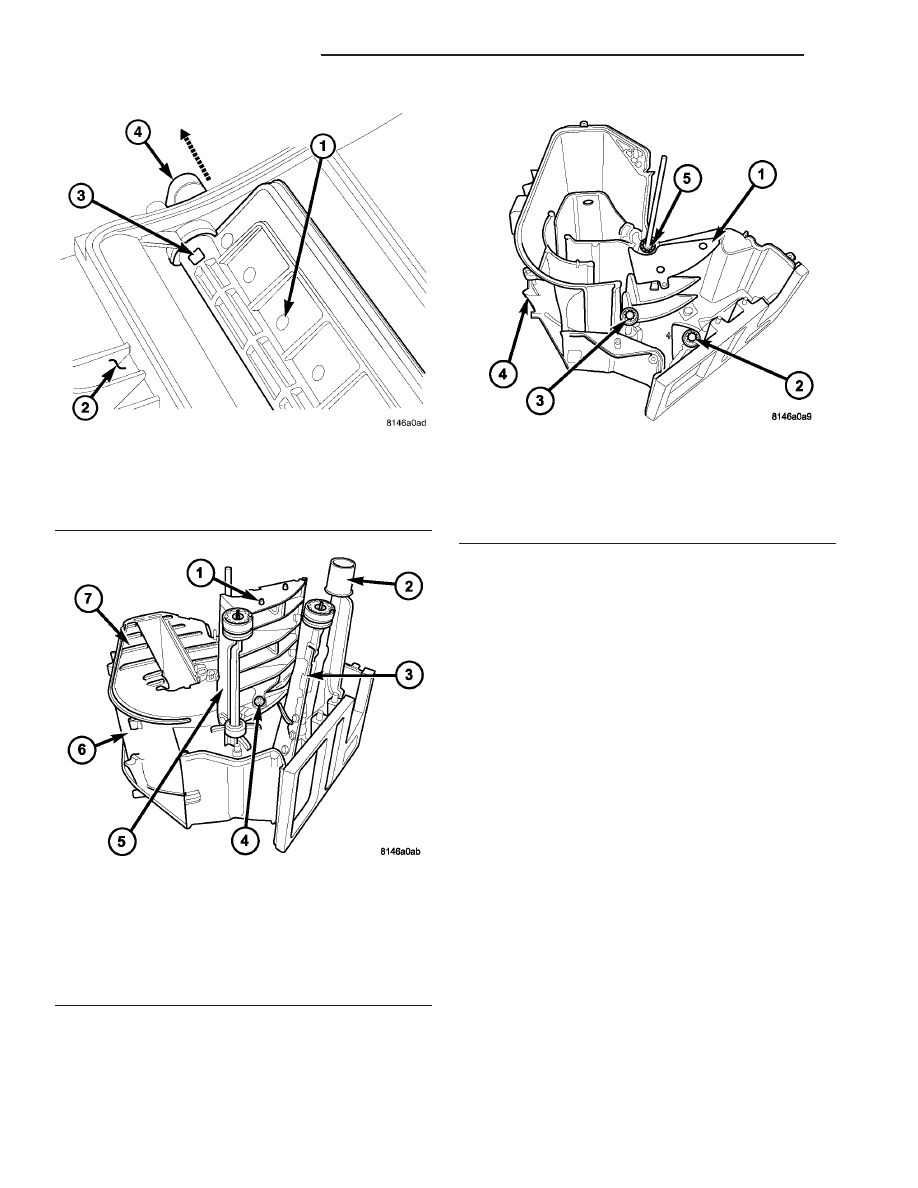

Fig. 25 Air Doors and Partition - Driver Side

1 - AIR VANE (DRIVER SIDE)
2 - DEFROST-AIR DOORS
3 - PANEL-AIR DOOR (DRIVER SIDE)
4 - SCREW
5 - FLOOR-AIR DOOR (DRIVER SIDE)
6 - AIR DISTRIBUTION HOUSING (PASSENGER SIDE)
7 - PARTITION

Fig. 26 Air Doors and Vane - Passenger Side

1 - AIR VANE (PASSENGER SIDE)
2 - PANEL-AIR DOOR (PASSENGER SIDE)
3 - FLOOR-AIR DOOR (PASSENGER SIDE)
4 - AIR DISTRIBUTION HOUSING (PASSENGER SIDE)
5 - BLEND-AIR DOOR (PASSENGER SIDE)

24 - 56

DISTRIBUTION - FRONT

RS

HVAC HOUSING (Continued)
