Chrysler RG Voyager. Manual - part 1153





(16) Apply 150 mm (6 in.) lengths of 50 mm (2 in.)

masking tape spaced 250 mm (10 in.) apart to hold
molding in place until urethane cures.

(17) Install A-pillar trim panels.
(18) Install cowl cover and wipers.
(19) Install inside rear view mirror.
(20) After urethane has cured, remove tape strips

and water test windshield to verify repair.

SLIDING DOOR GLASS

REMOVAL

The temperature of the vehicle should be at least

21° C (70° F) before removing the stationary quarter/
sliding door glass. Butyl sealer becomes more pliable
at high temperatures.

(1) Remove interior trim as necessary to gain

access attaching locations on back of glass.

(2) Remove nuts holding stationary glass to fence.
(3) Using razor knife, cut butyl sealer holding

glass to fence from between the mounting studs (Fig.
4).

(4) Push glass from opening.

INSTALLATION

The temperature of the vehicle should be at least

21° C (70° F) before removing the stationary quarter/
sliding door glass. Butyl sealer becomes more pliable
at high temperatures.

The stationary glass fence should be cleaned of all

old butyl sealer.

(1) Apply a 6 mm (0.25 in.) butyl tape around

perimeter of glass assembly encapsulation track.
Ensure that the butyl tape is wrapped around the
mounting studs.

(2) Place the glass into the opening and insert

mounting studs through holes in fence.

(3) Install nuts to hold stationary glass to fence.

CAUTION: Tighten nuts to 3.4 N·m (30 in. lbs.)
torque in the sequence indicated. Do not over
torque, or glass breakage may result (Fig. 4).

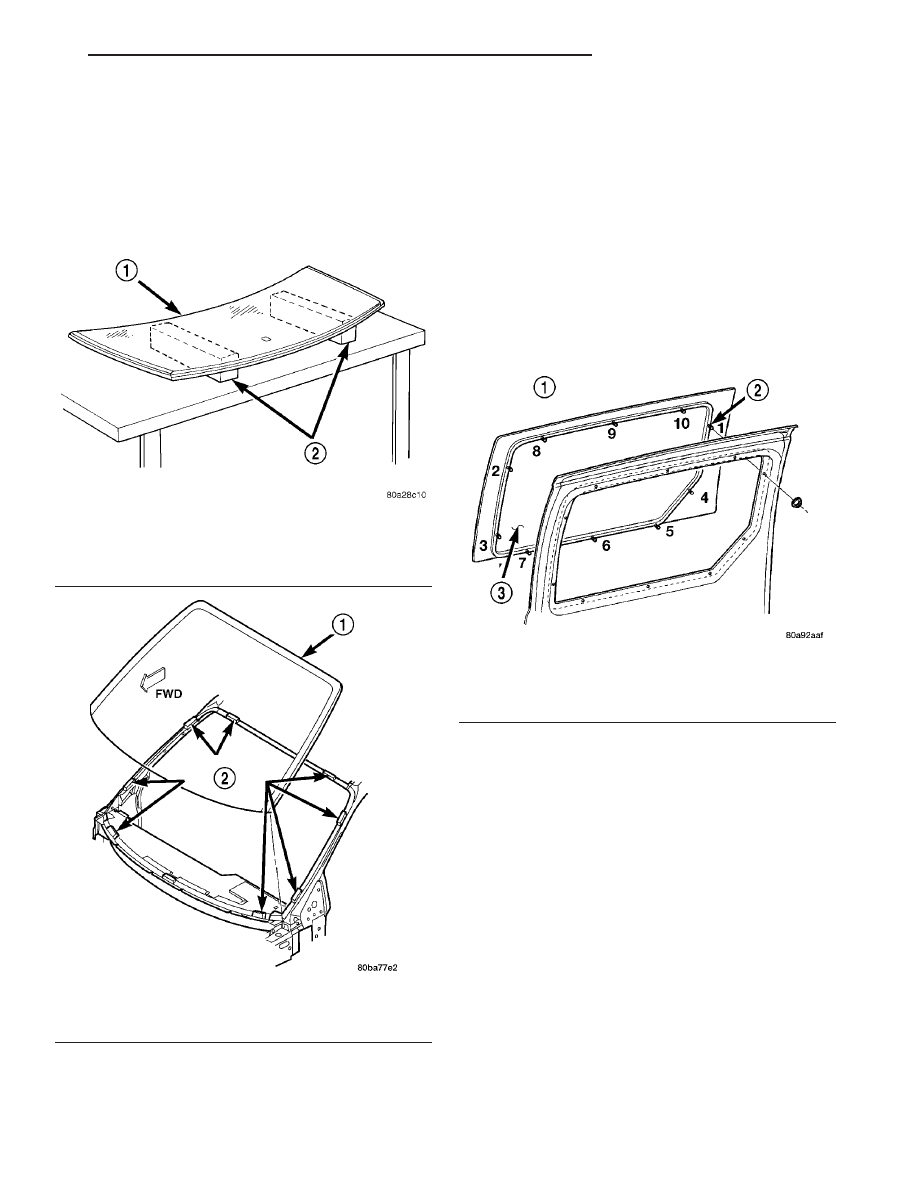

Fig. 2 WORK SURFACE SET UP AND MOLDING

INSTALLATION

1 - WINDSHIELD AND MOLDINGS
2 - BLOCKS

Fig. 3 LOWER WINDSHIELD INTO POSITION

1 - WINDSHIELD
2 - COMPRESSION SPACERS

Fig. 4 SLIDING DOOR STATIONARY GLASS

1 - NUMBERS INDICATE THE TIGHTENING SEQUENCE
2 - 6 mm BEAD OF BUTYL TAPE
3 - BODY SIDE/SLIDING DOOR GLASS

RS

STATIONARY GLASS

23 - 191

WINDSHIELD (Continued)

(4) Water test before installing interior trim.
(5) Install interior trim. (Refer to 23 - BODY/

DOORS - SLIDING/TRIM PANEL - INSTALLATION)

(6) Verify alignment and flushness.

QUARTER WINDOW

REMOVAL

(1) Remove C-pillar trim.
(2) Open quarter glass to vent position.
(3) Disengage quarter window retainer from vent

motor arm.

(4) Remove nuts attaching quarter glass to C-pillar

(Fig. 5).

(5) Use magnetic socket to prevent dropping into

the pillar.

(6) Remove quarter glass from vehicle.

INSTALLATION

(1) Place quarter glass in position on vehicle.
(2) Install nuts attaching quarter glass to C-pillar.
(3) Engage quarter window retainer to vent motor

arm.

(4) Install

screw

attaching

quarter

window

retainer to vent motor arm.

(5) Close quarter glass.
(6) Verify alignment and flushness.
(7) Install C-pillar trim.

LIFTGATE GLASS

REMOVAL

Refer to the Safety Precautions in this section for

description of tools and adhesive systems that are
recommended for use in this procedure.

REAR WINDOW REMOVAL – EXTERIOR METHOD

(1) Remove rear window wiper arm.
(2) Remove interior trim covers.
(3) Disconnect wires for electrically heated win-

dow, if equipped.

(4) Using a sharp cold knife, cut urethane adhe-

sive attaching the rear window to the liftgate. A
power cutting device can be used if available (Fig. 1).

(5) Remove rear window from vehicle.

INSTALLATION

Refer to the Safety Precautions in this section for

description of tools and adhesive systems that are
recommended for use in this procedure.

CAUTION: Open the left front door glass before
installing rear window to avoid pressurizing the
passenger compartment. If a door is slammed
before urethane bonding is cured, water leaks can
result.
Allow the urethane at least 24 hours to cure before
returning the vehicle to use.
To avoid stressing the replacement rear window,
the urethane bonding material on the rear window
fence should be smooth and consistent to the
shape of the replacement glass.

(1) Place replacement glass into rear window open-

ing.

(2) Verify the glass lays evenly against the pinch

weld fence at the sides, top and bottom of the
replacement rear window. If not, the urethane adhe-
sive remaining on the fence must be formed to the
shape of the new glass.

(3) Using a grease pencil, mark the glass and lift-

gate in several locations to aid installation.

(4)

Remove replacement glass from liftgate open-

ing.

(5) Position the rear window inside up on a suit-

able work surface with two padded, wood 10 cm by
10 cm by 50 cm (4 in. by 4 in. by 20 in.) blocks,
placed parallel 75 cm (2.5 ft.) apart (Fig. 2).

WARNING: DO NOT USE SOLVENT BASED GLASS
CLEANER TO CLEAN REAR WINDOW BEFORE
APPLYING

GLASS

PREP AND

PRIMER.

POOR

ADHESION CAN RESULT.

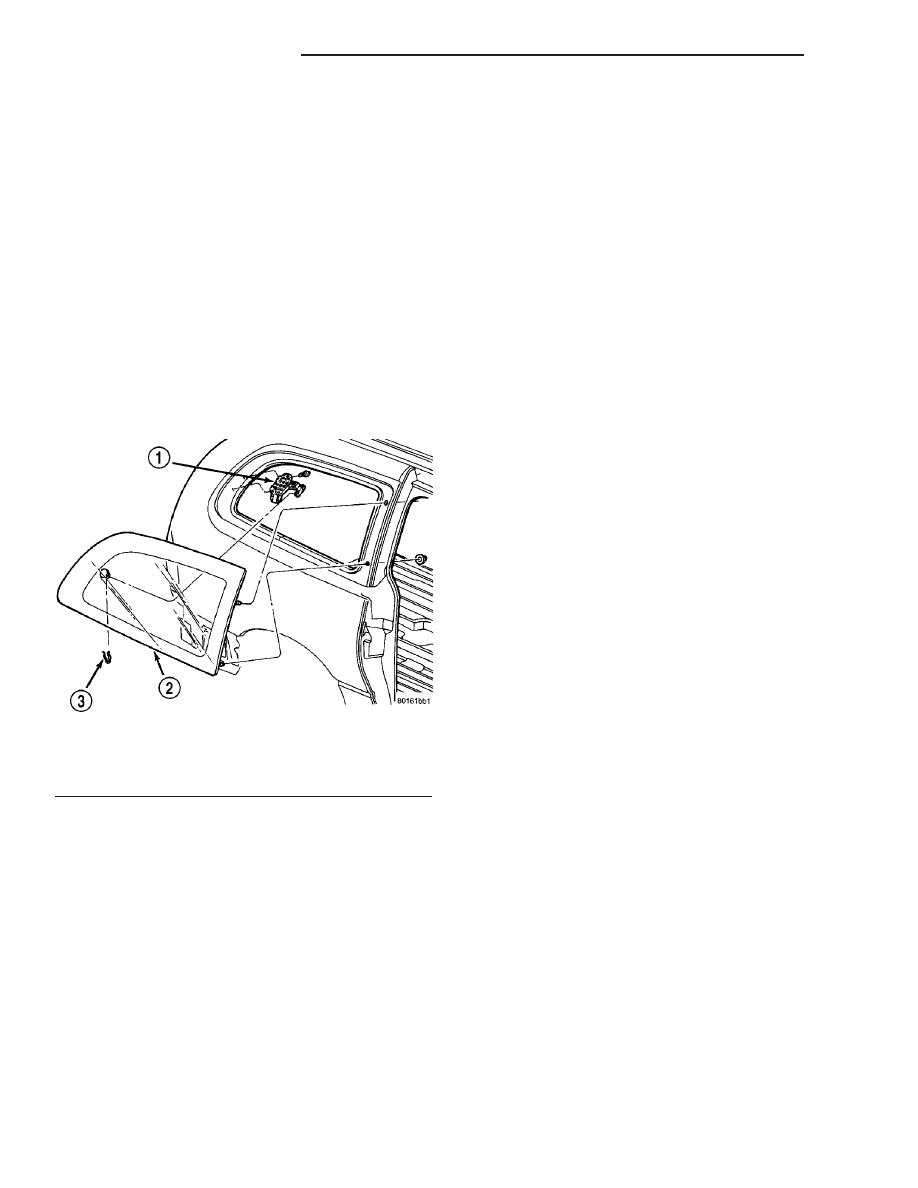

Fig. 5 QUARTER GLASS

1 - VENT CONTROL
2 - QUARTER GLASS
3 - CLIP

23 - 192

STATIONARY GLASS

RS

SLIDING DOOR GLASS (Continued)

(6) Clean inside of rear window with ammonia

based glass cleaner and lint-free cloth.

(7) Apply Glass Prep adhesion promoter 25 mm (1

in.) wide around perimeter of rear window and wipe
with clean/dry lint-free cloth until no streaks are vis-
ible.

(8) Apply Glass Primer 25 mm (1 in.) wide around

perimeter of rear window. Allow at least three min-
utes drying time.

(9) Apply Pinch weld Primer 19 mm (0.75 in.) wide

around the rear window fence. Allow at least three
minutes drying time.

(10) If a low viscosity urethane adhesive is used,

install compression spacers on the fence around the
rear window opening.

(11) Apply a 10 mm (0.4 in.) bead of urethane

along center line of rear window fence.

CAUTION: Be careful so that spacers do not con-
taminate urethane bead.

(12) Apply 2 glass spacer clips to bottom edge of

glass, approximately 150 mm (6.0 inches) inboard
from each corner.

(13) With the aid of a helper, position the rear

window over the rear window opening and align the
reference marks.

(14) Slowly lower glass to rear window opening

fence. Ensure spacers on bottom edge of glass contact
sheet metal ledge. Then, push glass inward until
flush to liftgate surface.

(15) Clean excess urethane from exterior with

Mopar

t Super Kleen, or equivalent.

(16) Apply 150 mm (6 in.) lengths of 50 mm (2 in.)

masking tape spaced 250 mm (10 in.) apart to hold
molding in place until urethane cures.

(17) Install rear window wiper arm.
(18) Install interior trim.
(19) After urethane has cured, remove tape strips,

slide out bottom spacer clips, and then water test
rear window to verify repair.

RS

STATIONARY GLASS

23 - 193

LIFTGATE GLASS (Continued)

WEATHERSTRIP/SEALS

TABLE OF CONTENTS

page

page

FRONT DOOR GLASS RUN WEATHERSTRIP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 194

FRONT DOOR OUTER BELT MOLDING

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 195

FRONT DOOR WEATHERSTRIP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 195

SLIDING DOOR WEATHERSTRIP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 196

FRONT DOOR INNER BELT MOLDING

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 196

FRONT DOOR GLASS RUN
WEATHERSTRIP

REMOVAL

(1) Remove door frame closeout moldings.
(2) Pull weatherstrip from glass run channel at

rear of door frame, working from the bottom to the
top.

(3) Disengage clip attaching weatherstrip to door

frame.

(4) Pull weatherstrip from lip along top of door

frame (Fig. 1).

(5) Remove door trim panel.
(6) Remove door speaker, if equipped.
(7) Remove watershed as necessary to gain access

to screw attaching front lower corner of glass run
weatherstrip to inner door panel.

(8) Remove screw attaching glass run weatherstrip

to inner door panel.

(9) Remove inner belt weatherstrip.
(10) Pull weatherstrip from front glass run chan-

nel.

(11) Remove glass run weatherstrip from vehicle.

INSTALLATION

(1) Position glass run weatherstrip on vehicle (Fig.

1).

(2) Insert A-pillar section of the glass run into door

through belt line and lower to bottom of door using
molded corners as a guide.

NOTE: Care must be taken not to damage the medal
bracket when installing through the belt opening.

(3) Locate the top corner portion of the B-pillar

glass run section onto the roll frame and slide it up
until the part bottoms out on the header portion of
the roll frame.

NOTE: Do not JAM the corner into place.

(4) Install the entire B-pillar glass run onto roll

frame.

(5) Working from the B-pillar forward install the

first eight to twelve inches of the header glass run
onto the roll frame.

NOTE: Use care not to push or pull the header sec-
tion and the molded corner out of location.

(6) Install fully the entire A-pillar glass run sec-

tion by indexing the molded corner detail into the
roll frame. Slide the glass run up the A-pillar until
the rubber molded joint just touches the roll frame.

(7) Verify that the tertiary seal is on the correct

side of the roll frame prior to seating the glass run
fully onto the frame. Verify the glass runs is fully
seated for the header, and A-pillar and B-pillar

(8) Install screw attaching glass run weatherstrip

to inner door panel.

(9) Install inner belt weatherstrip.
(10) Install watershed.
(11) Push weatherstrip groove onto lip along top of

door frame.

(12) Engage clip into slot in door frame.
(13) Push weatherstrip into channel at rear of door

frame, working from the top to bottom.

(14) Install door frame closeout moldings.
(15) Install door speaker, if equipped.
(16) Install door trim panel.

23 - 194

WEATHERSTRIP/SEALS

RS
