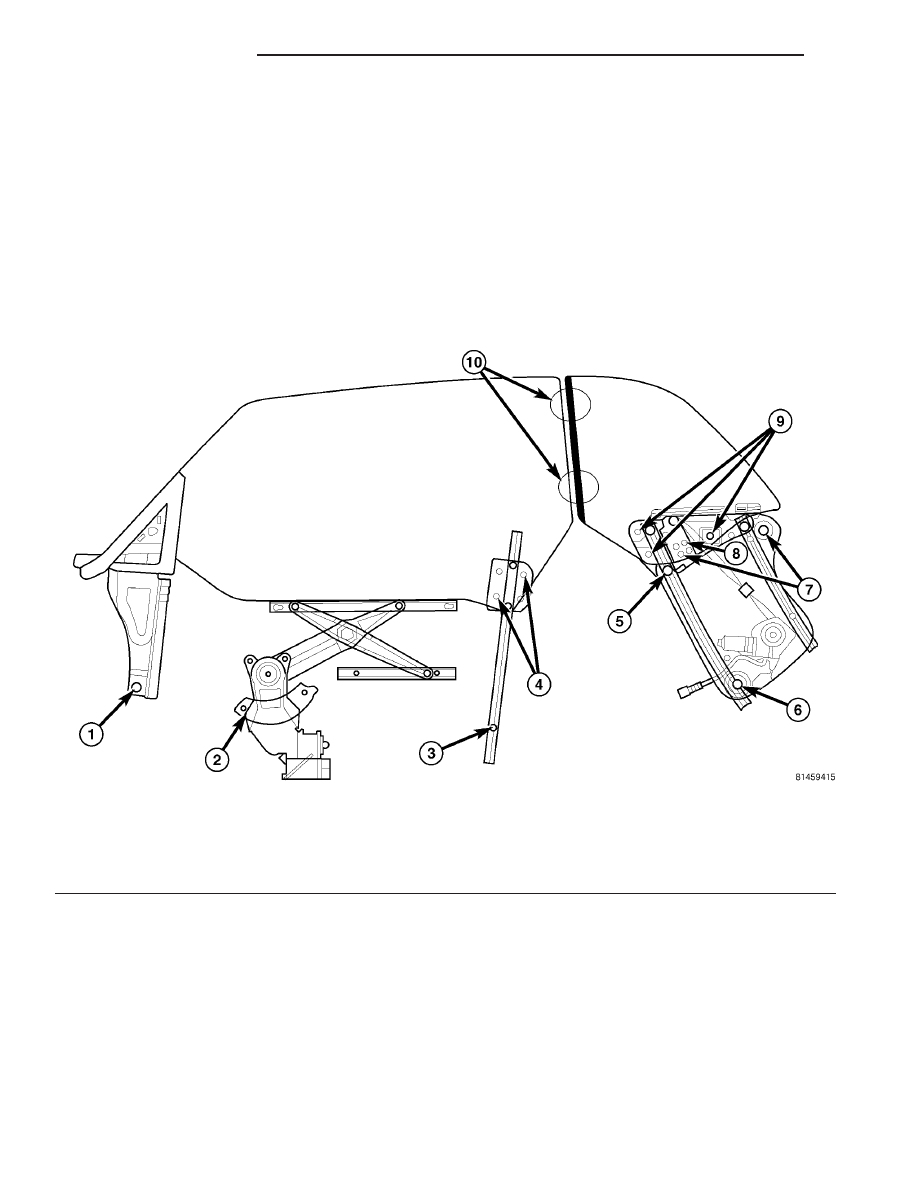

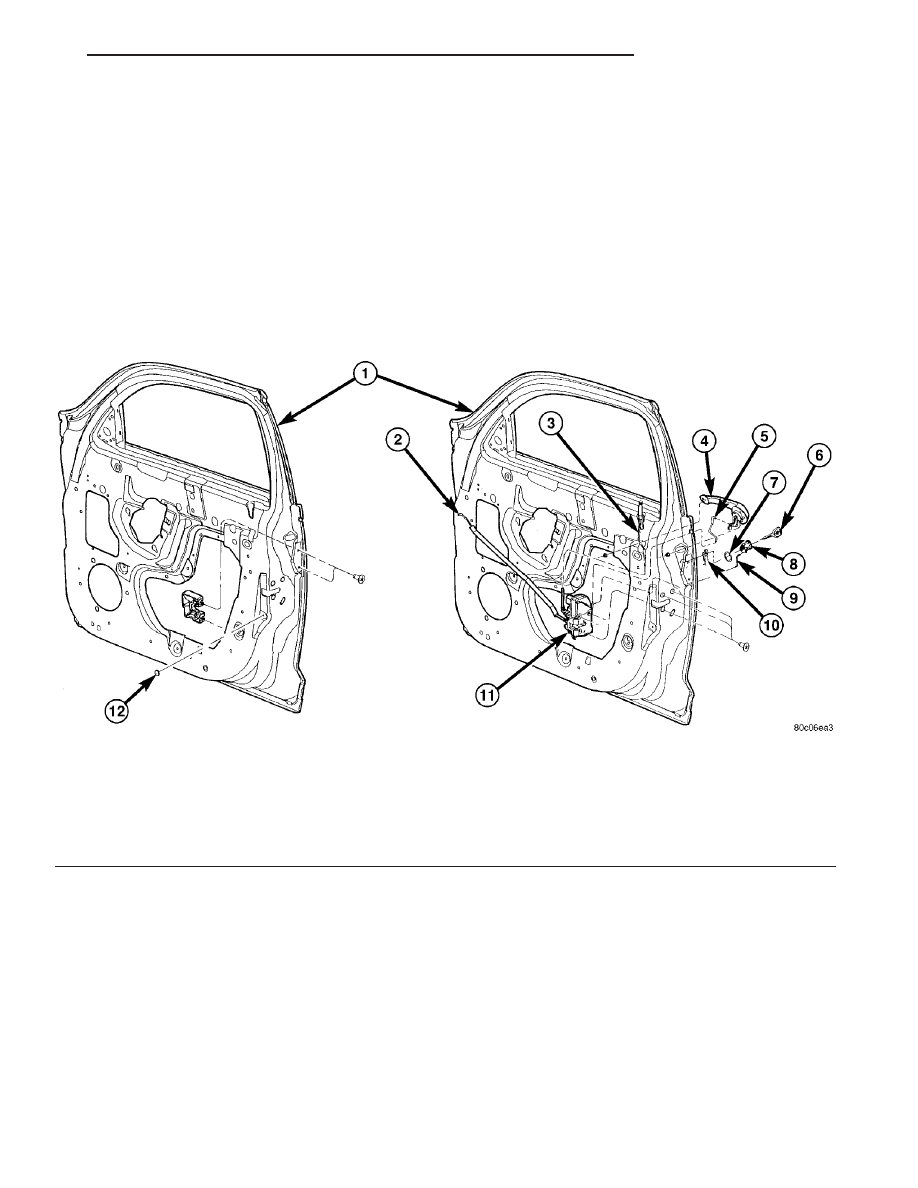

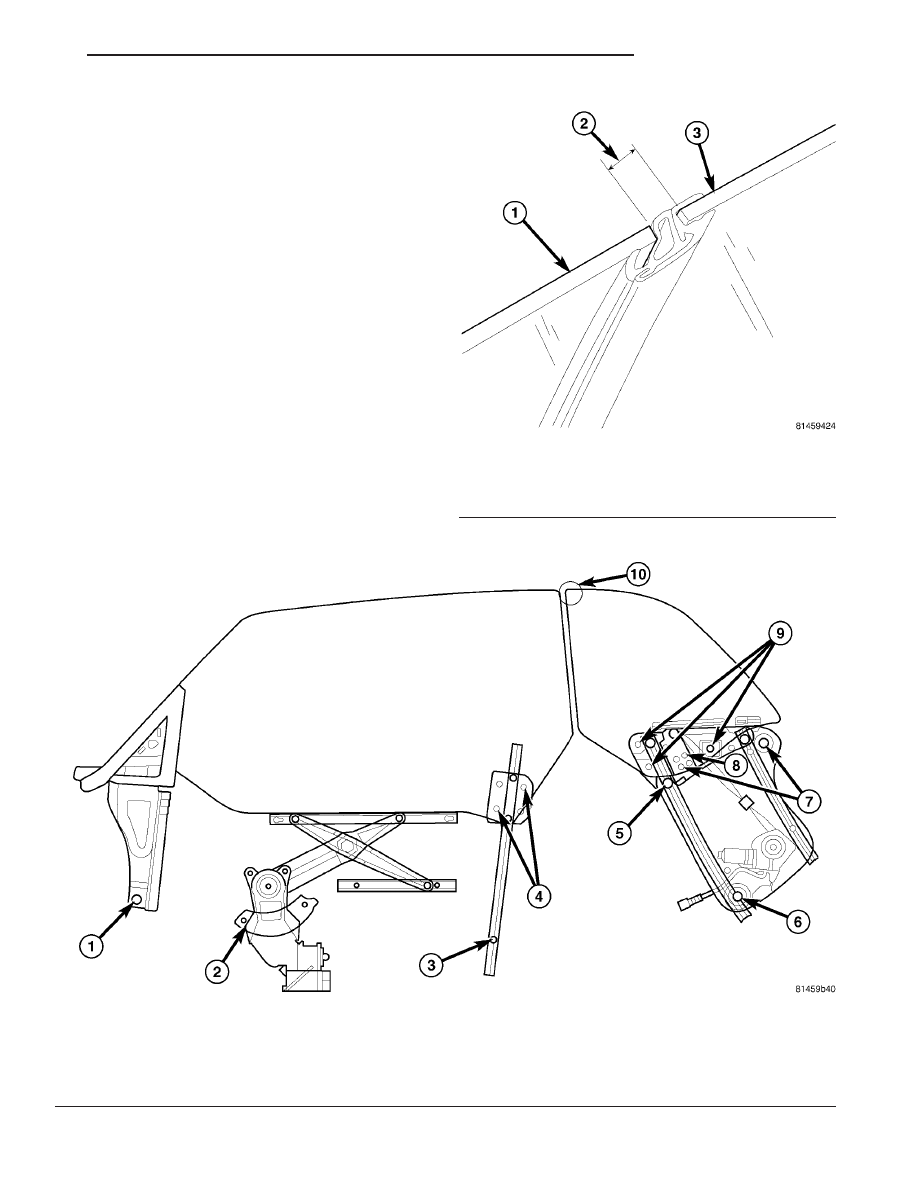

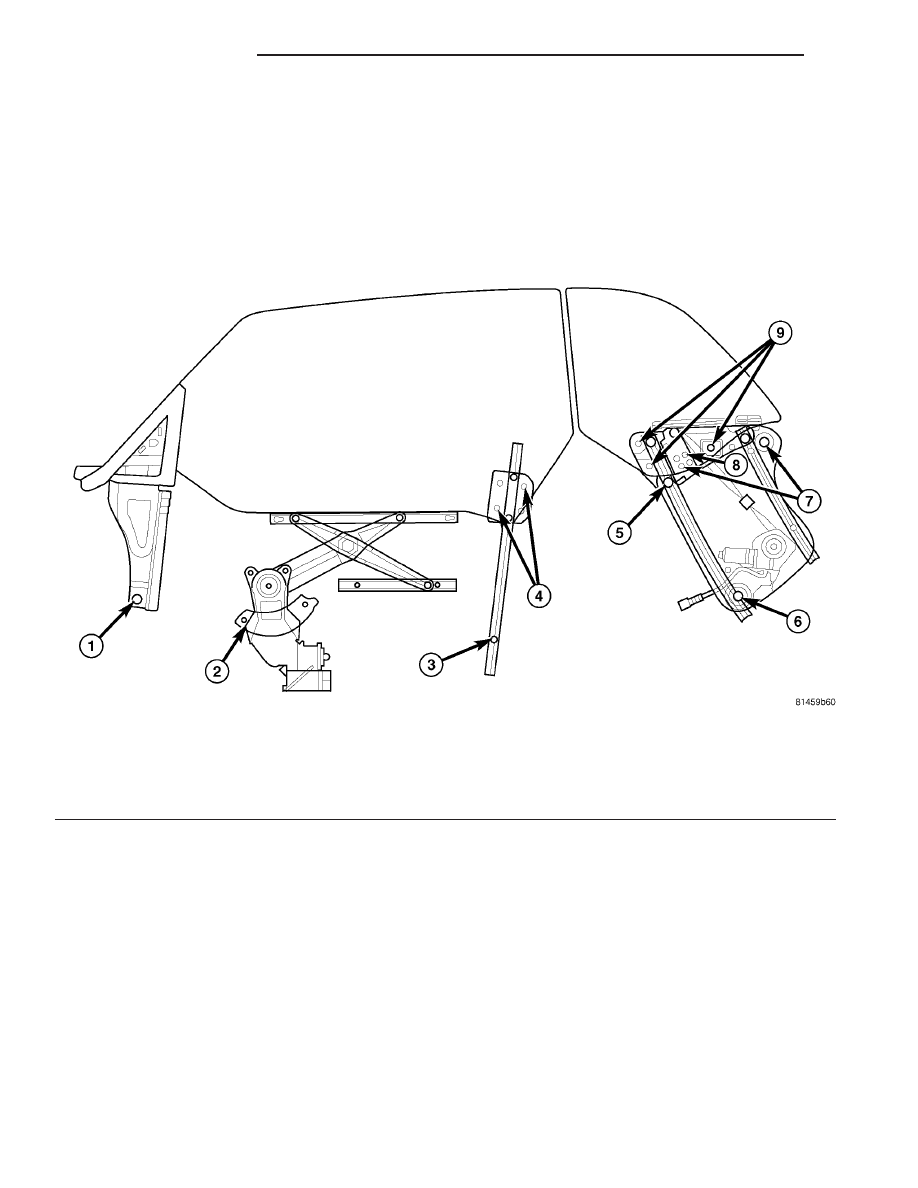

CONDITION - NON-PARALLEL GAP BETWEEN DOOR AND (1) Verify that the door glass and quarter glass adjustment procedures have been checked. (2) Apply masking tape to outside glass surface in locations (10) (Fig. 22). (3) Mark tape at the two locations and then drop top. (4) With vehicle running, drive quarter glass full up and then drive door glass up and mark tape at (5) If gap not parallel to within 1.5 mm, loosen cross car screw (8), cross car screw (7) and cross car screw (6) and rotate quarter glass regulator with (6) Repeat test using Steps 3 thought 5, if still can not get parallelism within 1.5 mm then proceed to (7) Remove quarter glass regulator with glass and increase slot size, forward 2.0 mm at cross car screw (8) Install the quarter glass regulator with glass and repeat Step 1 thought 5. Fig. 22 CHECK DISTANT 1 - CROSS CAR SCREW - IN AND OUT ADJUSTMENT 6 - CROSS CAR SCREW - IN AND OUT ADJUSTMENT 23 - 58 DOOR - FRONT PT FRONT DOOR GLASS (Continued) |
