(5) Set up dial indicator set C-3339 and tool

C-4996 as shown in (Fig. 173) (Fig. 174) to measure
side gear end play. Side gear end play must be
within 0.001-0.013 in.

(6) Remove differential side bearing cone from ring

gear side of differential. Install button L-4539-2, and
Collets 5048-2 (Fig. 175).

(7) Install 5048 as shown (Fig. 176), remove and

discard bearing cone.

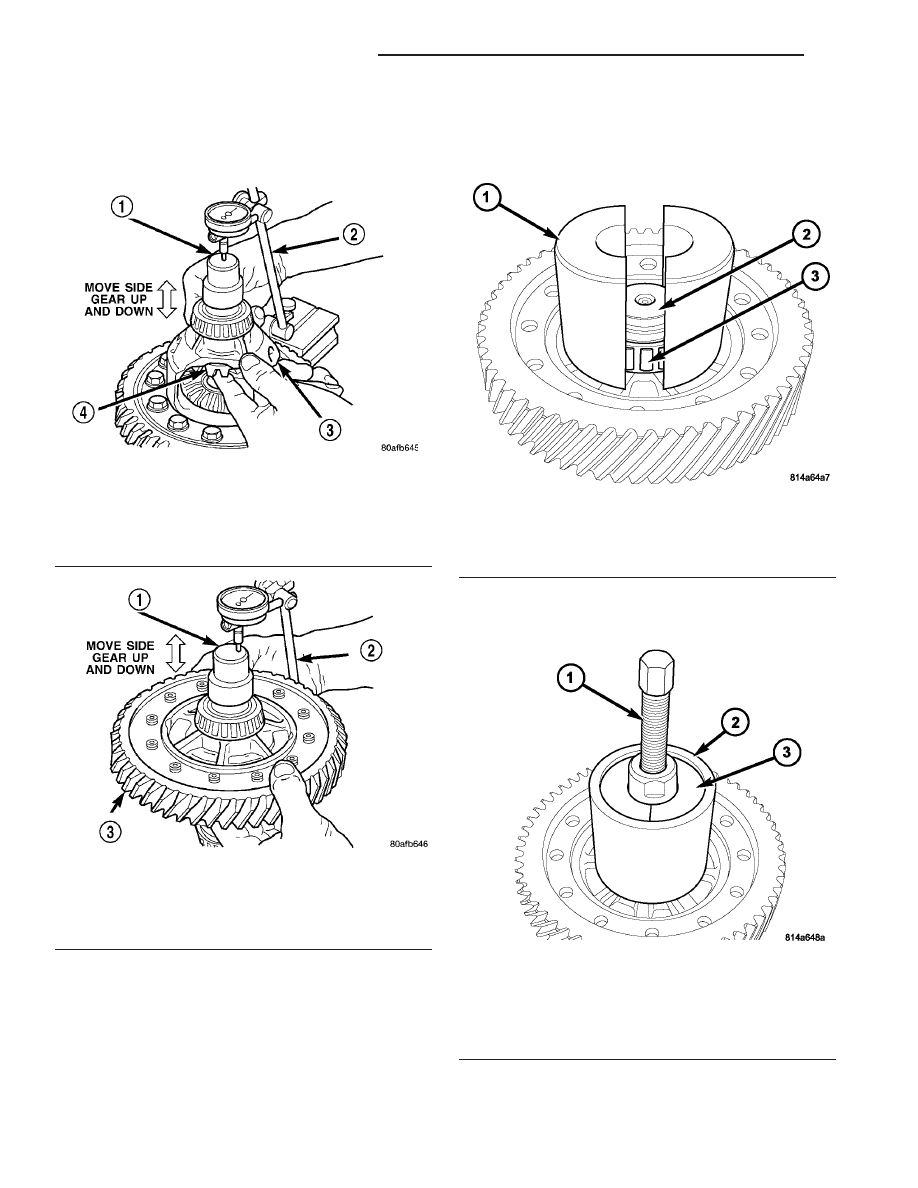

Fig. 173 Checking Side Gear End Play (Extension

Housing Side)

1 - SPECIAL TOOL C-4996 (NOTE POSITION)
2 - DIAL INDICATOR SET
3 - DIFFERENTIAL ASSEMBLY
4 - SIDE GEAR

Fig. 174 Checking Side Gear End Play (Ring Gear

Side)

1 - SPECIAL TOOL C-4996 (NOTE POSITION)
2 - DIAL INDICATOR SET
3 - DIFFERENTIAL ASSEMBLY

Fig. 175 Button L-4539-2 and Collets 5048-4

1 - COLLETS 5048-4
2 - BUTTON L-4539-2
3 - BEARING CONE

Fig. 176 Side Bearing Removal Using Tool 5048

(Ring Gear Side)

1 - TOOL 5048
2 - COLLETS 5048-4
3 - SLEEVE 5048

21 - 390

41TE AUTOMATIC TRANSAXLE

PT

FINAL DRIVE (Continued)

(8) Remove differential side bearing cone from out-

board end (opposite ring gear) of differential.Install
Button L-4539-2 as shown (Fig. 177).

(9) Install 5048 as shown (Fig. 178). Remove and

discard bearing cone.

(10) Remove pinion shaft retainer plate bolts (Fig.

179).

(11) Remove pinion shaft retainer (Fig. 180).

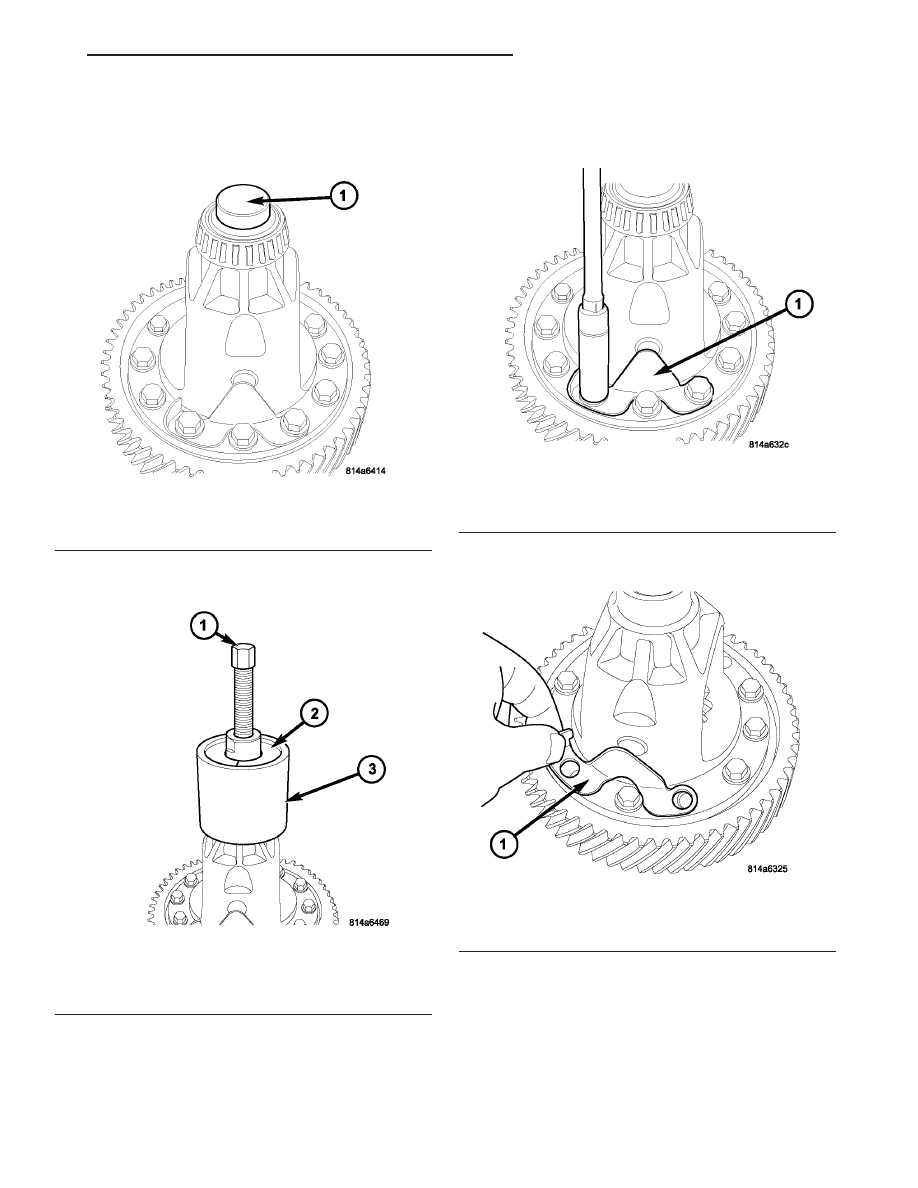

Fig. 177 Install Button L-4539-2

1 - BUTTON L-4539-2

Fig. 178 Side Bearing Removal Using Tool 5048

1 - TOOL 5048
2 - COLLET 5048-3
2 - SLEEVE 5048

Fig. 179 Remove/Install Retainer/Ring Gear Bolt

1 - PINION SHAFT RETAINER

Fig. 180 Pinion Shaft Retainer

1 - PINION SHAFT RETAINER

PT

41TE AUTOMATIC TRANSAXLE

21 - 391

FINAL DRIVE (Continued)

(12) Remove pinion shaft from differential case

(Fig. 181).

(13) Rotate pinion gears about case and remove

(w/washer) (Fig. 182).

(14) Remove differential side gears (Fig. 183).

(15) Remove side gear thrust washers (Fig. 184).

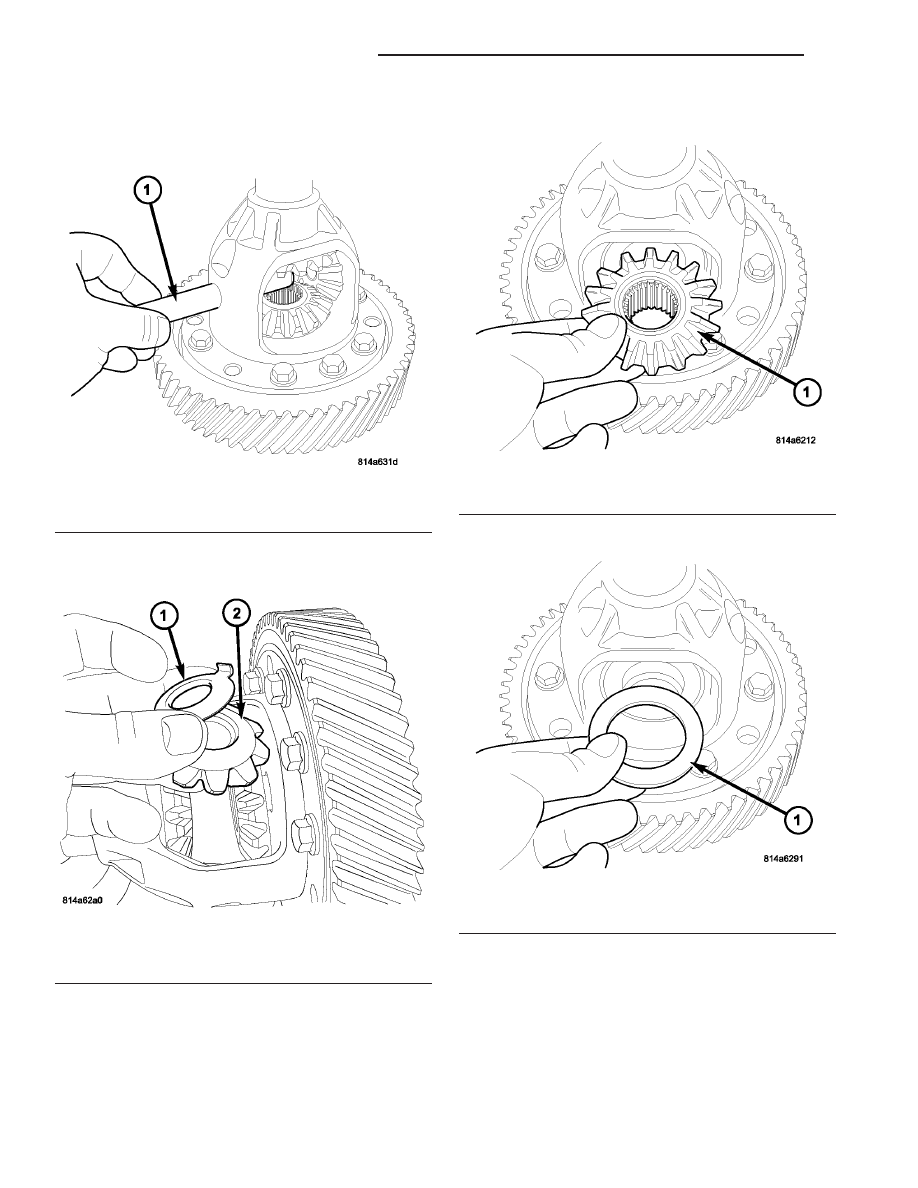

Fig. 181 Pinion Shaft Removal/Installation

1 - PINION SHAFT

Fig. 182 Pinion Gear and Washer

1 - WASHER
2 - PINION GEAR

Fig. 183 Side Gear Removal/Installation

1 - SIDE GEAR

Fig. 184 Side Gear Washer

1 - SIDE GEAR THRUST WASHER

21 - 392

41TE AUTOMATIC TRANSAXLE

PT

FINAL DRIVE (Continued)

(16) Remove remaining differential ring gear-to-

case bolts (Fig. 185).

(17) Using a soft-faced hammer, remove ring gear

from case (Fig. 186).

(18) Using Miller Special Tool L-4518, remove the

differential bearing race from the extension housing/
adapter plate.

(19) Using Miller Special Tool 6062A, remove the

differential bearing race from the bearing retainer
(Fig. 187) (Fig. 188).

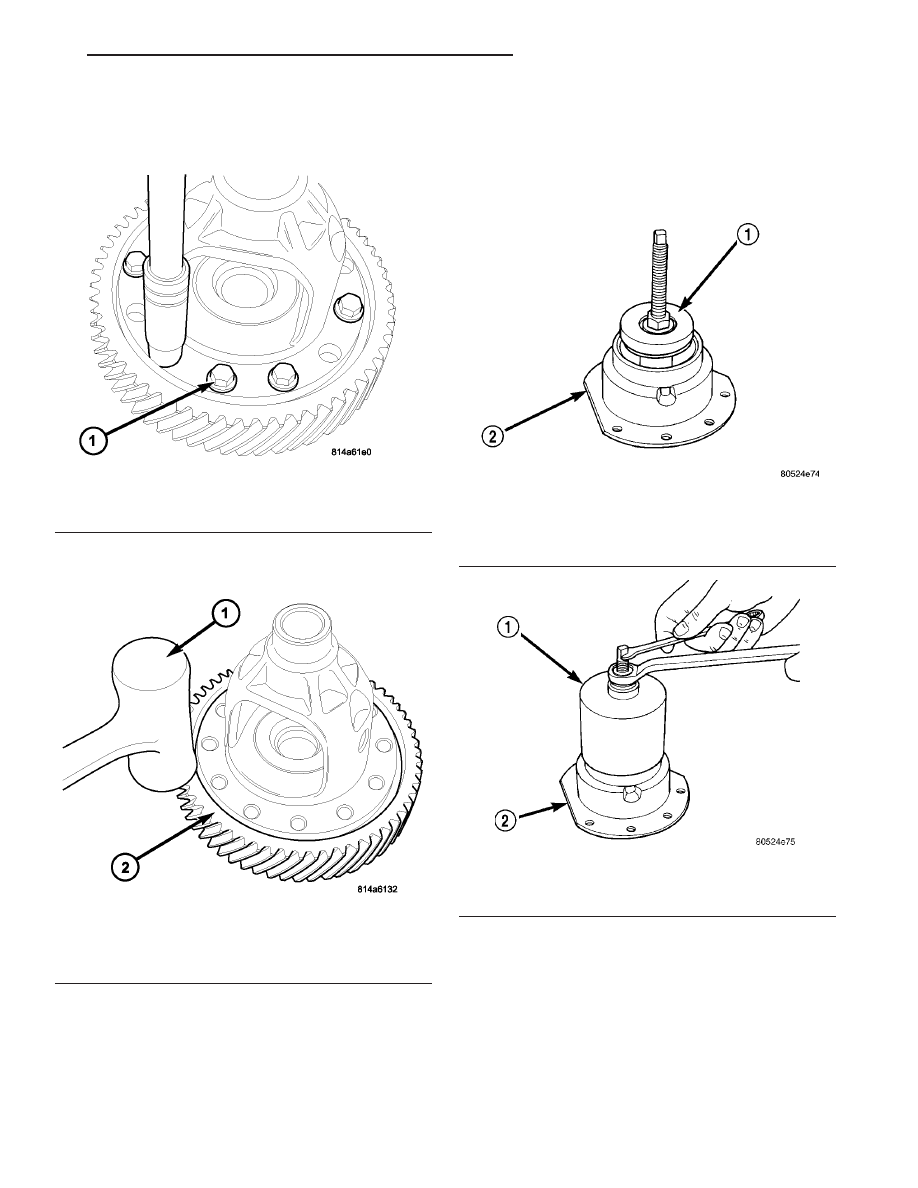

Fig. 185 Ring Gear Bolt Removal/Installation

1 - RING GEAR BOLTS

Fig. 186 Ring Gear Removal

1 - SOFT-FACED HAMMER
2 - RING GEAR

Fig. 187 Position Bearing Cup Remover Tool in

Retainer

1 - SPECIAL TOOL 6062A
2 - DIFFERENTIAL BEARING RETAINER

Fig. 188 Remove Bearing Cup

1 - SPECIAL TOOL 6062A
2 - DIFFERENTIAL BEARING RETAINER

PT

41TE AUTOMATIC TRANSAXLE

21 - 393

FINAL DRIVE (Continued)
