(3) Insert key into hub and spring.
(4) Apply petroleum jelly to the hole in the key.

Insert balls into each key (Fig. 168).

(5) Slide sleeve over the hub and depress balls as

you carefully slip the sleeve into position (Fig. 169).

(6) Line up stop ring tang over the keys in the hub

(Fig. 170). Install stop rings. Center the keys and
balls by pushing on both stop rings.

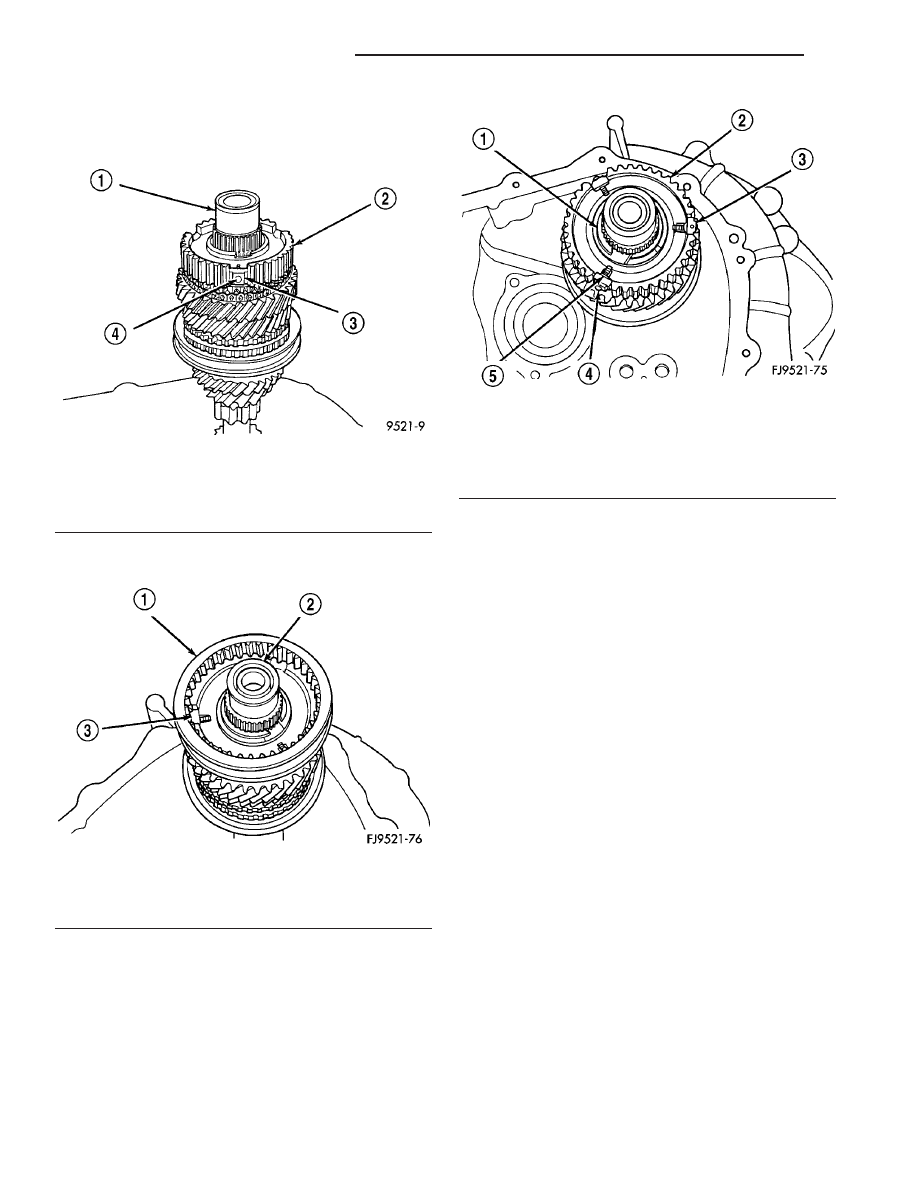

Fig. 168 Synchronizer Balls

1 - INPUT SHAFT
2 - HUB
3 - KEY
4 - BALL

Fig. 169 Synchronizer Sleeve

1 - SLEEVE
2 - INPUT SHAFT
3 - KEY

Fig. 170 Keys in Hub

1 - SNAP RING
2 - CLUTCH
3 - KEY
4 - BALL
5 - SPRING

21 - 150

T350 MANUAL TRANSAXLE

PT

SYNCHRONIZER (Continued)

VEHICLE SPEED SENSOR

DESCRIPTION

VEHICLE SPEED SENSOR

The Vehicle Speed Sensor (VSS) is a pulse genera-

tor mounted to an adapter near the transmission out-
put shaft. The sensor is driven through the adapter
by a speedometer pinion gear. The VSS pulse signal
to the speedometer/odometer is monitored by the
PCM speed control circuitry to determine vehicle
speed and to maintain speed control set speed.

REMOVAL

(1) Raise vehicle on hoist.
(2) Disconnect the speed sensor connector (Fig.

171).

CAUTION: Clean area around speed sensor before
removing to prevent dirt from entering the transaxle
during speed sensor removal.

(3) Remove speed sensor retaining bolt (Fig. 171).
(4) Remove speed sensor from transaxle.

CAUTION: Carefully remove vehicle speed sensor
so that sensor drive gear does not fall into trans-
axle. Should sensor drive gear fall into the trans-
axle during sensor removal, drive gear must be
reattached to sensor.

(5) Remove speed sensor drive gear from speed

sensor.

INSTALLATION

(1) Install pinion gear to speed sensor (Fig. 171).

(2) Using a NEW o-ring, install the speed sensor

to the transaxle (Fig. 171).

(3) Install the bolt and torque to 7 N·m (60 in.

lbs.).

(4) Connect speed sensor connector (Fig. 171).
(5) Lower vehicle and road test to verify proper

speedometer operation.

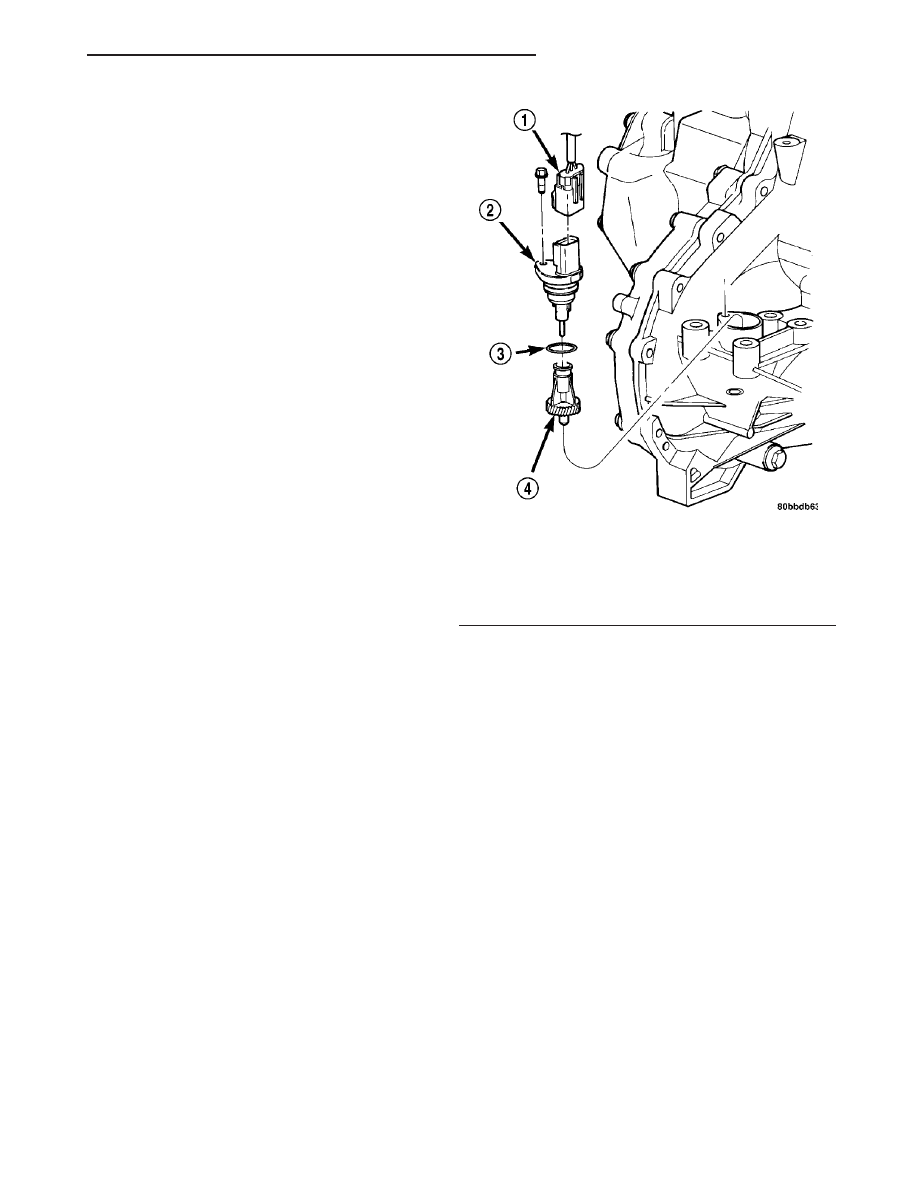

Fig. 171 Speed Sensor and Pinion—Removal/

Installation

1 - CONNECTOR
2 - SENSOR
3 - O-RING
4 - SPEEDO PINION

PT

T350 MANUAL TRANSAXLE

21 - 151

40TE AUTOMATIC TRANSAXLE

TABLE OF CONTENTS

page

page

40TE AUTOMATIC TRANSAXLE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 153

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 155

DIAGNOSIS AND TESTING

DIAGNOSIS AND TESTING - 4XTE

TRANSAXLE GENERAL DIAGNOSIS . . . . . . 155

DIAGNOSIS AND TESTING - ROAD TEST

. . 156

DIAGNOSIS AND TESTING - HYDRAULIC

PRESSURE TESTS . . . . . . . . . . . . . . . . . . . 156

DIAGNOSIS AND TESTING - CLUTCH AIR

PRESSURE TESTS . . . . . . . . . . . . . . . . . . . 159

DIAGNOSIS AND TESTING - TORQUE

CONVERTER HOUSING FLUID LEAKAGE . . 160

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . 163

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . 182

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 204

SCHEMATICS AND DIAGRAMS

4XTE TRANSAXLE HYDRAULIC

SCHEMATICS . . . . . . . . . . . . . . . . . . . . . . . 205

SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . . . . 217

SPECIAL TOOLS

. . . . . . . . . . . . . . . . . . . . . . . 219

ACCUMULATOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 225

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 225

DRIVING CLUTCHES

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 225

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 225

FINAL DRIVE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 226

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 226

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . 227

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . 232

ADJUSTMENTS

DIFFERENTIAL BEARING PRELOAD

MEASUREMENT AND ADJUSTMENT . . . . . . 236

FLUID

STANDARD PROCEDURE

FLUID LEVEL AND CONDITION CHECK

. . . 238

STANDARD PROCEDURE - FLUID AND

FILTER SERVICE . . . . . . . . . . . . . . . . . . . . . 239

GEAR SHIFT BEZEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 241

GEAR SHIFT CABLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 244

ADJUSTMENTS

GEARSHIFT CABLE

. . . . . . . . . . . . . . . . . . 244

GEAR SHIFT KNOB

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 245

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 246

GEARSHIFT MECHANISM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 246

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 247

HOLDING CLUTCHES

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 247

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 247

INPUT CLUTCH ASSEMBLY

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . 248

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . 257

OIL PUMP

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 272

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 272

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . 272

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . 274

PLANETARY GEARTRAIN

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 274

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 274

SEAL - OIL PUMP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 275

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 275

SHIFT INTERLOCK CABLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 275

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 277

SHIFT INTERLOCK MECHANISM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 279

SHIFT INTERLOCK SYSTEM

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 279

DIAGNOSIS AND TESTING - BRAKE/

TRANSMISSION SHIFT INTERLOCK
SYSTEM

. . . . . . . . . . . . . . . . . . . . . . . . . . . 279

ADJUSTMENTS

BRAKE/TRANSMISSION SHIFT INTERLOCK

SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . 280

SOLENOID/PRESSURE SWITCH ASSY

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 281

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 281

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 282

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 284

SPEED SENSOR - INPUT

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 284

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 285

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 286

SPEED SENSOR - OUTPUT

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 287

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 287

21 - 152

40TE AUTOMATIC TRANSAXLE

PT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 288

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 289

TORQUE CONVERTER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 289

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 293

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 294

TRANSMISSION CONTROL RELAY

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 295

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 295

TRANSMISSION RANGE SENSOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 296

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 296

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 297

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 300

VALVE BODY

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 301

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 301

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 302

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . 305

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . 309

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 314

40TE AUTOMATIC
TRANSAXLE

DESCRIPTION

The 40TE (Fig. 1) is a four-speed transaxle that is

a conventional hydraulic/mechanical assembly with
an integral differential, and is controlled with adap-
tive electronic controls and monitors. The hydraulic
system of the transaxle consists of the transaxle
fluid, fluid passages, hydraulic valves, and various
line pressure control components. An input clutch
assembly which houses the underdrive, overdrive,
and reverse clutches is used. It also utilizes separate
holding clutches: 2nd/4th gear and Low/Reverse. The
primary mechanical components of the transaxle con-
sist of the following:

• Three multiple disc input clutches

• Two multiple disc holding clutches

• Four hydraulic accumulators

• Two planetary gear sets

• Hydraulic oil pump

• Valve body

• Solenoid/Pressure switch assembly

• Integral differential assembly

Control of the transaxle is accomplished by fully

adaptive electronics. Optimum shift scheduling is
accomplished through continuous real-time sensor
feedback information provided to the Powertrain
Control Module (PCM) or Transmission Control Mod-
ule (TCM).

The PCM/TCM is the heart of the electronic control

system and relies on information from various direct
and indirect inputs (sensors, switches, etc.) to deter-
mine driver demand and vehicle operating condi-
tions. With this information, the PCM/TCM can
calculate and perform timely and quality shifts
through various output or control devices (solenoid
pack, transmission control relay, etc.).

The PCM/TCM also performs certain self-diagnos-

tic functions and provides comprehensive information
(sensor data, DTC’s, etc.) which is helpful in proper
diagnosis and repair. This information can be viewed
with the DRB scan tool.

PT

40TE AUTOMATIC TRANSAXLE

21 - 153
