INSTALLATION

(1) Clean all sealing surfaces.
(2) Replace timing cover seals (Fig. 111).

(3) Apply a 3.2 mm (0.125 in.) bead of Mopar

t

Engine RTV GEN II at the parting line of the engine
block/bedplate as shown in (Fig. 112).

(4) Prime oil pump before installation by filling

rotor cavity with engine oil.

(5) Align oil pump rotor flats with flats on crank-

shaft as you install the timing cover to the block.
Hand start all fasteners. Torque fasteners in the
sequence shown in (Fig. 113) to 12 N·m (105 in. lbs.).

(6) Install the power steering/water pump. Tighten

bolts to 28 N·m (250 in. lbs.).

(7) Install air conditioning compressor. Tighten

bolts to 28 N·m (250 in. lbs.).

(8) Install the accessory drive belt idler pulley

(Refer to 7 - COOLING/ACCESSORY DRIVE/IDLER
PULLEY - INSTALLATION).

(9) Install the accessory drive belt tensioner (Refer

to 7 - COOLING/ACCESSORY DRIVE/BELT TEN-
SIONERS - INSTALLATION).

(10) Install the crankshaft vibration damper (Refer

to

9

-

ENGINE/ENGINE

BLOCK/VIBRATION

DAMPER - INSTALLATION).

(11) Install the accessory drive belt (Refer to 7 -

COOLING/ACCESSORY

DRIVE/DRIVE

BELTS

-

INSTALLATION).

(12) Install the accessory drive belt splash shield.
(13) Install the right front wheel.
(14) Lower vehicle.
(15) Install the radiator cooling fan (Refer to 7 -

COOLING/ENGINE/RADIATOR FAN - INSTALLA-
TION).

(16) Connect upper radiator hose.
(17) Install the power steering reservoir bracket

bolts.

(18) Connect the negative battery cable.
(19) Fill the cooling system (Refer to 7 - COOL-

ING/ENGINE - STANDARD PROCEDURE).

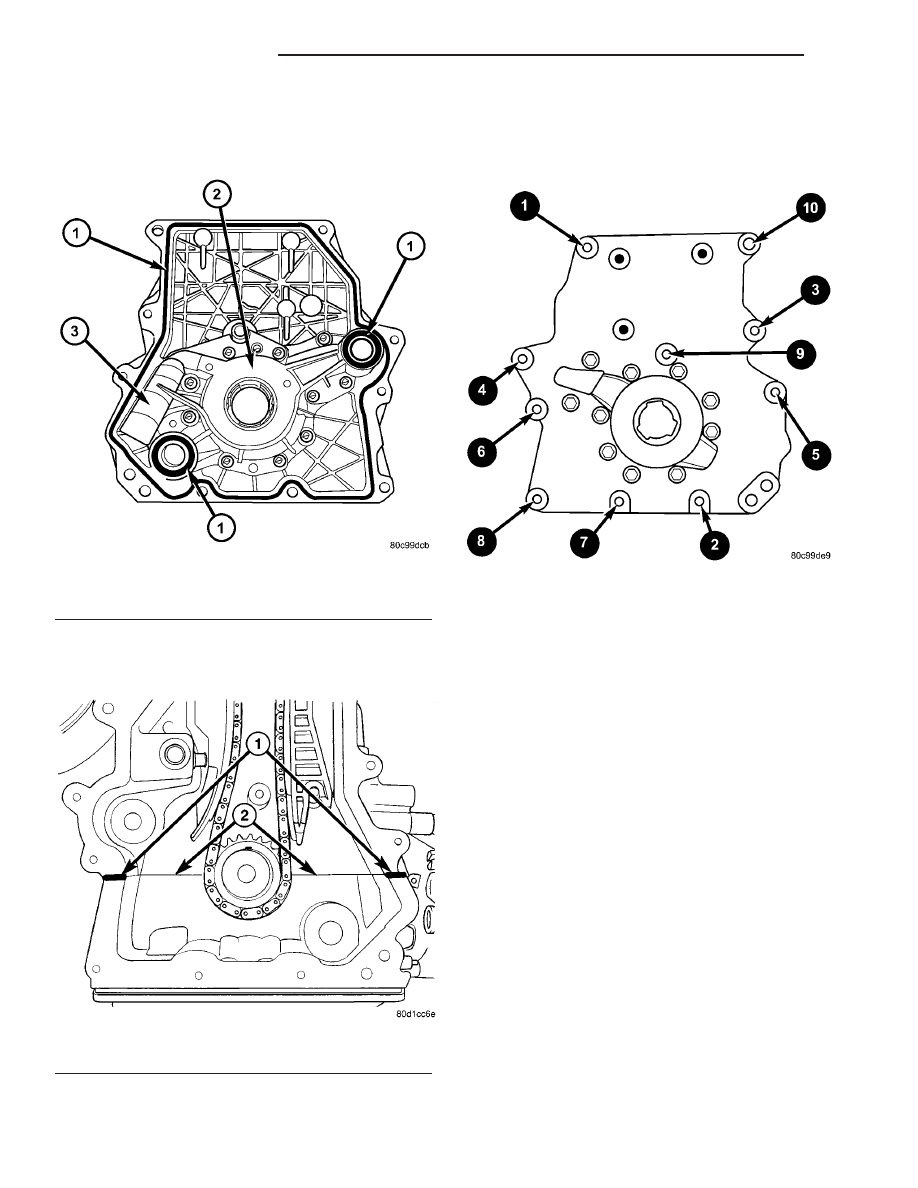

Fig. 111 Timing Chain Cover Seals

1 - TIMING CHAIN COVER SEALS
2 - OIL PUMP
3 - PRESSURE RELIEF VALVE

Fig. 112 Timing Chain Cover Sealing - RTV Location

1 - 3.2 mm (0.125 in.) BEAD OF RTV AT PARTING LINE
2 - PARTING LINE OF ENGINE BLOCK/BEDPLATE

Fig. 113 Timing Chain Cover Tightening Sequence

9 - 68

ENGINE 1.6L SOHC

PT

TIMING CHAIN COVER (Continued)

TIMING CHAIN/GUIDES/
SPROCKETS

REMOVAL

TIMING CHAIN AND GUIDES

(1) Disconnect negative battery cable.
(2) Remove cylinder head cover (Refer to 9 -

ENGINE/CYLINDER

HEAD/CYLINDER

HEAD

COVER(S) - REMOVAL).

(3) Remove camshaft position sensor.
(4) Remove timing chain cover (Refer to 9 -

ENGINE/VALVE TIMING/TIMING CHAIN COVER -
REMOVAL).

(5) Rotate crankshaft until number one cylinder is

at TDC on compression stroke.

(6) Using Special Tool 8435 to hold camshaft

sprocket, remove camshaft sprocket bolt (Fig. 114).

(7) Remove the timing chain tensioner plug from

engine block. Remove oil reservoir cap and timing
chain tensioner (Fig. 115).

(8) Remove right engine mount bracket (Refer to 9

- ENGINE/ENGINE MOUNTING/ENGINE MOUNT
BRACKET - REMOVAL).

(9) Remove camshaft sprocket from camshaft. Par-

tially lower camshaft sprocket to allow timing chain
to be removed from camshaft sprocket.

(10) Remove cylinder head plugs. Remove fasten-

ers holding timing chain guides to cylinder head.
Remove timing chain guides (Fig. 116).

(11) Remove timing chain (Fig. 121).

CAMSHAFT SPROCKET

(1) Disconnect negative battery cable.
(2) Remove cylinder head cover (Refer to 9 -

ENGINE/CYLINDER

HEAD/CYLINDER

HEAD

COVER(S) - REMOVAL).

(3) Disconnect and remove the camshaft position

sensor.

(4) Rotate crankshaft until triangular timing mark

on camshaft sprocket is at the 12 o’clock position.

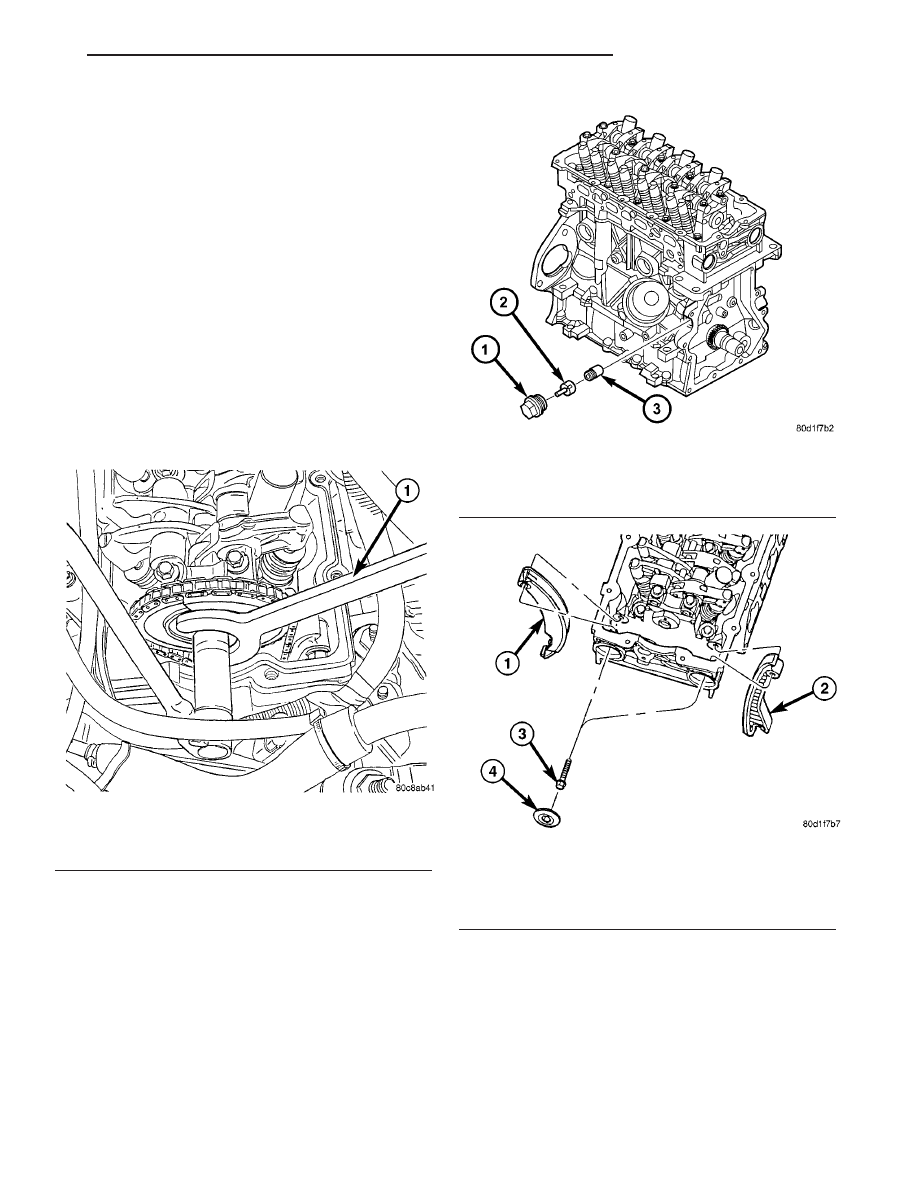

Fig. 114 Special Tool 8435 - Camshaft Sprocket

Holding Wrench

1 - SPECIAL TOOL 8435

Fig. 115 Timing Chain Tensioner

1 - PLUG WITH SEAL RING
2 - OIL RESERVOIR CAP
3 - TIMING CHAIN TENSIONER

Fig. 116 Timing Chain Guide Mounting

1 - RIGHT TIMING CHAIN GUIDE (MOVABLE)
2 - LEFT TIMING CHAIN GUIDE (FIXED)
3 - FASTENER(S)
4 - CYLINDER HEAD PLUG(S)

PT

ENGINE 1.6L SOHC

9 - 69

(5) For reassembly purposes, paint the timing

chain link that lines up with camshaft timing mark
(Fig. 117).

(6) Using Special Tool 8435 to hold camshaft

sprocket, remove camshaft sprocket bolt (Fig. 114).

(7) Remove the timing chain tensioner plug from

engine block. Remove oil reservoir cap and timing
chain tensioner (Fig. 115).

(8) Remove camshaft sprocket from camshaft. Par-

tially lower camshaft sprocket to allow timing chain
to be removed from camshaft sprocket.

CRANKSHAFT SPROCKET

(1) Remove timing chain (Refer to 9 - ENGINE/

VALVE TIMING/TIMING CHAIN - REMOVAL).

(2) Remove crankshaft sprocket by first installing

crankshaft vibration damper bolt. Apply grease or
equivalent to damper bolt head and position Special
Tools 5048-1, 5048-6, and 8539 on sprocket and
crankshaft nose (Fig. 118).

(3) Remove sprocket using care not to rotate the

crankshaft.

INSTALLATION

CRANKSHAFT SPROCKET

(1) Install crankshaft sprocket using Special Tools

8385 and 8386 (Fig. 119).

(2) Install sprocket using care not to rotate the

crankshaft.

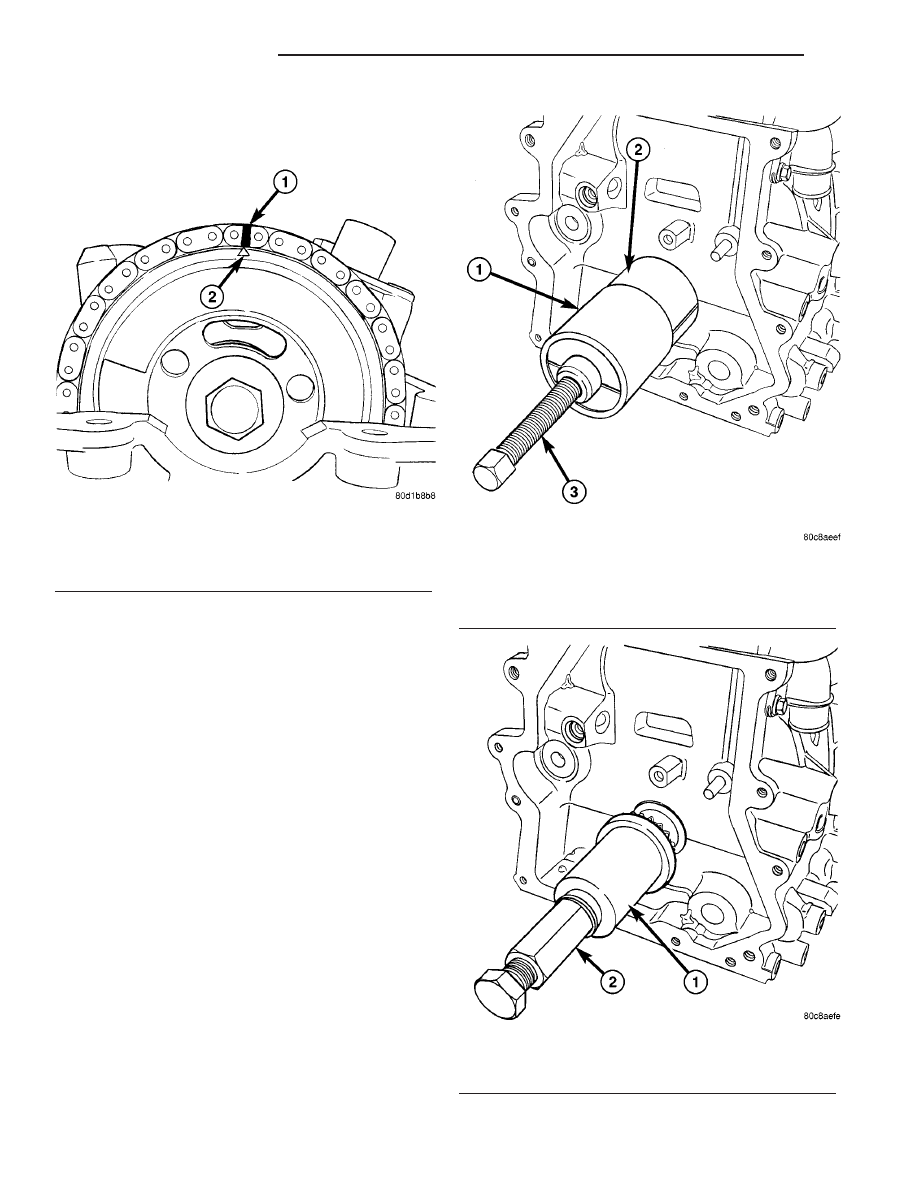

Fig. 117 Identify Timing Chain Link for Reassembly

Purposes

1 - PAINT THE LINK THAT ALIGNS WITH TIMING MARK
2 - CAMSHAFT SPROCKET TIMING MARK

Fig. 118 Crankshaft Sprocket Removal

1 - SPECIAL TOOL 5048-6
2 - SPECIAL TOOL 8539
3 - SPECIAL TOOL 5048-1

Fig. 119 Crankshaft Sprocket Installation

1 - SPECIAL TOOL 8386
2 - SPECIAL TOOL 8385

9 - 70

ENGINE 1.6L SOHC

PT

TIMING CHAIN/GUIDES/SPROCKETS (Continued)

CAMSHAFT SPROCKET

(1) Align triangular timing mark on cam sprocket

with the timing chain link that was painted during
disassembly. Install timing chain on cam sprocket
(Fig. 117).

(2) Install camshaft sprocket on the camshaft.

CAUTION: Do Not use an impact wrench for tight-
ening the camshaft sprocket bolt. Damage to the
camshaft timing pin can result. Use a hand wrench
only.

(3) Install camshaft sprocket bolt. While holding

the camshaft sprocket with Special Tool 8435, torque
bolt to 115 N·m (85 ft. lbs.) (Fig. 114).

(4) Reset the timing chain tensioner using the fol-

lowing method:

(a) Remove oil reservoir cap from timing chain

tensioner (Fig. 122).

(b) Place tensioner on a clean flat surface.
(c) Place your palm against the tensioner and

press down on the tensioner with continuous pres-
sure until the fully extended tensioner bottoms out
(Fig. 123).

(d) Install oil reservoir cap onto timing chain

tensioner (Fig. 122).
(5) Install timing chain tensioner with oil reservoir

cap into engine block (Fig. 115).

(6) Install timing chain tensioner plug with seal

ring. Torque plug to 62 N·m (46 ft. lbs.).

CAUTION: Do not pry directly on chain. Damage to
timing chain may occur.

(7) Using a long thin screwdriver, pry in on the

right (movable) timing chain guide until the timing
chain tensioner rachets out to tension the chain (Fig.
120).

NOTE: Ensure the timing chain is properly posi-
tioned within the channel of the timing chain
guides.

(8) Install cylinder head cover (Refer to 9 -

ENGINE/CYLINDER

HEAD/CYLINDER

HEAD

COVER(S) - INSTALLATION).

(9) Install camshaft position sensor. Torque fas-

tener to 10 N·m (85 in. lbs.). Reconnect connector.

(10) Connect negative battery cable.

TIMING CHAIN AND GUIDES

(1) Install the left timing chain guide. Torque fas-

tener to 28 N·m ( 250 in. lbs.) (Fig. 116).

(2) Install the right timing chain guide. Torque

fastener to 28 N·m ( 250 in. lbs.) (Fig. 116).

NOTE: When installing the timing chain, ensure the
plated links on the timing chain are aligned with the
timing marks on the crankshaft and camshaft
sprockets. If a timing chain is being re-used, and
the plating is wore off the chain, the links also have
machined dimples (Fig. 121).

(3) Feed the timing chain through the opening in

the top of the cylinder head.

(4) Install the timing chain around the crankshaft

sprocket, aligning the two plated links with the
crankshaft sprocket timing marks (Fig. 121).

(5) Install the timing chain around the camshaft

sprocket, aligning the single plated link with the
camshaft sprocket timing mark (Fig. 121).

(6) Install the camshaft sprocket on the camshaft.

CAUTION: DO NOT use an impact wrench (or any
other air operated tool) for tightening the camshaft
sprocket bolt. Damage to the camshaft timing pin
can result. ONLY use a hand wrench while holding
camshaft sprocket with Special Tool.

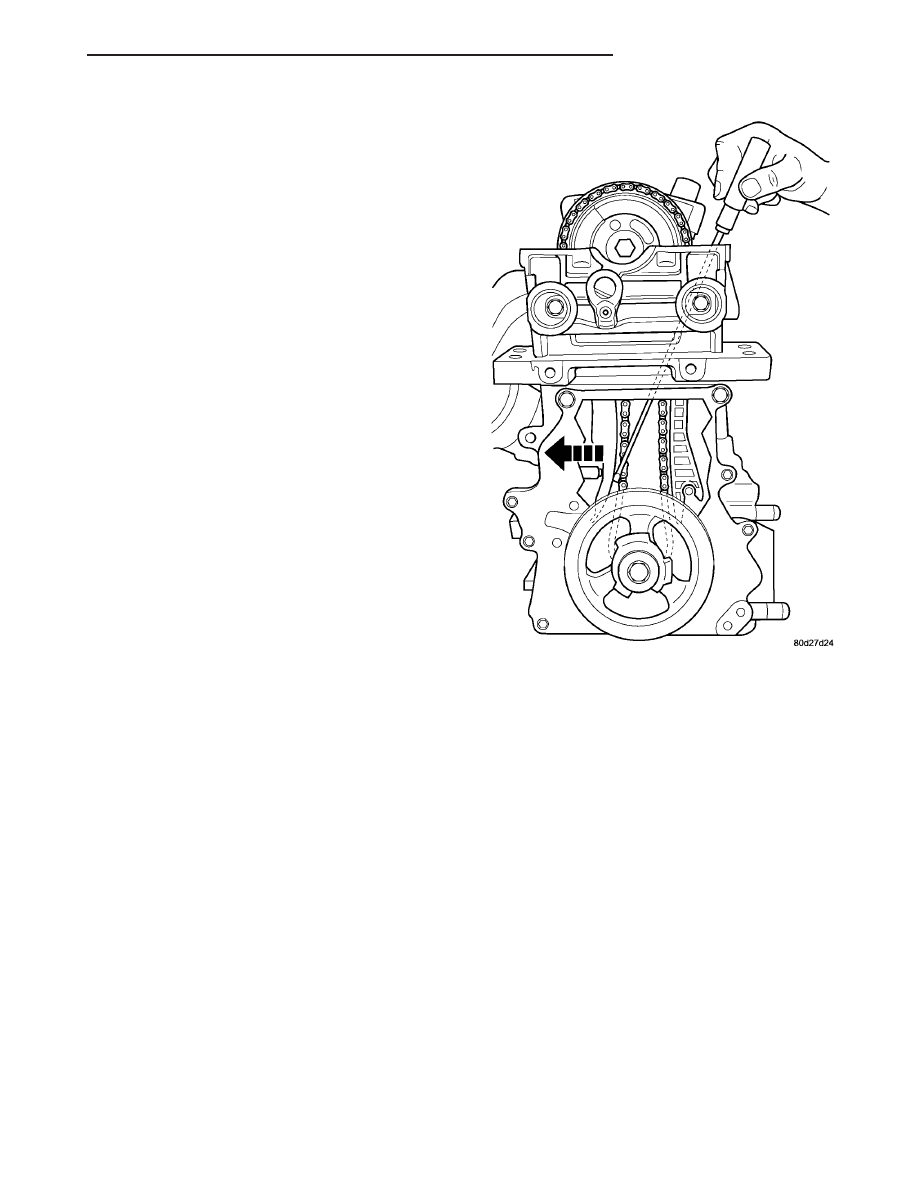

Fig. 120 Timing Chain Tensioner Activation

PT

ENGINE 1.6L SOHC

9 - 71

TIMING CHAIN/GUIDES/SPROCKETS (Continued)
