DISASSEMBLY

(1) Remove the three hex drive bolts and washers

that attach the power steering pump to the water
pump (Fig. 27).

(2) Use the following steps to access the water

pump impeller hex.

(a) Place a

1

4

inch drive 10 mm socket in

through the coolant inlet tube, then back it into
the heater hose fitting area as shown (Fig. 30).
Backing the socket into the heater hose fitting
makes it easier to perform the following step.

(b) Holding the socket in this position, insert a

1

4

inch drive extension (6 inches in length or

longer) in through the heater hose fitting into the
rear of the 10 mm socket.

(c) Push the socket with the extension into the

pump placing the socket on the hex built into the
center of the water pump impeller.
(3) While holding the power steering pump shaft

from turning using a hex wrench in the pulley end of
the shaft, loosen the impeller by rotating the

1

4

inch

drive extension counterclockwise using a ratchet. The

water pump will rise off of the power steering pump
as the impeller is rotated.

(4) Once

the

threads

have

been

disengaged,

remove the entire water pump assembly from the
power steering pump. If the water pump will be
used again, the 10 mm socket and extension can
be left inside the water pump until reassembly
is completed.

(5) If the water pump inlet cover needs to be

removed, remove the seven fasteners around the
perimeter of the pump and remove the cover. Discard
the housing O-ring type seal.

(6) If the power steering pump pulley needs to be

removed, (Refer to 19 - STEERING/PUMP - DISAS-
SEMBLY).

NOTE: For reassembly, (Refer to 7 - COOLING/EN-
GINE/WATER PUMP - ASSEMBLY).

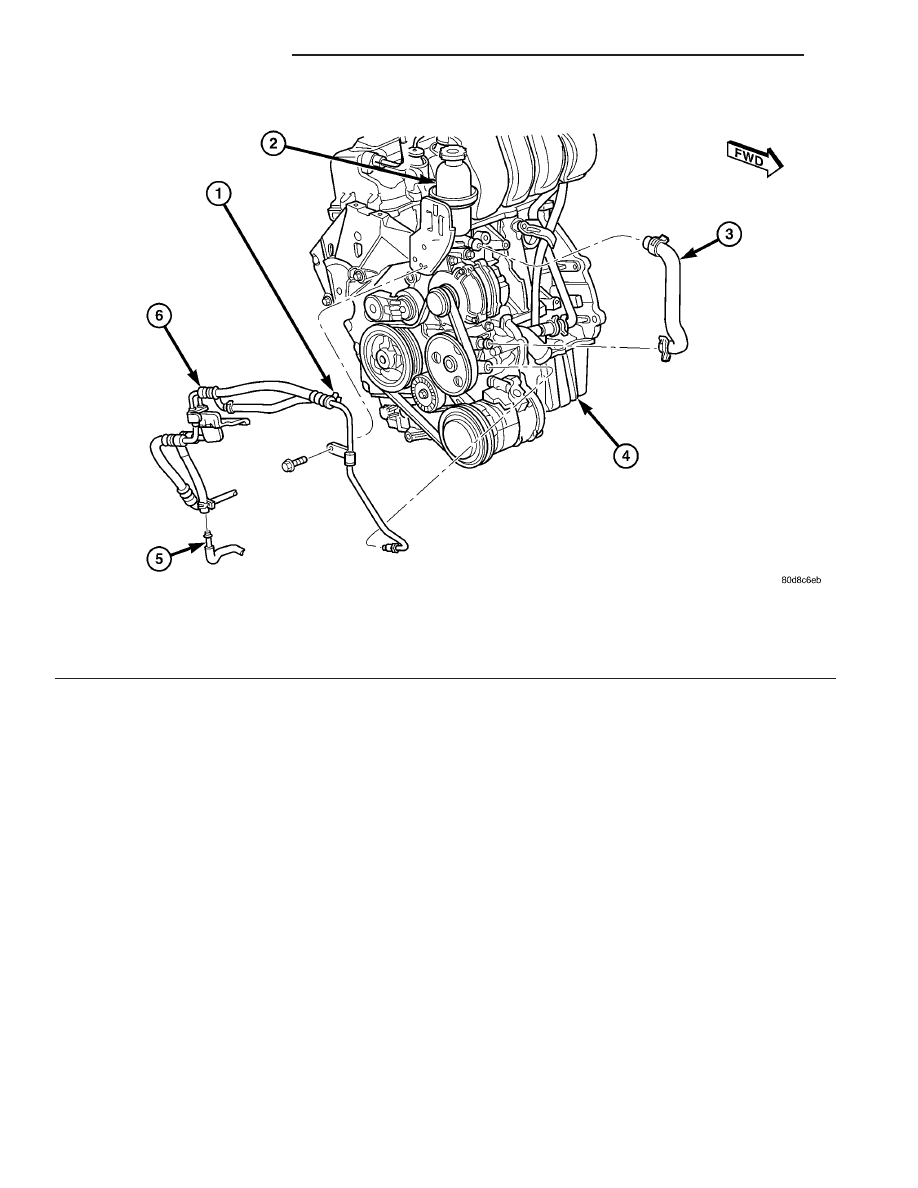

Fig. 28 Hoses, Reservoir And Pump - 1.6L Engine

1 - RETURN HOSE
2 - FLUID RESERVOIR
3 - SUPPLY HOSE

4 - 1.6L ENGINE
5 - COOLER OUTLET TUBE
6 - PRESSURE HOSE

7 - 30

ENGINE - 1.6L SOHC

PT

WATER PUMP/POWER STEERING PUMP ASSEMBLY (Continued)

ASSEMBLY

(1) If the water pump inlet cover needs to be

installed on the water pump:

(a) First apply Mopar

t Dielectric Grease or

equivalent to a NEW water pump O-ring seal.

(b) Place the O-ring seal in the housing groove

where the cover contacts the housing.

(c) Install the seven fasteners around the perim-

eter of the pump. Tighten them to 12 N·m (105 in.
lbs.) torque.
(2) If a pulley needs to be installed on the power

steering pump, (Refer to 19 - STEERING/PUMP -
ASSEMBLY).

(3) Place the water pump assembly onto the power

steering pump shaft.

(4) Rotate the water pump so the water pump out-

let is near the water pump upper mounting holes
(hole with dowel guide). Arrange the three pump fas-
tener holes so they line up.

(5) If the water pump impeller hex has not been

accessed with a socket, use the following steps to
access the water pump impeller hex.

(a) Place a

1

4

inch drive 10 mm socket in

through the coolant inlet tube, then back it into
the heater hose fitting area as shown (Fig. 30).

(b) Holding the socket in this position, insert a

1

4

inch drive extension (6 inches in length or

longer) in through the heater hose fitting into the
rear of the 10 mm socket.

(c) Push the socket with the extension into the

pump placing the socket on the hex built into the
center of the water pump impeller.
(6) While holding the power steering pump shaft

from turning using a hex wrench in the pulley end of
the shaft, tighten the water pump impeller rotating
the

1

4

inch drive extension clockwise using a ratchet.

This will draw the water pump in toward the power
steering pump. Tighten the impeller to 26 N·m (19 ft.
lbs.) torque.

(7) Remove the 10 mm socket,

1

4

inch extension

and ratchet from the water pump. Remove the hex
wrench.

(8) Align the three pump fastener holes and install

the three hex drive bolts with washers (Fig. 27).
Tighten the bolts to 26 N·m (19 ft. lbs.) torque.

(9) Install assembly on the vehicle. (Refer to 7 -

COOLING/ENGINE/WATER PUMP - INSTALLA-
TION)

INSTALLATION

NOTE: Water pump and power steering pump must
be attached to one another before installation in
vehicle. For proper procedure, (Refer to 7 - COOL-
ING/ENGINE/WATER PUMP - ASSEMBLY).

(1) Install

water

pump/power

steering

pump

assembly into engine compartment in reverse of how
it was removed.

(2) Install all four power steering pump mounting

bolts (Fig. 29). Tighten bolts to 28 N·m (21 ft. lbs.)
torque.

(3) Install coolant outlet connector hose at water

pump outlet. Install clamp.

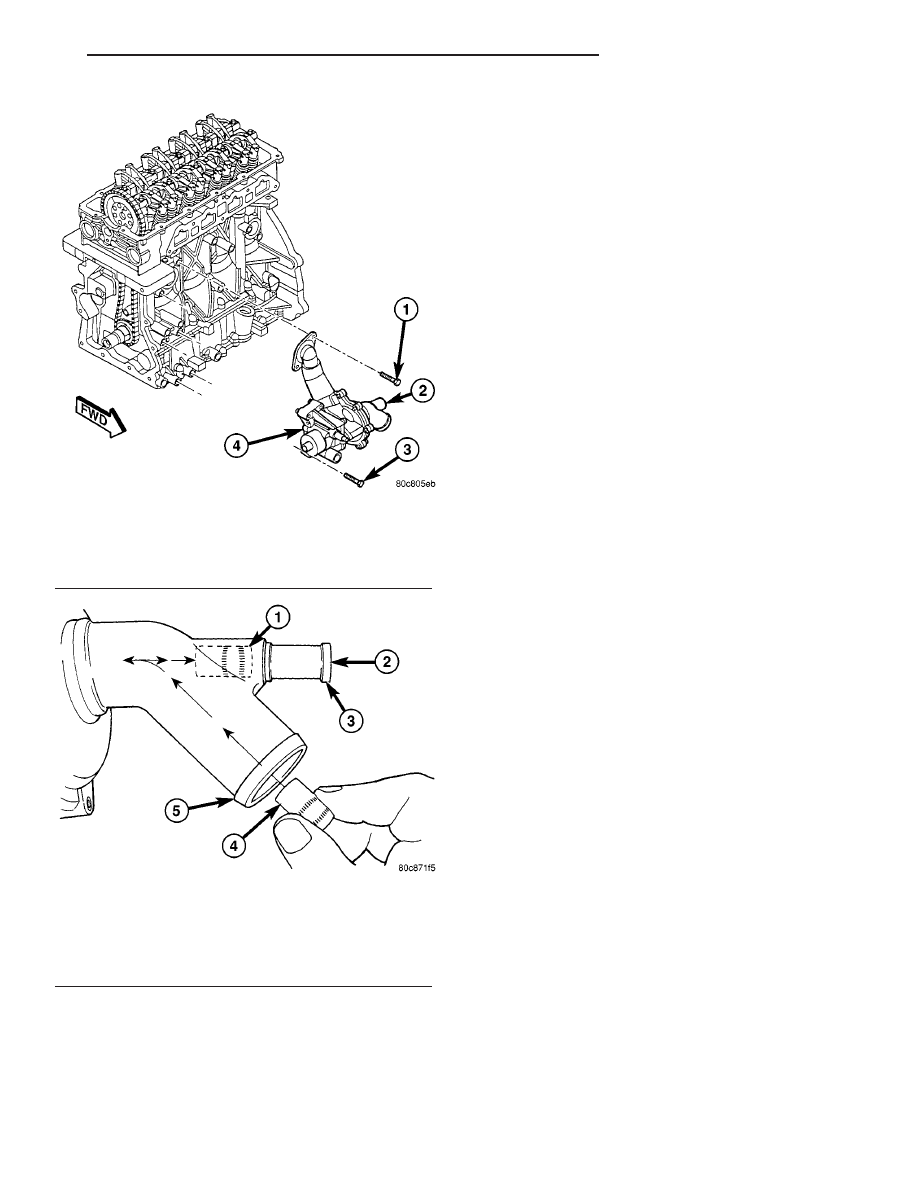

Fig. 29 Water Pump/Power Steering Pump Assembly

1 - OUTLET HOSE CONNECTOR FITTING BOLT (2)
2 - WATER PUMP
3 - POWER STEERING PUMP MOUNTING BOLT (4)
4 - POWER STEERING PUMP

Fig. 30 Inserting Socket into Pump Inlet

1 - SOCKET LOCATION ONCE PLACED INSIDE COOLANT INLET
2 - INSERT EXTENSION THROUGH HERE INTO SOCKET
3 - HEATER HOSE FITTING
4 - 10 MM SOCKET (

1

4

INCH DRIVE)

5 - COOLANT INLET

PT

ENGINE - 1.6L SOHC

7 - 31

WATER PUMP/POWER STEERING PUMP ASSEMBLY (Continued)

(4) Using a lint free towel, wipe clean the open

power steering hose end and the power steering
pump port. Replace the used O-ring with new. Lubri-
cate the O-ring with power steering fluid.

(5) Attach the power steering fluid pressure hose

to the pump outlet port (Fig. 28). Do not tighten the
tube nut at this time.

(6) Install the bolt fastening the power steering

pressure hose to the reservoir bracket (Fig. 28).

(7) Tighten power steering pressure hose tube nut

at power steering pump to 28 N·m (21 ft. lbs.) torque.

(8) Raise vehicle.
(9) Install heater tube hose at water pump fitting.

Install clamp.

(10) Install radiator hose at inlet to water pump.

Install clamp.

(11) If equipped with air conditioning:

(a) Position A/C

compressor,

align

mounting

holes and install, but do not fully tighten, A/C com-
pressor lower and upper mounting bolts.

(b) Lower vehicle.
(c) Tighten A/C

compressor

upper

mounting

bolts to 28 N·m (21 ft. lbs.) torque.

(d) Raise vehicle.
(e) Tighten A/C compressor lower mounting bolts

to 28 N·m (21 ft. lbs.) torque.
(12) Install drive belt splash shield.
(13) Lower vehicle.
(14) Install generator (Refer to 8 - ELECTRICAL/

CHARGING/GENERATOR - INSTALLATION).

(15) Install power steering fluid reservoir. (Refer to

19 - STEERING/PUMP/RESERVOIR - INSTALLA-
TION)

(16) Install accessory drive belt (Refer to 7 -

COOLING/ACCESSORY

DRIVE/DRIVE

BELT

-

INSTALLATION).

(17) Connect battery negative (-) terminal.
(18) Fill cooling system (Refer to 7 - COOLING -

STANDARD PROCEDURE - FILLING COOLING
SYSTEM).

(19) Perform POWER STEERING PUMP INITIAL

OPERATION procedure. (Refer to 19 - STEERING/
PUMP - STANDARD PROCEDURE)

(20) Check for leaks at all hose connections.

7 - 32

ENGINE - 1.6L SOHC

PT

WATER PUMP/POWER STEERING PUMP ASSEMBLY (Continued)
