Chrysler PT Cruiser. Manual - part 412





CAUTION: Seal must not be dimpled, stretched, or
out–of–shape in any way. If seal is NOT shaped cor-
rectly, equalize pressure in seal and shape it by
hand.

(8) Position outer C/V joint sealing boot into its

retaining groove on outer C/V joint housing. Install
sealing boot to outer C/V joint retaining clamp evenly
on sealing boot.

(9) Clamp sealing boot onto outer C/V joint hous-

ing using Crimper, Special Tool C-4975-A and the fol-

lowing procedure. Place crimping tool C-4975-A over
bridge of clamp (Fig. 58). Tighten nut on crimping
tool C-4975-A until jaws on tool are closed completely
together, face to face (Fig. 59).

(10) Install the halfshaft requiring boot replace-

ment back on the vehicle. (Refer to 3 - DIFFEREN-
TIAL

&

DRIVELINE/HALF

SHAFT

-

INSTALLATION)

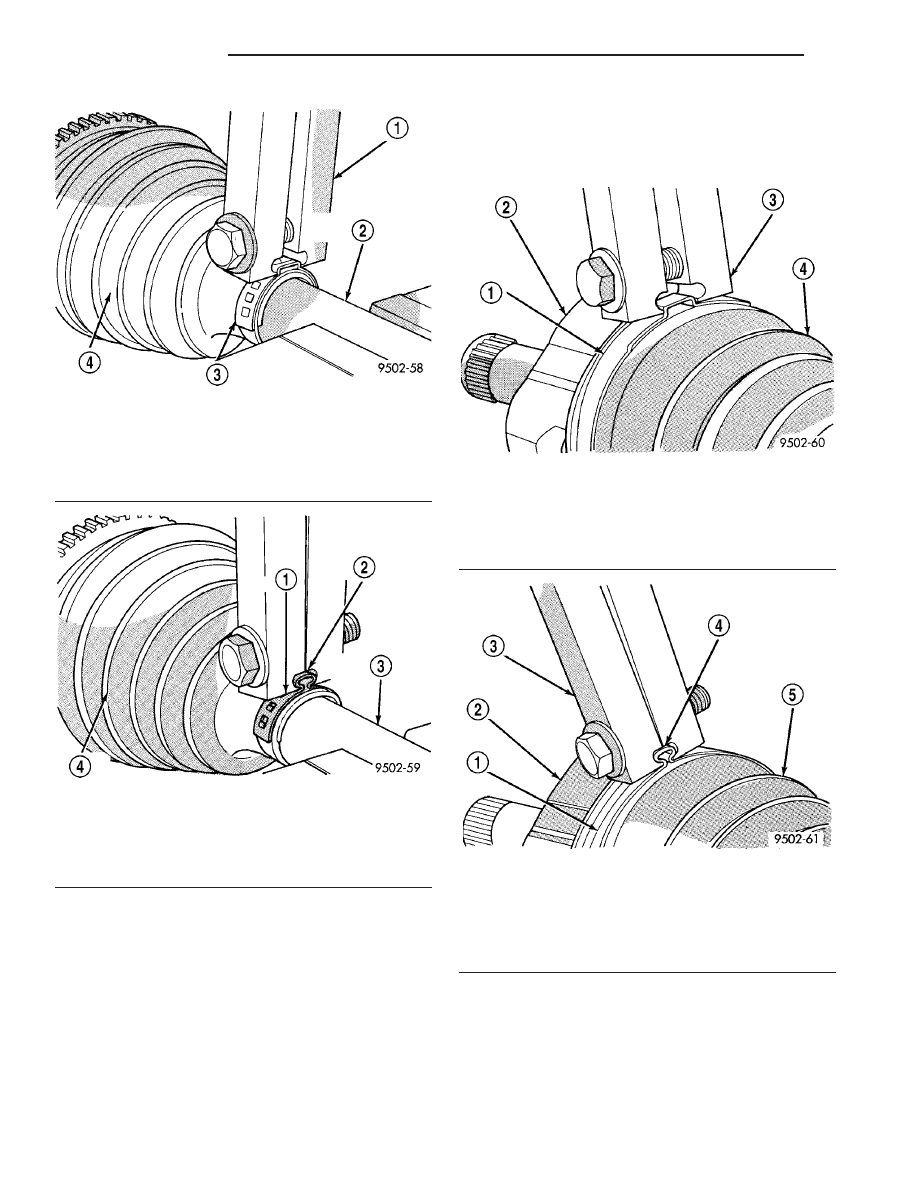

Fig. 56 Crimping Tool Installed on Sealing Boot

Clamp

1 - SPECIAL TOOL C-4975A
2 - INTERCONNECTING SHAFT
3 - CLAMP
4 - SEALING BOOT

Fig. 57 Sealing Boot Retaining Clamp Installed

1 - CLAMP
2 - JAWS OF SPECIAL TOOL C-4975A MUST BE CLOSED
COMPLETELY TOGETHER HERE
3 - INTERCONNECTING SHAFT
4 - SEALING BOOT

Fig. 58 Crimping Tool Installed on Sealing Boot

Clamp

1 - CLAMP
2 - TRIPOD JOINT HOUSING
3 - SPECIAL TOOL C-4975A
4 - SEALING BOOT

Fig. 59 Sealing Boot Retaining Clamp Installed

1 - CLAMP
2 - TRIPOD HOUSING
3 - SPECIAL TOOL C-4975A
4 - JAWS OF SPECIAL TOOL C-4975A MUST BE CLOSED
COMPLETELY TOGETHER HERE
5 - SEALING BOOT

3 - 22

HALF SHAFT

PT

CV BOOT - OUTER (Continued)

BRAKES

TABLE OF CONTENTS

page

page

BRAKES - BASE . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

BRAKES - ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

BRAKES - BASE

TABLE OF CONTENTS

page

page

BRAKES - BASE

DESCRIPTION - BASE BRAKE SYSTEM

. . . . . . 3

OPERATION - BASE BRAKE SYSTEM

. . . . . . . . 3

WARNING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

CAUTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

DIAGNOSIS AND TESTING - BASE BRAKE

SYSTEM DIAGNOSIS CHARTS

. . . . . . . . . . . . 4

STANDARD PROCEDURE - BASE BRAKE

BLEEDING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

SPECIFICATIONS

BRAKE ACTUATION SYSTEM

. . . . . . . . . . . . . 8

BRAKE FASTENER TORQUE

. . . . . . . . . . . . . 9

SPECIAL TOOLS

BASE BRAKE SYSTEM

. . . . . . . . . . . . . . . . . 10

BRAKE FLUID LEVEL SWITCH

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 11

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 12

HYDRAULIC/MECHANICAL

DESCRIPTION

DESCRIPTION - DISC BRAKES (FRONT)

. . . 12

DESCRIPTION - DISC BRAKES (REAR)

. . . . 14

DESCRIPTION - DRUM BRAKES (REAR)

. . . 15

DIAGNOSIS AND TESTING - DRUM BRAKE

AUTOMATIC ADJUSTER

. . . . . . . . . . . . . . . . 16

BRAKE LINES

DESCRIPTION - BRAKE TUBES AND HOSES

. 16

OPERATION - BRAKE TUBES AND HOSES

. . . 16

INSPECTION - BRAKE TUBES AND HOSES

. . . 16

BRAKE PADS/SHOES - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

CLEANING - DISC BRAKE SHOES

. . . . . . . . . . 17

INSPECTION - DISC BRAKE SHOES

. . . . . . . . 17

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 18

BRAKE PADS/SHOES - REAR DISC

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

CLEANING - DISC BRAKE SHOES

. . . . . . . . . . 20

INSPECTION - DISC BRAKE SHOES

. . . . . . . . 20

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 20

BRAKE PADS/SHOES - REAR DRUM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

CLEANING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 22

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 23

ADJUSTMENTS

ADJUSTMENT - DRUM BRAKE SHOES

. . . . 24

DISC BRAKE CALIPER - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . 25

CLEANING - DISC BRAKE CALIPER

. . . . . . . . . 26

INSPECTION - DISC BRAKE CALIPER

. . . . . . . 26

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 27

DISC BRAKE CALIPER - REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

DISASSEMBLY

DISASSEMBLY - DISC BRAKE CALIPER

(GUIDE PIN BUSHINGS) . . . . . . . . . . . . . . . . 29

DISASSEMBLY - DISC BRAKE CALIPER

(PISTON AND SEAL) . . . . . . . . . . . . . . . . . . . 29

CLEANING - DISC BRAKE CALIPER

. . . . . . . . . 31

INSPECTION - DISC BRAKE CALIPER

. . . . . . . 31

ASSEMBLY

ASSEMBLY - DISC BRAKE CALIPER (GUIDE

PIN BUSHINGS) . . . . . . . . . . . . . . . . . . . . . . 31

ASSEMBLY - DISC BRAKE CALIPER

(PISTON AND SEAL) . . . . . . . . . . . . . . . . . . . 32

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 33

DISC BRAKE CALIPER ADAPTER - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 35

DISC BRAKE CALIPER GUIDE PINS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 35

PT

BRAKES

5 - 1

DRUM

DIAGNOSIS AND TESTING - BRAKE DRUM

. . . 36

STANDARD PROCEDURE - BRAKE DRUM

MACHINING

. . . . . . . . . . . . . . . . . . . . . . . . . . 36

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 37

FLUID

DIAGNOSIS AND TESTING - BRAKE FLUID

CONTAMINATION

. . . . . . . . . . . . . . . . . . . . . 38

STANDARD PROCEDURE - BRAKE FLUID

LEVEL CHECKING

. . . . . . . . . . . . . . . . . . . . . 38

SPECIFICATIONS

BRAKE FLUID

. . . . . . . . . . . . . . . . . . . . . . . . 38

FLUID RESERVOIR

REMOVAL - BOSCH

. . . . . . . . . . . . . . . . . . . . . 39

INSTALLATION - BOSCH

. . . . . . . . . . . . . . . . . 39

MASTER CYLINDER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 39

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 40

STANDARD PROCEDURE - MASTER

CYLINDER BLEEDING

. . . . . . . . . . . . . . . . . . 40

REMOVAL

REMOVAL - LHD WITH ABS

. . . . . . . . . . . . . 42

REMOVAL - LHD WITHOUT ABS

. . . . . . . . . . 43

REMOVAL - RHD

. . . . . . . . . . . . . . . . . . . . . . 45

DISASSEMBLY - CONTINENTAL TEVES

MASTER CYLINDER

. . . . . . . . . . . . . . . . . . . 46

ASSEMBLY - CONTINENTAL TEVES MASTER

CYLINDER

. . . . . . . . . . . . . . . . . . . . . . . . . . . 47

INSTALLATION

INSTALLATION - LHD WITH ABS

. . . . . . . . . . 47

INSTALLATION - LHD WITHOUT ABS

. . . . . . 49

INSTALLATION - RHD

. . . . . . . . . . . . . . . . . . 50

PEDAL - WITH AUTOMATIC TRANSAXLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 52

PEDAL - WITH MANUAL TRANSAXLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 53

POWER BRAKE BOOSTER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 54

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 54

DIAGNOSIS AND TESTING - POWER BRAKE

BOOSTER

. . . . . . . . . . . . . . . . . . . . . . . . . . . 55

REMOVAL

REMOVAL - LHD

. . . . . . . . . . . . . . . . . . . . . . 56

REMOVAL - RHD

. . . . . . . . . . . . . . . . . . . . . . 56

INSTALLATION

INSTALLATION - LHD

. . . . . . . . . . . . . . . . . . 57

INSTALLATION - RHD

. . . . . . . . . . . . . . . . . . 57

PROPORTIONING VALVE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 58

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 58

DIAGNOSIS AND TESTING -

PROPORTIONING VALVE

. . . . . . . . . . . . . . . 58

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 60

ROTOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 61

DIAGNOSIS AND TESTING - BRAKE ROTOR

. . 61

STANDARD PROCEDURE - BRAKE ROTOR

MACHINING

. . . . . . . . . . . . . . . . . . . . . . . . . . 64

REMOVAL

REMOVAL - FRONT BRAKE ROTOR

. . . . . . . 65

REMOVAL - REAR BRAKE ROTOR

. . . . . . . . 65

INSTALLATION

INSTALLATION - FRONT BRAKE ROTOR

. . . 65

INSTALLATION - REAR BRAKE ROTOR

. . . . 65

SPECIFICATIONS

BRAKE ROTOR LIMITS/SPECIFICATIONS

. . . 66

SUPPORT PLATE - DRUM BRAKES

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 68

WHEEL CYLINDER - DRUM BRAKE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 68

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 69

PARKING BRAKE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 69

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 69

STANDARD PROCEDURE - PARKING BRAKE

AUTOMATIC ADJUSTER LOCKOUT

. . . . . . . . 70

CABLE - PARKING BRAKE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 75

LEVER - PARKING BRAKE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 77

SHOES - PARKING BRAKE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 78

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . . 80

5 - 2

BRAKES - BASE

PT

BRAKES - BASE

DESCRIPTION - BASE BRAKE SYSTEM

The base brake system consists of the following

components:

• Brake pedal

• Brake lamp switch

• Power brake booster

• Master cylinder

• Proportioning valves (2) (non-ABS vehicles only)

• Brake tubes and hoses

• Disc brakes (front)

• Disc brakes (rear) (optional)

• Drum brakes (rear)

• Parking brake
The hydraulic brake system is diagonally split on

both the non-antilock and antilock braking systems.
This means the left front and right rear brakes are
on one hydraulic circuit and the right front and left
rear are on the other.

Front disc brakes control the braking of the front

wheels; rear braking is controlled by rear drum
brakes as standard equipment. Rear disc brakes and
antilock brakes with or without traction control are
optional.

Vehicles equipped with the optional antilock brake

system (ABS) use a system that shares most base
brake hardware used on vehicles without ABS. For
more information on ABS (Refer to 5 - BRAKES -
ABS - DESCRIPTION).

The parking brake system consists of a hand-oper-

ated lever mounted between the front seats, two
parking brake cables and parking brake shoes at
each rear wheel. Only vehicles with rear disc brakes
receive separate parking brake shoes. Vehicles with
rear drum brakes utilize the service brakes as the
parking brake shoes.

OPERATION - BASE BRAKE SYSTEM

When a vehicle needs to be stopped, the driver

applies the brake pedal. The brake pedal pushes the
input rod of the power brake booster into the booster.
The booster uses vacuum to ease pedal effort as force
is transferred through the booster to the master cyl-
inder. The booster’s output rod pushes in the master
cylinder’s primary and secondary pistons applying
hydraulic pressure through the proportioning valves
(non-ABS - rear only) and chassis brake tubes to the
brakes at each tire and wheel assembly.

The parking brakes are hand-operated. When

applied, the parking brake lever pulls on cables that
actuate brake shoes at each rear wheel. The parking
brake lever has an automatic-adjusting feature that
takes up any excessive slack in the parking brake
cable system.

WARNING

WARNING: DUST AND DIRT ACCUMULATING ON
BRAKE PARTS DURING NORMAL USE MAY CON-
TAIN ASBESTOS FIBERS FROM PRODUCTION OR
AFTERMARKET

BRAKE

LININGS.

BREATHING

EXCESSIVE

CONCENTRATIONS

OF

ASBESTOS

FIBERS CAN CAUSE SERIOUS BODILY HARM.
EXERCISE

CARE

WHEN

SERVICING

BRAKE

PARTS. DO NOT SAND OR GRIND BRAKE LINING
UNLESS EQUIPMENT USED IS DESIGNED TO CON-
TAIN THE DUST RESIDUE. DO NOT CLEAN BRAKE
PARTS

WITH

COMPRESSED AIR

OR

BY DRY

BRUSHING. CLEANING SHOULD BE DONE BY
DAMPENING THE BRAKE COMPONENTS WITH A
FINE MIST OF WATER, THEN WIPING THE BRAKE
COMPONENTS CLEAN WITH A DAMPENED CLOTH.
DISPOSE OF CLOTH AND ALL RESIDUE CONTAIN-
ING ASBESTOS FIBERS IN AN IMPERMEABLE
CONTAINER WITH THE APPROPRIATE LABEL. FOL-
LOW PRACTICES PRESCRIBED BY THE OCCUPA-
TIONAL SAFETY AND HEALTH ADMINISTRATION
(OSHA) AND THE ENVIRONMENTAL PROTECTION
AGENCY (EPA) FOR THE HANDLING, PROCESSING,
AND DISPOSING OF DUST OR DEBRIS THAT MAY
CONTAIN ASBESTOS FIBERS.

CAUTION

CAUTION: Use only Mopar

T

Brake Fluid DOT 3

Motor Vehicle or equivalent from a tightly sealed
container.

Do

not

use

petroleum-based

fluid

because seal damage in the brake system will
result. (Refer to 5 - BRAKES/HYDRAULIC/MECHAN-
ICAL/FLUID - SPECIFICATIONS)

CAUTION: Brake fluid will damage painted surfaces.
If brake fluid is spilled on any painted surfaces,
wash it off immediately with water.

CAUTION: Never use gasoline, kerosene, alcohol,
motor oil, transmission fluid, or any fluid containing
mineral oil to clean system components. These flu-
ids damage rubber cups and seals.

CAUTION: During service procedures, grease or
any other foreign material must be kept off the cal-
iper assembly, brake linings, brake rotor and exter-
nal surfaces of the hub.

PT

BRAKES - BASE

5 - 3















Content   ..  410  411  412  413   ..
