SPECIFICATIONS - TORQUE
DESCRIPTION
N·m
Ft.
Lbs.
In.
Lbs.
Camshaft Sprocket—Bolt
54
40
—
Camshaft Thrust
Plate—Bolts
12
—
105
Forged Connecting Rod
Cap-Nuts
54 +
1
⁄
4
turn
40
+
1
⁄
4
turn
—
Cracked Connecting Rod
Cap-Bolts
(Refer to 9 - ENGINE/
ENGINE BLOCK/
PISTON &
CONNECTING ROD -
INSTALLATION)
Crankshaft Main Bearing
Cap-Bolts
41 +
1
⁄
4
turn
30
+
1
⁄
4
turn
—
Crankshaft Main Bearing
Cap Cross Bolts (3.8L)
61
45
—
Crankshaft Oil Seal
Retainer Rear-Bolts
12
—
105
Crankshaft Damper-Bolt
54
40
—
Cylinder Block Drain
Plugs
20
15
—
Cylinder Head-Bolts
(Refer to 9 - ENGINE/
CYLINDER HEAD -
INSTALLATION)
Cylinder Head Cover-
Bolts
12
—
105
Flex Plate to Crankshaft
88
65
—
Engine Mounting
(Refer to 9 - ENGINE/
ENGINE MOUNTING)
Powertrain Torque Strut
54
40
—
Exhaust Manifold-Bolts
23
—
200
Exhaust Crossover
Pipe-Bolts
54
40
—
Intake Manifold -
Lower-Bolts
23
—
200
Intake Manifold - Lower
Gasket Retainer-Bolts
12
—
105
Intake Manifold
Upper-Bolts
12
—
105
Lifter Yoke Retainer-Bolts
12
—
105
Oil Filter Attaching Fitting
54
40
—
Oil Cooler Attaching
Fitting
27
20
—
Oil Filter
20
15
—
DESCRIPTION
N·m
Ft.
Lbs.
In.
Lbs.
Oil Filter Adapter-Bolts
28
—
250
Oil Gallery Plug
27
20
—
Oil Pan—Bolts
12
—
105
Oil Pan Drain-Plug
27
20
—
Oil Pressure Switch
23
—
200
Oil Pump Cover
Plate-Screws
12
—
105
Oil Pump Pick-up
Tube-Bolt
28
—
250
Oil Dipstick Housing-Bolts
48
35
—
Rocker Arm Shaft-Bolts
23
—
200
Spark Plug
16
12
—
Thermostat Housing
12
—
105
Timing Chain Case Cover
—M8 Bolt
27
20
—
—M10 Bolt
54
40
—
Water Pump-Bolts
12
—
105
Water Pump Pulley-Bolts
28
—
250
CS
ENGINE 3.8L
9 - 131

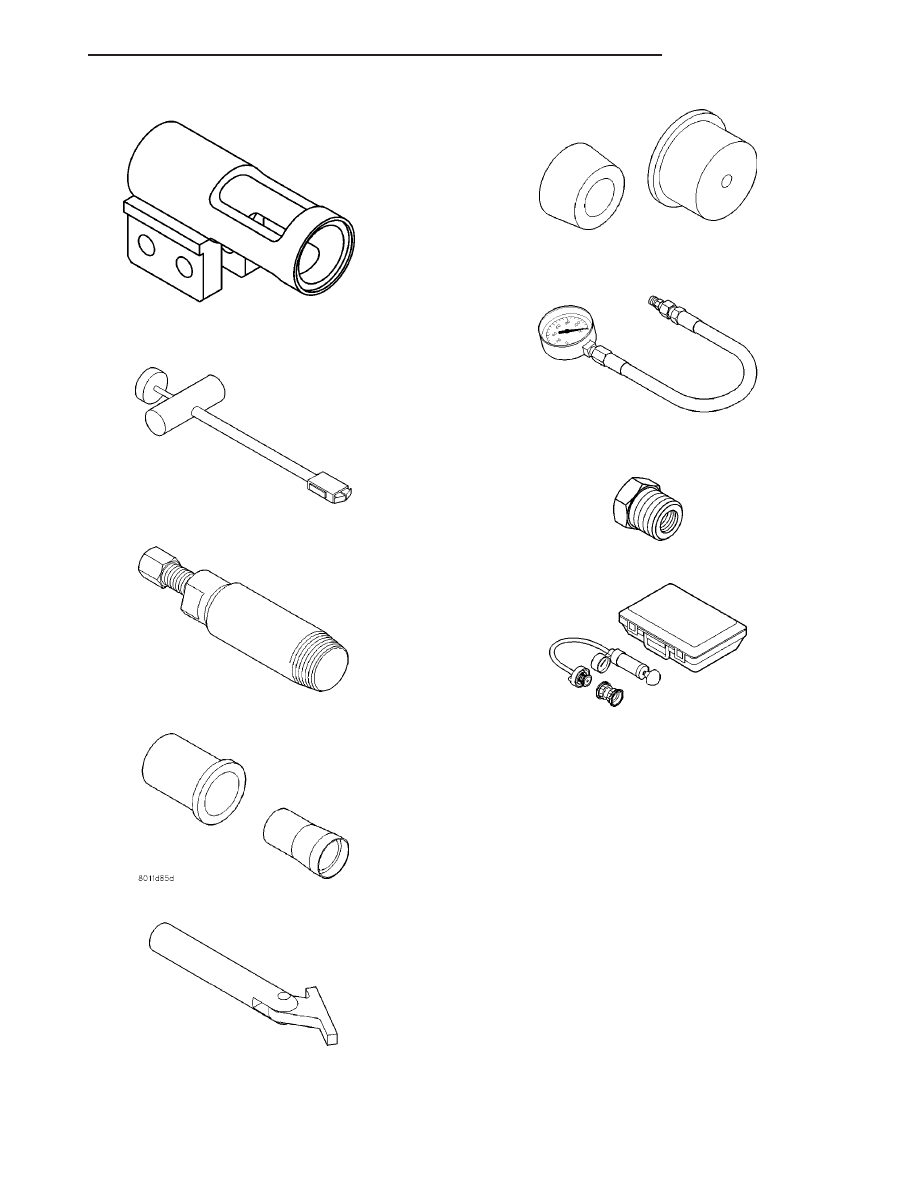

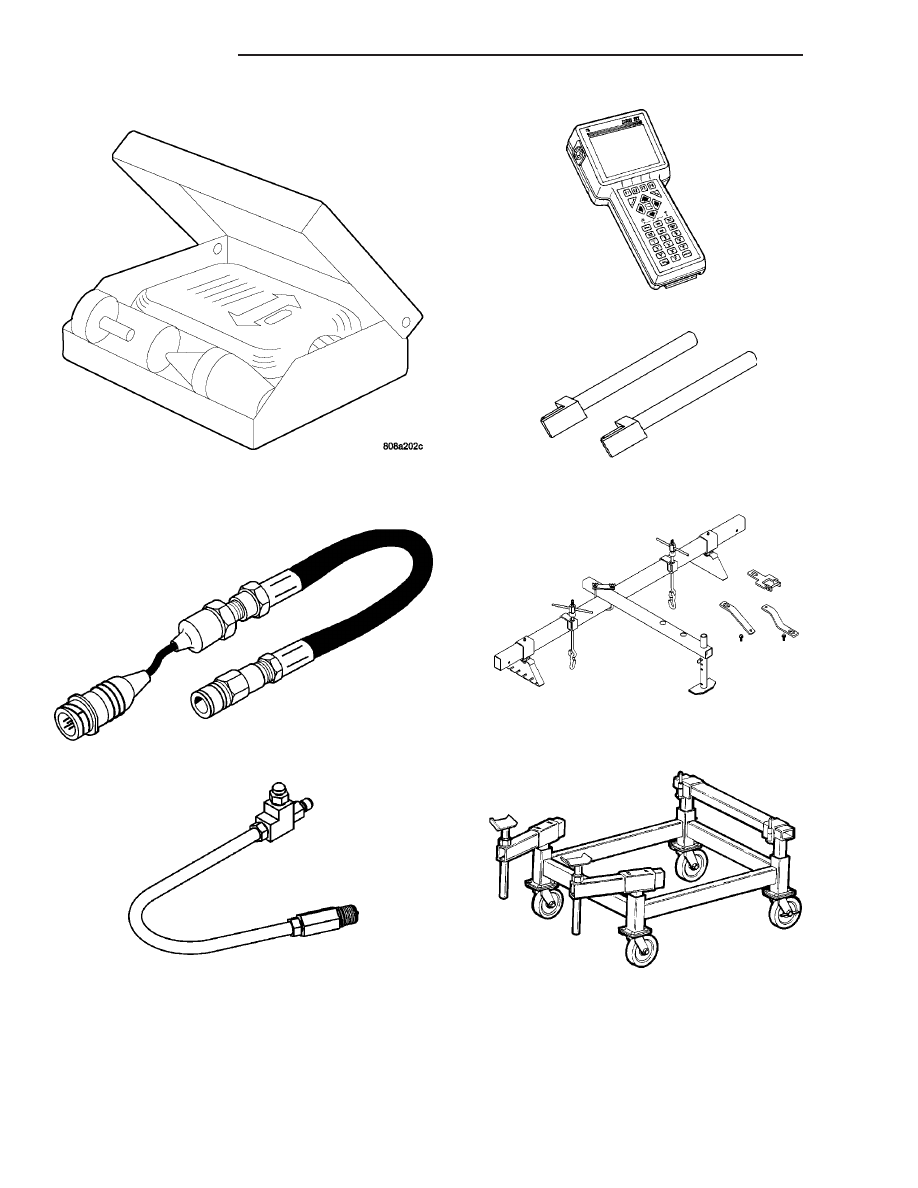

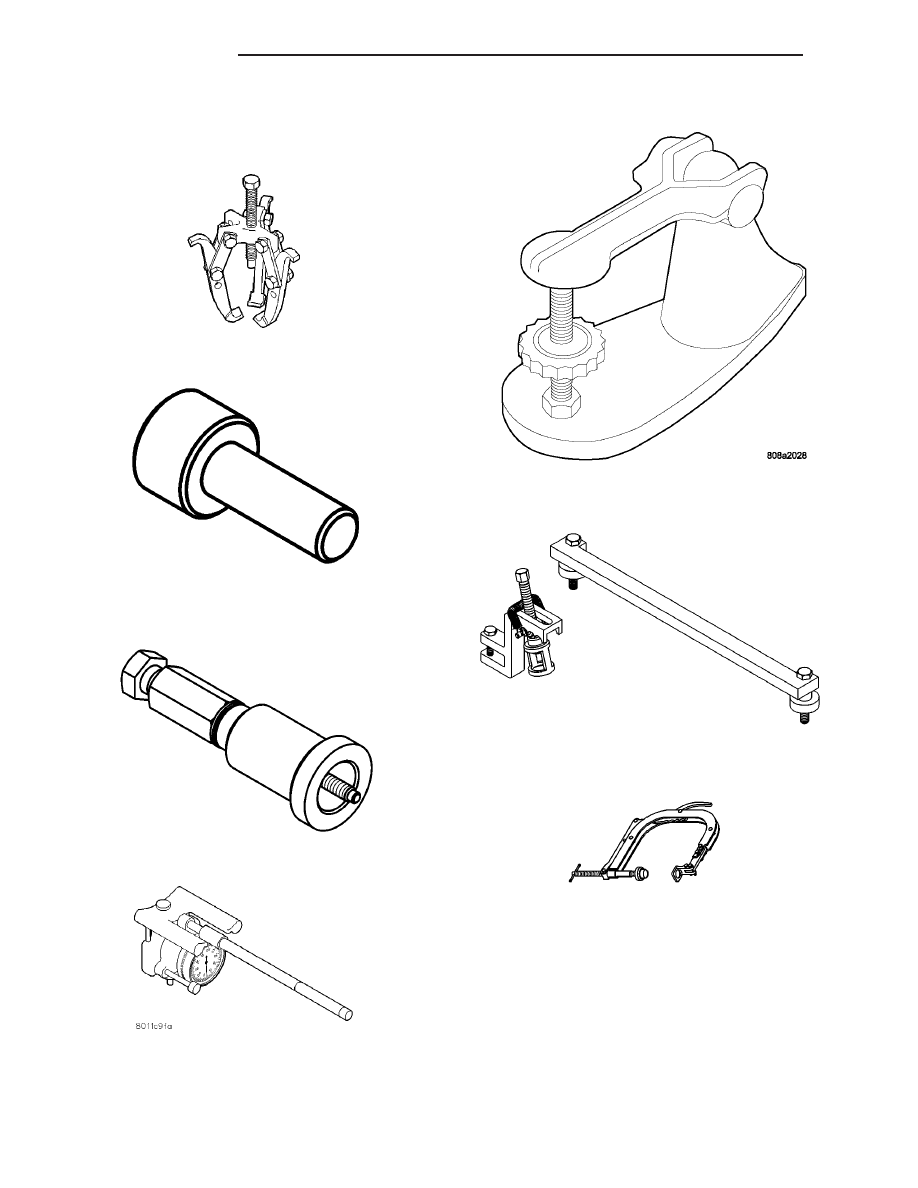

ENGINE 3.8L (Continued)
