DIAGNOSIS AND TESTING - VEHICLE THEFT
SECURITY SYSTEM/SENTRY KEY
IMMOBILIZER SYSTEM

Use a DRBIII

t scan tool and the proper Body

Diagnostic Procedures information for diagnosis and
testing.

SENTRY KEY REMOTE ENTRY
MODULE

DESCRIPTION

The Sentry Key Remote Entry Module (SKREEM)

(Fig. 1) and (Fig. 2) performs the functions of what
used to be the Sentry Key Immobilizer Module
(SKIM), the Remote Keyless Entry (RKE) Module,
and the Tire Pressure Monitoring (TPM) System (for-
merly located within the Compass Mini-Trip Com-
puter (CMTC).

NOTE: On EARLY BUILD vehicles, the SKREEM
controls the functions of the SKIM and RKE mod-
ules. On NORMAL BUILD vehicles, the SKREEM
controls the functions of the SKIM, RKE module
and TPM system. If diagnosing the TPM, use the
DRBIII

T

scan tool to determine if the SKREEM

includes TPM system functionality.

SENTRY KEY IMMOBILIZER

The

Sentry

Key

Immobilizer

System

(SKIS)

authenticates an electronically coded Transponder
Key placed into the ignition and sends a valid/invalid
key message to the Powertrain Control Module
(PCM) based upon the results. The “VALID/INVALID
KEY” message communication is performed using a
rolling code algorithm via the Programmable Com-
munication Interface (PCI) data bus. A “VALID KEY”

message must be sent to the Powertrain Control
Module (PCM) within two seconds of ignition ON to
free the engine from immobilization.

REMOTE KEYLESS ENTRY (RKE)

The RKE transmitter uses radio frequency signals

to communicate with the SKREEM module. The
SKREEM is on the PCI bus. When the operator
presses a button on the transmitter, it sends a spe-
cific request to the SKREEM. In turn the SKREEM
sends the appropriate request over the PCI Bus to
the:

• Driver Door Module (DDM) to control the driver

front door lock and unlock functions, the arming and
disarming of the Vehicle Theft Security System
(VTSS) (if equipped), and the activation of illumi-
nated entry.

• Integrated Power Module (IPM) to activate the

park lamps, the headlamps, and the horn for horn
chirp. If requested, the DDM sends a request over
the PCI Bus to the:

• Passenger Door Module (PDM) to control the

passenger front, rear driver, and rear passenger door
lock and unlock functions.

• Power Liftgate Module (PLGM) to control the

liftgate lock and unlock functions.

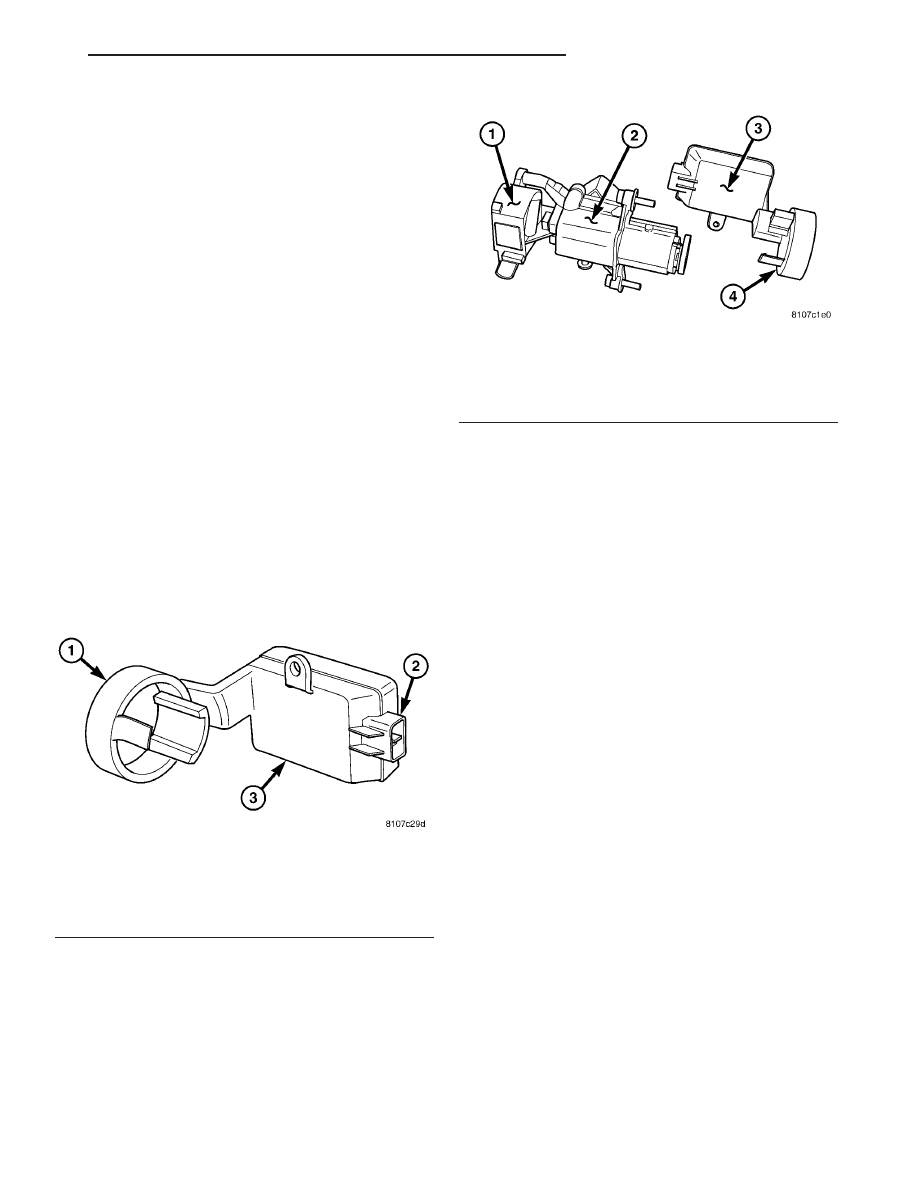

Fig. 1 SENTRY KEY REMOTE ENTRY MODULE

(SKREEM)

1 - ANTENNA RING
2 - SKREEM ELECTRICAL CONNECTOR
3 - SKREEM

Fig. 2 SKREEM POSITIONING

1 - IGNITION SWITCH
2 - IGNITION CYLINDER ASSEMBLY
3 - SKREEM
4 - SKREEM ANTENNA RING

CS

VEHICLE THEFT SECURITY

8Q - 3

VEHICLE THEFT SECURITY (Continued)

TIRE PRESSURE MONITORING (TPM) - NORMAL
BUILD VEHICLES

If equipped with the Tire Pressure Monitoring

(TPM) System, each of the vehicles four wheels will
have a valve stem with a pressure sensor and radio
transmitter built in. Signals from the tire pressure
sensor/transmitter are received and interpreted by
the SKREEM.

A sensor/transmitter in a mounted wheel will

broadcast its detected pressure once per minute
when the vehicle is moving faster than 15 mph (24
km/h).

Each

sensor/transmitter’s

broadcast

is

uniquely coded so that the SKREEM can determine
the location.

OPERATION

NOTE: On EARLY BUILD vehicles, the SKREEM
controls the functions of the SKIM and RKE mod-
ules. On NORMAL BUILD vehicles, the SKREEM
controls the functions of the SKIM, RKE module
and TPM system. If diagnosing the TPM, use the
DRBIII

T

scan tool to determine if the SKREEM

includes TPM system functionality.

SENTRY KEY IMMOBILIZER

The Sentry Key Remote Entry Module (SKREEM)

receives an encrypted Radio Frequency (RF) signal
from

the

transponder

key.

The

SKREEM

then

decrypts the signal and broadcasts the requested
remote commands to the appropriate modules in the
vehicle

over

the

Programmable

Communication

Interface (PCI) data bus. A valid transponder key ID
must be incorporated into the RF signal in order for
the SKREEM to pass the message on to the appro-
priate modules.

Automatic transponder key synchronization is done

by the SKREEM if a valid transponder key is
inserted into the ignition cylinder, and the ignition is
turned ON. This provides a maximum operation win-
dow for RKE functions.

Each Sentry Key Remote Entry System (SKREES)

consists of a SKREEM and a transponder key. Each
system has a secret key code unique to that system.
The

secret

key

is

electronically

coded

in

the

SKREEM and in all programmed transponder keys.
It is used for immobilization and RKE functions for
data security. In addition, each transponder key will
have a unique identification.

REMOTE KEYLESS ENTRY

After pressing the lock button on the RKE trans-

mitter, all of the door locks will lock, the illuminated
entry will turn off (providing all doors are closed),
and the VTSS (if equipped) will arm. After pressing
the unlock button, on the RKE transmitter, one time,
the driver door lock will unlock, the illuminated
entry will turn on the courtesy lamps, and the VTSS
(if equipped) will disarm. After pressing the unlock
button a second time, the remaining door locks will
unlock. The Electronic Vehicle Information Center
(EVIC) or the DRBIII

t scan tool can reprogram this

feature to unlock all of the door locks with one press
of the unlock button. If the vehicle is equipped with
the memory system, the memory message will iden-
tify which transmitter (1 or 2) sent the signal.

The SKREEM is capable of retaining up to 8 individ-

ual access codes (8 transmitters). If the PRNDL is in
any position except park, the SKREEM will disable the
RKE. The 4 button transmitter uses 1-CR2032 battery.
The minimum battery life is approximately 4.7 years
based on 20 transmissions a day at 84°F (25°C). Use
the DRBIII

t scan tool or the Miller Tool 9001 RF

Detector to test the RKE transmitter. Use the DRBIII

t

or the customer programming method to program the
RKE system. However, the SKREEM will only allow
RKE programming when the ignition is in the ON
position, the PRNDL is in park position, and the VTSS
(if equipped) is disarmed.

TIRE PRESSURE MONITORING (TPM) - NORMAL
BUILD VEHICLES

The SKREEM monitors the signals from the tire

pressure sensor/transmitters and determines if any
tire has gone below the low pressure threshold LOW
TIRE PRESSURE THRESHOLDS table.

LOW TIRE PRESSURE THRESHOLDS

SYSTEM STATUS

INDICATOR

TIRE PRESSURE

ON

172 kPa (25 PSI)

OFF

207 kPa (30 PSI)

CRITICAL AND NON-CRITICAL SYSTEM ALERTS

CRITICAL: A critical alert will be triggered when

a tire pressure has gone below a set threshold pres-
sure. The SKREEM will display “X TIRE(S) LOW
PRESSURE”. “X” will be the number of tires report-
ing low pressure. The message will display for the
duration of the current ignition cycle or until an
EVIC button is pressed. If the display is removed
without correcting the condition, it will reappear 300
seconds to warn the driver of the low pressure condi-
tion.

8Q - 4

VEHICLE THEFT SECURITY

CS

SENTRY KEY REMOTE ENTRY MODULE (Continued)

NON-CRITICAL: A non-critical alert will be trig-

gered when no signal is received from a sensor/trans-
mitter or when a sensor/transmitter low battery
condition is detected. The EVIC will display “SER-
VICE TIRE PRESS. SYSTEM.”

DIAGNOSIS AND TESTING - SENTRY KEY
REMOTE ENTRY MODULE

NOTE: On EARLY BUILD vehicles, the SKREEM
controls the functions of the SKIM and RKE mod-
ules. On NORMAL BUILD vehicles, the SKREEM
controls the functions of the SKIM, RKE module
and TPM system. If diagnosing the TPM, use the
DRBIII

T

scan tool to determine if the SKREEM

includes TPM system functionality.

For proper diagnosis and testing of the Sentry Key

Remote Entry Module (SKREEM), use a DRBlll

t and

refer to the proper Body Diagnostic Procedures infor-
mation.

REMOVAL

NOTE: On EARLY BUILD vehicles, the SKREEM
controls the functions of the SKIM and RKE mod-
ules. On NORMAL BUILD vehicles, the SKREEM
controls the functions of the SKIM, RKE module
and TPM system. If diagnosing the TPM, use the
DRBIII

T

scan tool to determine if the SKREEM

includes TPM system functionality.

(1) Open hood, disconnect and isolate the battery

negative cable.

(2) Wait two minutes for the system reserve capac-

itor to discharge before beginning any system or com-
ponent service.

(3) Remove knee blocker airbag (Refer to 8 -

ELECTRICAL/RESTRAINTS/KNEE BLOCKER AIR-
BAG - REMOVAL).

(4) Unsnap instrument panel center stack left

bezel from instrument panel assembly (Fig. 3).

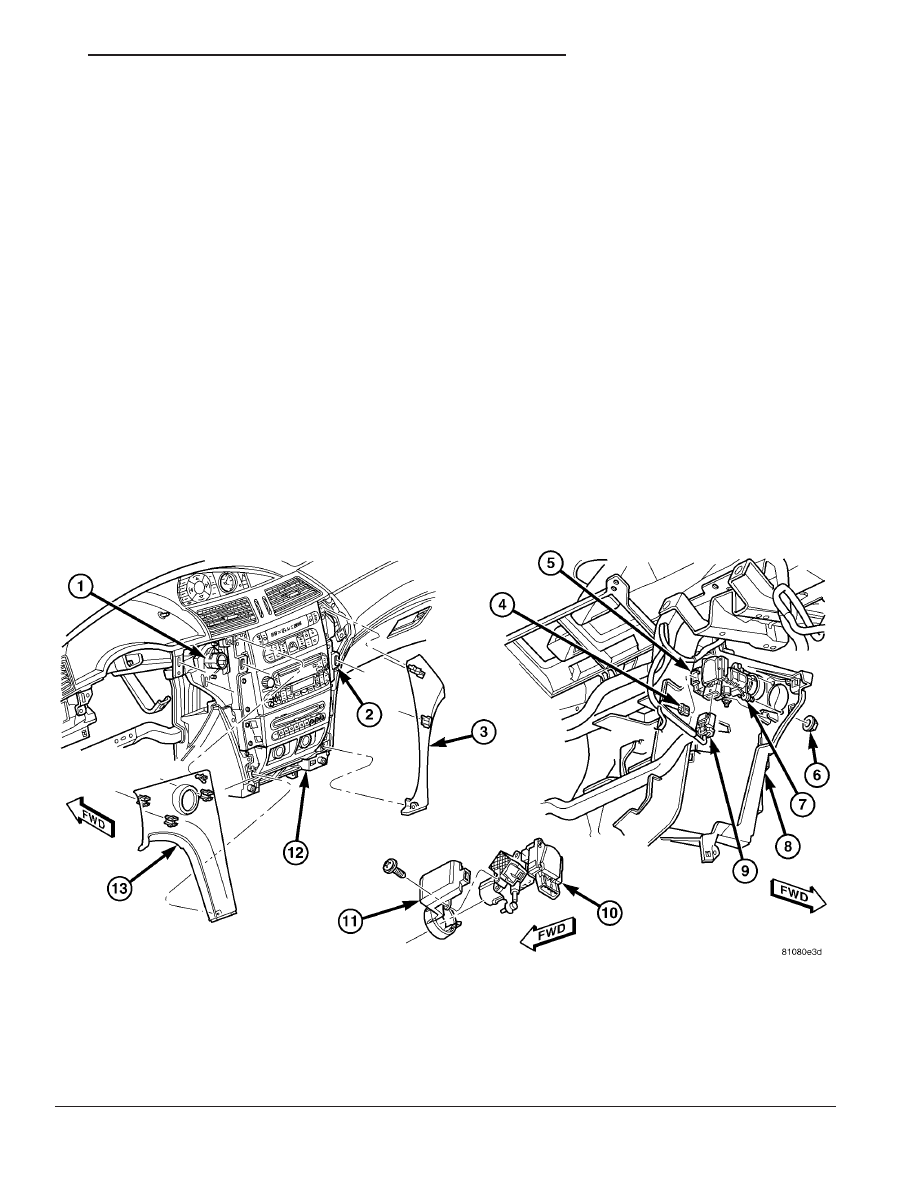

Fig. 3 SKREEM - REMOVE/INSTALL

1 - IGNITION SWITCH ASSEMBLY

8 - INSTRUMENT PANEL CENTER STACK

2 - INSTRUMENT PANEL CENTER STACK

9 - IGNITION SWITCH ELECTRICAL CONNECTOR

3 - INSTRUMENT PANEL CENTER STACK RIGHT BEZEL

10 - IGNITION SWITCH

4 - SKREEM ELECTRICAL CONNECTOR

11 - SKREEM

5 - SKREEM

12 - INSTRUMENT PANEL ASSEMBLY

6 - IGNITION SWITCH ASSEMBLY MOUNTING NUTS

13 - INSTRUMENT PANEL CENTER STACK LEFT BEZEL

7 - IGNITION SWITCH ASSEMBLY

CS

VEHICLE THEFT SECURITY

8Q - 5

SENTRY KEY REMOTE ENTRY MODULE (Continued)

(5) Reach up behind the left side of the center

stack

and

disconnect

the

ignition

switch

and

SKREEM electrical connectors (Fig. 4).

(6) From

underneath

the

ignition

switch/lock

assembly, loosen the lower retaining screw (Fig. 5).

(7) Remove the two mounting nuts from the front

of the instrument panel (Fig. 5).

(8) Push the ignition switch/lock assembly inward

toward the bulkhead (Fig. 5).

(9) Remove the SKREEM mounting screw on the

ignition lock assembly and separate the SKREEM
from the ignition lock assembly (Fig. 6)

INSTALLATION

(1) Position the SKREEM on the ignition lock

housing and install the retaining screw (Fig. 6)

(2) Position the ignition switch/lock assembly up in

behind the instrument panel and push rearward (Fig.
5).

(3) Install the two mounting nuts to the front of

the instrument panel (Fig. 5).

(4) From

underneath

the

ignition

switch/lock

assembly, tighten the lower retaining screw (Fig. 5).

(5) Reach up behind the left side of the center

stack and connect the ignition switch and SKREEM
electrical connectors (Fig. 4).

(6) Position the instrument panel center stack left

bezel over retaining slots and firmly snap into place
(Fig. 3).

(7) Install the knee blocker airbag (Refer to 8 -

ELECTRICAL/RESTRAINTS/KNEE BLOCKER AIR-
BAG - INSTALLATION).

WARNING: DO NOT CONNECT THE BATTERY NEG-
ATIVE

CABLE.

(Refer

to

8

-

ELECTRICAL/RE-

STRAINTS - DIAGNOSIS AND TESTING - AIRBAG
SYSTEM)

FIRST.

FAILURE

TO

DO

SO

COULD

RESULT IN OCCUPANT PERSONAL INJURY OR
DEATH.

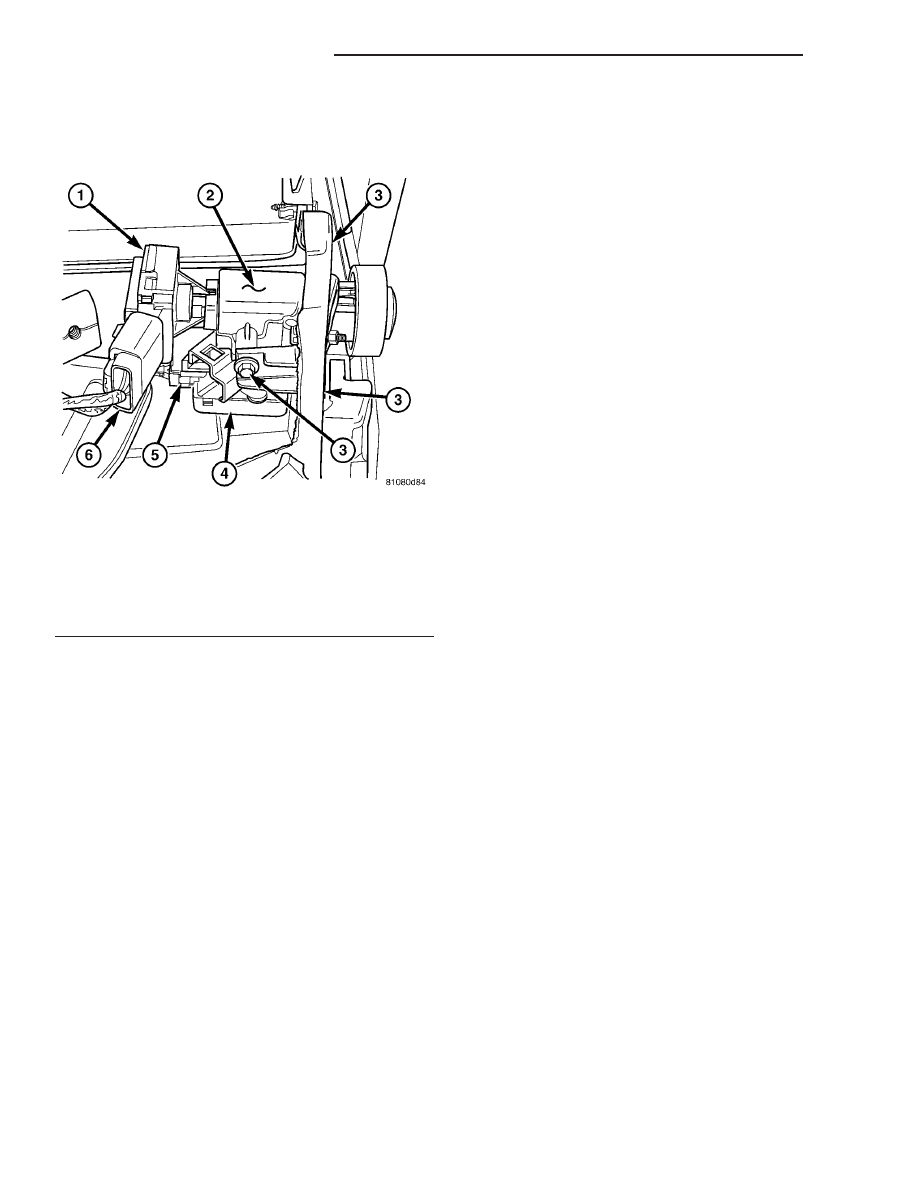

Fig. 4 IGNITION SWITCH/SKREEM ELECTRICAL

CONNECTOR - REMOVE/INSTALL

1 - IGNITION SWITCH
2 - IGNITION CYLINDER ASSEMBLY
3 - IGNITION CYLINDER ASSEMBLY MOUNTING NUTS/SCREW
4 - SKREEM
5 - SKREEM ELECTRICAL CONNECTOR
6 - IGNITION SWITCH ELECTRICAL CONNECTOR

8Q - 6

VEHICLE THEFT SECURITY

CS

SENTRY KEY REMOTE ENTRY MODULE (Continued)















Content   ..  539  540  541  542   ..
