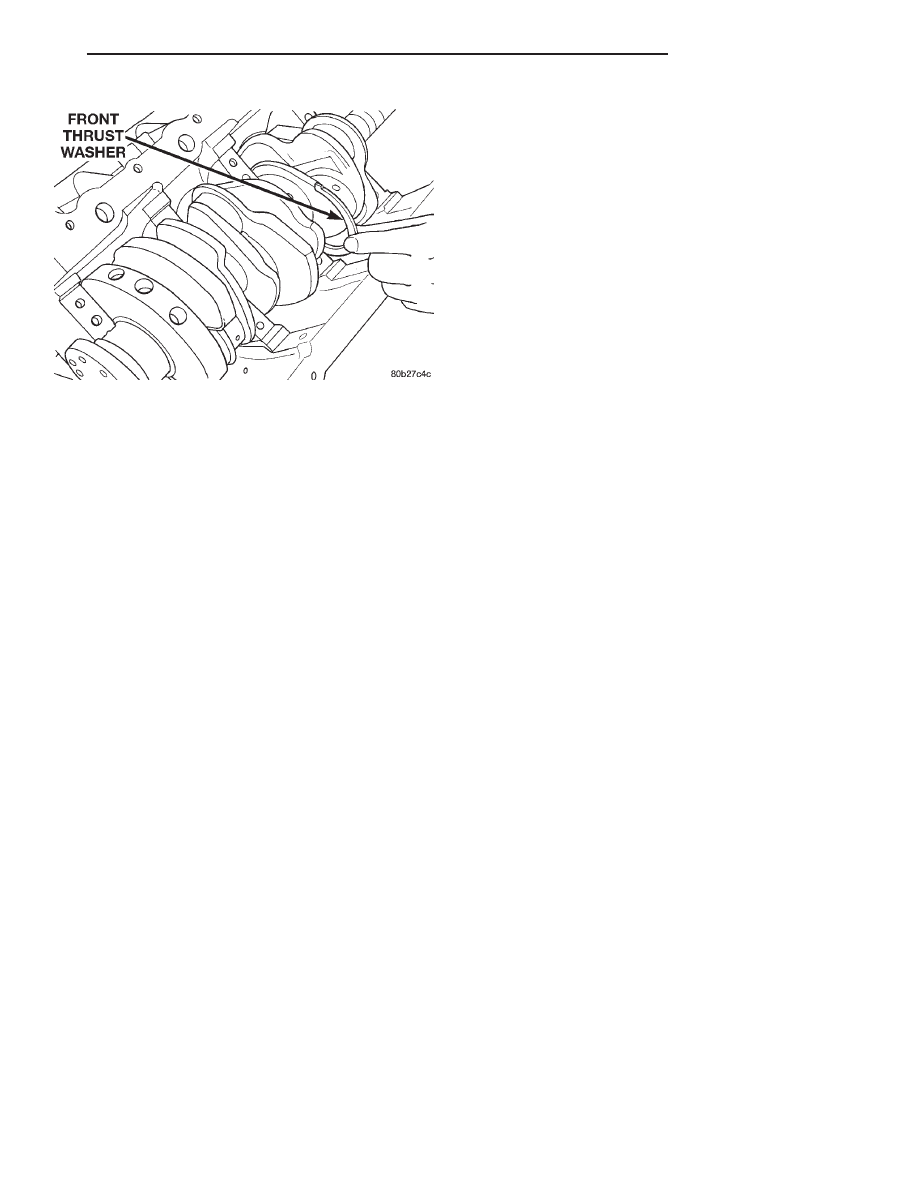

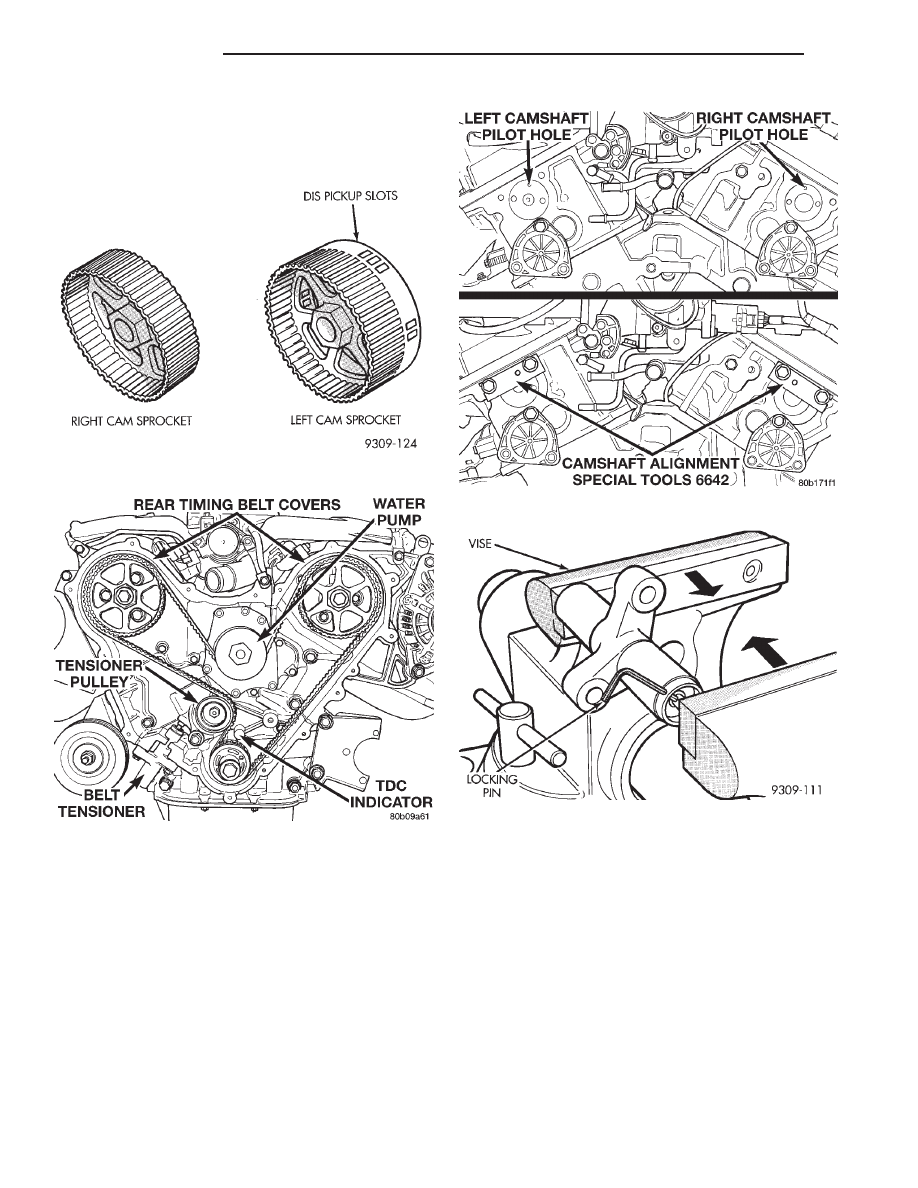

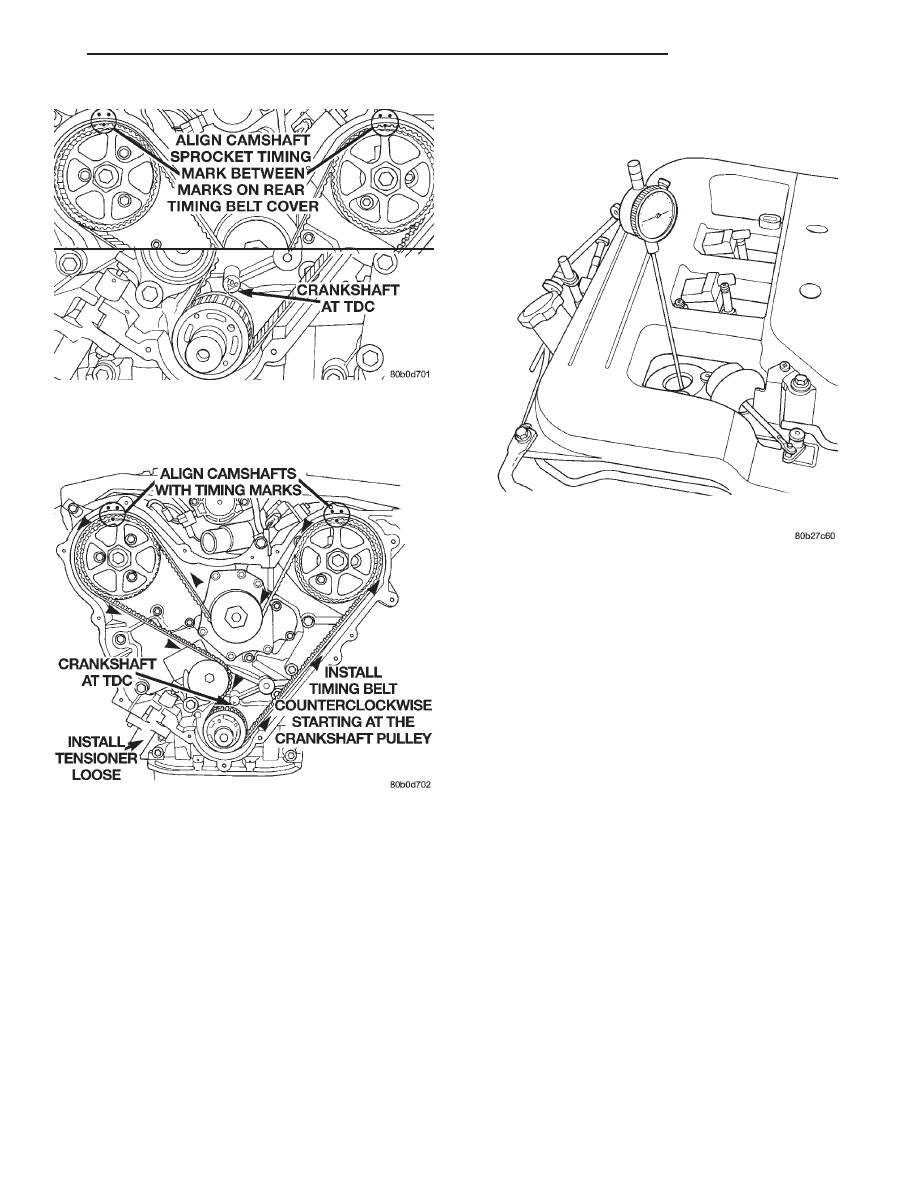

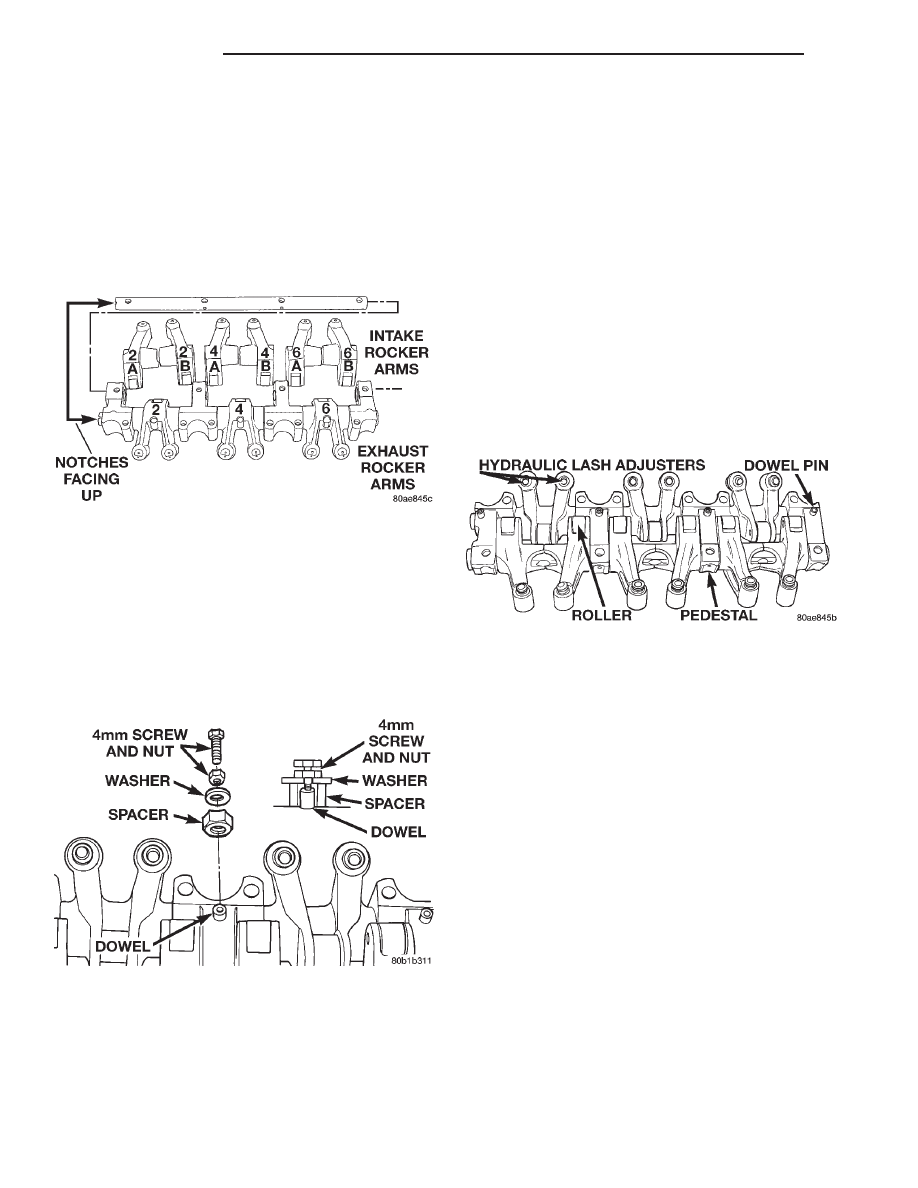

(6) Install the inside main bearing cap bolts and tighten to 20 N·m + 1/4 turn (15 ft. lbs. + 1/4 turn). (7) Measure crankshaft end play. Refer to Service Procedures in this section. (8) Install connecting rods and measure side clear- ance. Refer to Service Procedures in this section. (9) Install windage tray. Lubricate bolts with engine oil and tighten to 27 N·m + 1/4 turn (20 ft. (10) Install the main cap tie (horizontal) bolts and tighten to 28 N·m (250 in. lbs.). (11) Install rear crankshaft oil seal retainer and oil seal. Refer to procedure in this section. (12) Install oil pump assembly. Refer to Oil Pump Removal and Installation in this section. (13) Install dowel pin in crankshaft. Refer to Front Crankshaft Oil Seal Removal and Installation for (14) Install crankshaft sprocket. Refer to Front Crankshaft Oil Seal Removal and Installation for (15) Install Timing Belt. Refer to Camshaft Sprockets and Timing Procedure in this section. (16) Install (3) timing belt covers. in this section. (18) Install idler pulley for accessory drive belt. N·m (250 in. lbs.). (20) Install oil pan. Refer to procedures outlined in this section. (21) Install engine assembly. oil. CAMSHAFT REMOVAL Camshafts are serviced from the rear of the cylin- der head. The cylinder head must be removed. (1) Remove Camshaft Sprocket. Refer to Camshaft Sprocket Removal in this section. (2) Remove cylinder head. Refer to Cylinder Head Removal in this section. (3) Mark the rocker arm and shaft assembly before removal. Remove the rocker arm and shaft assembly (4) Remove the rear camshaft cover and O-ring from head. CAUTION: Be careful not to Nick or Scratch the journals when removing the camshaft. (5) Carefully remove the camshaft from the rear of the cylinder head. INSTALLATION (1) Lubricate camshaft journals and cam with clean engine oil and install camshaft into cylinder (2) Install the rocker arm assembly. Refer to pro- cedure outlined in this section. NOTE: Refer to Camshaft Sprocket and Timing Pro- CAMSHAFT SPROCKETS AND TIMING PROCEDURE REMOVAL CAUTION: When camshaft sprocket bolts are loos- (1) Hold camshaft sprocket with 36 mm (1 7/16 in.) box wrench loosen and remove bolt and washer. To (2) Remove camshaft sprocket from camshaft. Each sprocket has a D shaped hole that allows it to Fig. 47 Thrust Washer Installation LH 3.2L ENGINE 9 - 83 REMOVAL AND INSTALLATION (Continued) |
