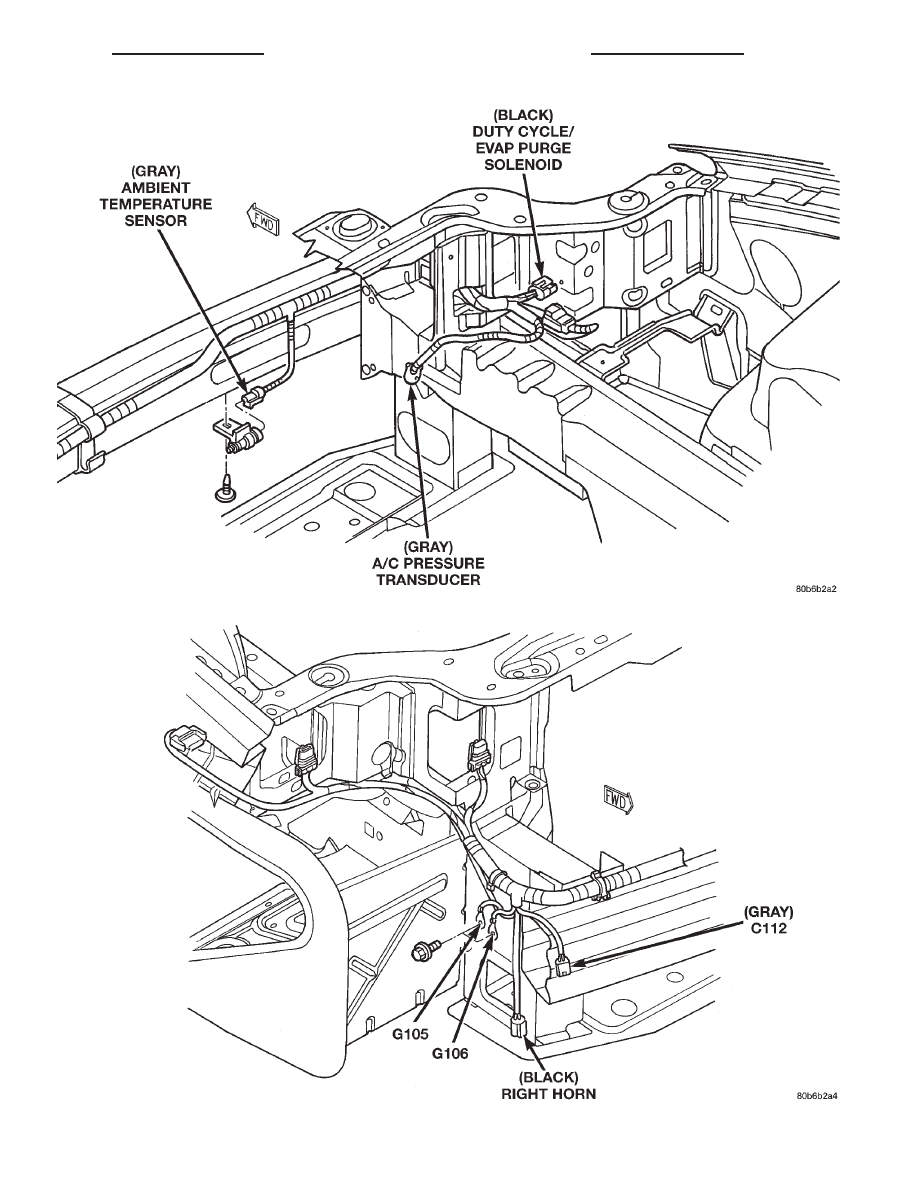

Fig. 1 Front of Engine

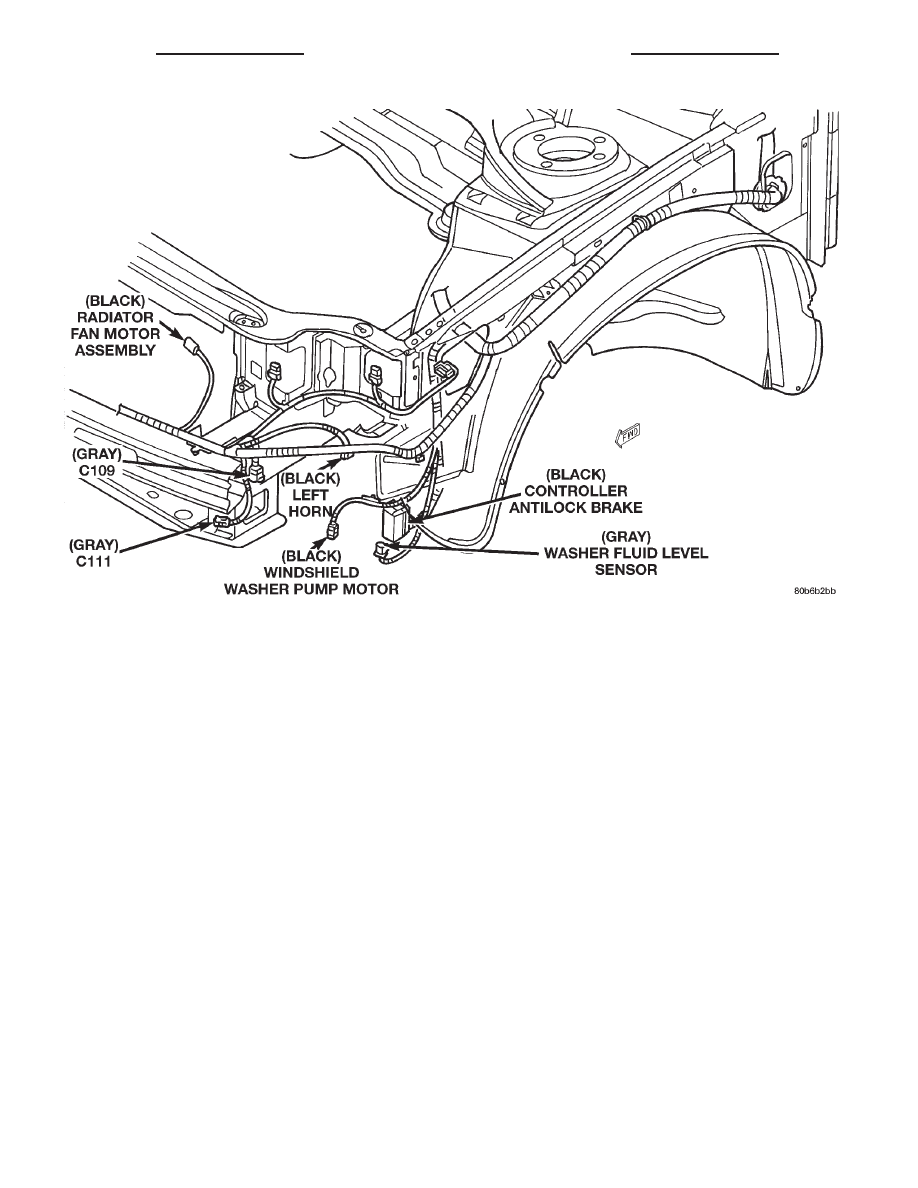

Fig. 2 Right Front Engine Compartment

300M

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 9

DESCRIPTION AND OPERATION (Continued)

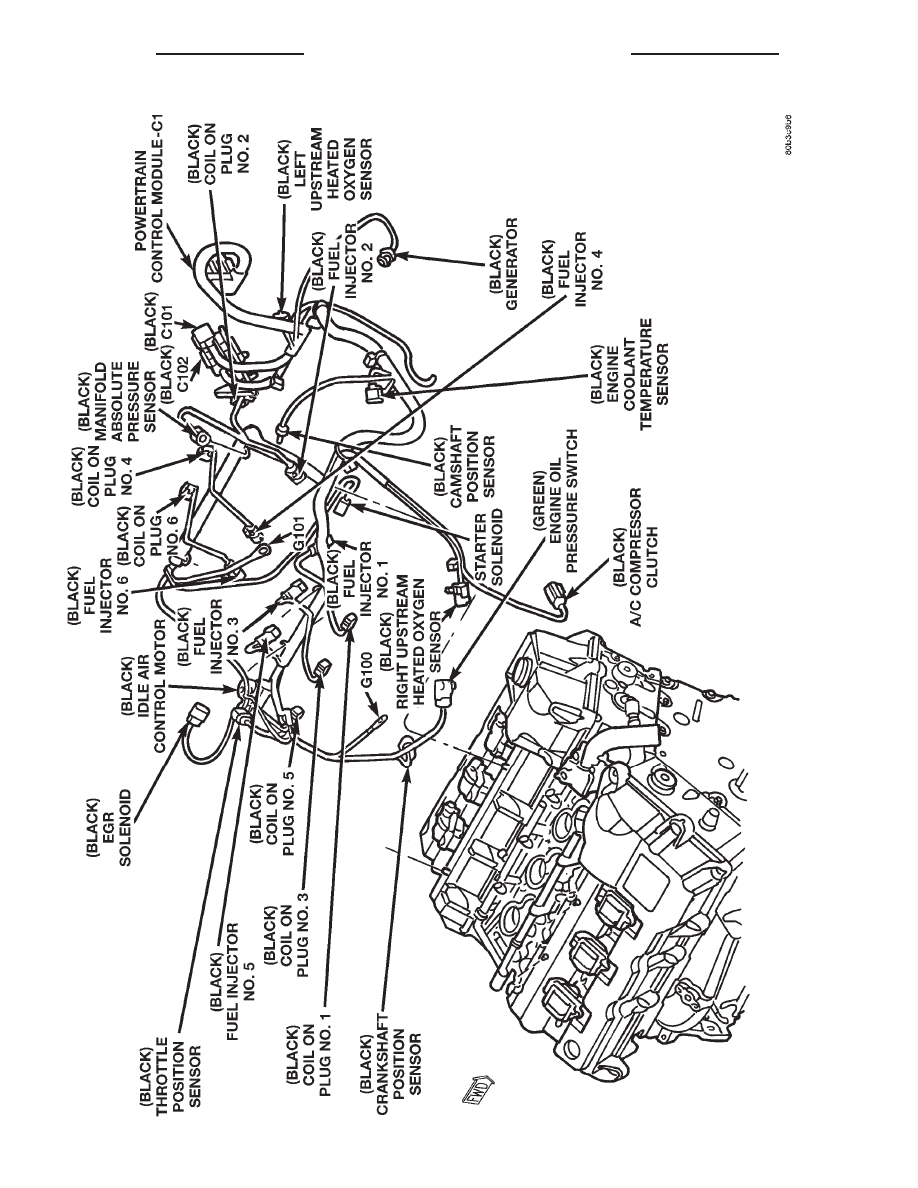

Fig. 3 Left Front Engine Compartment

8W - 90 - 10

8W - 90 CONNECTOR/GROUND LOCATIONS

300M

DESCRIPTION AND OPERATION (Continued)

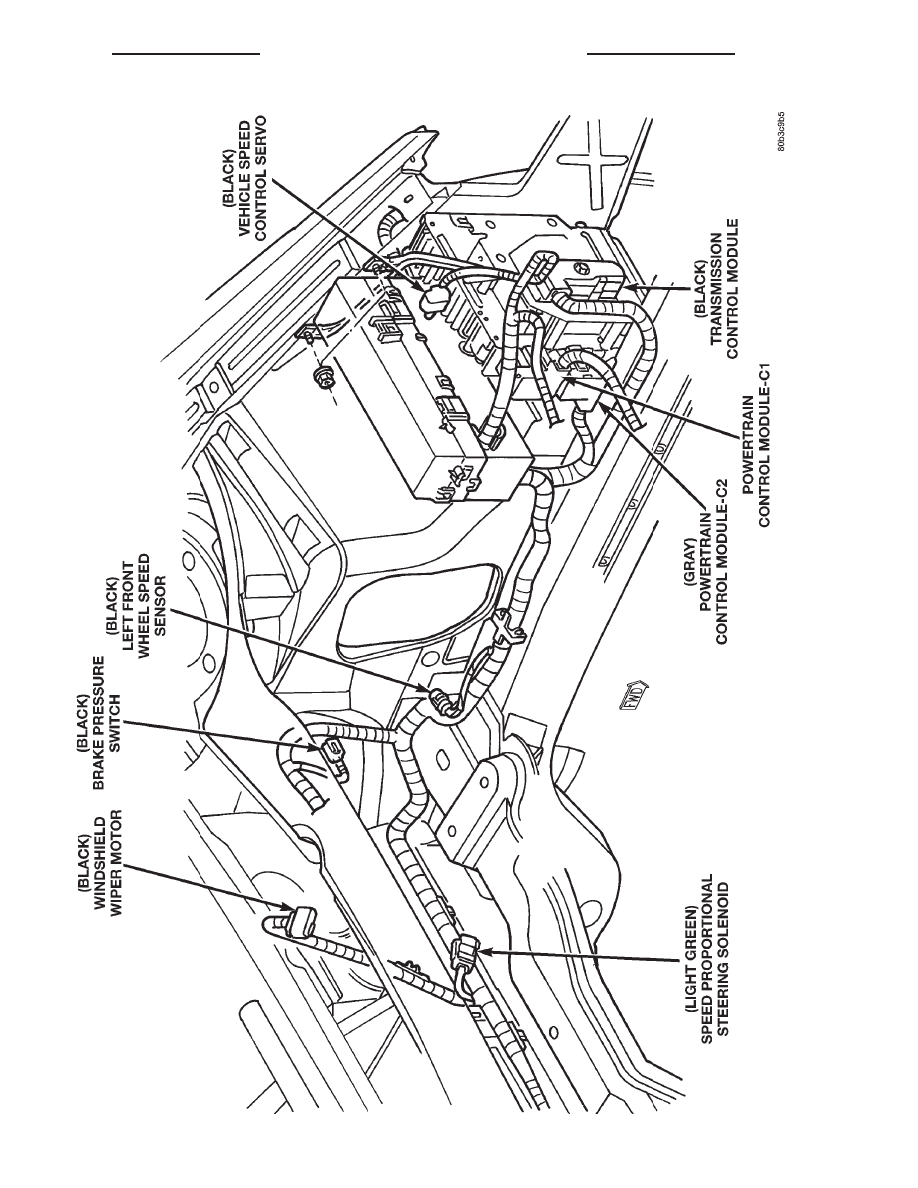

Fig.

4

Left

Rear

Engine

Compartment

300M

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 11

DESCRIPTION AND OPERATION (Continued)

Fig.

5

2.7

Liter

Engine

8W - 90 - 12

8W - 90 CONNECTOR/GROUND LOCATIONS

300M

DESCRIPTION AND OPERATION (Continued)
