tion code from the transponder, and the transponder
learns the “Secret Key” code from the SKIM. Each of
these codes is stored within the transponder and in
the nonvolatile memory of the SKIM. Therefore,
blank keys for the SKIS must be programmed by and
into the SKIM, in addition to being cut to match the
mechanical coding of the ignition lock cylinder. See
Sentry Key Immobilizer System Transponder Pro-
gramming in this section for more information.

The Sentry Key transponder is within the range of

the SKIM transceiver antenna ring when it is
inserted in the ignition lock cylinder. When the igni-
tion switch is turned to the START or ON positions,
the SKIM transceiver issues a Radio Frequency (RF)
signal that excites the transponder chip. The tran-
sponder chip responds by issuing an RF signal con-
taining its transponder identification code and the
“Secret Key” code. The SKIM transceiver compares
the transponder codes with the codes stored in its
memory to determine whether a valid key is in the
ignition lock cylinder.

The Sentry Key transponder cannot be repaired

and, if faulty or damaged, it must be replaced.

TRIGGERING THE VTSS

Using the power door switch or the keyless trans-

mitter will arm the system. Any of the following
actions will trigger the system:

(1) Opening any door.
(2) Removing the deck lid lock cylinder.
(3) Turning the ignition to the ON position.

CAUTION: The VTSS indicator LED will trigger and
engine will continue to run if the vehicle is
equipped with SKIS and the proper key is used to
start the vehicle. This condition will occur if the
VTSS has been triggered.

NOTE: The ignition switch can be turned to the
accessory position without triggering alarm system.

DIAGNOSIS AND TESTING

SENTRY KEY IMMOBILIZER SYSTEM (SKIS)

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

TO

GROUP

8M

-

PASSIVE

RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY
STEERING

WHEEL,

STEERING

COLUMN,

OR

INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

NOTE: The following tests may not prove conclu-
sive in the diagnosis of this system. The most reli-
able, efficient, and accurate means to diagnose the
Sentry Key Immobilizer System involves the use of
a DRB scan tool. Refer to the proper Body Diagnos-
tic Procedures manual for the procedures.

The Sentry Key Immobilizer System (SKIS) and

the Programmable Communication Interface (PCI)
bus network should be diagnosed using a DRB scan
tool. The DRB will allow confirmation that the PCI
bus is functional, that the Sentry Key Immobilizer
Module (SKIM) is placing the proper messages on the
PCI bus, and that the Powertrain Control Module
(PCM) is receiving the PCI bus messages. Refer to
the proper Body Diagnostic Procedures manual for
the procedures, and Group 8W, Wiring Diagrams for
complete circuit descriptions and diagrams.

(1) Check the fuses in the junction block. If OK, go

to Step 2. If not OK, repair the shorted circuit or
component as required and replace the faulty fuse.

(2) Disconnect and isolate the battery negative

remote cable from the remote terminal. Unplug the
wire harness connector at the SKIM. Check for con-
tinuity between the ground circuit cavity of the
SKIM wire harness connector and a good ground.
There should be continuity. If OK, go to Step 3. If not
OK, repair the open circuit to ground as required.

(3) Connect the battery negative remote cable.

Check for battery voltage at the fused B(+) circuit
cavity of the SKIM wire harness connector. If OK, go
to Step 4. If not OK, repair the open circuit to the
fuse in the junction block as required.

(4) Turn the ignition switch to the ON position.

Check for battery voltage at the fused ignition switch
output (run/start) circuit cavity of the SKIM wire
harness connector. If OK, use a DRB scan tool and
the proper Body Diagnostic Procedures manual to
complete the diagnosis of the SKIS. If not OK, repair
the open circuit to the fuse in the junction block as
required.

SERVICE PROCEDURES

SENTRY KEY IMMOBILIZER TRANSPONDER
PROGRAMMING

Two programmed Sentry Key transponders are

included with the Sentry Key Immobilizer System
(SKIS) when it is shipped from the factory. The Sen-
try Key Immobilizer Module (SKIM) can be pro-
grammed

to

recognize

up

to

six

additional

transponders, for a total of eight Sentry Keys. The
following “Customer Learn” programming procedure
for the programming of additional transponders
requires access to at least two of the valid Sentry
Keys. If two valid Sentry Keys are not available, Sen-

8Q - 4

VEHICLE THEFT/SECURITY SYSTEM

300M

DESCRIPTION AND OPERATION (Continued)

try Key programming will require the use of a DRB
scan tool and the proper Diagnostic Procedures man-
ual.

CUSTOMER LEARN

(1) Obtain the additional Sentry Key transponder

blank(s) that are to be programmed for the vehicle.
Cut the additional Sentry Key transponder blanks to
match the ignition lock cylinder mechanical key
codes.

(2) Insert one of the two valid Sentry Key tran-

sponders into the ignition switch and turn the igni-
tion switch to the ON position.

(3) After the ignition switch has been in the ON

position for about three seconds, but no more than
fifteen seconds, cycle the ignition switch back to the
OFF position. Replace the first valid Sentry Key in
the ignition lock cylinder with the second valid Sen-
try Key and turn the ignition switch back to the ON
position. Both operations must be performed within
15 seconds.

(4) About ten seconds after the completion of Step

3, the VTSS indicator LED will start to flash and a
single audible chime tone will sound to indicate that
the system has entered the “Customer Learn” pro-
gramming mode.

(5) Within about fifty seconds of entering the “Cus-

tomer Learn” programming mode, turn the ignition
switch to the OFF position, replace the valid Sentry
Key with a blank Sentry Key transponder, and turn
the ignition switch back to the ON position.

(6) About ten seconds after the completion of Step

5, a single audible chime tone will sound and the
VTSS indicator LED will stop flashing and stay on
solid for about three seconds to indicate that the
blank Sentry Key transponder has been successfully
programmed. The SKIS will immediately return to
normal system operation following exit from the
“Customer Learn” programming mode.

(7) Go back to Step 2 and repeat this process for

each additional Sentry Key transponder blank to be
programmed.

If any of the above steps is not completed in the

proper sequence, or within the allotted time, the
SKIS will automatically exit the “Customer Learn”
programming mode. The SKIS will also automatically
exit the “Customer Learn” programming mode if it

sees a non-blank Sentry Key transponder when it
should see a blank, if it has already programmed
eight valid Sentry Keys, or if the ignition switch is
turned to the OFF position for more than about fifty
seconds.

REMOVAL AND INSTALLATION

DECK LID SECURITY SWITCH

REMOVAL

(1) Refer to Group 23, Body for deck lid lock cylin-

der removal.

(2) Disconnect connector (Fig. 4) and remove deck

lid lock cylinder from bracket.

INSTALLATION

For installation, reverse the above procedures.

SENTRY KEY IMMOBILIZER MODULE (SKIM)

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

TO

GROUP

8M

-

PASSIVE

RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY
STEERING

WHEEL,

STEERING

COLUMN,

OR

INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

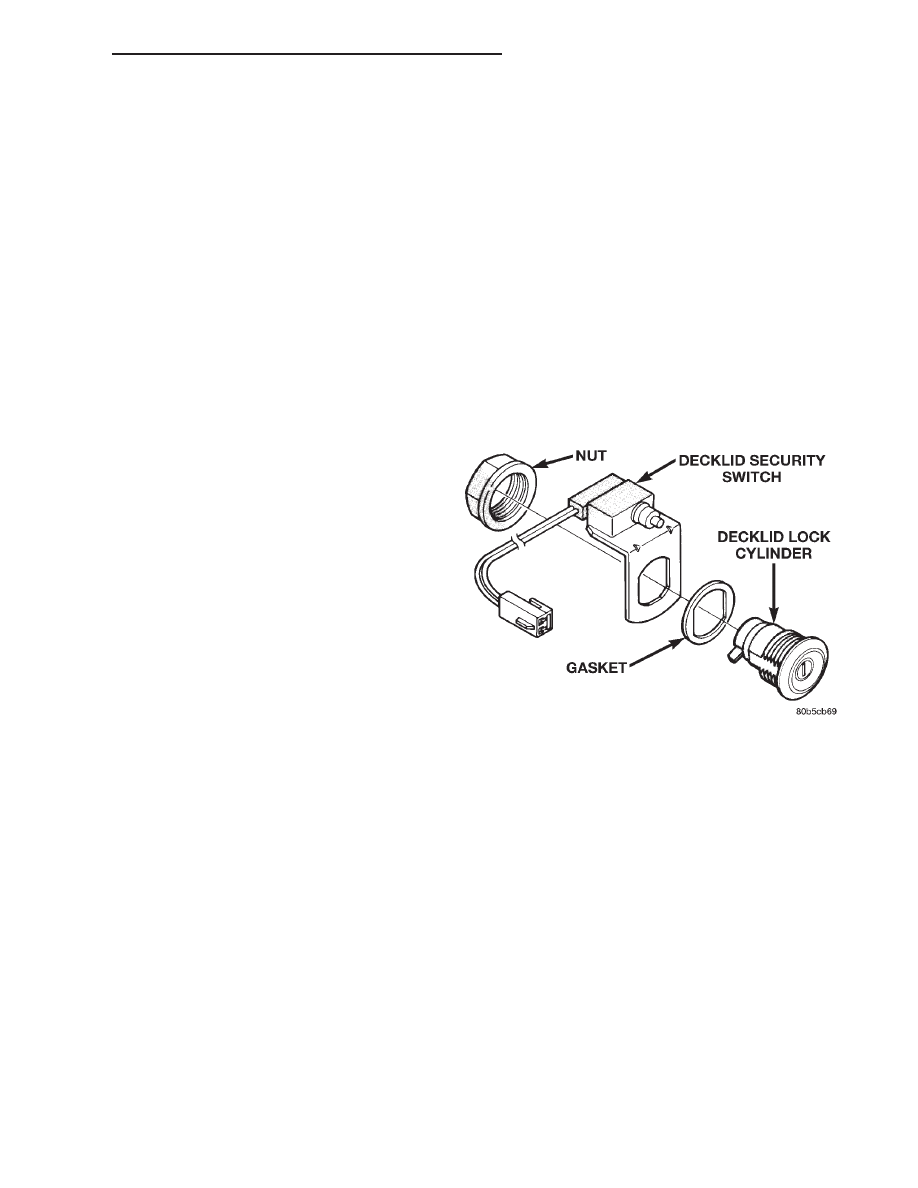

Fig. 4 Deck Lid Security Switch

300M

VEHICLE THEFT/SECURITY SYSTEM

8Q - 5

SERVICE PROCEDURES (Continued)

REMOVAL

(1) Open hood and disconnect the negative battery

cable remote terminal from the remote battery post
(Fig. 5).

(2) Remove knee bolster. Refer to Group 8E,

Instrument Panel and Systems for Removal and
Installation.

(3) Remove the steering column upper and lower

shrouds. Refer to Group 19, Steering for Removal
and Installation.

(4) Disengage the steering column wire harness

from the Sentry Key Immobilizer Module (SKIM).

(5) Remove the one screw securing the SKIM to

the bottom of the steering column.

(6) Slide the SKIM away from the steering column

to clear the SKIM antenna ring from around the
ignition switch lock cylinder housing (Fig. 1).

(7) Remove the SKIM from the vehicle.

INSTALLATION

(1) For installation, reverse the above procedures.
(2) If the SKIM is replaced with a new unit, a

DRB scan tool and the proper Body Diagnostic Pro-
cedures Manual MUST be used to initialize the new
SKIM and to program at least two Sentry Key
transponders.

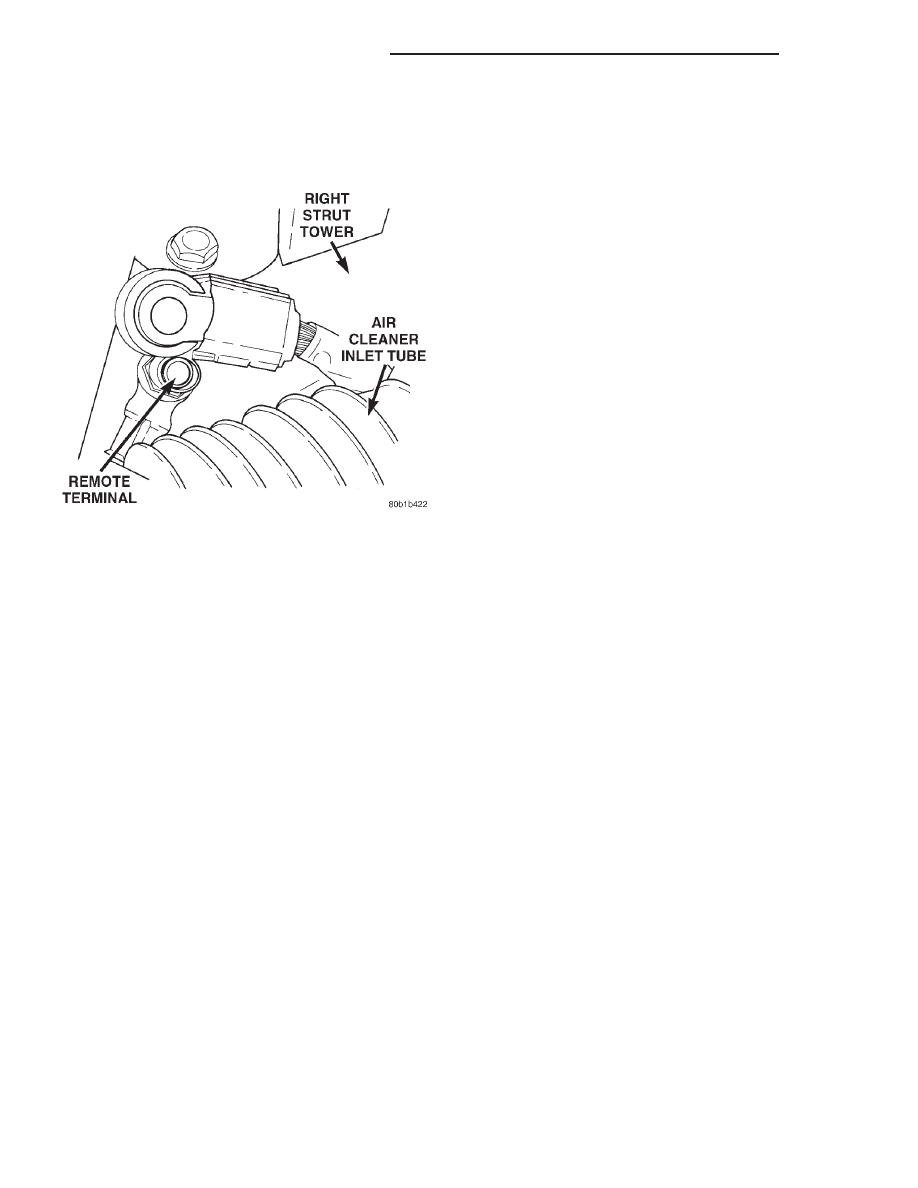

Fig. 5 Negative Battery Cable Remote Terminal

8Q - 6

VEHICLE THEFT/SECURITY SYSTEM

300M

REMOVAL AND INSTALLATION (Continued)

POWER SEATS

CONTENTS

page

page

DESCRIPTION AND OPERATION

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . 1

DIAGNOSIS AND TESTING

CIRCUIT BREAKER . . . . . . . . . . . . . . . . . . . . . . . 1
DIAGNOSTIC PROCEDURE . . . . . . . . . . . . . . . . . 1
MOTOR TESTS . . . . . . . . . . . . . . . . . . . . . . . . . . 1

SWITCH TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
VOLTAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

REMOVAL AND INSTALLATION

SEAT ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . 2
SEAT SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SEAT TRACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

DESCRIPTION AND OPERATION

INTRODUCTION

Power seats can be adjusted in 8 different direc-

tions:

• Up or down

• Forward or back

• Tilt forward or rearward

• Recliner up or down
Two single armature permanent magnet reversible

motors are coupled through cables to worm gear box
assemblies. They are located in the seat tracks and
upper supports. The two single gear motor assem-
blies attach to the seat tracks provide the various
seat movements.

The electrical circuit is protected by a 20 amp cir-

cuit breaker located on the Junction Block and a 40
amp fuse in the Power Distribution Center.

DIAGNOSIS AND TESTING

DIAGNOSTIC PROCEDURE

Before any testing is attempted the battery should

be carefully charged and all connections and termi-
nals cleaned and tightened to insure proper continu-
ity and grounds.

With dome lamp on, apply switch in direction of

failure. If dome lamp dims the seat motor is trying to
work indicating mechanical jamming. If dome lamp
does not dim, then proceed with the following electri-
cal tests.

CIRCUIT BREAKER

Find correct circuit breaker on fuse block. Pull out

slightly but be sure that circuit breaker terminals
still contact terminals in fuse block. Connect ground
wire of voltmeter to a good ground. With probe of
voltmeter positive wire, check both terminals of cir-
cuit breaker for battery voltage. If only one terminal
checks at battery voltage, circuit breaker is defective

and must be replaced. If neither terminal shows bat-
tery voltage, check for open or shorted circuit to cir-
cuit breaker.

MOTOR TESTS

(1) Remove power seat switch from seat. Refer to

Switch Removal and Installation.

(2) Disconnect wire harness connector.
(3) Check Pin 5 for battery voltage and Pin 1 for

ground.

(4)

To test the seat motors and verify proper seat

responses, refer to (Fig. 1) and the Seat Motor Test
table. Using two jumper wires, connect one to a bat-
tery supply and the second to a ground. Connect the
other ends to the seat wire harness connector as
described in the Seat Motor Test table.

SWITCH TEST

(1) Remove switch, refer to Switch Removal and

Installation in this section.

(2) Using an ohmmeter, perform the Seat Switch

Continuity Test table and (Fig. 2). If there is no con-
tinuity at any of the switch positions, replace switch.

VOLTAGE

The following test will determine whether or not

voltage is continuous through the body harness to
the switch.

(1) Remove power seat switch from mounting posi-

tion and disconnect switch from wiring harness.

(2) Using a voltmeter, connect the ground lead to

Pin 5 of the switch harness connector. Connect the
positive lead to Pin 1. If battery voltage the ground
and B+ circuit is OK. If no voltage check circuit
breaker and repair as necessary.

LH

POWER SEATS

8R - 1















Content   ..  102  103  104  105   ..
