Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1816





5.

(P953) TELESCOPE STEERING MOTOR COMMON CIRCUIT — TEST TO VOLTAGE

Using a 12–volt test light connected to ground, check the (P953) Tele-
scope Steering Motor Common circuit.

Monitor the test light with the Steering Column Telescope Switch in the
Forward position, the Rearward position and with the switch at rest.

The test light should be illuminated and bright only when the switch is
in the Rearward position.

Does the test light illuminate as described?

Yes

>> Go to 12

No

>> Go to 9

6.

(P157) TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER CIRCUIT SHORT TO GROUND

Turn the ignition off.

Disconnect the Memory Seat Module (MSM) C1 connector.

Turn the ignition on.

Using a 12–volt test light connected to 12–volts, check the (P157) Tele-
scope Steering Motor Forward/Rearward Driver circuit.

Does the test light illuminate?

Yes

>> Repair the (P157) Telescope Steering Motor Forward/Rear-

ward Driver circuit for a short to ground.

No

>> Go to 7

19 - 82

COLUMN ELECTRICAL DIAGNOSIS

LX

7.

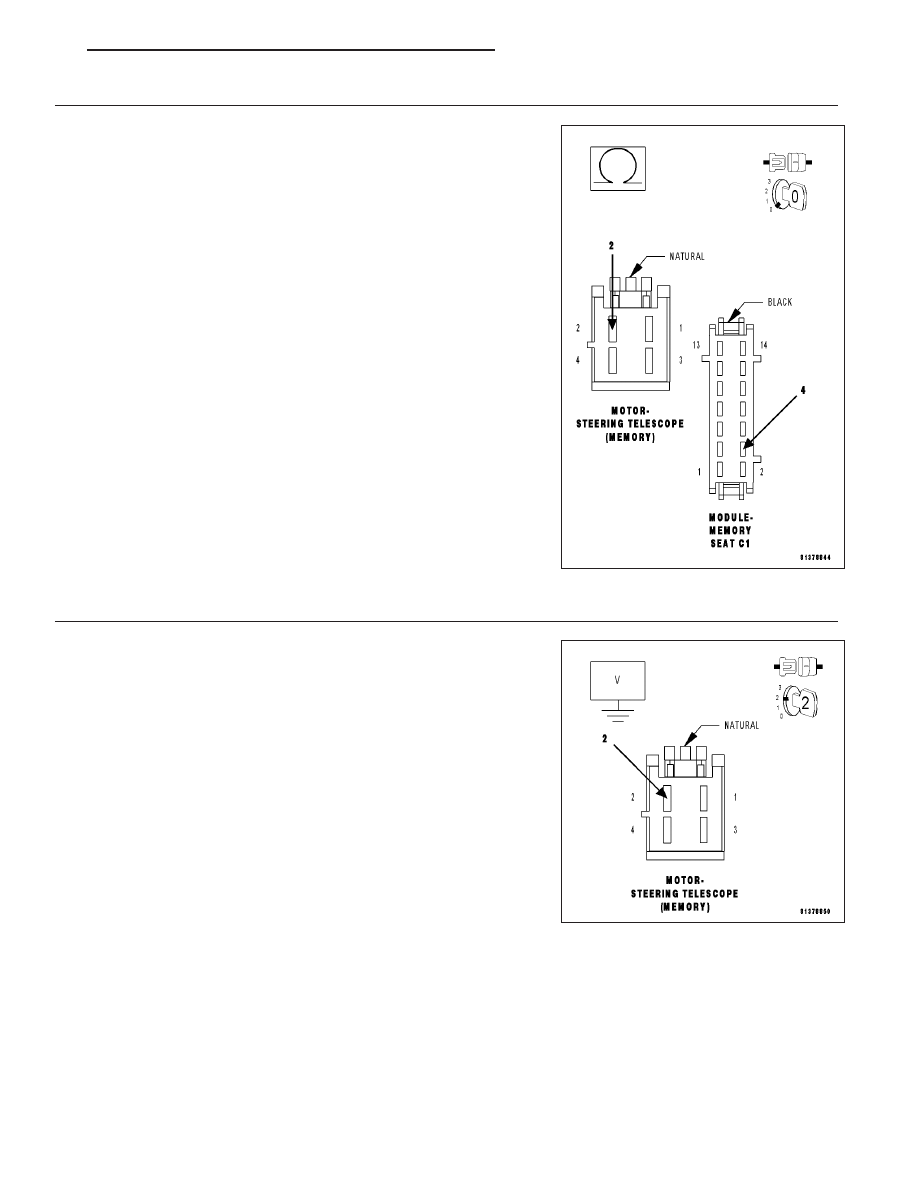

(P157) TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER CIRCUIT OPEN

Turn the ignition off.

Measure the resistance of the (P157) Telescope Steering Motor For-
ward/Rearward Driver circuit.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (P157) Telescope Steering Motor Forward/Rear-

ward Driver circuit for an open.

No

>> Go to 8

8.

(P157) TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER CIRCUIT SHORT TO VOLTAGE

Turn the ignition on.

Measure the voltage of the (P157) Telescope Steering Motor Forward/
Rearward Driver circuit.

Is there any voltage present?

Yes

>> Repair the (P157) Telescope Steering Motor Forward/Rear-

ward Driver circuit for a short to voltage.

No

>> Go to 13

LX

COLUMN ELECTRICAL DIAGNOSIS

19 - 83

9.

(P953) TELESCOPE STEERING MOTOR COMMON CIRCUIT SHORT TO GROUND

Turn the ignition off.

Disconnect the Memory Seat Module (MSM) C1 connector.

Turn the ignition on.

Using a 12–volt test light connected to 12–volts, check the (P953) Tele-
scope Steering Motor Common circuit.

Does the test light illuminate?

Yes

>> Repair the (P953) Telescope Steering Motor Common cir-

cuit for a short to ground.

No

>> Go to 10

10.

(P953) TELESCOPE STEERING MOTOR COMMON CIRCUIT OPEN

Turn the ignition off.

Measure the resistance of the (P953) Telescope Steering Motor Com-
mon circuit.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (P953) Telescope Steering Motor Common cir-

cuit for an open.

No

>> Go to 11

19 - 84

COLUMN ELECTRICAL DIAGNOSIS

LX

11.

(P953) TELESCOPE STEERING MOTOR COMMON CIRCUIT SHORT TO VOLTAGE

Turn the ignition on.

Measure the voltage of the (P953) Telescope Steering Motor Common
circuit.

Is there any voltage present?

Yes

>> Repair the (P953) Telescope Steering Motor Common cir-

cuit for a short to voltage.

No

>> Go to 13

12.

STEERING COLUMN TELESCOPE MOTOR

Inspect the wiring between the Memory Seat Module harness connector and the Steering Column Telescope Motor
harness connector for a short to ground or to any other circuit. If any problems are found, repair as necessary. If no
problems are found, view repair.

Repair

Replace the Steering Column Telescope Motor in accordance with the Service Information.

13.

MEMORY SEAT MODULE (MSM)

Inspect the wiring between the Memory Seat Module harness connector and the Steering Column Telescope Motor
harness connector for a short to ground or to any other circuit. If any problems are found, repair as necessary. If no
problems are found, view repair.

Repair

Replace the Memory Seat Module (MSM) in accordance with the Service Information.

14.

INTERMITTENT STEERING COLUMN TELESCOPE MOTOR CONTROL CIRCUIT PERFORMANCE DTC

The conditions necessary to set this DTC are not present at this time.

While monitoring the scan tool data relative to this circuit, wiggle test the component and connectors and move the
switch to each position.

Look for the data to change other than as expected or for the DTC to reset during the wiggle test.

Were any problems found?

Yes

>> Repair as necessary.

No

>> Test complete.

LX

COLUMN ELECTRICAL DIAGNOSIS

19 - 85
