(2) Remove distributor cap and inspect for flashover,

cracked carbon button, cracked cap, or burned termi-
nals. If any of these conditions exist, replace cap.

(3) Remove rotor screw (Fig. 24). Inspect rotor for

cracks or burned electrode. If any of these conditions
exist, replace rotor.

(4) Remove protective cover from distributor hous-

ing (Fig. 25).

(5) Remove lead wire clamp screw and remove lead

wire (Fig. 26).

(6) Remove disk assembly screw (Fig. 27).
(7) Remove disk spacers and disk (Fig. 28). Disk and

spacers are keyed. Check disk for warpage, cracks or
damaged slots (Fig. 29).

(8) Remove bushing and photo optic sensing unit

fasteners. Remove unit from distributor housing (Fig.
30).

(9) Remove bearing retainer screws (Fig. 31).
(10) Make reassembly alignment marks on gear and

shaft (Figs. 32 and 33).

(11) With a pin punch drive out distributor drive

gear roll pin (Fig. 34).

(12) Remove distributor drive gear (Fig. 35).

(13) Remove distributor shaft and bearing assembly

(Fig. 36).

(14) To reassemble, reverse preceding procedure. Re-

fer to Fig. 37.

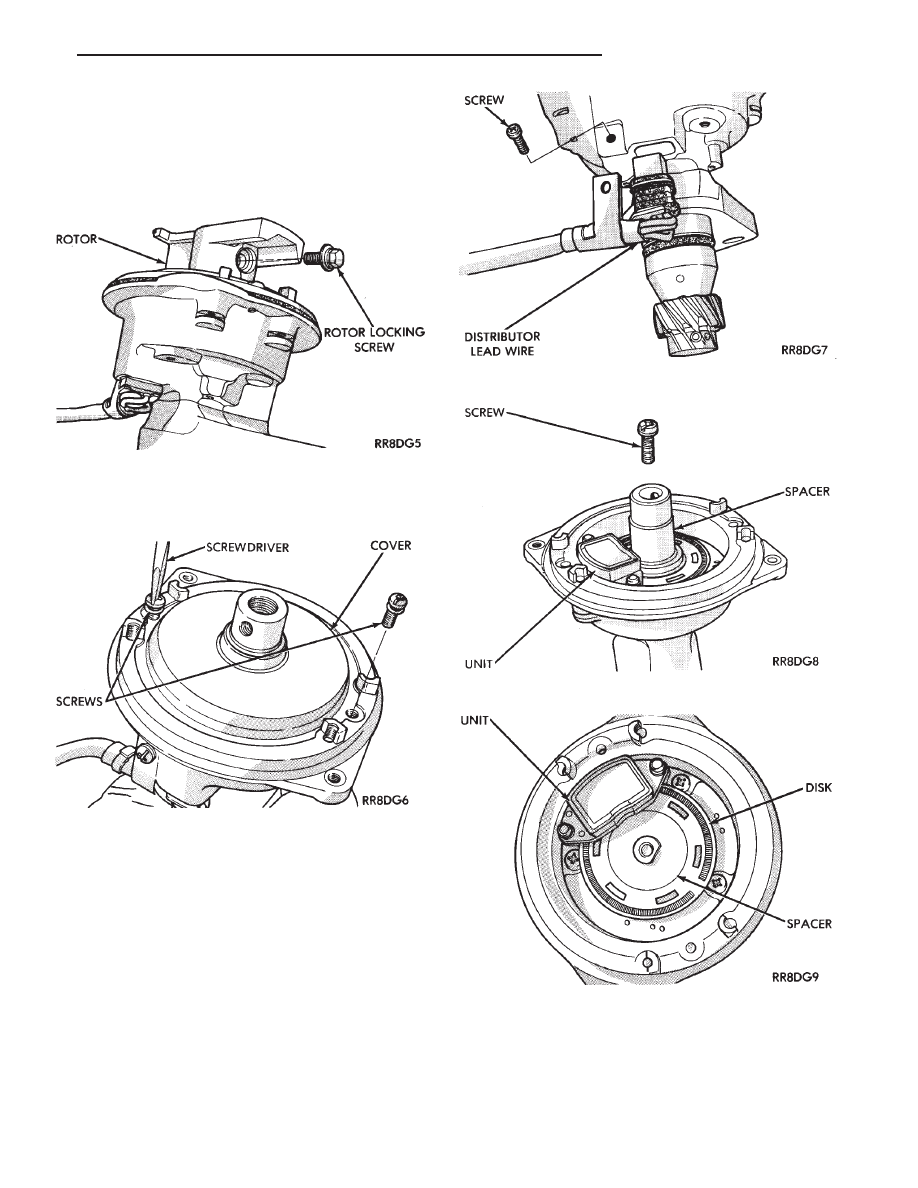

Fig. 24 Rotor Screw

Fig. 25 Protective Cover

Fig. 26 Lead Wire Clamp

Fig. 27 Disk Assembly Screw

Fig. 28 Disk and Spacers Installed

.

IGNITION SYSTEMS

8D - 21

Fig. 29 Disk and Spacers

Fig. 30 Photo Optic Sensing Unit Assembly and

Bushing

Fig. 31 Bearing Retainer Screws

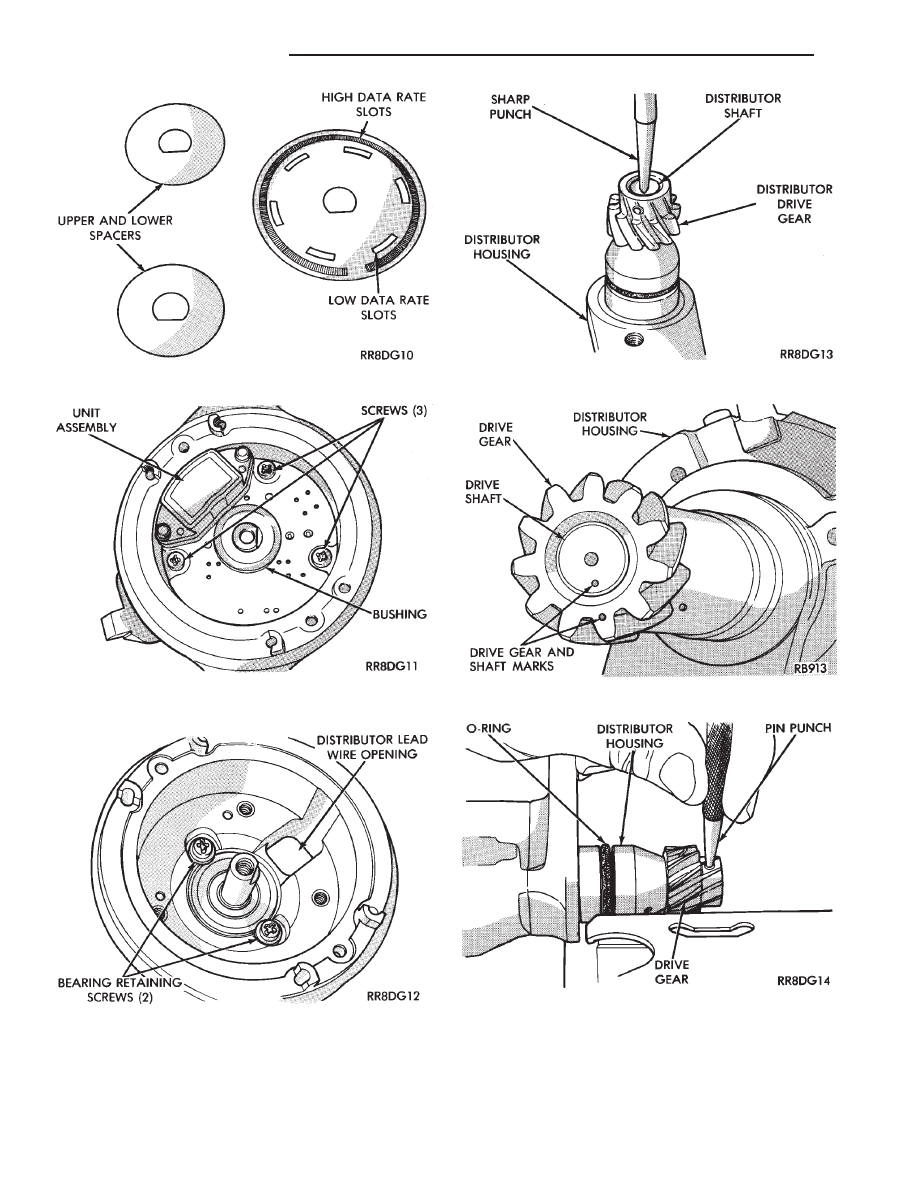

Fig. 32 Marking Drive Gear and Shaft

Fig. 33 Marks on Drive Gear and Shaft

Fig. 34 Drive Gear Roll Pin

8D - 22

IGNITION SYSTEMS

.

Fig. 35 Drive Gear

Fig. 36 Distributor Shaft

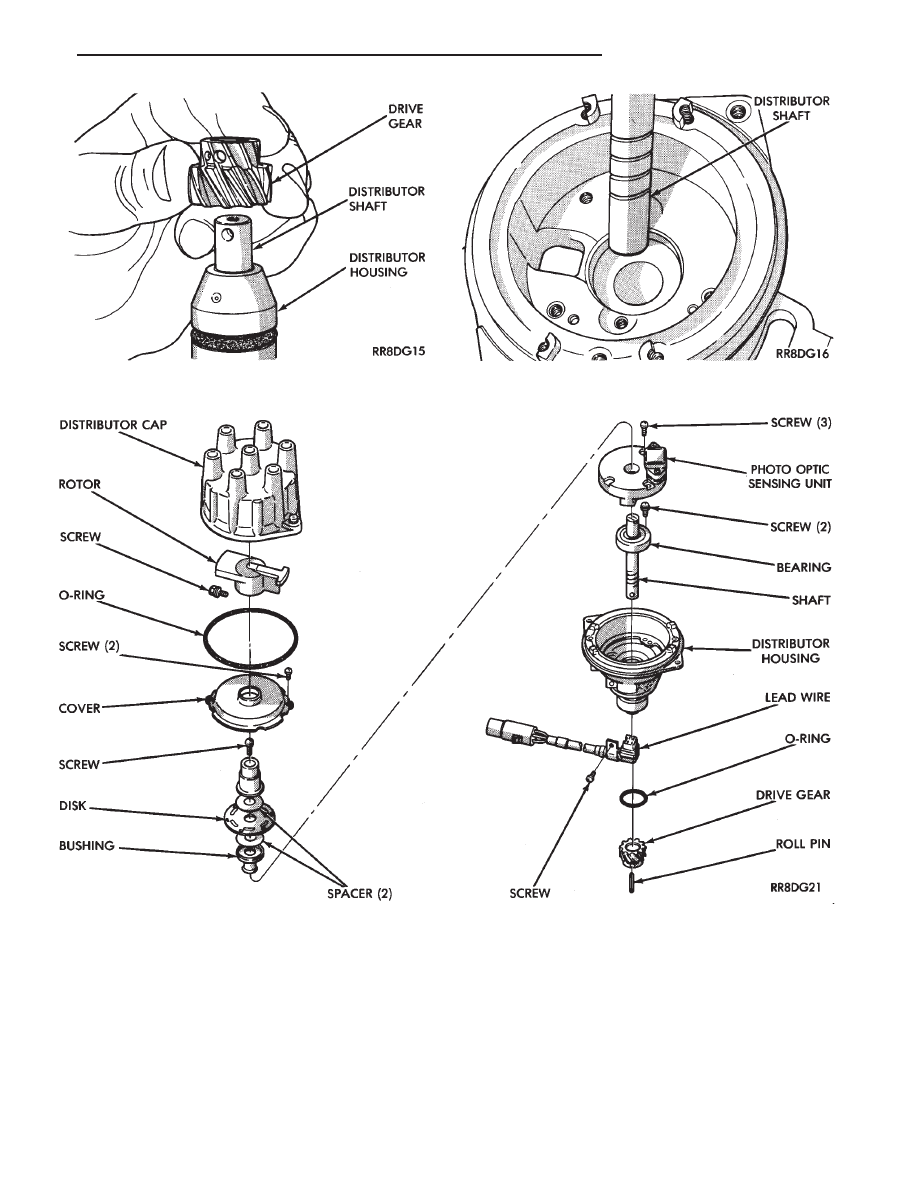

Fig. 37 Distributor—3.0L Engine

.

IGNITION SYSTEMS

8D - 23

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
SERVICE—2.5L TBI AND 3.0L ENGINES

(1) Remove vacuum hose and remove mounting

screws from sensor (Fig. 38 and Fig. 39).

(2) Remove wiring harness and remove sensor.

(3) Reverse the above procedure for installation.

Check that vacuum hose is attached to vacuum source.

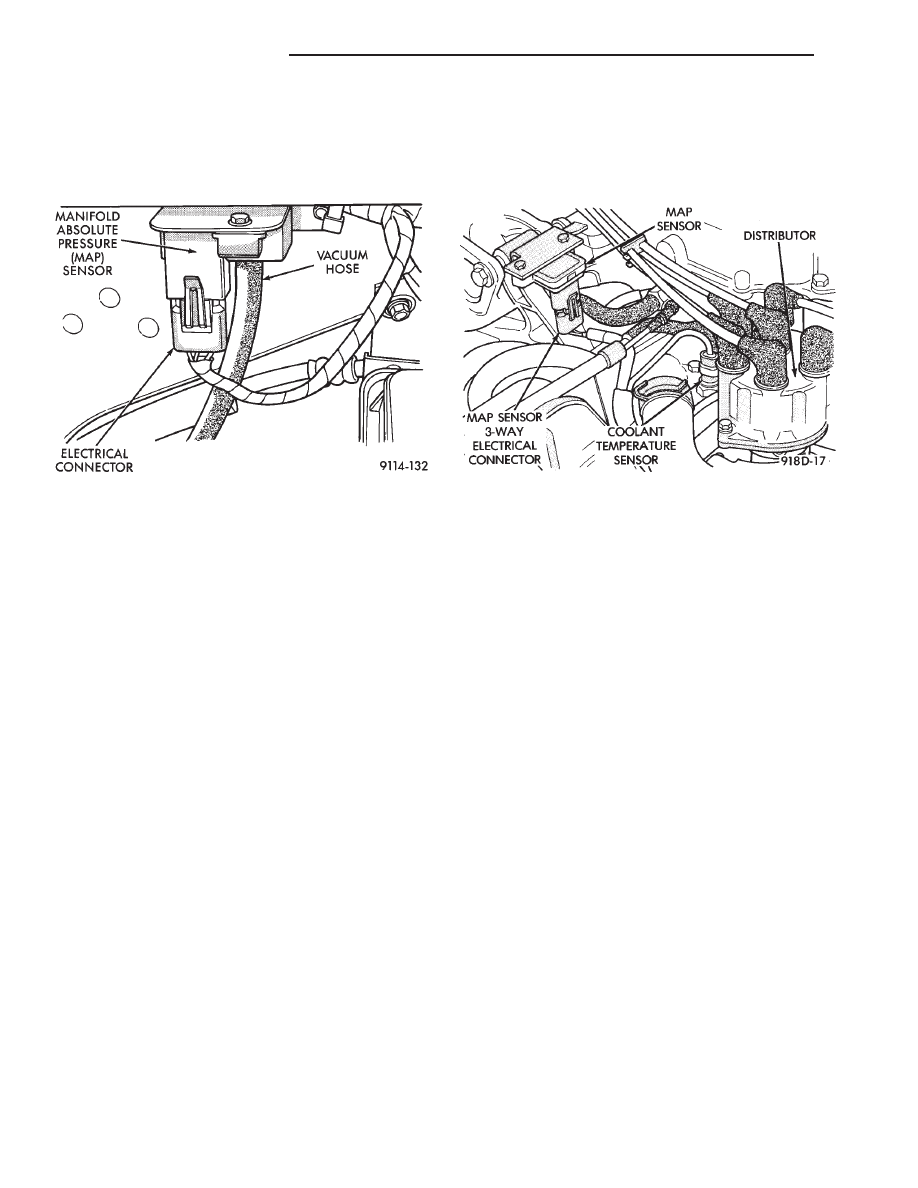

Fig. 38 Manifold Absolute Pressure (MAP)

Sensor—2.5L TBI Engines

Fig. 39 Manifold Absolute Pressure (MAP)

Sensor—3.0L Engine

8D - 24

IGNITION SYSTEMS

.
