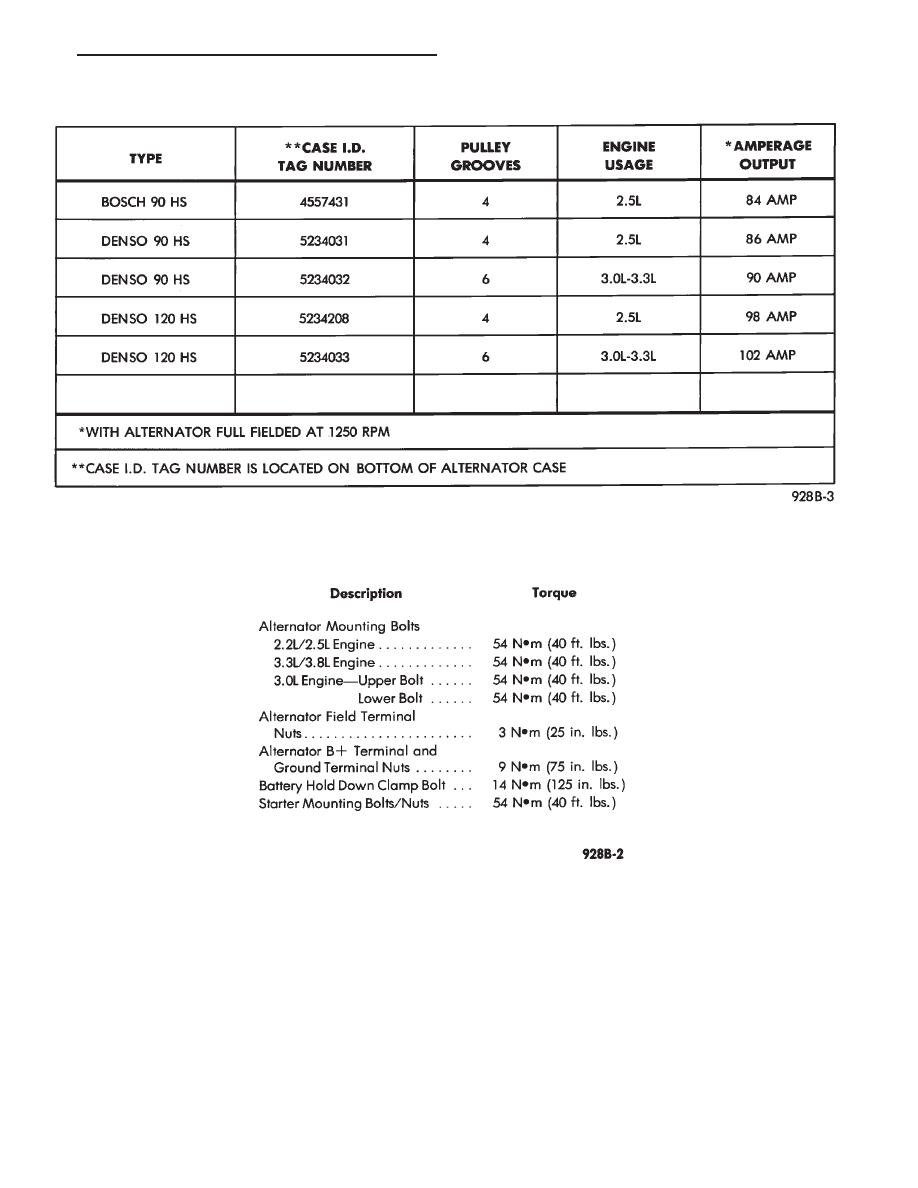

ALTERNATOR AMPERAGE/IDENTIFICATION NUMBERS

TORQUE SPECIFICATIONS—ALTERNATOR/STARTER

.

BATTERY/STARTER/ALTERNATOR SERVICE

8B - 11

OVERHEAD CONSOLE

CONTENTS

page

page

COMPASS MINI-TRIP COMPUTER (CMTC)

. . . . 2

COMPASS MODULE REPLACEMENT

. . . . . . . . . 4

FRONT HEADER READING LAMP

. . . . . . . . . . . 4

FRONT HEADER READING LAMP

REPLACEMENT/LAMP REPLACEMENT

. . . . . . 4

MAP/READING LAMPS

. . . . . . . . . . . . . . . . . . . . 1

OVERHEAD CONSOLE REPLACEMENT . . . . . . . . 4
REAR VENT WINDOWS SWITCHES

. . . . . . . . . . 1

The overhead console includes:

• Four map reading lamps

• Storage compartments for sunglasses and garage
door opener transmitter
• Rear vent windows switches

• Digital electronic display

The Compass Mini Trip Computer (CMTC) electronic

display shows 6 conditions:
• Compass/Temperature.

• Trip odometer (ODO).

• Average miles per gallon (ECO).

• Instant miles per gallon (ECO).

• Distance to empty (DTE).

• Elapsed time (ET).

As the driver pushes the STEP button they will

display individually.

The US/M button changes the display from US to

metric units. For complete operating instructions, refer
to owner’s manual provided with vehicle.

MAP/READING LAMPS

The four map reading lamps are turned on and off by

pressing the lens cover indent. The rear lamps operate
as courtesy lamps when the doors are open or closed.
The lamps also operated when the headlamp POD
switch is slid to the full right position. The front
reading lamps do not come ON with the doors open or
headlamp dimmer switch in courtesy mode (Fig. 1).

LAMP HOUSING REPLACEMENT

(1) Insert a long flat blade tool at either side between

the lamp housing and mounting bracket. Ensure the
tool is between the lamp and bracket. Carefully pry the

lamp from the bracket until it clears one of the four
retaining clips. Locate other clip on the same side and
pry a long side clip. Do the same to other two clips until
it free.

LENS/LAMP REPLACEMENT

(1) Insert a long flat blade tool at inside edge of the

lens. Carefully pry the lens from the housing and pivot
the lens out. May need to move the tool along the edge
to free lens.

(2) Remove bulb by pulling straight down.
(3) Install new bulb by pushing firmly into socket.
(4) Begin at outboard edge pivot lens into position

and snap in. Test by pressing lens from proper opera-
tion and lighting.

LAMP TEST

(1) Close vehicle doors.
(2) Press each lamp lens. Right hand lens should

light passenger lamp and left hand lens should light
drivers lamp.

(3) If either of the rear lamps fail to illuminate, open

vehicle doors.

(a) If rear lamp does not illuminate check for a

burned out bulb.

(b) If front lamp illuminates when doors are open

check switch and wiring (Fig. 2).

REAR VENT WINDOWS SWITCHES

The switch on the right side operates the right rear

vent window and switch on the left operates the left
rear window.

SWITCH VOLTAGE TEST

(1) Remove the overhead console and disconnect

wire connectors.

(2) Ignition switch in the run position.
(3) Connect voltmeter to terminal 4 and 5. Test for

battery voltage.

(4) If no voltage, test 30 amp circuit breaker or wire.
(5) If OK, go to Switch Module Test.

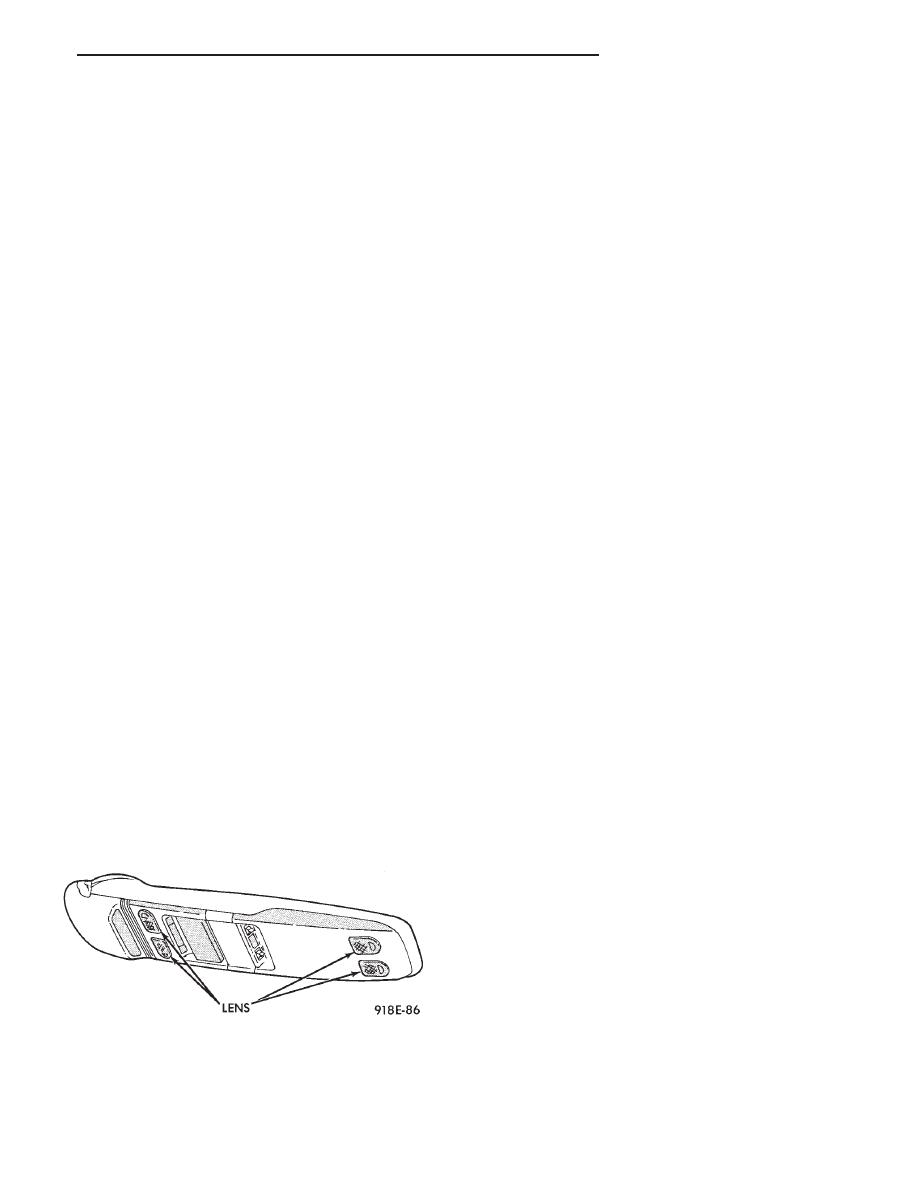

Fig. 1 Overhead Console

.

OVERHEAD CONSOLE

8C - 1

SWITCH MODULE TEST

(1) Remove the overhead console and disconnect

wire connectors.

(2) Ignition switch in the run position.
(3) Using an Ohmmeter refer to Fig. 3 to test

switches.

(4) If no continuity, at any of the positions, replace

switch module.

SWITCH REMOVAL

(1) Remove the overhead console and disconnect

wire connectors.

(2) Remove switch from overhead console by moving

the four retaining tabs. Two are located on the sides
and two at the rear of the module. Take care in
pressing tabs and pivot module out of console.

COMPASS MINI-TRIP COMPUTER (CMTC)

CMTC is a module that combines Traveler and Com-

pass / Temperature features. Actuating the STEP
switch will cause the CMTC to change mode of opera-
tion when ignition is ON. Example:
• Compass/Temperature

• Trip odometer (ODO)

• Average miles per gallon (ECO)

• Instant miles per gallon (ECO)

• Distance to empty (DTE)

• Elapsed time (ET)

THERMOMETER AND COMPASS

Engine temperature can increase the displayed tem-

perature. The CMTC is designed to dampen tempera-
ture readings when the vehicle is moving at a rate
slower than 18 miles per hour.

The outside temperature is measured from a sensor

mounted in the front of the vehicle. If the temperature
is more than 55°C (131°F) or the temperature sending
line is shorted to ground, the temperature display
should read SC. If the temperature is less than -40°C
(-40°F), or the sending line is an open circuit, the
display should read OC.

If the calibration data stored in the Body Controller

is not received, the compass will read only NE North-
East. The CMTC is self calibrating and requires no
adjusting. The word CAL is displayed to show that the
compass is in calibration mode. CAL will turn off after
the vehicle has gone through three complete circles
without stopping, in an area free of magnetic distur-
bance. If module displays temperature while the com-
pass is blank, turn off ignition and run self diagnostics
then demagnetize the vehicle. After demagnetizing,
check compass calibration number, refer to Self Diag-
nostic Test. If greater than 15, demagnetize again until
reading is less than 15. If compass still goes blank after
demagnetizing then check internal diagnostics and
demagnetize.

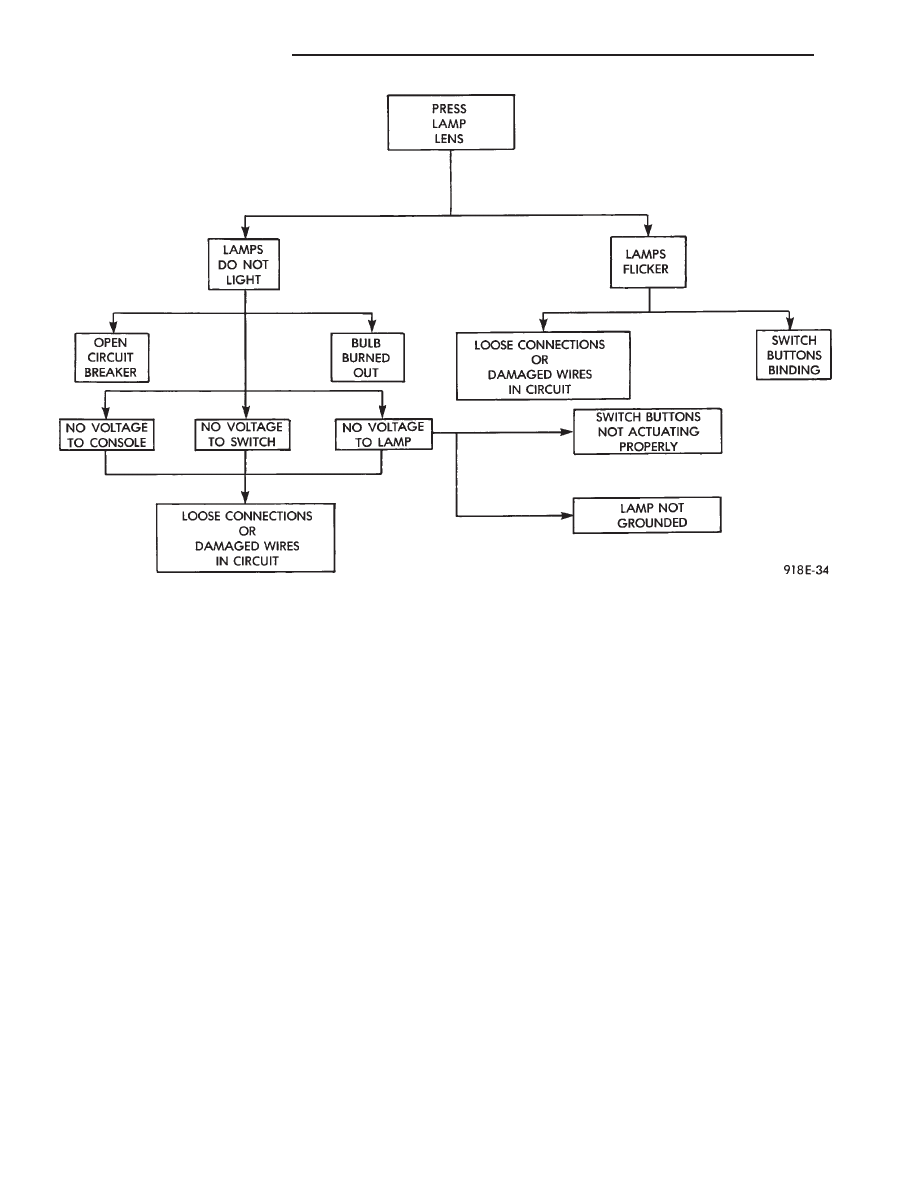

Fig. 2 Map Lamp Diagnosis

8C - 2

OVERHEAD CONSOLE

.
