When rebuilding, reverse the above procedure.
Remove old sealant before applying new Mo-

par

Silicone Rubber Adhesive Sealant. Use Mo-

par

Silicone Rubber Adhesive Sealant on re-

tainer to seal retainer to case.

BEARING ADJUSTMENT PROCEDURES

GENERAL RULES ON SERVICING BEARINGS

(1) Take extreme care when removing and in stalling

bearing cups and cones. Use only an arbor press for
installation,
as a hammer may not properly align the
bearing cup or cone. Burrs or nicks on the bearing seat
will give a false end play reading, while gauging for
proper shims. Improperly seated bearing cup and cones
are subject to low-mileage failure.

(2) Bearing cups and cones should be replaced if they

show signs of pitting or heat distress.

If distress is seen on either the cup or bearing rollers,

both cup and cone must be replaced.

Bearing end play and drag torque specifica-

tions must be maintained to avoid premature
bearing failures.

Used (original) bearing may lose up to 50% of the

original drag torque after break-in.

All bearing adjustments must be made with no

other component interference or gear inter-
mesh, except the transfer gear bearing.

Oil all bearings before checking turning torque.

OUTPUT GEAR BEARING

With output gear removed:

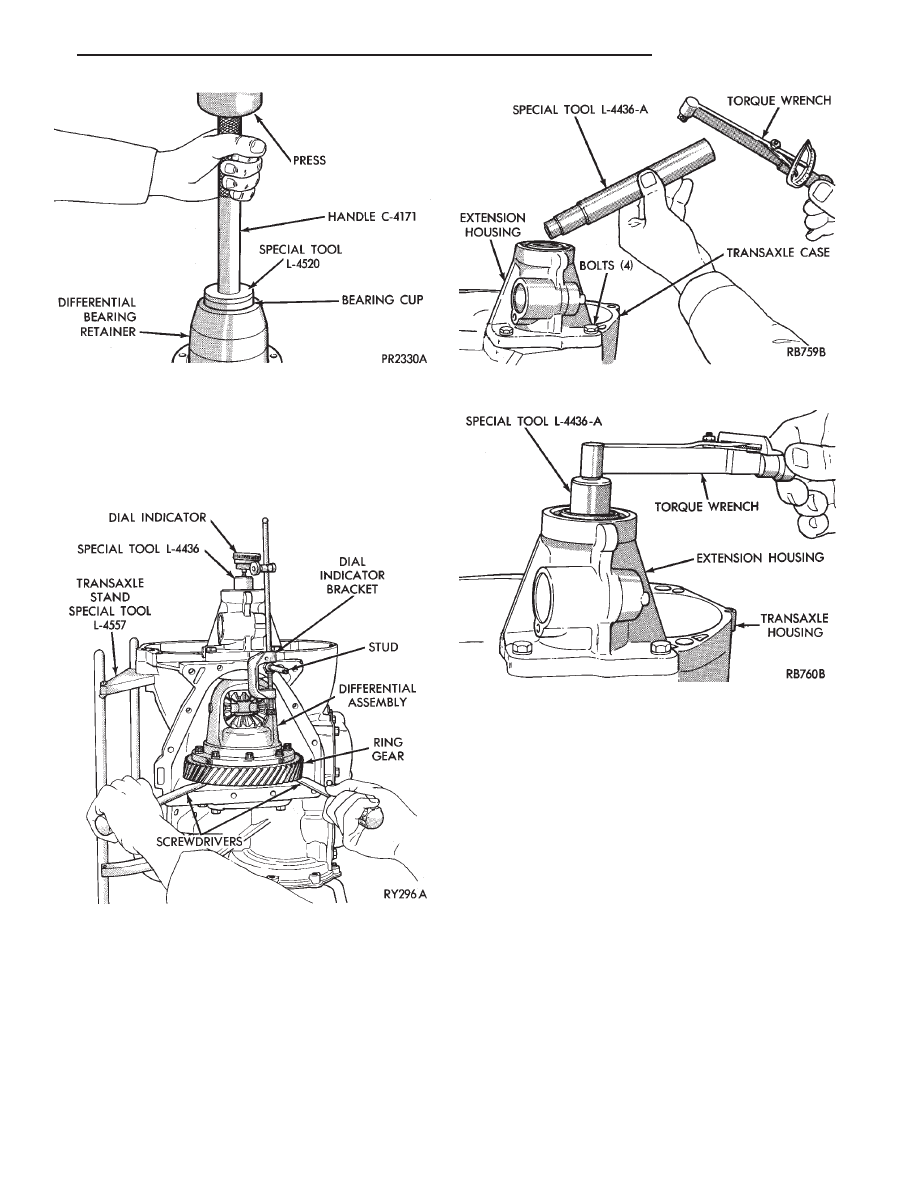

Fig. 27 Install Bearing Cup

Fig. 28 Checking Differential End Play

Fig. 29 Tool L-4436 and Torque Wrench

Fig. 30 Checking Differential Bearings Turning

Torque

.

TRANSAXLE

21 - 137

(1) Install a 4.50 mm (0.177 inch) gauging shim on

the rear carrier assembly hub, using grease to hold the
shim in place.

(2) Install output gear and bearing assembly. Torque

to 271 N

Im (200 ft. lbs.).

(3) To measure bearing end play:

(a) Attach Tool L-4432 to the gear.
(b) Push and pull the gear while rotating back and

forth to insure seating of the bearing rollers.

(c) Using a dial indicator, mounted to the tran-

saxle case, measure output gear end play.
(4) Once bearing end play has been determined,

refer to the output gear bearing shim chart for the
required shim to obtain proper bearing setting.

(5) Use Tool 6259 to remove the retaining nut and

washer. To remove the output gear, use Tool L-4407.

(6) Remove the gauging shim and install the proper

shim. Use grease to hold the shim in place. Install the
output gear and bearing assembly.

(7) Install the retaining nut and washer and torque

to 271 N

Im (200 ft. lbs.).

(8) Using an inch-pound torque wrench, check the

turning torque. The torque should be between 3
and 8 inch-pounds.

If the turning torque is too high, install a .04 mm

(.0016 inch) thicker shim. If the turning torque is too
low, install a .04 mm (.0016 inch) thinner shim. Repeat
until the proper turning torque is 3 to 8 inch pounds.

DIFFERENTIAL BEARING

(1) Remove the bearing cup from the differential

bearing retainer using Tool L-4518, and remove the
existing shim from under the cup.

(2) Install a .50 mm (.020 inch) gauging shim and

reinstall the bearing cup into the retainer. Use an
arbor press to install the cup.

Oil Baffle is not required when making shim

selection.

(3) Install the bearing retainer into the case and

torque bolts to 28 N

Im (250 in. lbs.).

(4) Position the transaxle assembly vertically on the

support stand and install Tool C-4995 into side gear.

(5) Rotate the differential at least one full revolution

to ensure the tapered roller bearings are fully seated.

(6) Attach a dial indicator to the case and zero the

dial indicator. Place the indicator tip on the end of Tool

L-4436.

(7) Place a large screwdriver to each side of the ring

gear and lift. Check the dial indicator for the amount of
end play.

CAUTION: Do not damage the transaxle case and/or
differential cover sealing surface.

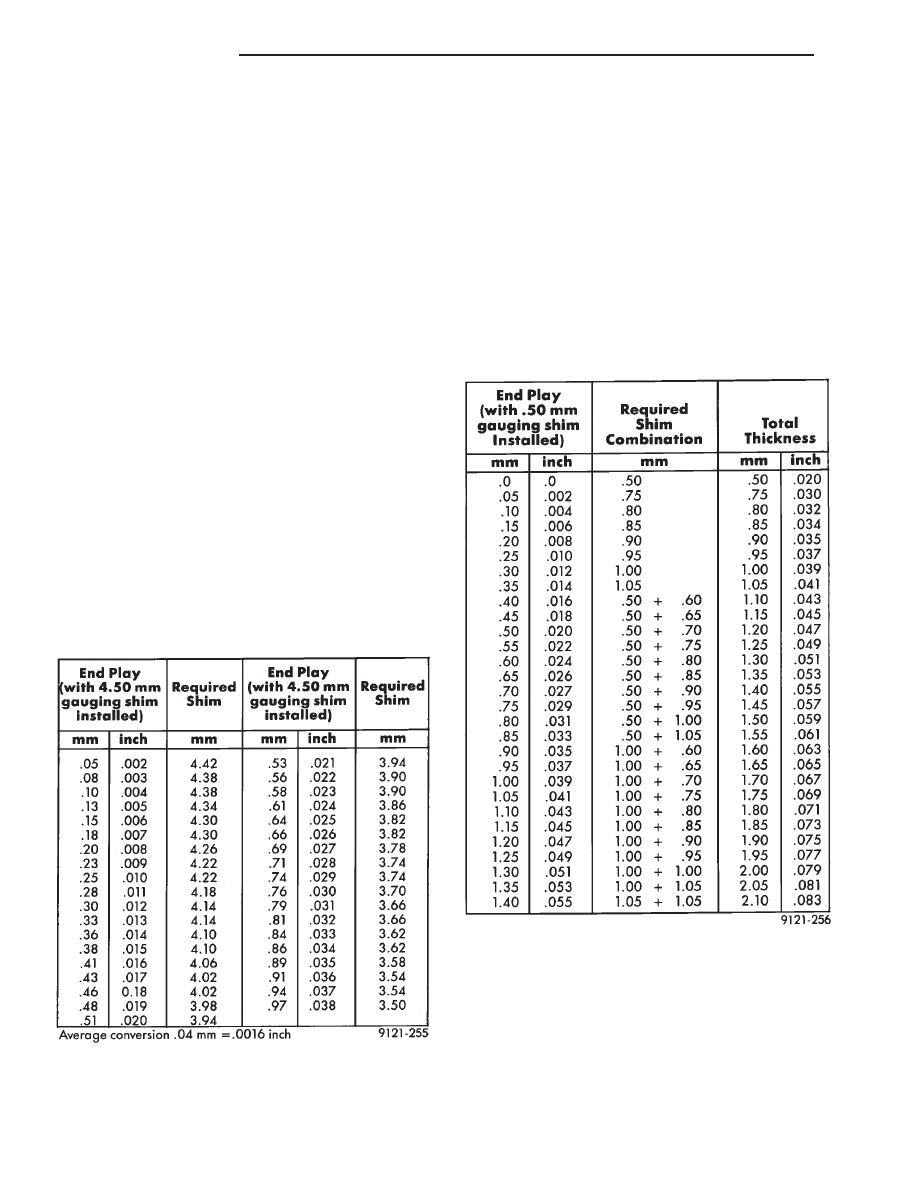

OUTPUT GEAR BEARING SHIM CHART

DIFFERENTIAL BEARING SHIM CHART

21 - 138

TRANSAXLE

.

(8) When the end play has been determined, refer to

the Differential Bearing Shim Chart for the correct
shim combination to obtain the proper bearing setting.

(9) Remove the differential bearing retainer. Re-

move the bearing cup and the .50 mm (.020 inch)
gauging shim.

(10) Install the proper shim combination under the

bearing cup. Make sure the oil baffle is installed
properly in the bearing retainer, below the bearing
shim and cup.

(11) Install the differential bearing retainer. Seal

the retainer to the housing with Mopar

t Silicone

Rubber Adhesive Sealant and torque bolts to 28 N

Im

(250 in. lbs.).

(12) Using Tool C-4995 and an inch-pound torque

wrench, check the turning torque of the differential.
The turning torque should be between 5 and 18
inch-pounds.

If the turning torque is too high, install a .05

mm (.002 inch) thinner shim. If the turning
torque is too low, install a .05 mm (.002 inch)
thicker shim. Repeat until 5 to 18 inch-pounds
turning torque is obtained.

TRANSFER SHAFT BEARING

(1) Use Tool 6259 to remove the retaining nut and

washer. Remove the transfer shaft gear using Tool
L-4407.

(2) Install a 4.66 mm (.184 inch) gauging shim on the

transfer shaft.

(3) Install transfer shaft gear and bearing assembly

and torque the nut to 271 N

Im (200 ft. lbs.).

(4) To measure bearing end play:

(a) Attach Tool L-4432 to the transfer gear.
(b) Mount a steel ball with grease into the end of

the transfer shaft.

(c) Push and pull the gear while rotating back and

forth to insure seating of the bearing rollers.

(d) Using a dial indicator, measure transfer shaft

end play.
(5) Refer to the Transfer Bearing Shim Chart for the

required shim combination to obtain the proper bear-
ing setting.

(6) Use Tool 6259 to remove the retaining nut and

washer. Remove the transfer shaft gear using Tool
L-4407.

(7) Remove the gauging shim and install the correct

shim. Install the transfer gear and bearing assembly.

(8) Install the retaining nut and washer and torque

to 271 N

Im (200 ft. lbs.). Measure transfer shaft

end play, end play should be .05 to .10 mm (.002 to
.004 inch).

(9) Measure bearing end play as outlined in Step (4).

End play should be between .05 mm and .10 mm (.002
to .004 inch).

If end play is too high, install a .04 mm (.0016

inch) thinner shim. If end play is too low, install
a .04 mm (.0016 inch) thicker shim combination.
Repeat until .05 to .10 mm (.002 to .004 inch) end
play is obtained.

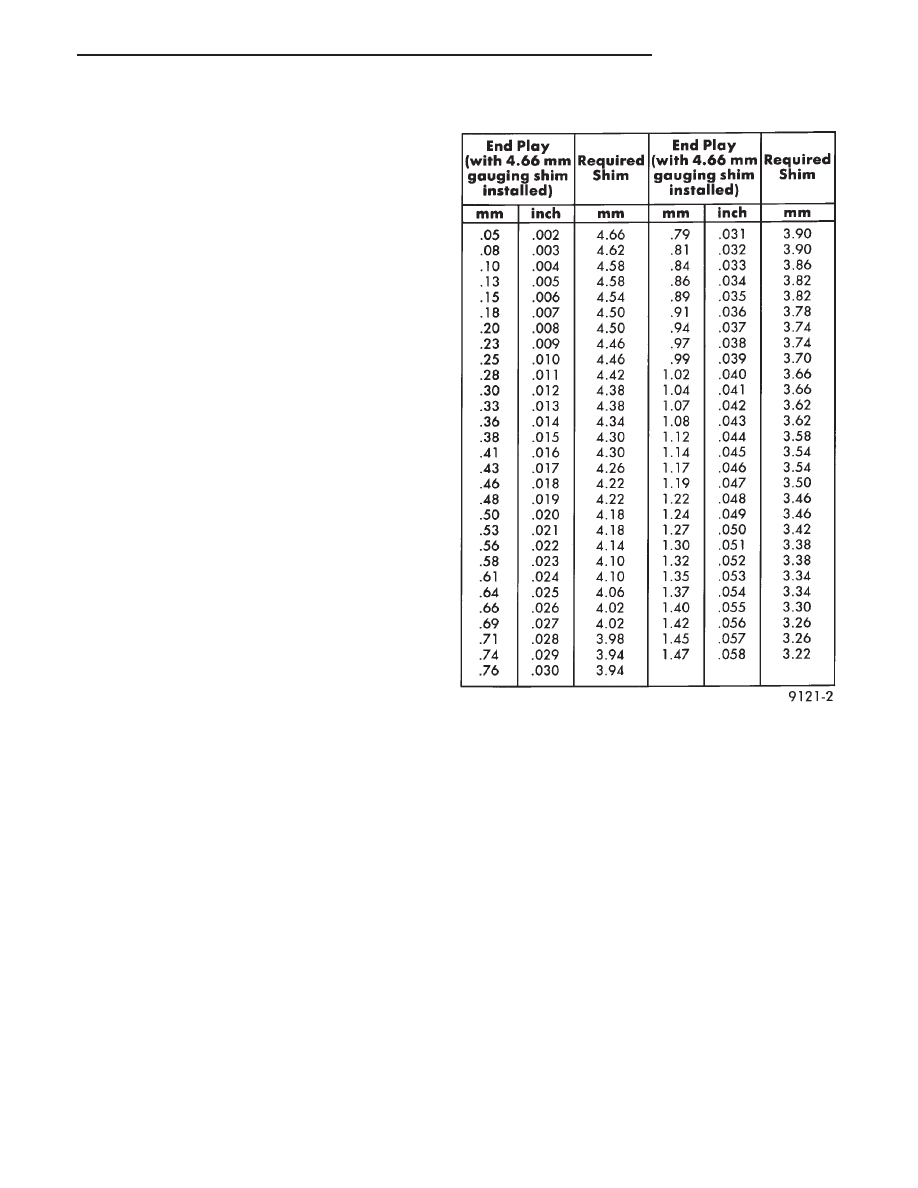

TRANSFER BEARING SHIM CHART

.

TRANSAXLE

21 - 139

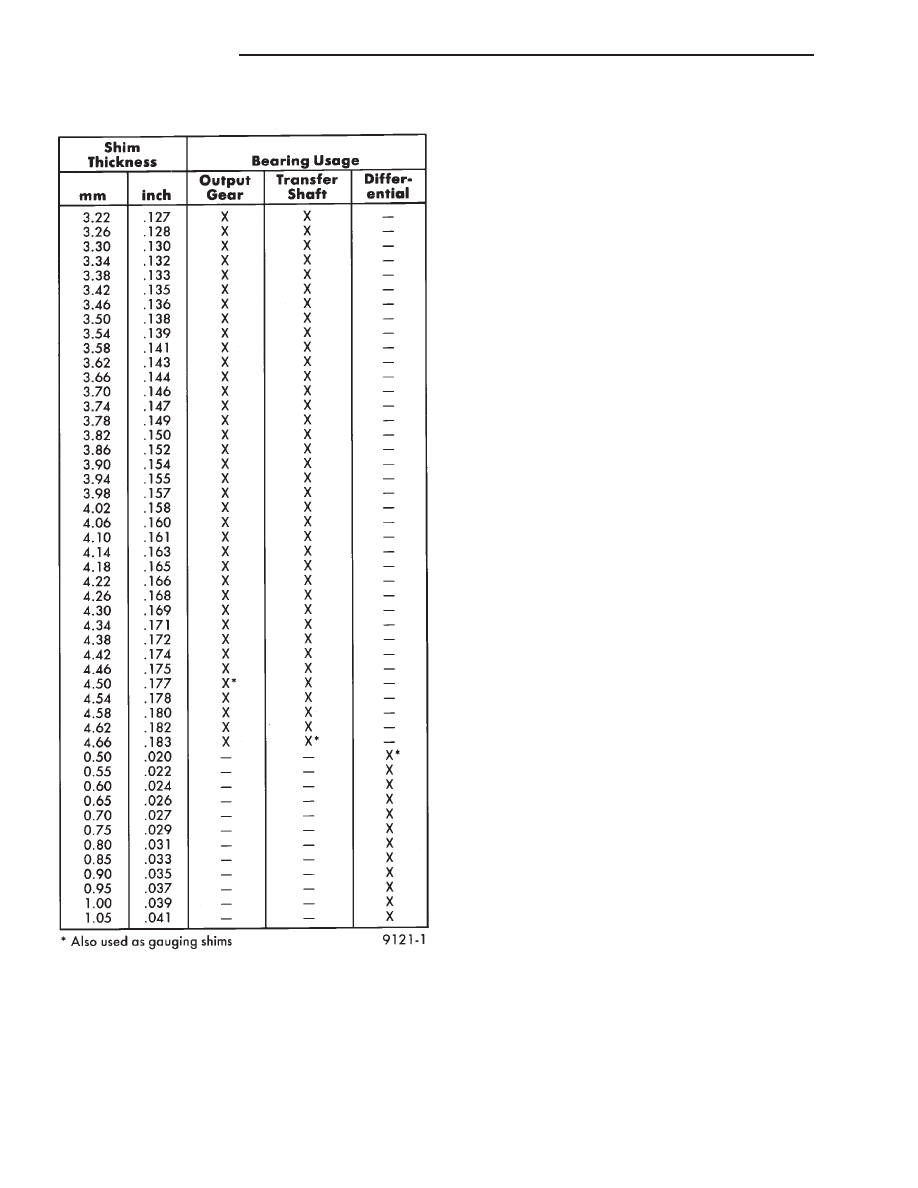

BEARING SHIM CHART

21 - 140
