Fig. 185: Identifying Differential Side Bearing Components 11. Install the differential side bearings by performing the following steps: 1. In order to protect the differential case, install the J 36597 in the case on the side opposite the bearing installation. See Special Tools. 2. Install the J 29710 (2) and the J 8092 (1) onto the differential case bearing as shown. See Special Tools. 3. Drive the differential case bearing onto the case using the J 29710 and the J 8092 . See Special Tools. FRONT DIFFERENTIAL DRIVE PINION GEAR BEARING CUP INSTALLATION (9.25 INCH Tools Required J 45754 Pinion Bearing Race Remover/Installer - 9. See Special Tools.25 in Axle Installation 1. Before assembly, lubricate the following parts with axle lubricant. Use the correct fluid. Refer to Sealers, Adhesives, and Lubricants. The pinion bearings The pinion and the differential gears The thrust washers The pinion bearing cups
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

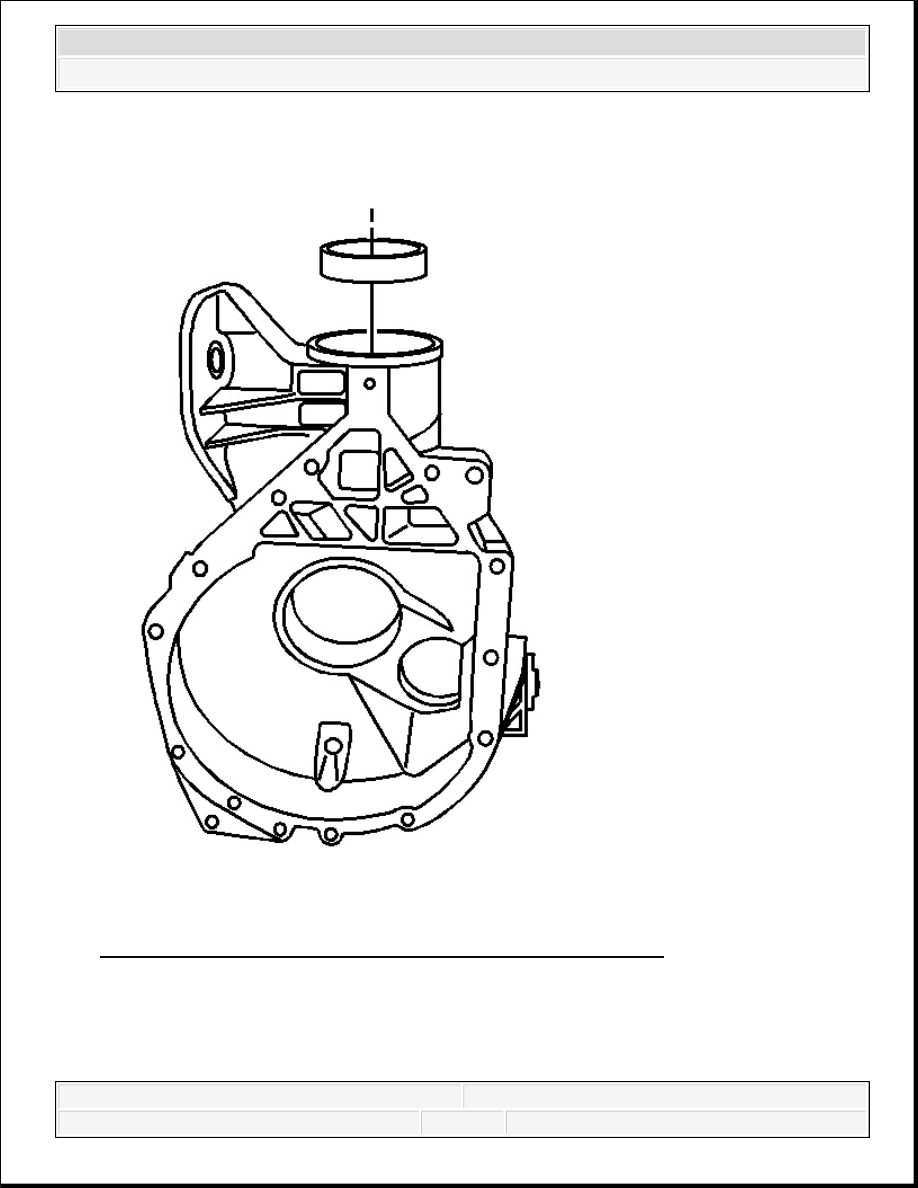

Fig. 186: Installing Outer Pinion Bearing Cup (9.25 Inch Axle) 2. Install the outer pinion bearing cup into the outer pinion bearing cup bore.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

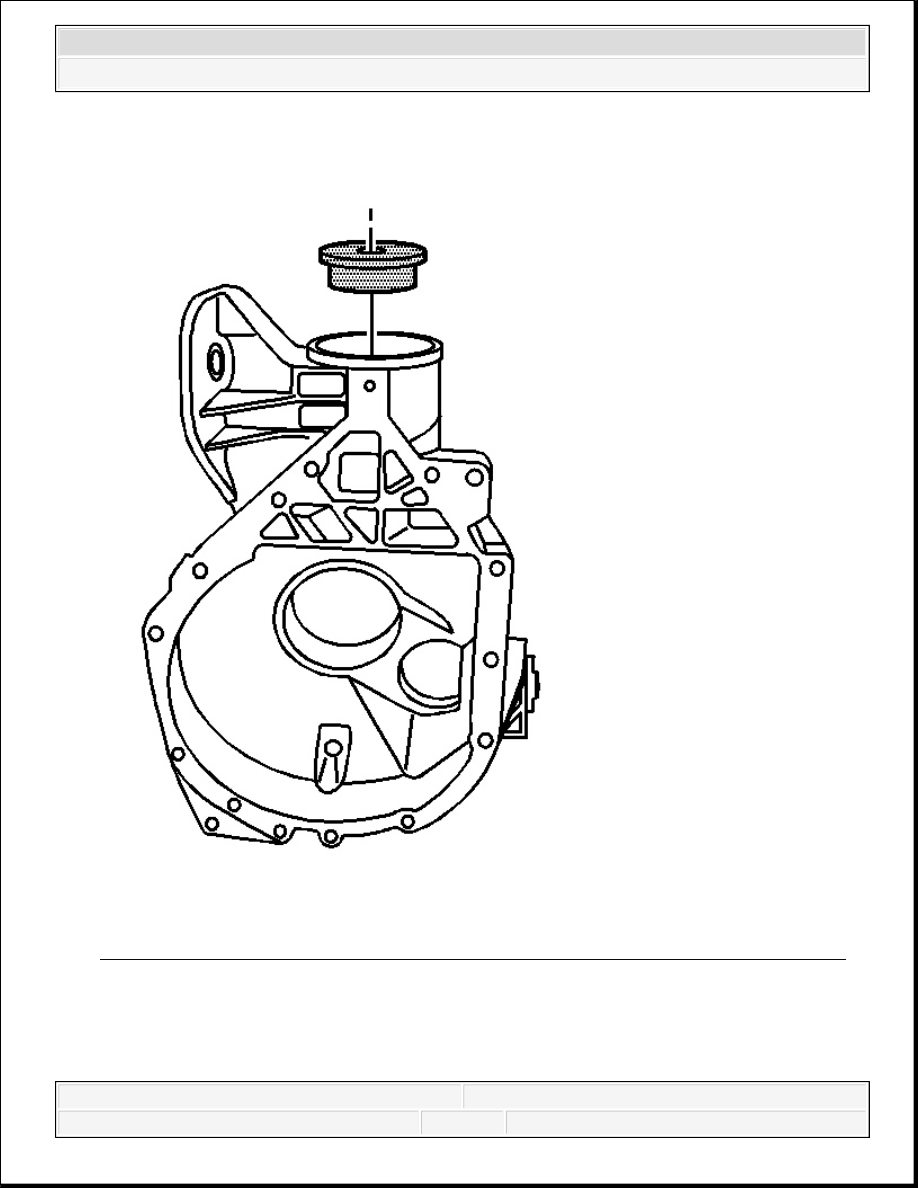

Fig. 187: Installing J 45754-1 Over The Outer Pinion Bearing Cup (9.25 Inch Axle) 3. Install the J 45754-1 over the outer pinion bearing cup.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

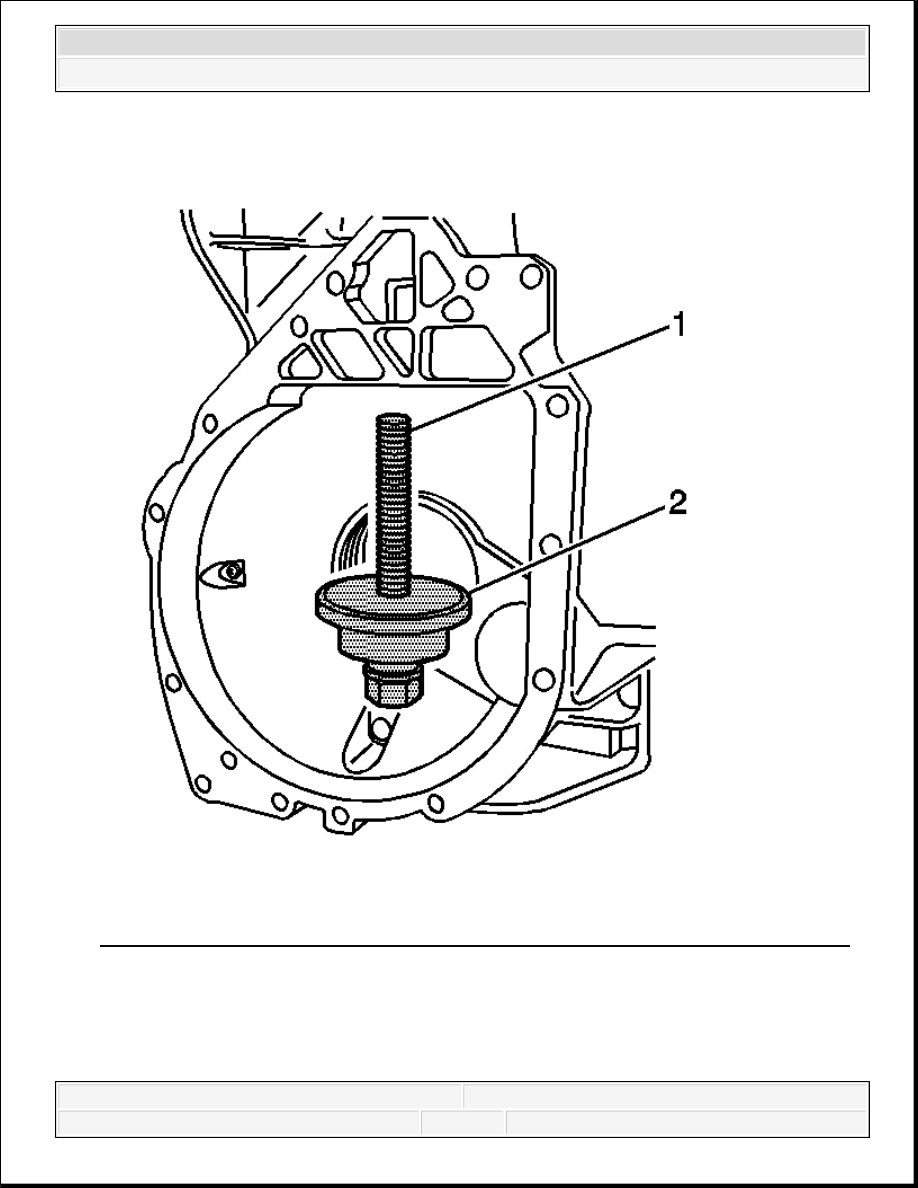

Fig. 188: Installing J 45754-2 Over Inner Pinion Bearing Cup Bore (9.25 Inch Axle) 4. Install the forcing screw (1), the J 45754-2 (2) into the inner pinion bearing cup bore. 5. Attach the forcing screw to the J 45754-1.
